All Models

Adjust caster by turning nuts on strut rods (see Fig 1). Turning nuts on rod will move lower control arm forward or rearward for desired caster angle. Tighten adjusting nuts to 65 ft. lbs. and jam nuts to 75 ft. lbs. after adjustment.

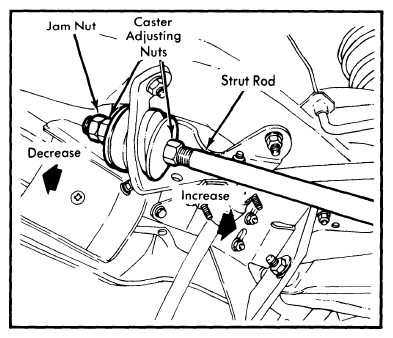

Fig 1: Caster Adjustment

Courtesy of AMERICAN MOTORS/RENAULT CORP.
