Switch Test
- Connect a jumper wire between Red wire and Yellow or Violet wire at switch connector. Connect a second jumper between Black wire and Orange or Dark Green wire. Motor should move window up or down.

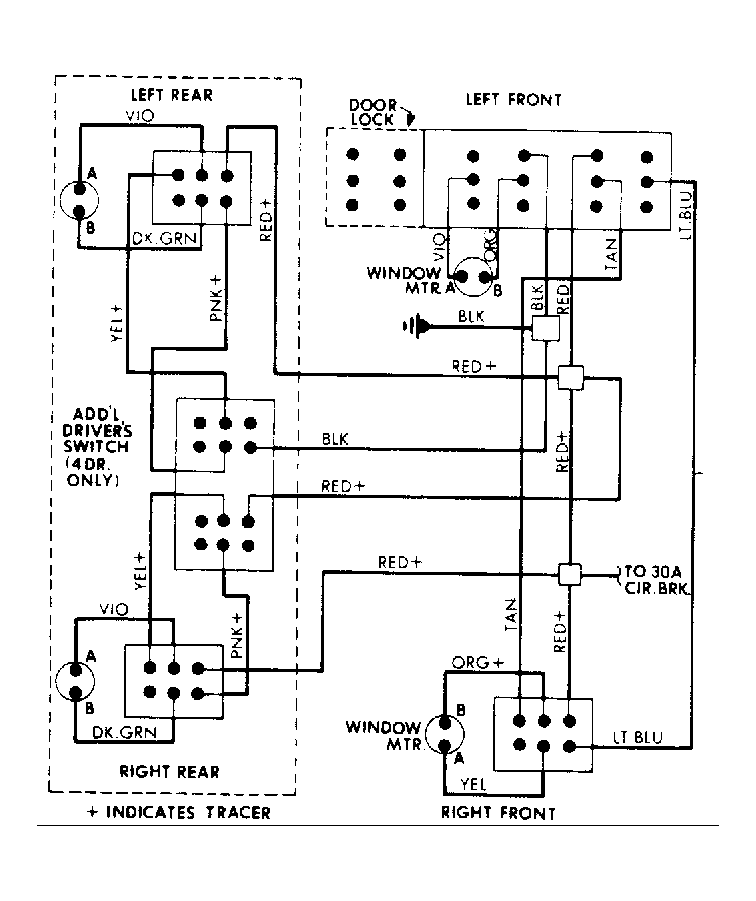

- Reverse jumper wire connections. Motor should move window in opposite direction from first test. See Figure . If motor operates properly, reconnect switch and test for correct operation. If not, replace switch. If motor did not operate properly, test window motor. Test all switches and motors.
