Wiring Diagrams

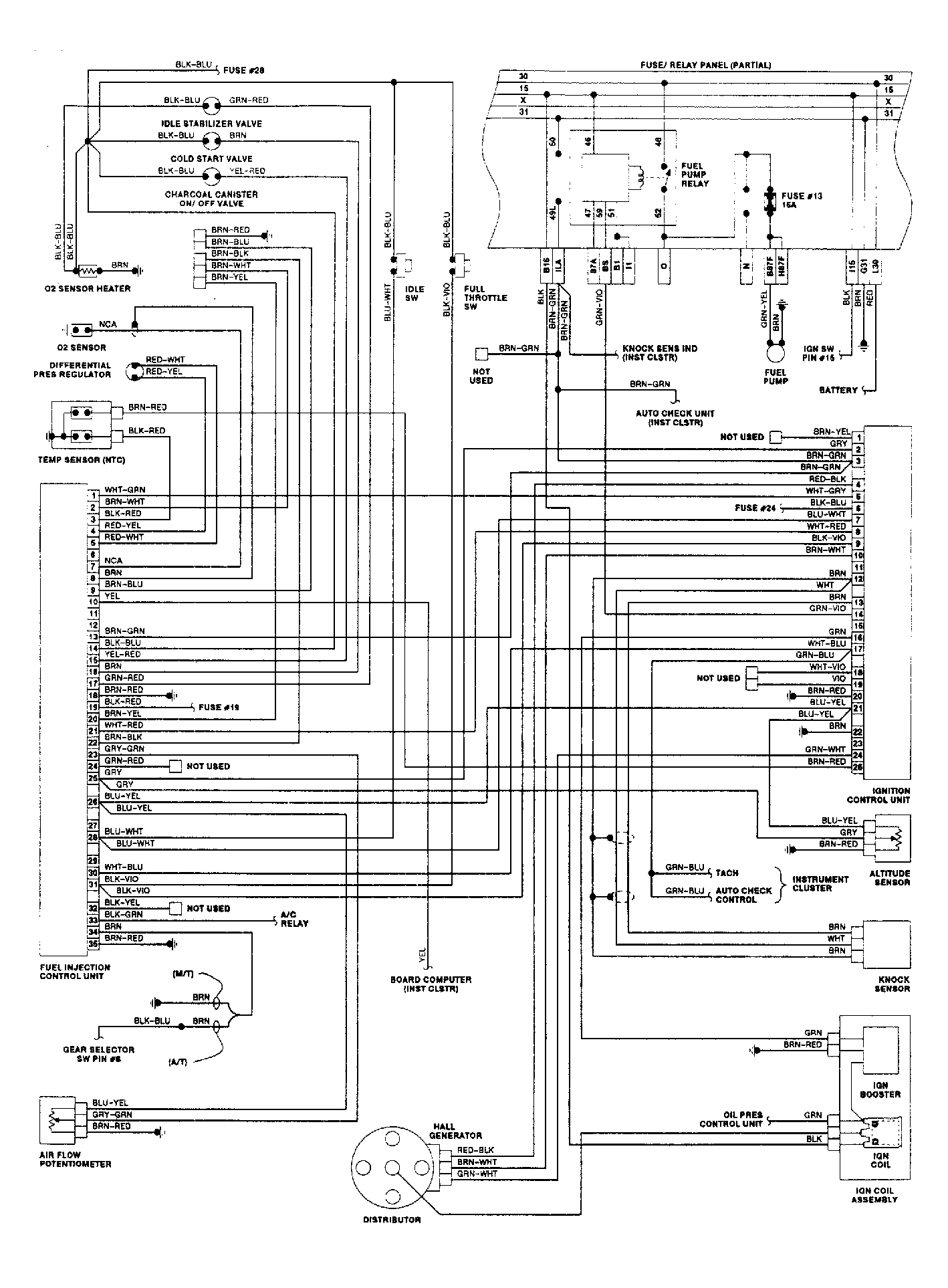

Fig 1: Audi 90 CIS-III Wiring Diagram

G94363

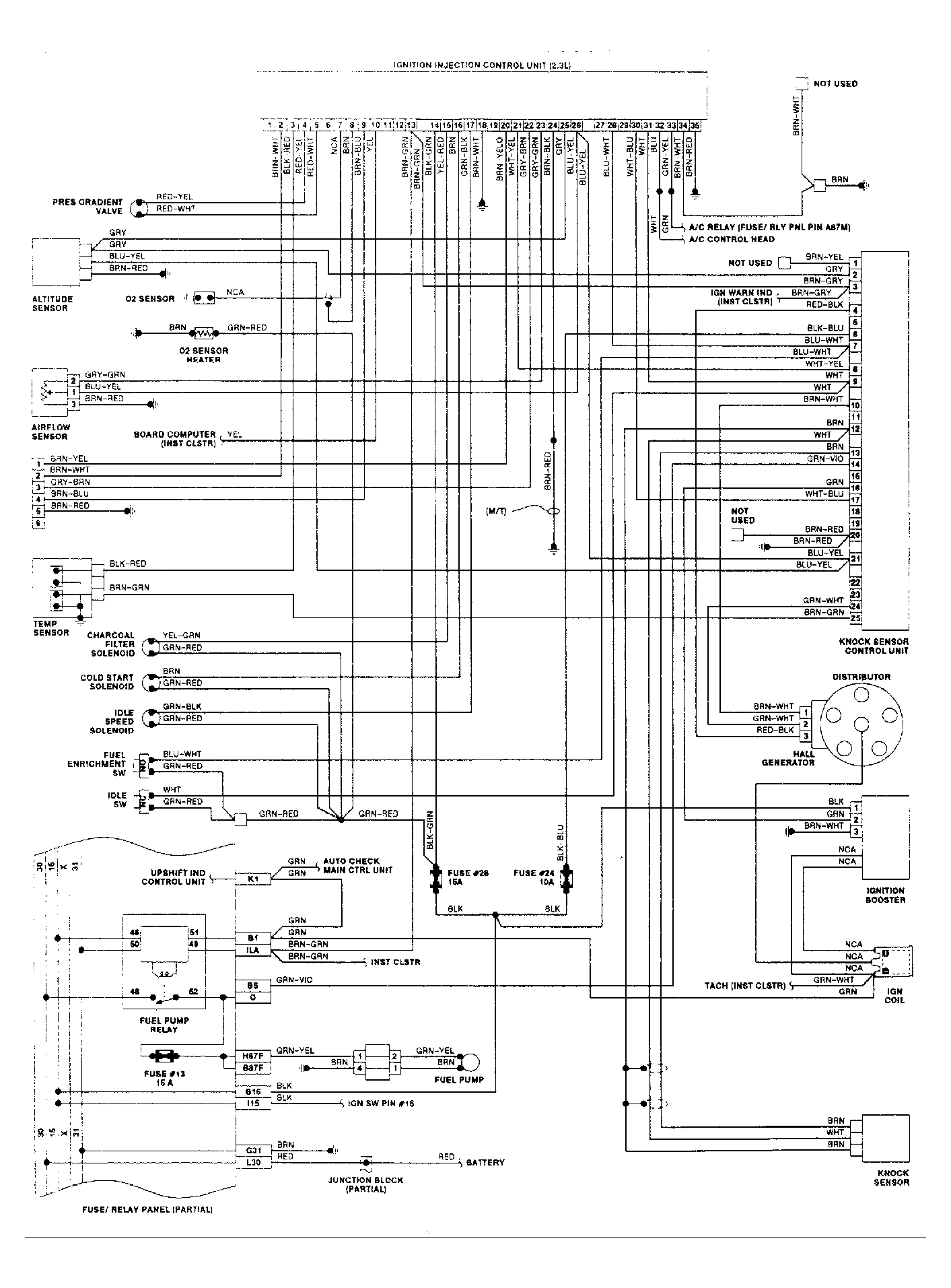

Fig 2: Audi 5000S CIS-III Wiring Diagram

G94364
