Service Point Locations

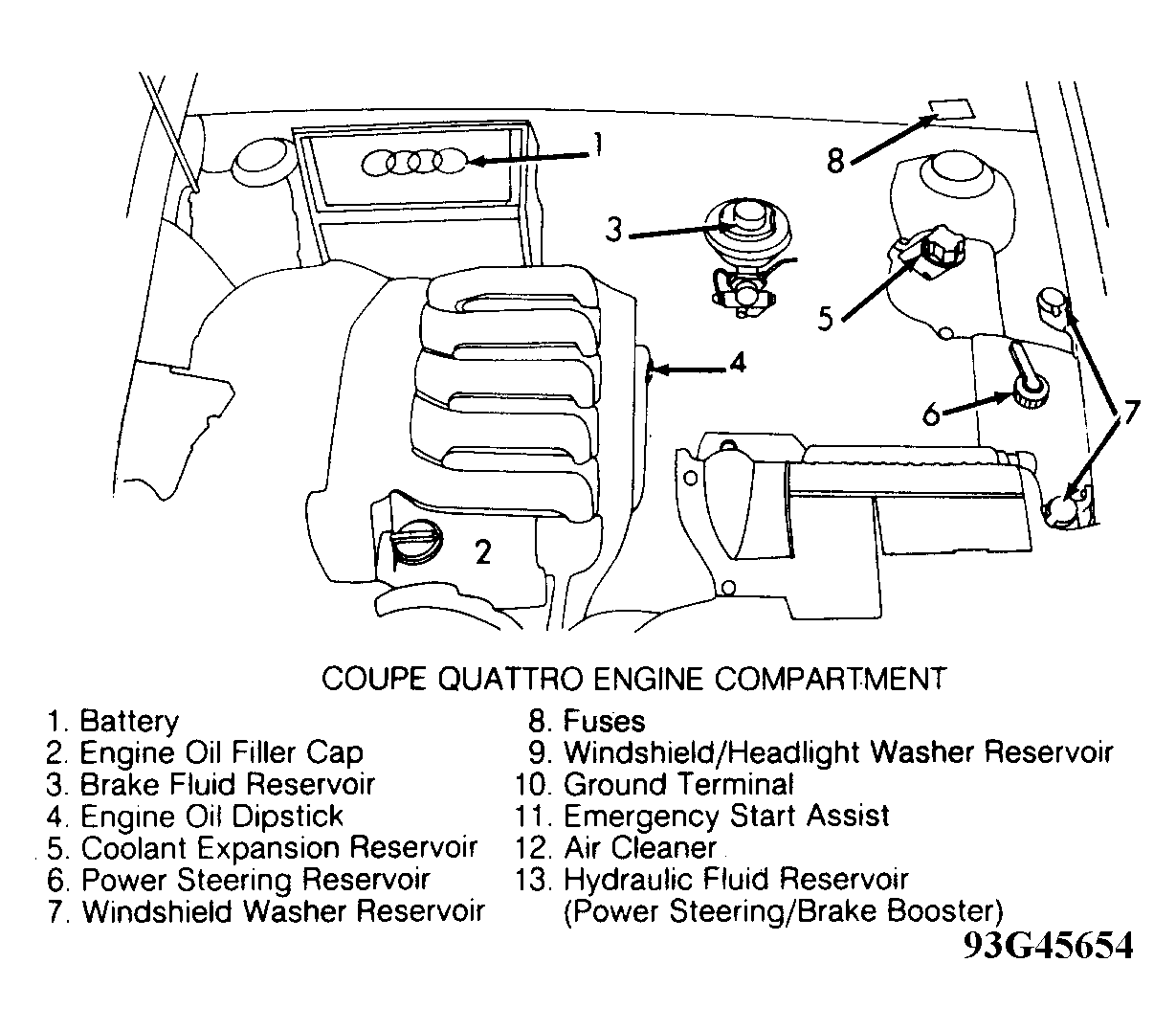

Fig 1: Service Point Locations (Coupe Quattro)
Courtesy of AUDI OF AMERICA, INC.

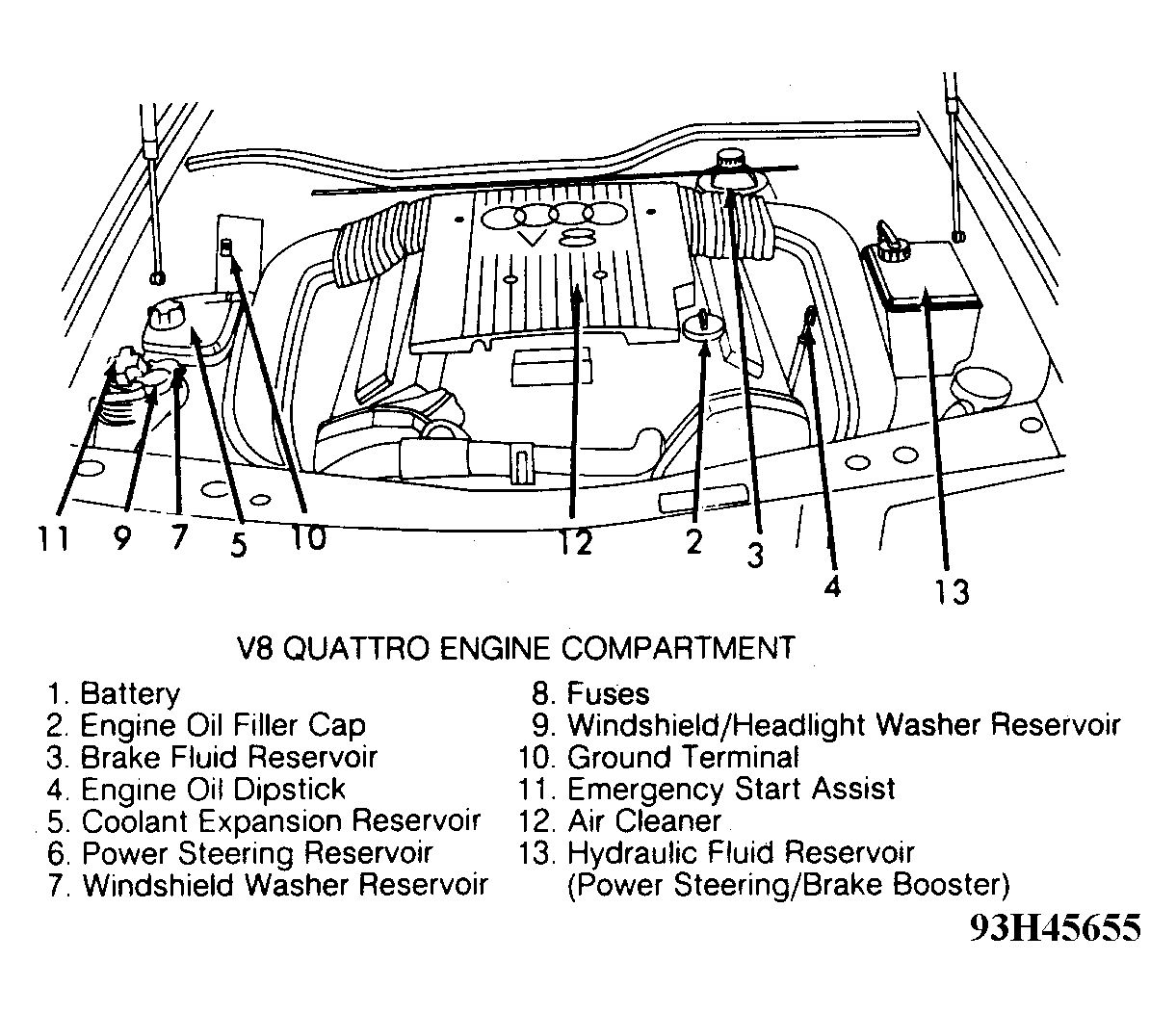

Fig 2: Service Point Locations (V8 Quattro)
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
