Spark Plug: Locations

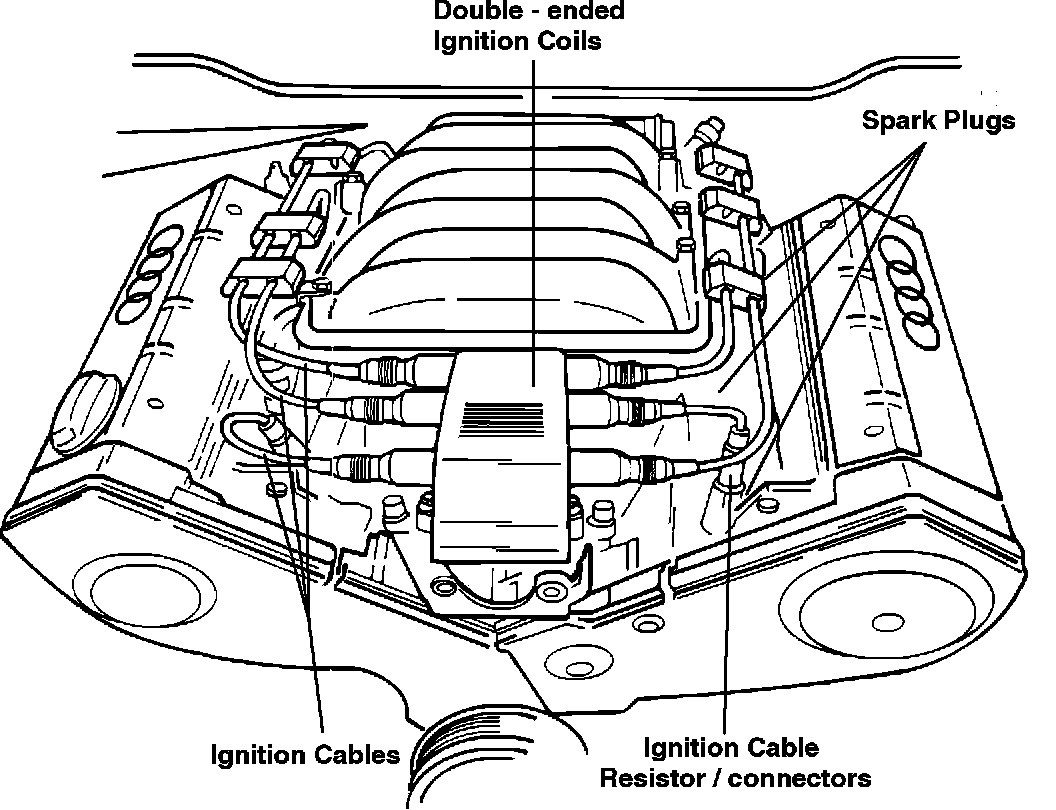

Secondary Ignition Component Locations:

The Spark Plugs are mounted in recessed holes machined in the cylinder head that lay between the intake manifold and valve covers. A resistor/connector is attached to the top and cover the spark plug. Locate by following ignition cables to spark plugs.
