Display Group 002

Display Group 002

Display Group 002 Overview:




Display Overview

Display Group 002 Test Table, Display Fields 1 & 2:




Test Table

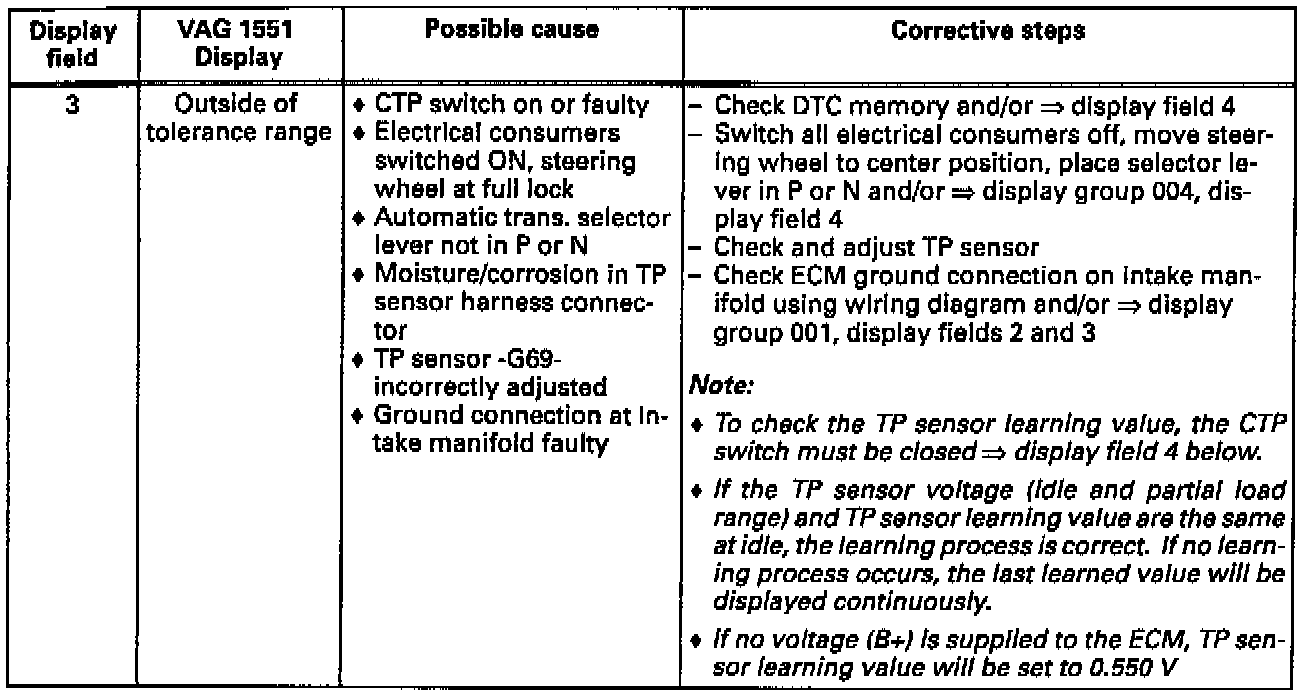

Display Group 002 Test Table, Display Field 3:




Test Table

Display Group 002 Test Table, Display Field 4:




Test Table
