Component Locations

Use following illustrations to locate engine performance related components. See Fig 1 -Fig 4 .

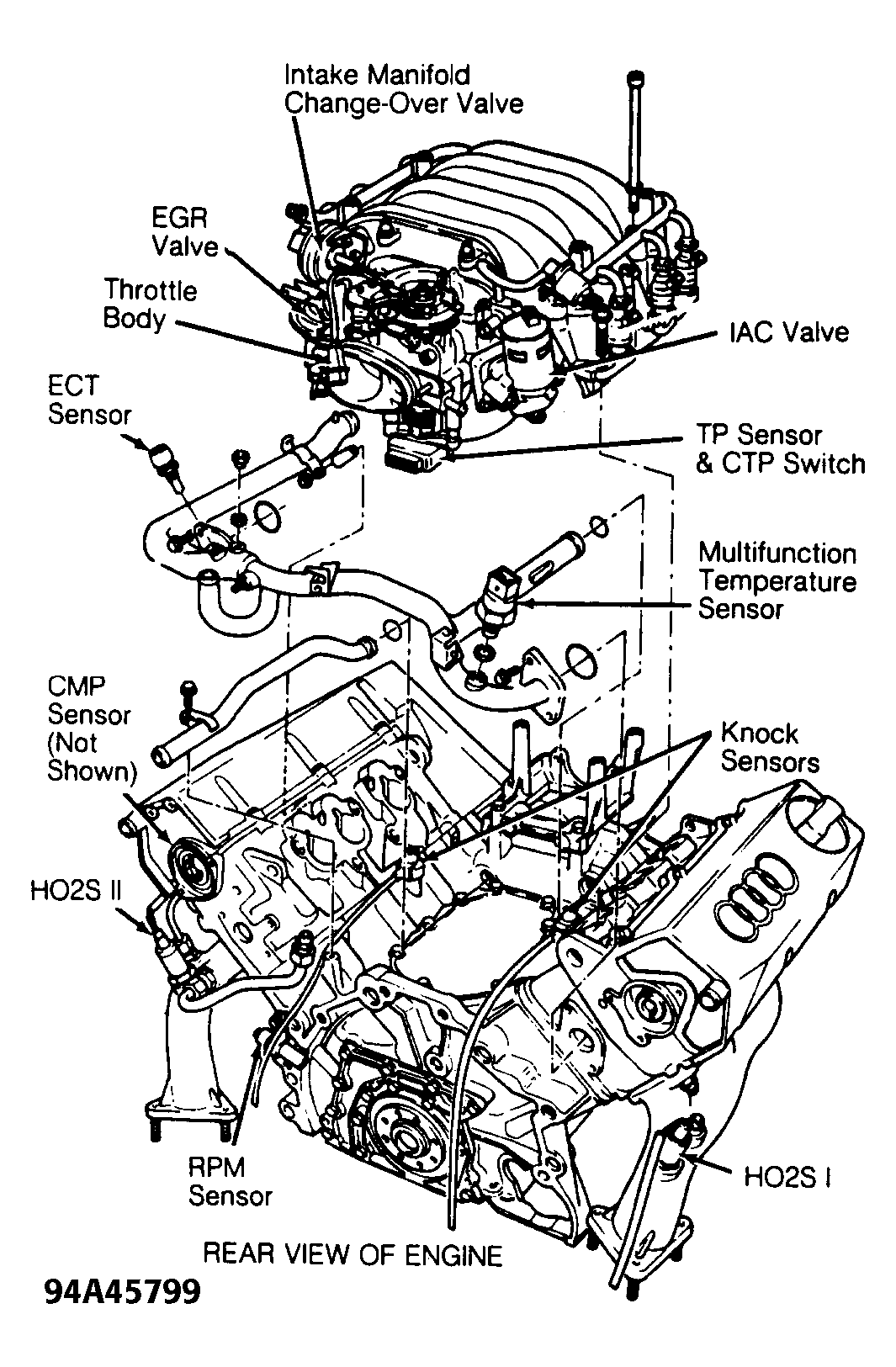

Fig 1: Locating Engine Control Components

Courtesy of AUDI OF AMERICA, INC.

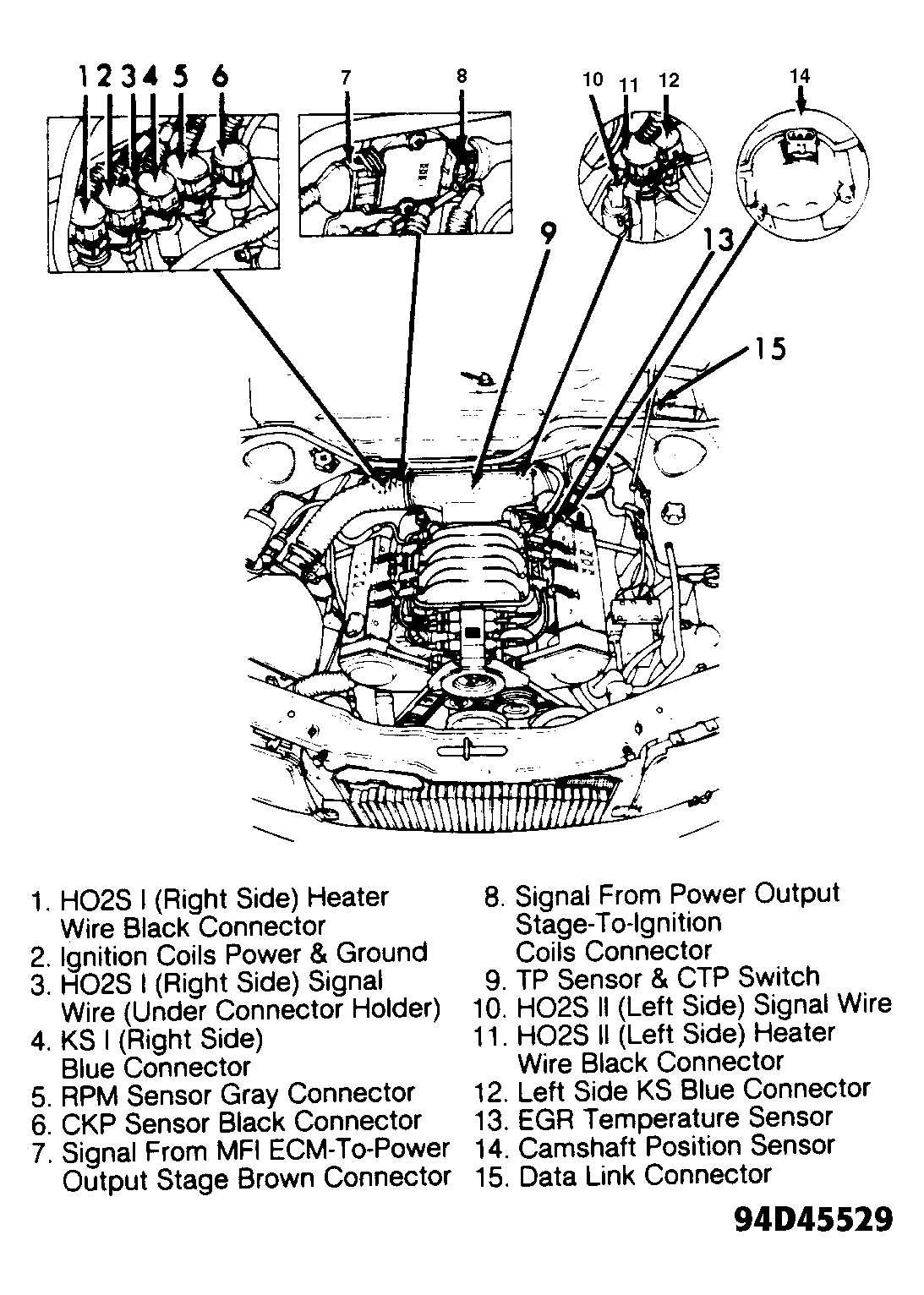

Fig 2: 2.8L MFI Component & Connector Locations (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

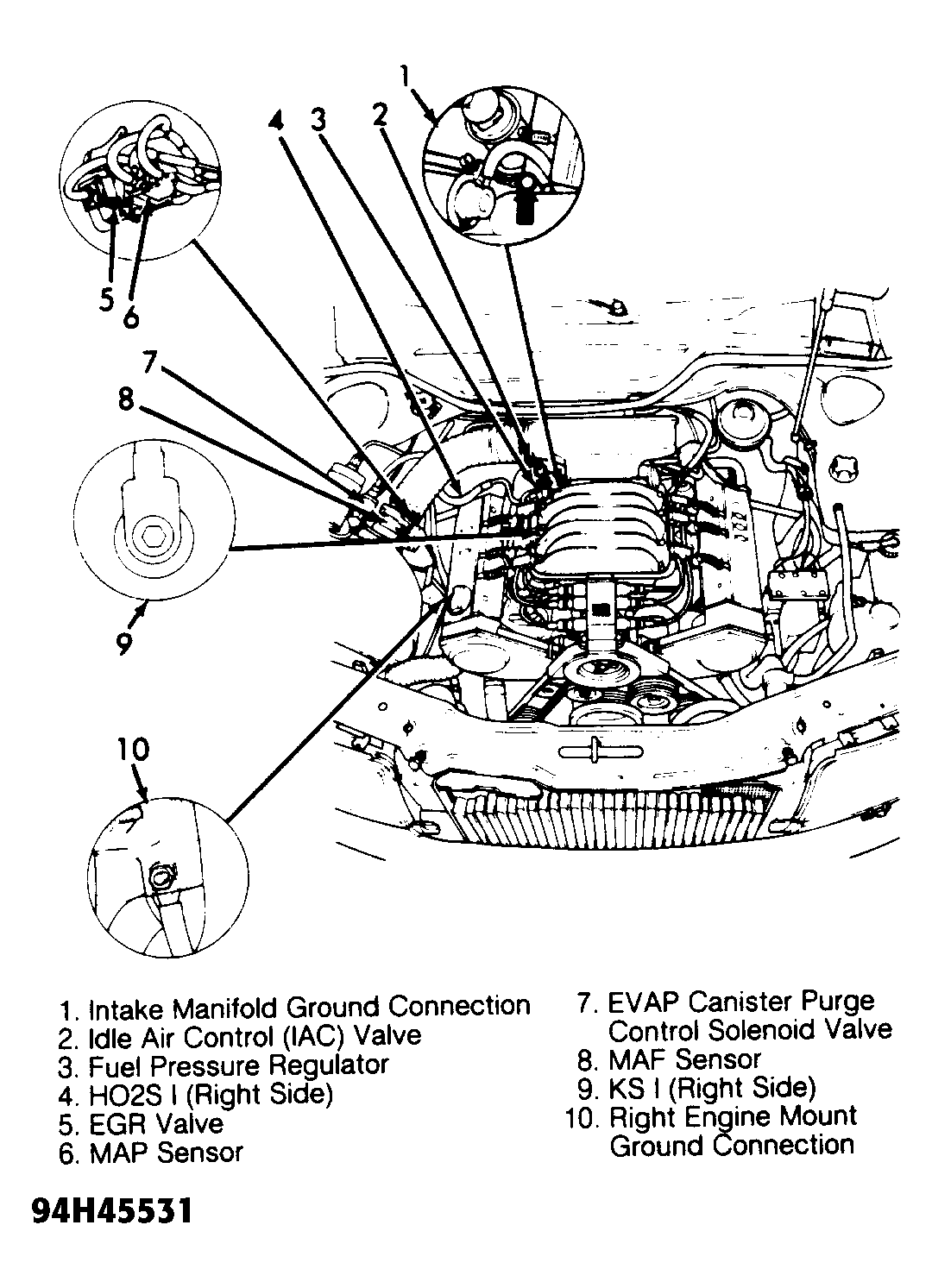

Fig 3: 2.8L MFI Component & Connector Locations (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

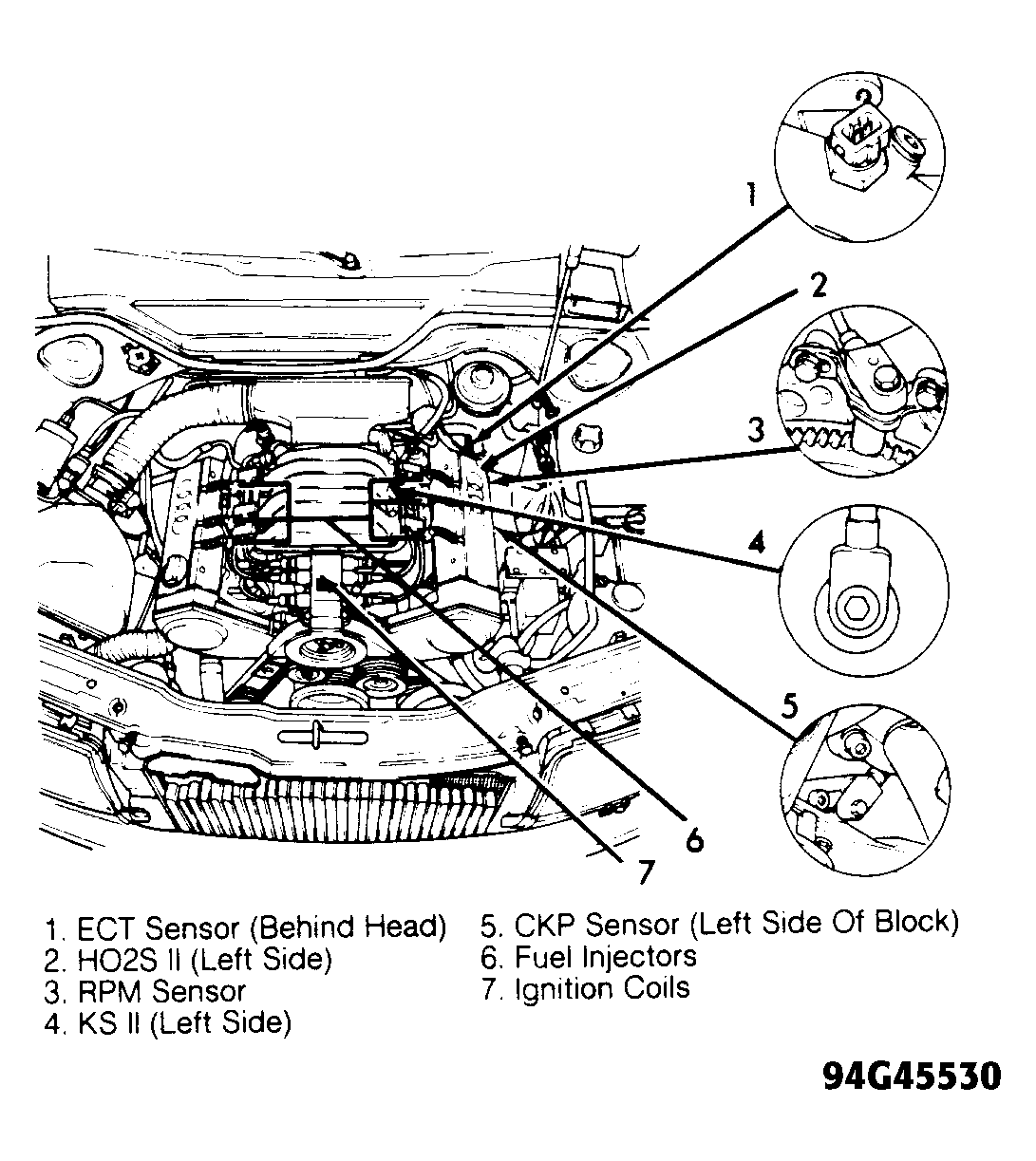

Fig 4: 2.8L MFI Component & Connector Locations (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.
