Control Module HVAC: Service and Repair

Removing and Installing:

Module -J126-:

- Remove glove box.

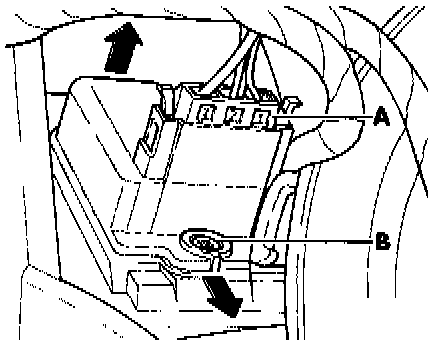

- Disconnect harness connector -A-.
- Remove screw -B-.
- Slide control module from mount (lower arrow) and lift out (upper arrow).
- Install in reverse order of removal.
