Display Group 000

NOTE:
^ Deviations in display field 8 are only considered after the Oxygen Sensor (02S) learning process in closed throttle position is completed.

^ If the displayed values do not correspond to the specified values, the following display groups 001 to 022 are used to eliminate malfunctions.

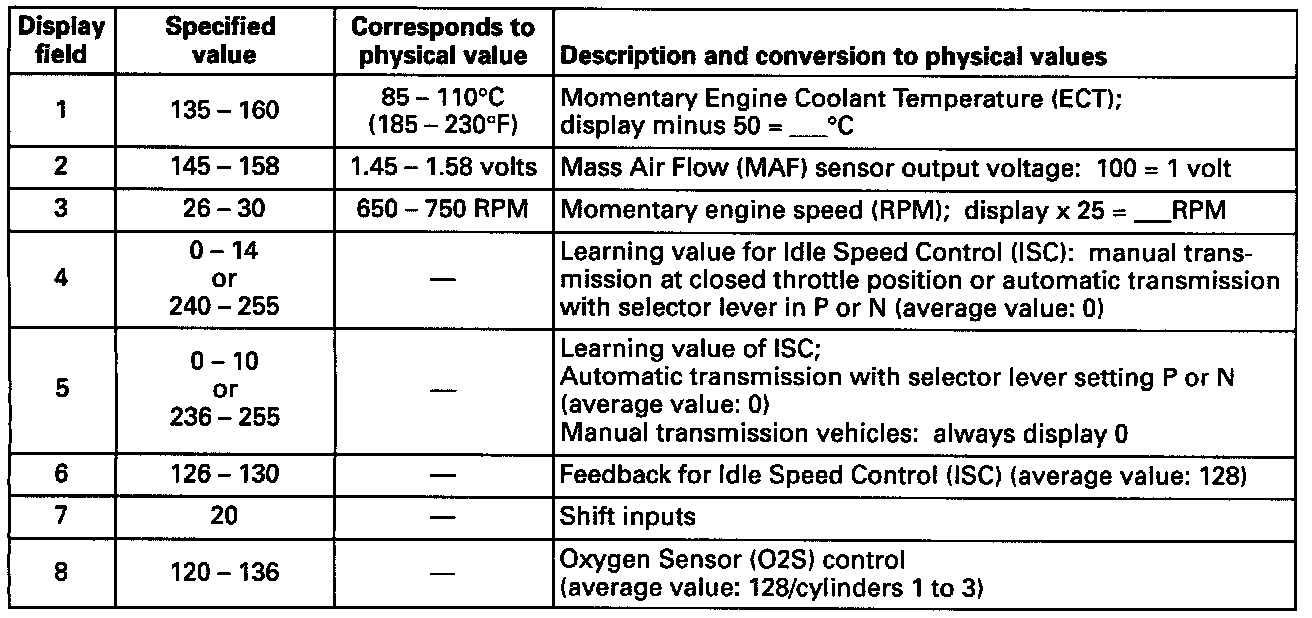

Display Group 000, Display Field 1 - 8:

Key to Display Fields 1 - 8

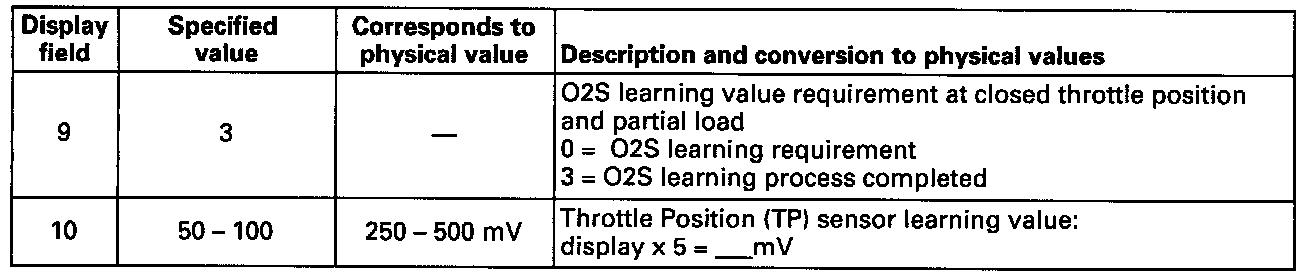

Display Group 000, Display Fields 9 - 10:

Key to Display Fields 9 - 10
