Display Group 002

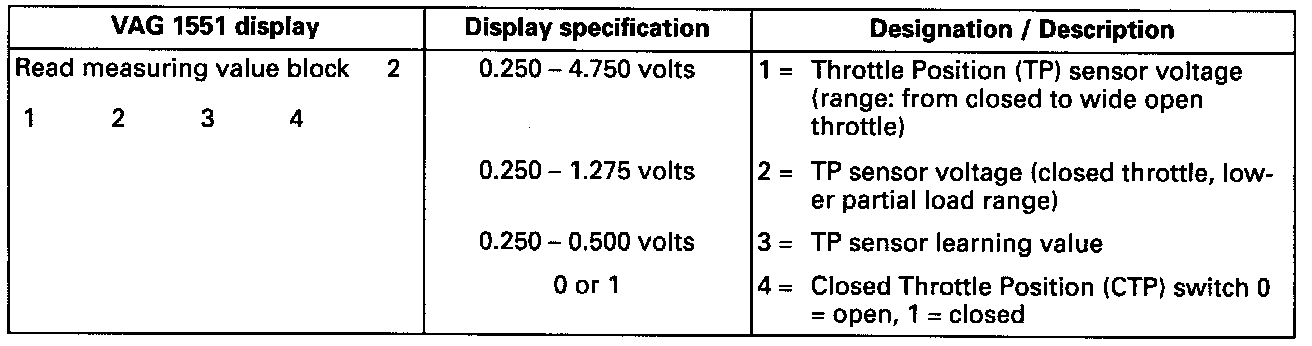

VAG 1551 Display, Measuring Value Block Display Group 002:

VAG 1551 Display, Measuring Value Block 2

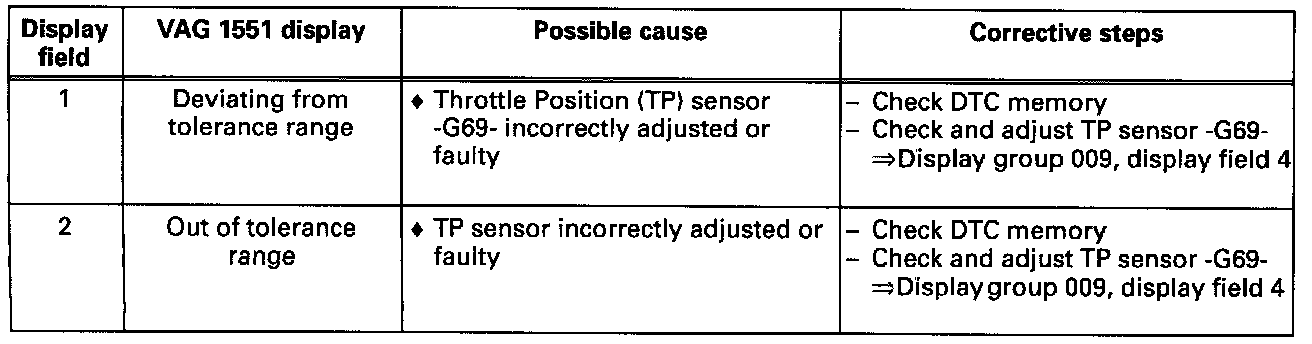

Display Group 002, Display Fields 1 & 2:

Display Fields 1 - 2

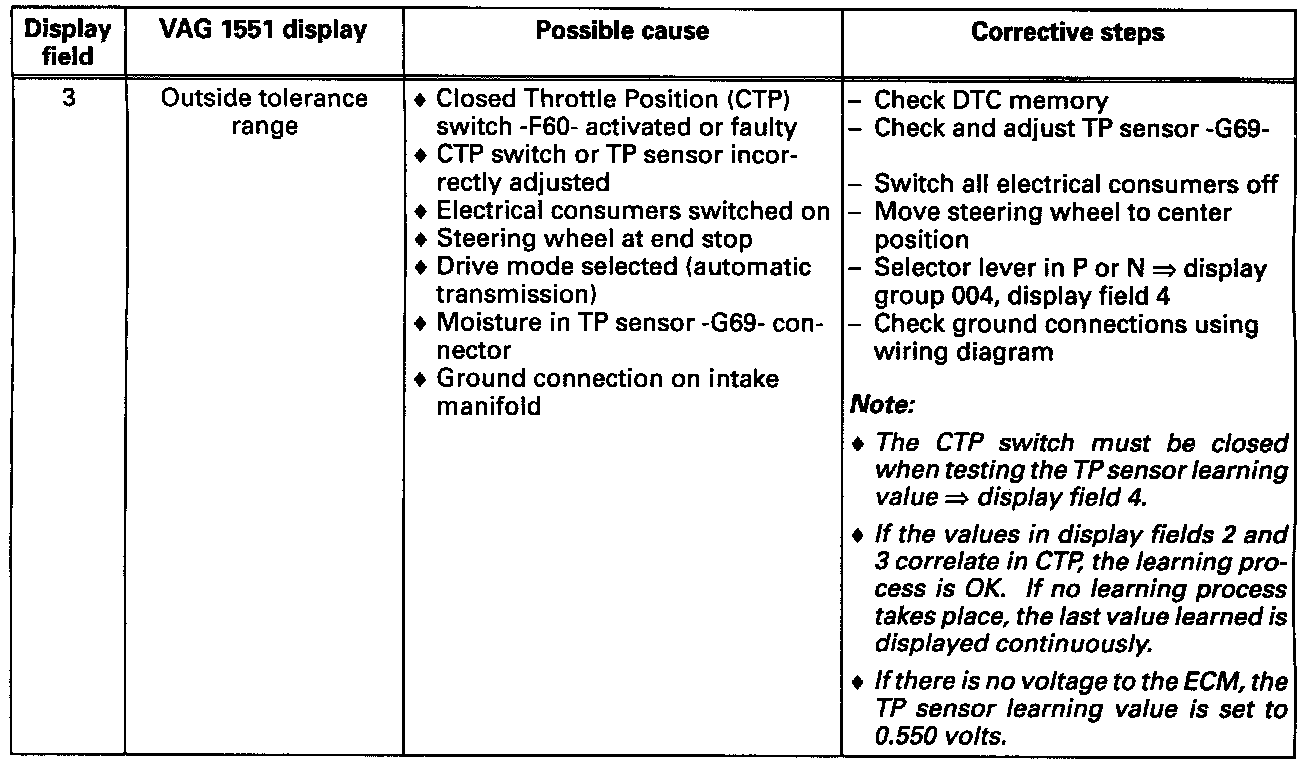

Display Group 002, Display Field 3:

Diagnostic chart, display fields 3

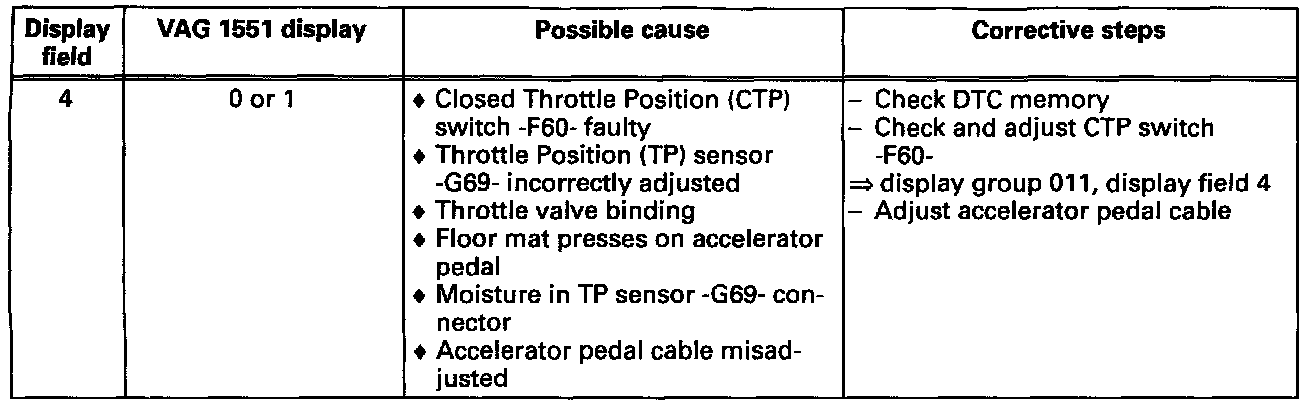

Display Group 002, Display Field 4:

Diagnostic chart, display fields 4
