Display Group 003

BASIC FUNCTION/THROTTLE ANGLE

VAG 1551 Display, Measuring Value Block Display Group 003:

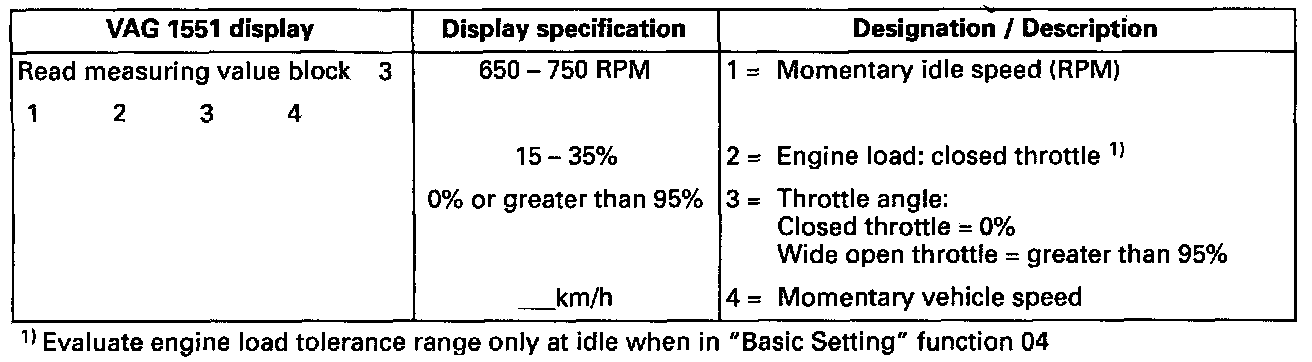

Key to VAG 1551 Display, Measuring Value Block 3

Display Group 003, Display Fields 1 - 2:

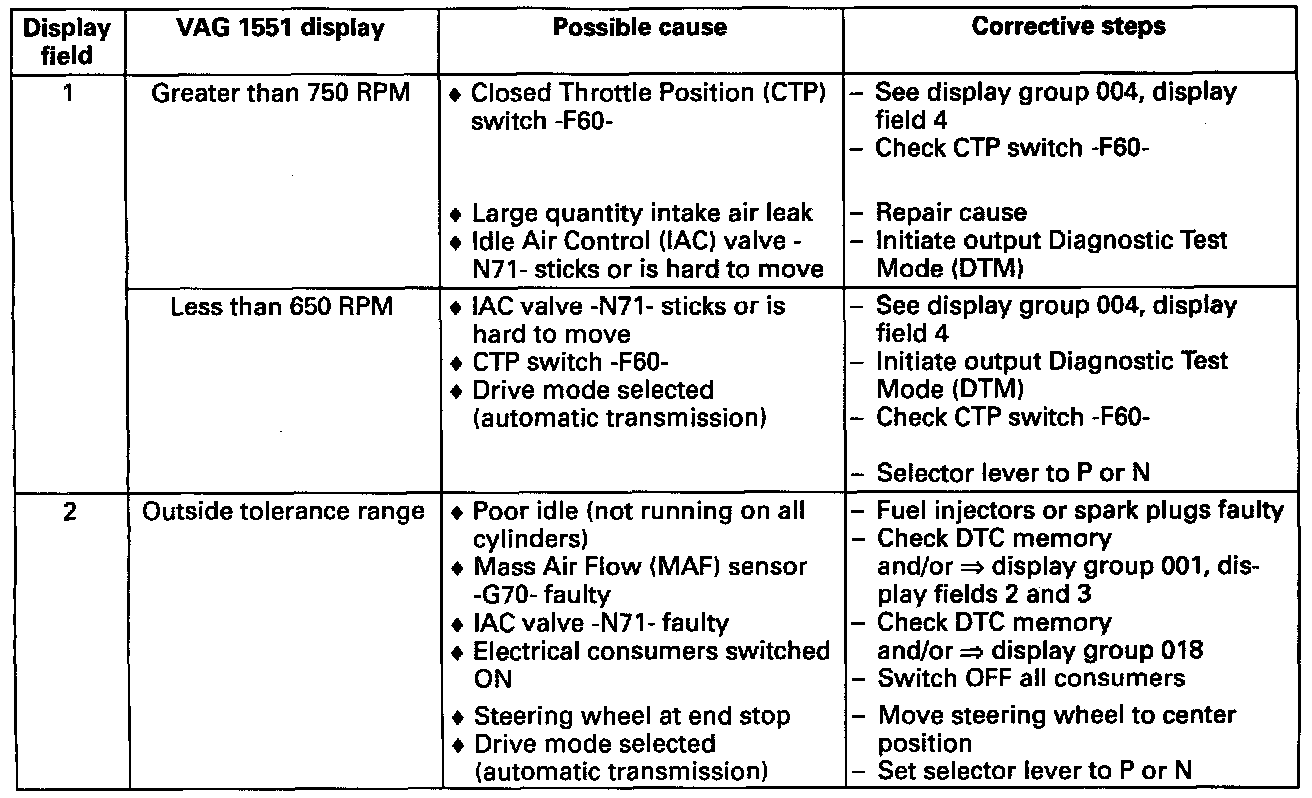

Diagnostic chart, display fields 1 - 2

Display Group 003, Display Fields 3 - 4:

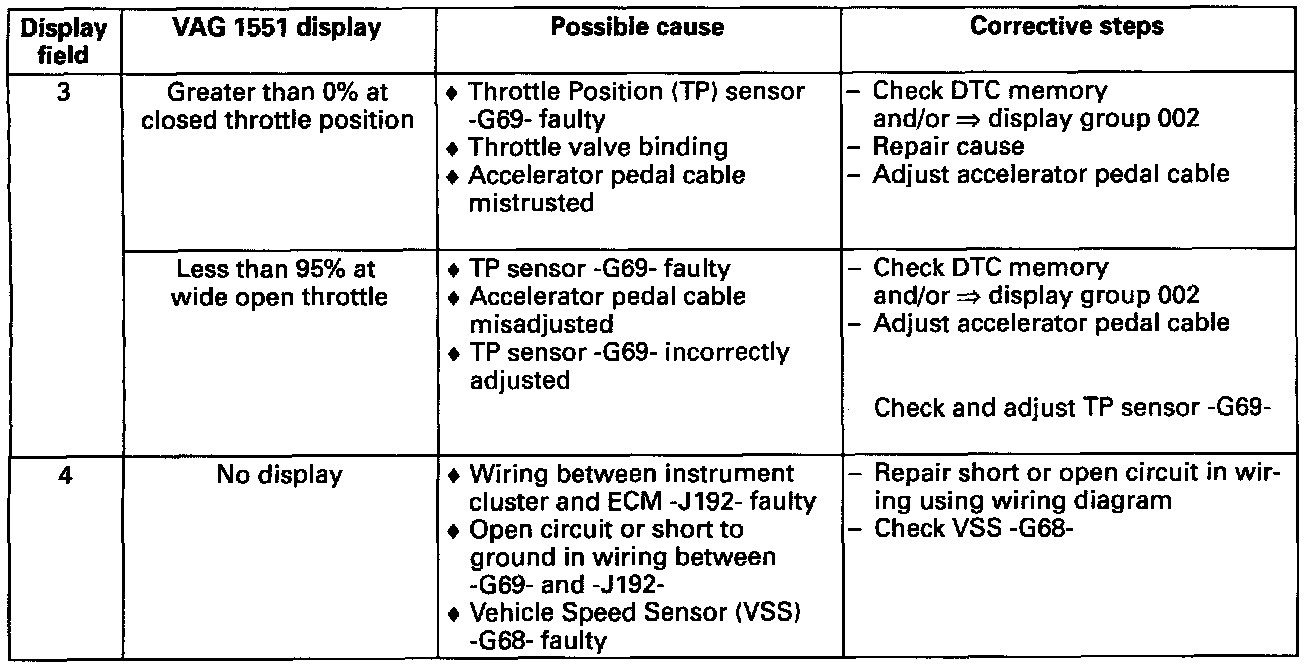

Diagnostic chart, display fields 3 - 4

NOTES on display field 3:
^ For testing at wide open throttle, stop engine (switch ignition OFF) then switch ignition ON.
^ At the beginning of stage 2, throttle position can be measured with ignition ON:
- Manual transmission: 45-53%.
- Automatic transmission: 27-35%.

NOTE on display field 4:
^ If vehicle speed is NOT displayed on the VAG 1551 scan tool, first check whether the vehicle speed display is OK. If vehicle speed display is faulty, check speedometer.
