Display Group 019

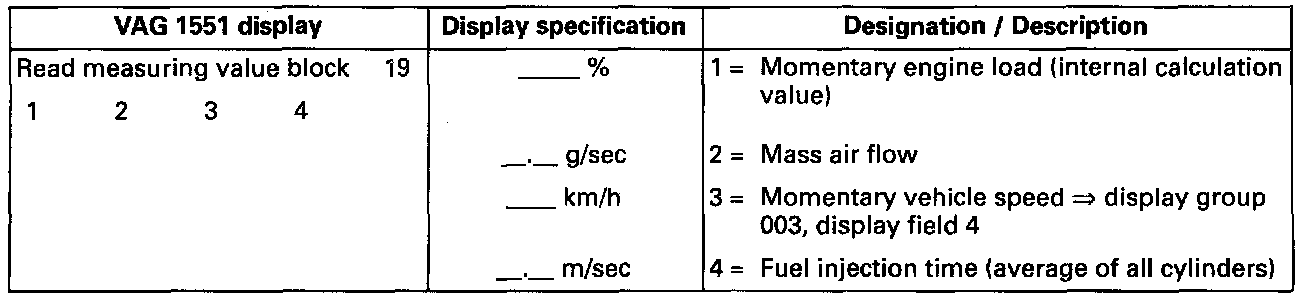

VAG 1551 Display, Measuring Value Block Display Group 019:




Key to VAG 1551 Display, Measuring Value Block 19

NOTE on display field 1:
The momentary engine load is an ECM internal calculation value that is calculated from the air inducted under normal conditions, air pressure 1013 mbar (29.90 in. Hg), intake air temperature 20°C (68°F).
