Control Module: Locations

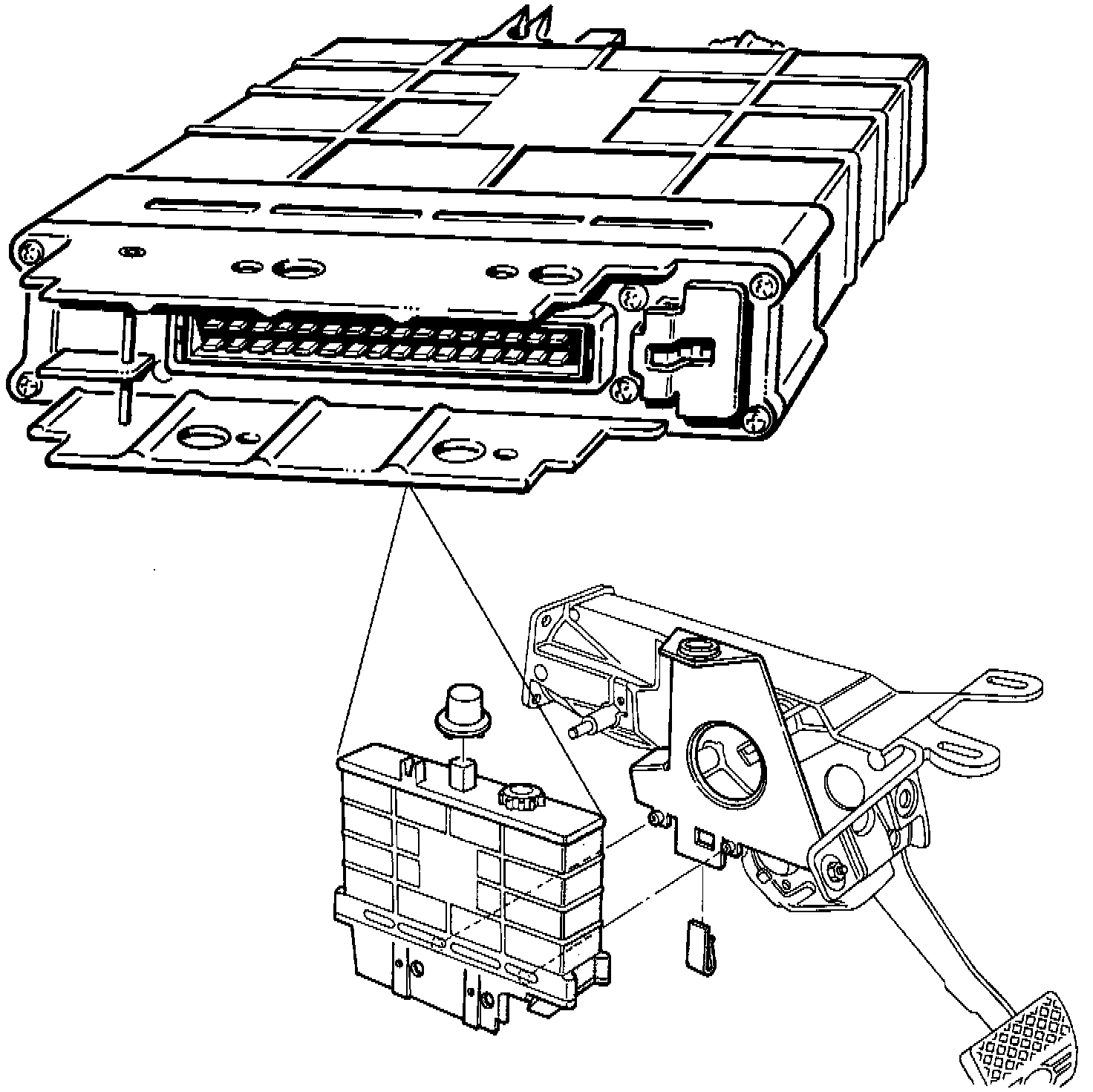

Transmission Control Unit Mounting:




The control unit is located on a bracket which is attached to the brake pedal housing.
