Control Module: Service and Repair




Removing Transmission Control Module (TCM) -J217- with 68-pin Connector:

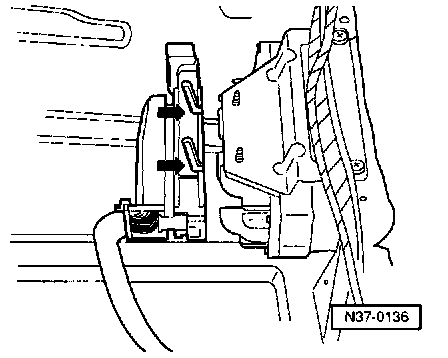

- Release multi-pin connector lock, then disconnect harness connector from TCM.

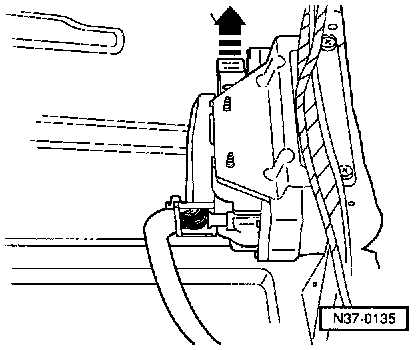

- Remove retaining clip from below.
- Remove TCM from holder.




Installing Transmission Control Module (TCM) -J217- with 68-pin Connector:
- Check TCM for correct fit in holder.
- Install connector on pins at TCM, then lock.
