Torque Converter, Checking

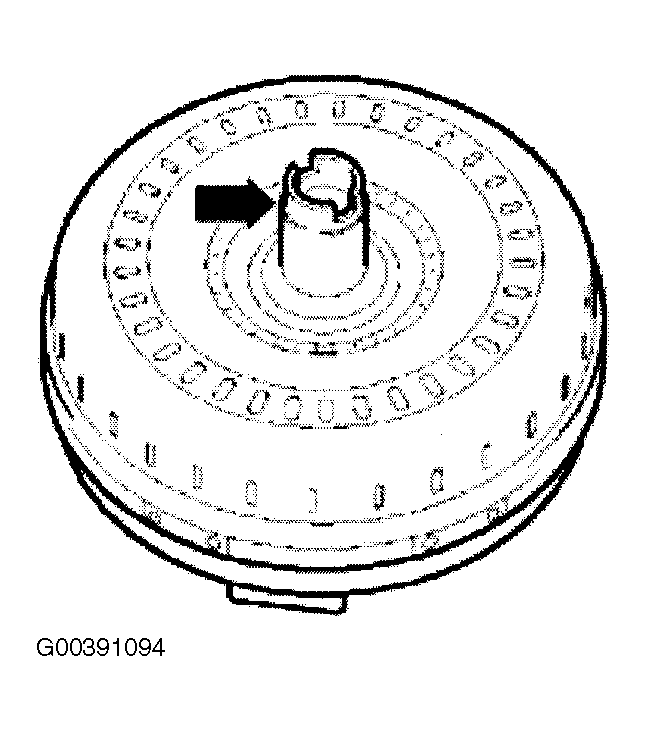

Checking converter hub for wear grooves (arrow). See Fig 1.

Fig 1: Inspecting Torque Converter Hub

Courtesy of AUDI OF AMERICA, INC.

NOTE: The torque converter is welded in and must be completely replaced if damaged or in case of malfunctions.
