Component Locations

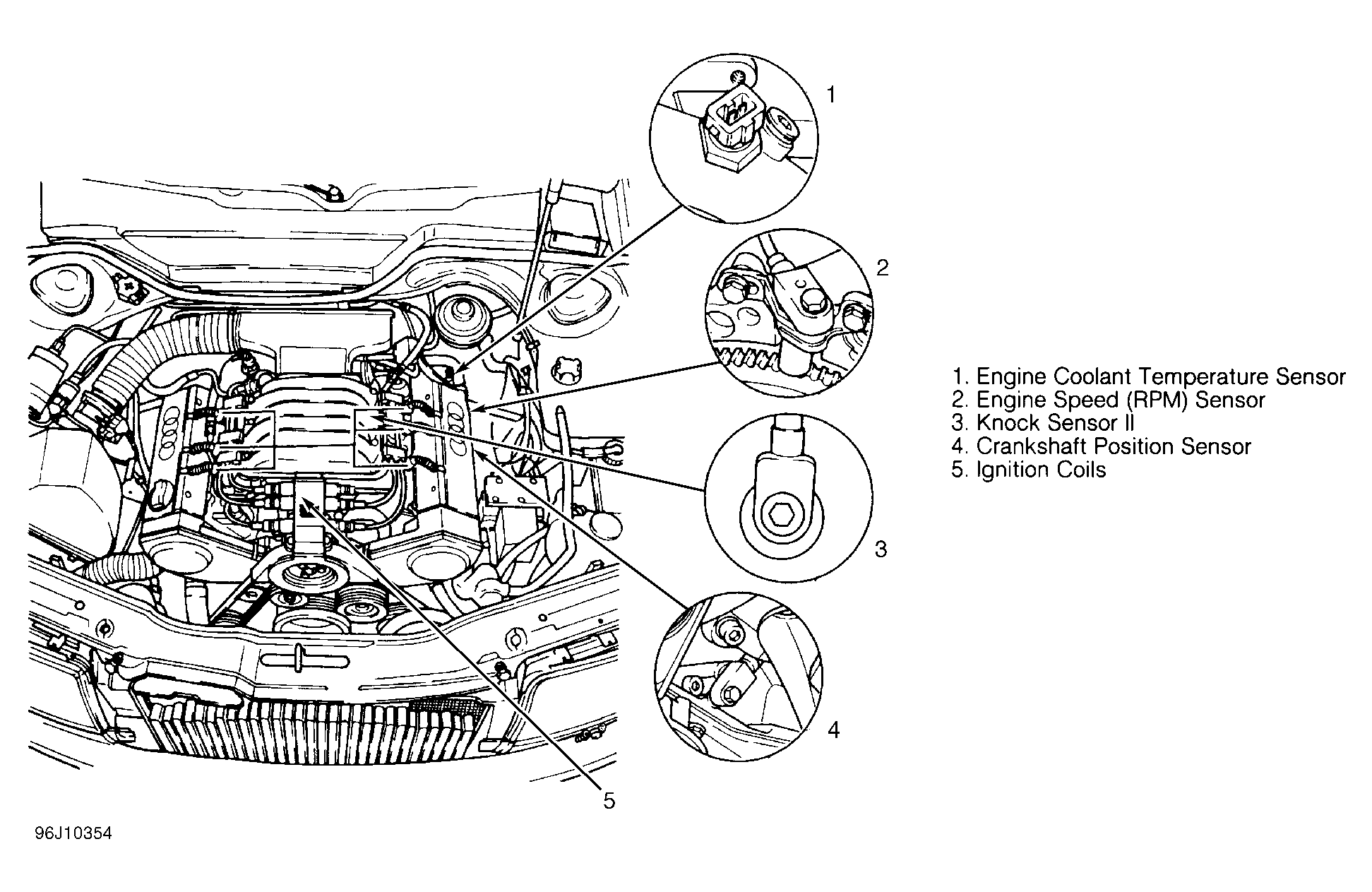

Fig 1: Locating Engine Compartment Components (A6 - 1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

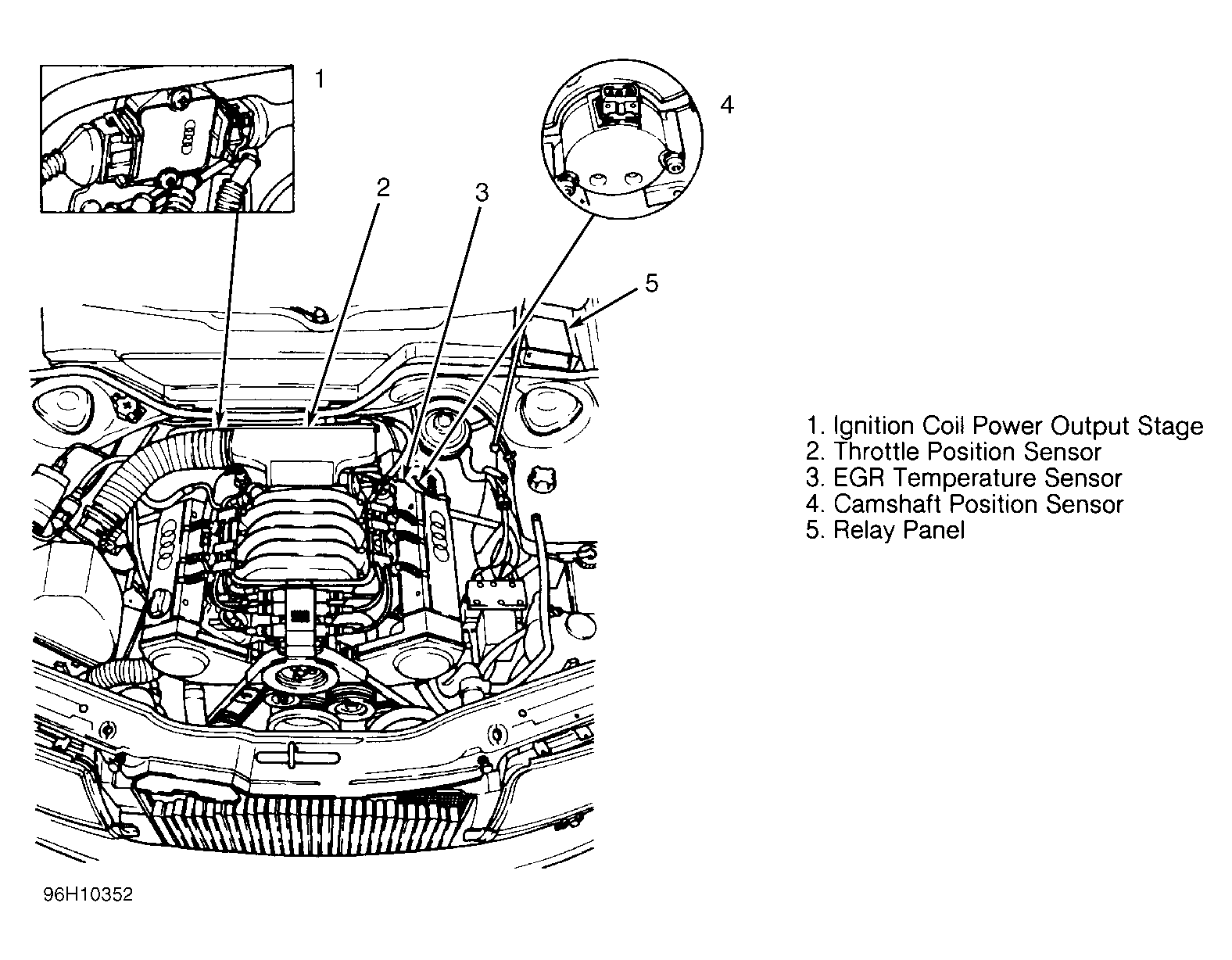

Fig 2: Locating Engine Compartment Components (A6 - 2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

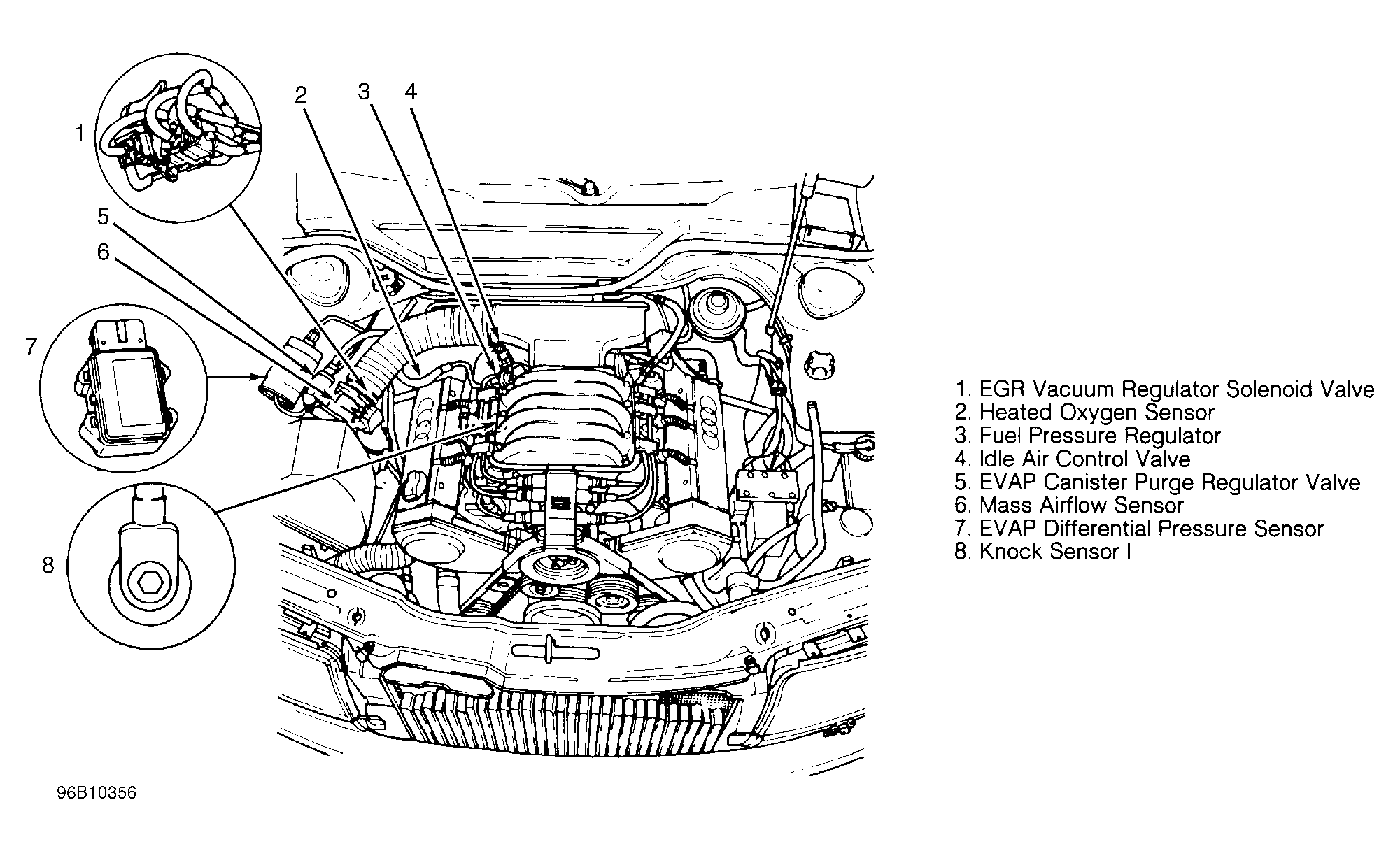

Fig 3: Locating Engine Compartment Components (A6 - 3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

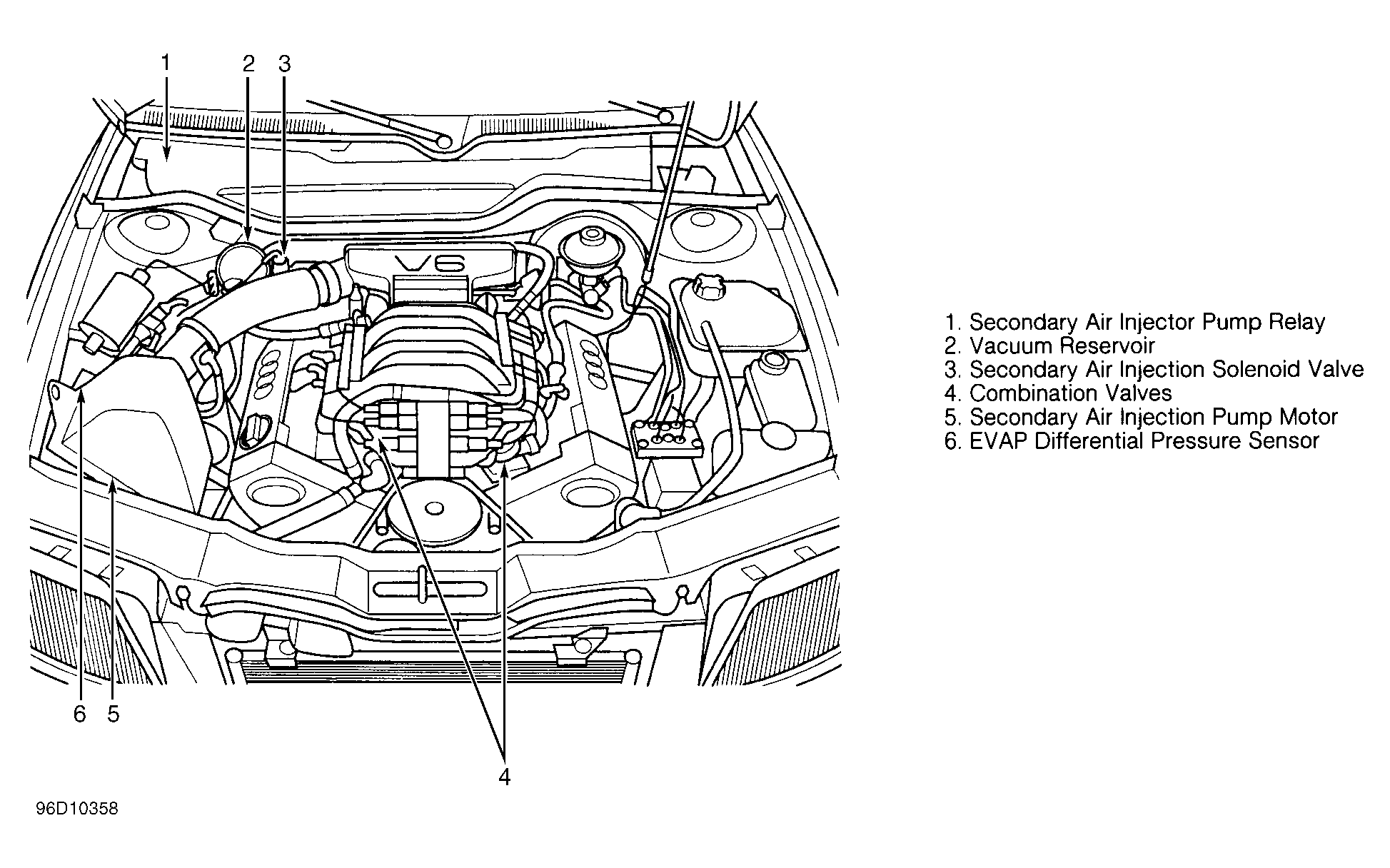

Fig 4: Locating Engine Compartment Components (A6 - 4 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Fig 5: Locating Fuel System Components (A6)

Courtesy of AUDI OF AMERICA, INC.

Fig 6: Locating Intake Manifold Components (A6)

Courtesy of AUDI OF AMERICA, INC.
