Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector Go To Figure
Camshaft Position Sensor Connector Terminals (Harness Side) Fig 1
Engine Control Module 80-Pin Connector Terminals (Harness Side) Fig 2
Engine Coolant Temp Sensor Connector Terminals (Harness Side) Fig 3
Engine Coolant Temp Sensor Connector Terminals (Sensor Side) Fig 4
Engine Speed Sensor Connector Terminals (Harness Side) Fig 5
Engine Speed Sensor Connector Terminals (Sensor Side) Fig 6
EVAP Canister Purge Valve Connector Terminals (Harness Side) Fig 7
Leak Detection Pump 3-Pin Connector Terminals (Harness Side) Fig 8
Fuel Injector Connector Terminals (Harness Side) Fig 9
HO2S Connector Terminals (Harness Side) Fig 10
HO2S Connector Terminals (Sensor Side) Fig 11
IAC Valve Connector Terminals (Harness Side) Fig 12
Ignition Coil 3-Pin Connector Terminals (Harness Side) Fig 13
Ignition Coil Power Output Stage 4-Pin Connector Terminals (Coil Primary Side) Fig 14
Ignition Coil Power Output Stage 5-Pin Connector Terminals (Signal Wiring From ECM) Fig 15
Knock Sensor Connector Terminals (Harness Side) Fig 16
Knock Sensor Connector Terminals (Sensor Side) Fig 17
MAF Sensor 4-Pin Connector Terminals (Harness Side) Fig 18
Throttle Valve Control Module 8-Pin Connector Terminals (Harness Side) Fig 19
Fig 1: Camshaft Position Sensor Connector Terminals (Harness Side)
G93D80997Courtesy of AUDI OF AMERICA, INC.

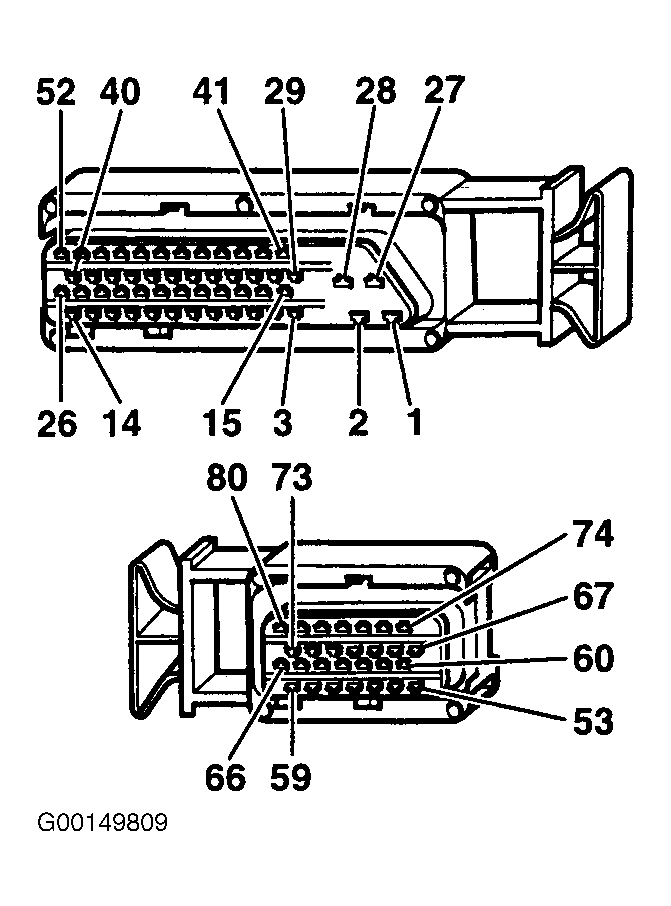

Fig 2: Engine Control Module 80-Pin Connector Terminals (Harness Side)
G00149809Courtesy of AUDI OF AMERICA, INC.
Fig 3: Engine Coolant Temp Sensor Connector Terminals (Harness Side)
G96C09935Courtesy of AUDI OF AMERICA, INC.
Fig 4: Engine Coolant Temp Sensor Connector Terminals (Sensor Side)
G96E09936Courtesy of AUDI OF AMERICA, INC.
Fig 5: Engine Speed Sensor Connector Terminals (Harness Side)
G93D80997Courtesy of AUDI OF AMERICA, INC.
Fig 6: Engine Speed Sensor Connector Terminals (Sensor Side)
G93J80993Courtesy of AUDI OF AMERICA, INC.
Fig 7: EVAP Canister Purge Valve Connector Terminals (Harness Side)
G96D09931Courtesy of AUDI OF AMERICA, INC.
Fig 8: Leak Detection Pump 3-Pin Connector Terminals (Harness Side)
G00149808Courtesy of AUDI OF AMERICA, INC.
Fig 9: Fuel Injector Connector Terminals (Harness Side)
G96D09931Courtesy of AUDI OF AMERICA, INC.
Fig 10: HO2S Connector Terminals (Harness Side)
G96J09929Courtesy of AUDI OF AMERICA, INC.
Fig 11: HO2S Connector Terminals (Sensor Side)
G96B09930Courtesy of AUDI OF AMERICA, INC.
Fig 12: IAC Valve Connector Terminals (Harness Side)
G96J09934Courtesy of AUDI OF AMERICA, INC.
Fig 13: Ignition Coil 3-Pin Connector Terminals (Harness Side)
G00149804Courtesy of AUDI OF AMERICA, INC.
Fig 14: Ignition Coil Power Output Stage 4-Pin Connector Terminals (Coil Primary Side)
G96F09927Courtesy of AUDI OF AMERICA, INC.
Fig 15: Ignition Coil Power Output Stage 5-Pin Connector Terminals (Signal Wiring From ECM)
G00149805Courtesy of AUDI OF AMERICA, INC.
Fig 16: Knock Sensor Connector Terminals (Harness Side)
G93D80997Courtesy of AUDI OF AMERICA, INC.
Fig 17: Knock Sensor Connector Terminals (Sensor Side)
G93J80993Courtesy of AUDI OF AMERICA, INC.
Fig 18: MAF Sensor 4-Pin Connector Terminals (Harness Side)
G00149806Courtesy of AUDI OF AMERICA, INC.
Fig 19: Throttle Valve Control Module 8-Pin Connector Terminals (Harness Side)
G00149807Courtesy of AUDI OF AMERICA, INC.
NOTE: Vehicle manufacturer does not support diagnostic information using aftermarket scan tools. Limited diagnostic information is available.
