Radio/navigation clock, servicing

NOTE: The radio/navigation clock can be identified by an antenna symbol in the left upper display for the clock.

Remove multi-function trip computer. See INSTRUMENT CLUSTER, REMOVING AND INSTALLING .
Remove both screws -3- and remove radio/navigation clock.

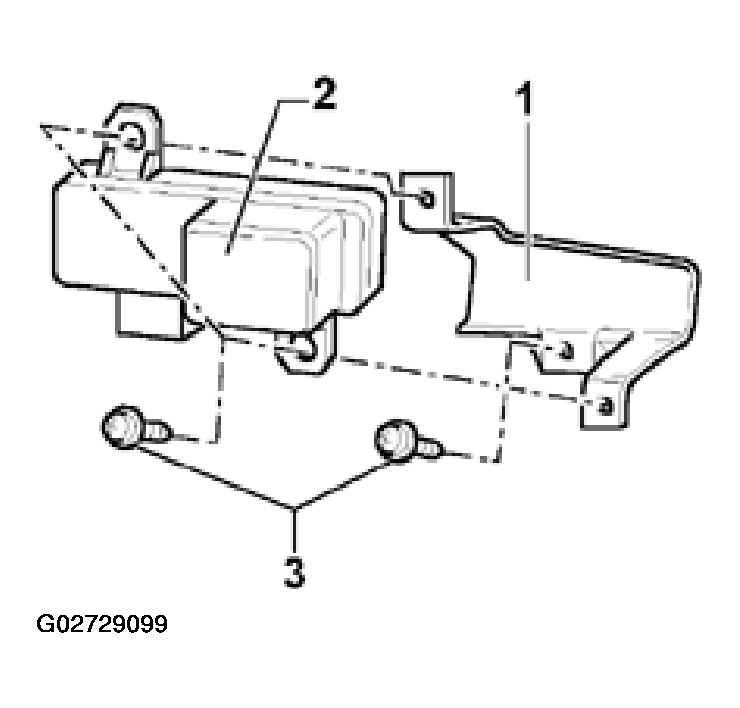

Fig 1: Removing Screws & Radio/Navigation Clock

G02729099

Remove the bracket for radio/navigation clock -1- behind the center console through the opening for the multifunction trip computer.
