Control module versions (scan tool function 01), checking

• Connect VAS5051 tester or VAG1551 scan tool and select address word 03 "Brake Electronics". See VAG1551 SCAN TOOL (ST), CONNECTING AND ENTERING ADDRESS WORD  .
  NOTE: The following explanations refer to the use of the VAG1551 scan tool. A similar procedure is used for the VAS5051 tester for On Board Diagnostic.
• Advance through program sequence by pressing --> button.

Indicated on display

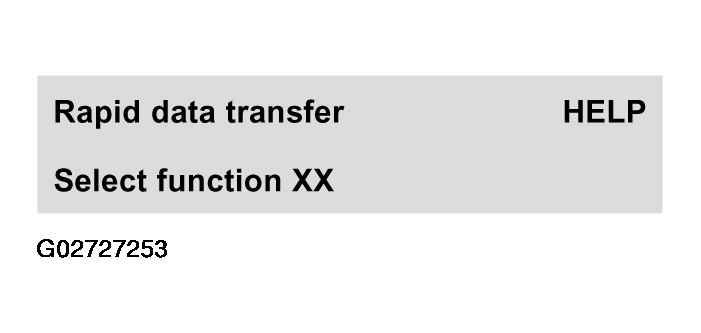

Fig 1: VAG 1551 Scan Tool Display - Control Module Version Check (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -1- to select "Check Control Module Version" 01. Press -Q- button to confirm input.

Indicated on display:

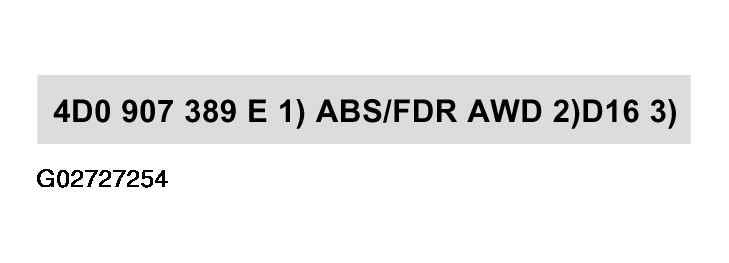

Fig 2: VAG 1551 Scan Tool Display - Control Module Version Check (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

1. ABS control module Part. No. including control module version
2. System designation
3. Hardware and software status

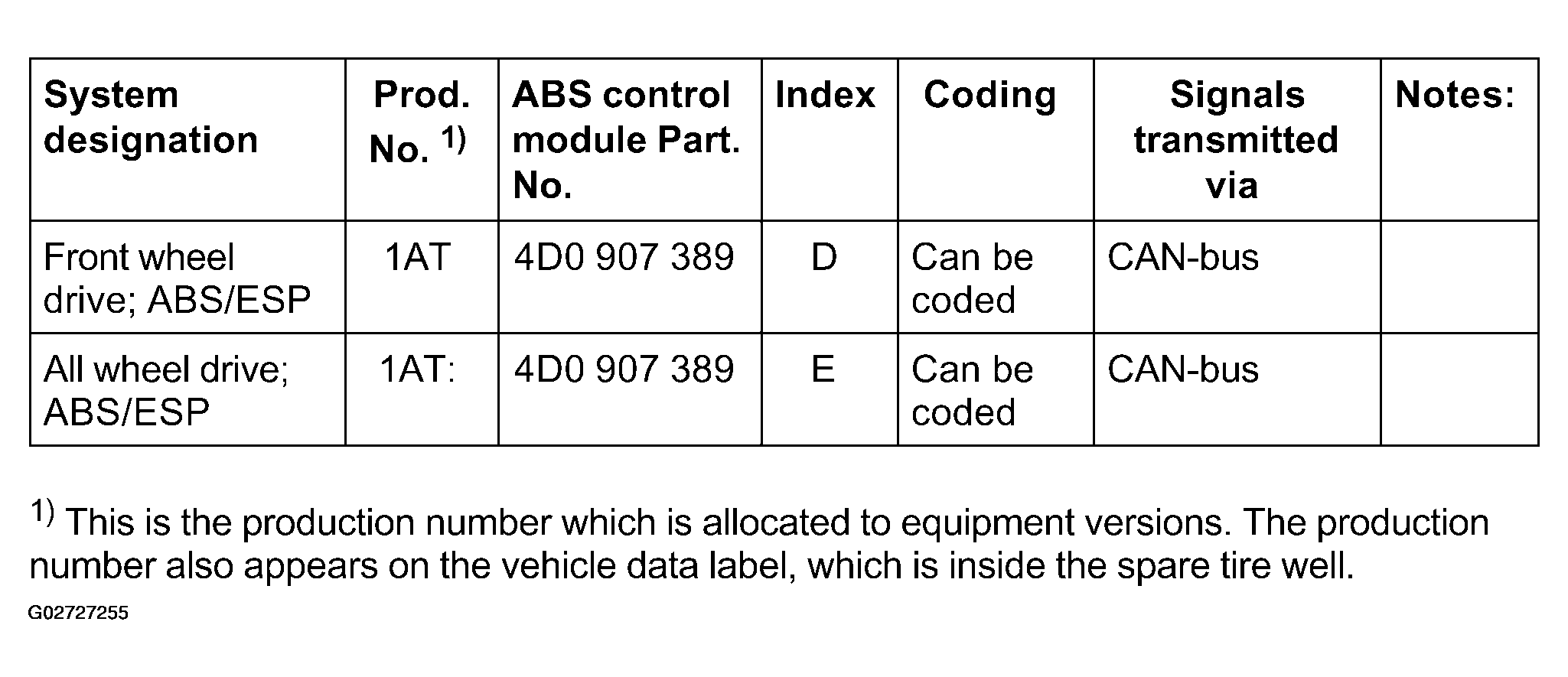

   Fig 3: Control Module Version Codes - Bosch 5.3 With ESP

   Courtesy of AUDI OF AMERICA, INC.
