Read Measuring Value Block (Scan Tool Function 08)

1. Initiate On Board Diagnostic (OBD) for central locking system. See INITIATING CENTRAL LOCKING SYSTEM ON BOARD DIAGNOSTIC (OBD)  under RETRIEVING DIAGNOSTIC TROUBLE CODES.
2. Press buttons 0 and 8 to select "Read Measuring Value Block" function 08 and press Q button to confirm input.
3. When the display indicates "Input display group number," press buttons for desired display group number. Then press Q button to confirm input.
   • For display group 001, see Fig 1 .
   • For display group 002, see Fig 2 .
   • For display group 003, see Fig 3 .
   • For display group 004, see Fig 4 and Fig 5 .
4. Press buttons for desired display group number and press Q button to confirm input.

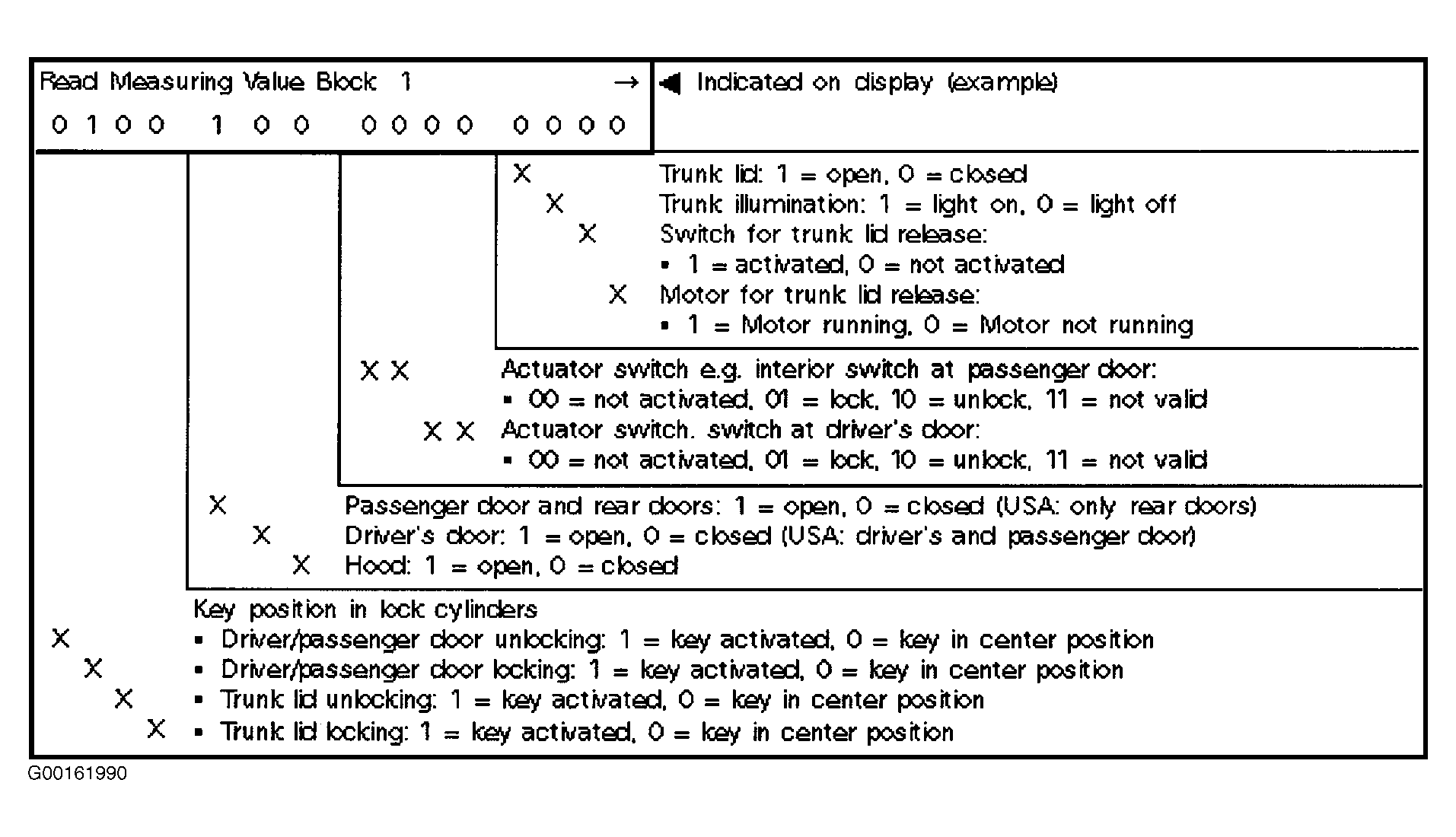

Fig 1: Identifying Display Group 001

Courtesy of AUDI OF AMERICA, INC.

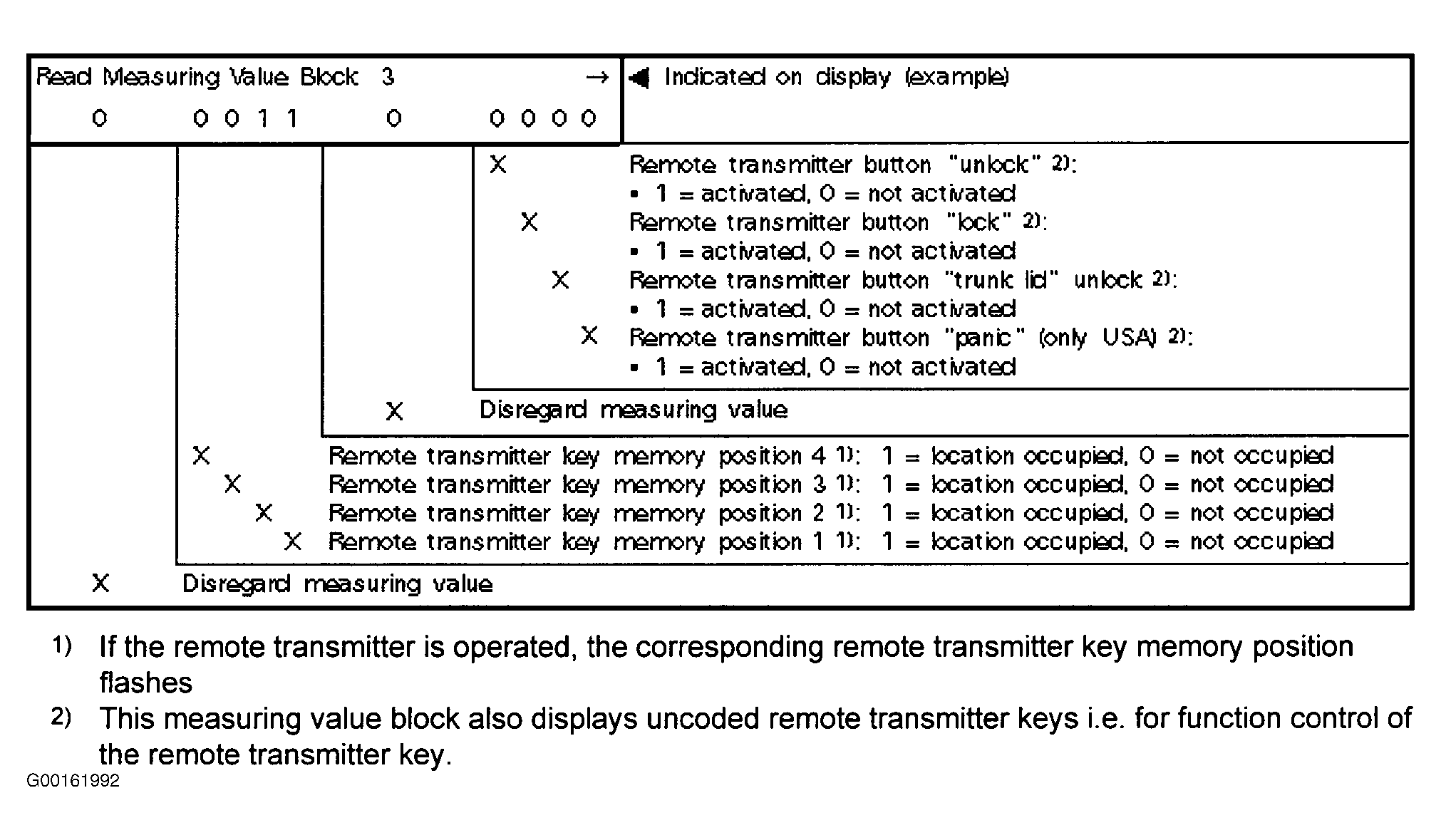

Fig 2: Identifying Display Group 002

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Identifying Display Group 003

Courtesy of AUDI OF AMERICA, INC.

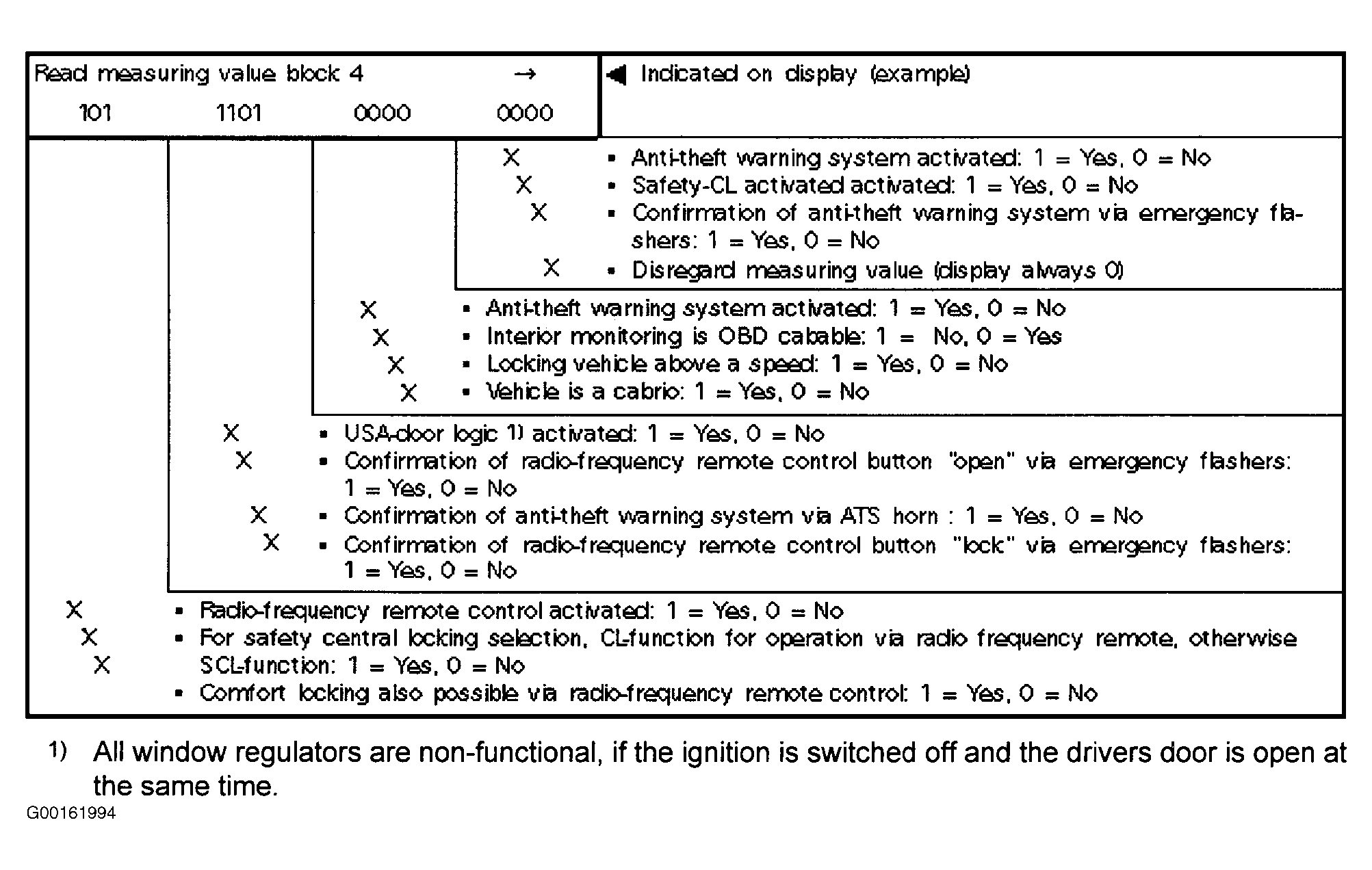

Fig 4: Identifying Display Group 004 (Vehicles Up To Software Version D04)

Courtesy of AUDI OF AMERICA, INC.

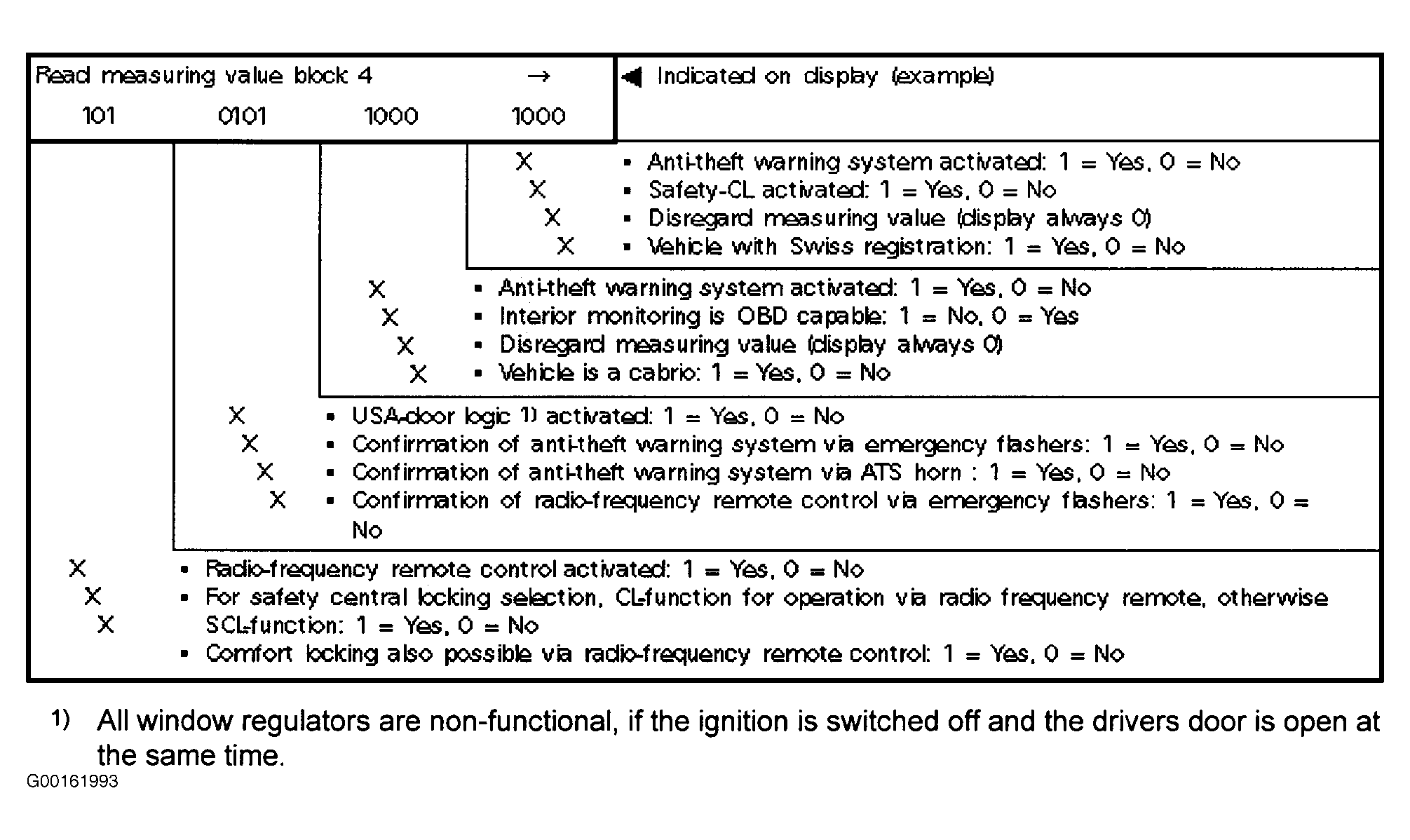

Fig 5: Identifying Display Group 004 (Vehicles From Software Version D05)

Courtesy of AUDI OF AMERICA, INC.
