Overhaul - A/T 01V: Identification: Transmission

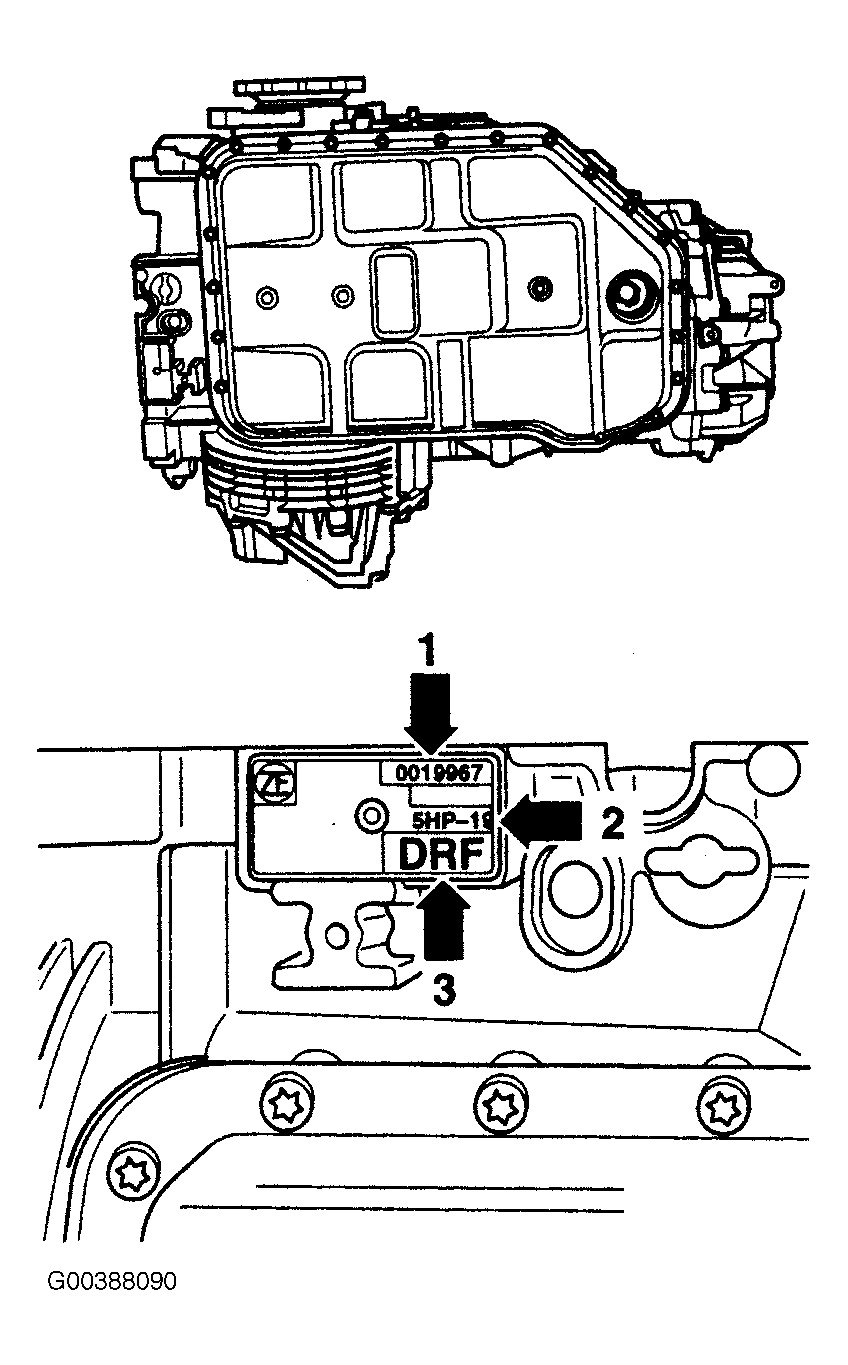

The transmission code letters are given on the identification label at the bottom of the transmission. See Fig 1.
Another identification label (identical to the first one) can be found on the side of the transmission. It is not accessible when the transmission is installed.
NOTE:
The transmission code letters are also listed on the vehicle data labels.
Transmission code letters and transmission serial number in Fig 1 are broken down as follows:
- Transmission serial no. (arrow -1-)
- Transmission identification (arrow -2-)
- Code letters (arrow -3-)
