| ATF Cooler Line Bolt |
15 (20) |
| ATF Inspection Plug |
59 (80) |
| ATF Oil Pan Drain Plug |
30 (40) |
| Center Differential Drain Plug |
15 (20) |
| Center Differential Fill Plug |
26 (35) |
| Center Differential Output Flange Socket Head Bolt |
18 (25) |
| Center Differential-To-Transaxle Housing Bolt |
17 (23) |
| Cover (Front Final Drive-To-Transaxle Housing) Bolt |
17 (23) |
| Differential Cover Bolt |
17 (23) |
| Drive Axle Shaft-To-Drive Flange Bolt (M10) |
57 (77) |
| Drive Flange (Left Side)-To-Transaxle Bolt |
17 (23) |
| Drive Shaft-To-Transaxle Flange Bolt (AWD) |
41 (55) |
| Final Drive Fill Plug |
| Front Final Drive |
22 (30) |
| Rear Final Drive |
26 (35) |
| Front Final Drive Cover-To-Transaxle Bolt |
17 (23) |
| Front Final Drive Intermediate Flange-To-Transmission Housing Bolt |
17 (23) |
| Heat Shield (Drive Axle Shaft) Bolt |
17 (23) |
| Select Cable Support Bracket-To-Transaxle Bolt |
17 (23) |
| Selective Lever Cable Protective Plate Bolt |
17 (23) |
| Selector Lever Cable Support Bracket Bolt |
17 (23) |

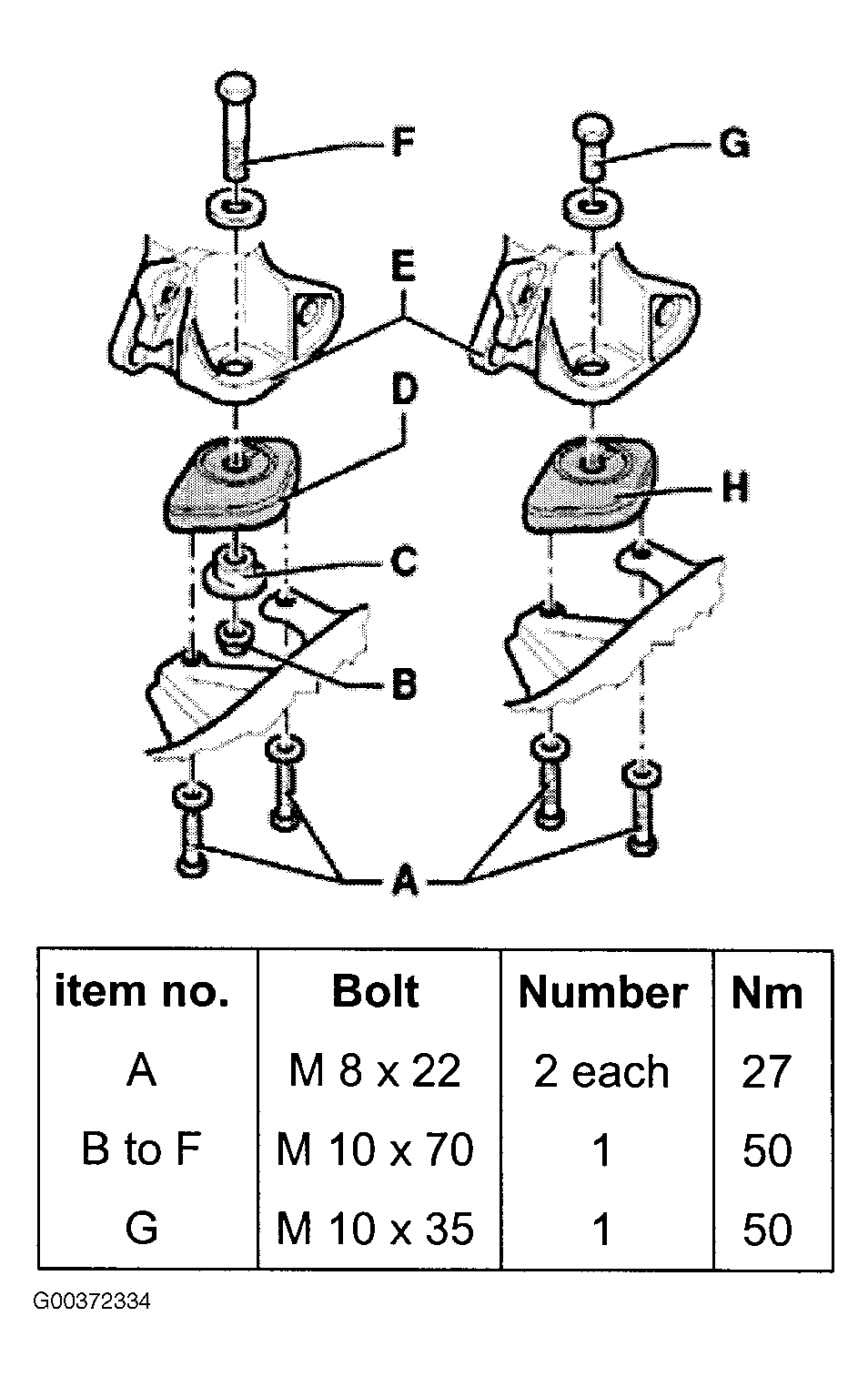

| Transmission Support Bolt |
|
| Wheel Bolt |
89 (120) |
| INCH Lbs. (N.m) |
| Armrest Lower Support Bolt/Nut |
89 (10) |
| Armrest Lower Support Mounting Bolt |
31 (3.5) |
| Automatic Climate Control Mounting Bolt |
31 (3.5) |
| ATF Screen-To-Valve Body Bolt |
53 (6) |
| Front Center Console-To-Instrument Panel Center Piece Bolt |
44 (5) |
| Front Center Console Lower Mounting Nut |
31 (3.5) |
| Instrument Panel Center Piece Trim Mounting Bolt |
44 (5) |
| Manual Climate Control Knob Bolt |
31 (3.5) |
| Oil Pan-To-Transaxle Bolt |
89 (10) |
| Rear Center Console Mounting Nut |
89 (10) |
| Rear Center Console-To-Front Center Console Bolt |
44 (5) |
| Selector Lever Cable-To-Support Bracket Bolt |
106 (12) |
| Shift Mechanism Cover Nut |
89 (10) |
| Transaxle Range Switch Bolt |
71 (8) |
| Transaxle RPM Sensor |
| E17 Valve Body |
61 (7) |
| E18 Valve Body |
80 (9) |
| Transaxle Vehicle Speed Sensor Bolt |
53 (6) |
| Valve Body Bolt |
71 (8) |
