Clutches - 01E: Identification: Transaxle

The code letters of the transmission are engraved on the lower part of the transmission cover and are also engraved on the vehicle data plates. For identification locations on transaxle, see list below.

• Code letters and consecutive serial numbers (arrow 1). See Fig 1.
• Manual transmission 01E (arrow 2). See Fig 2.

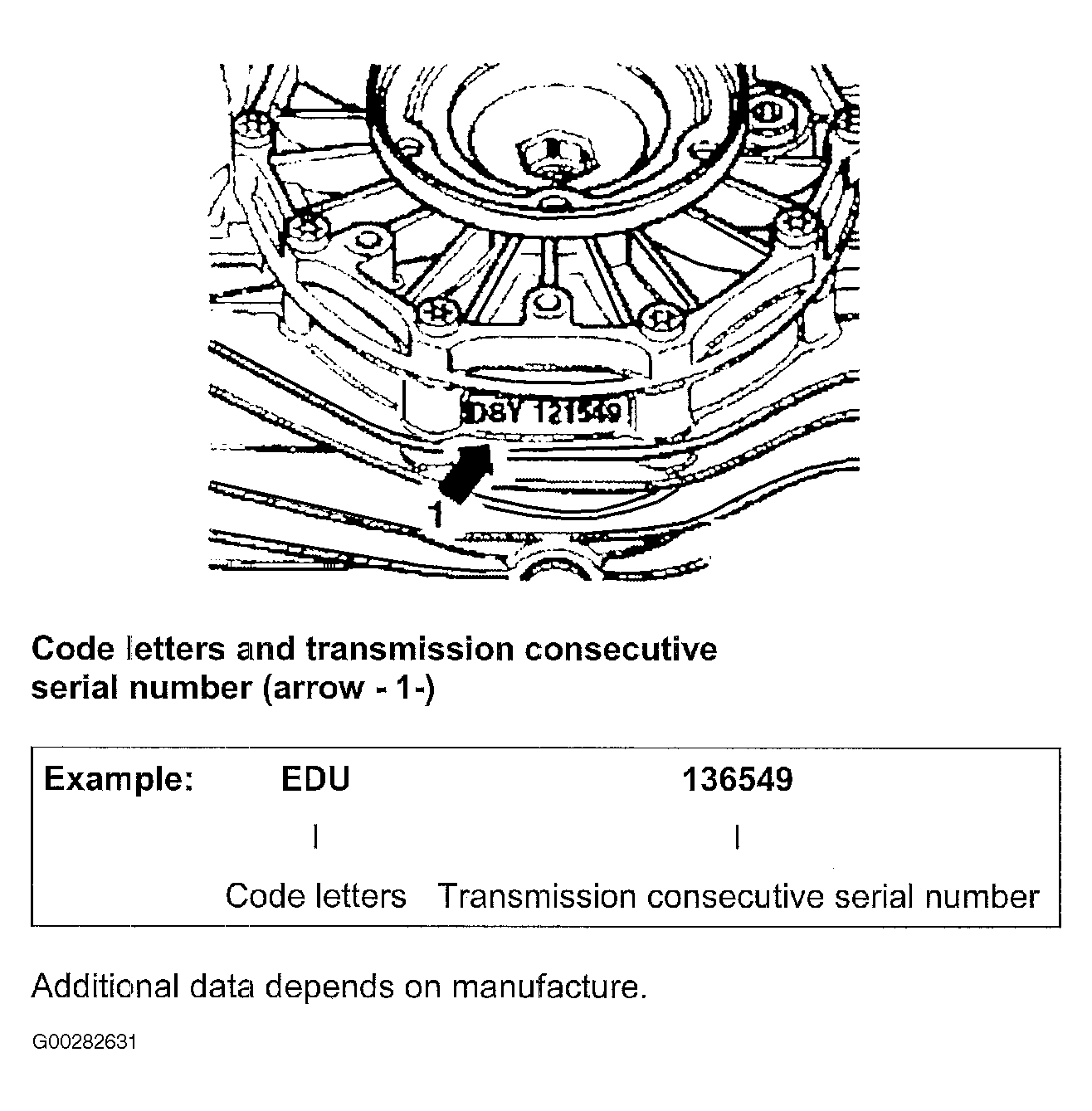

Fig 1: Locating Transaxle Code Letters & Consecutive Serial Numbers

Courtesy of AUDI OF AMERICA, INC.

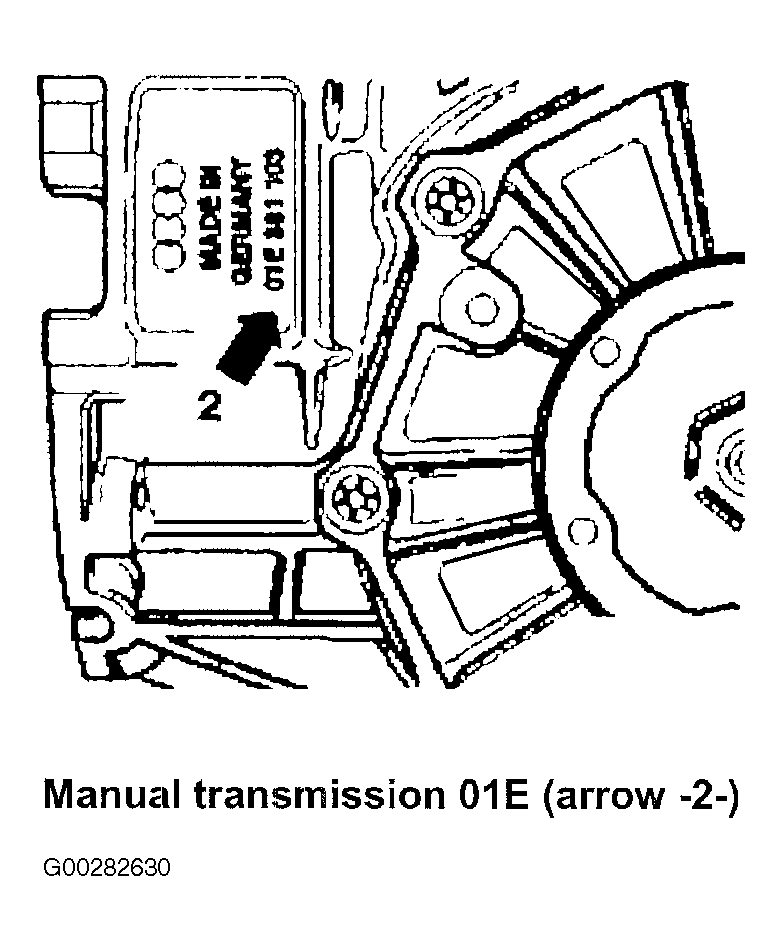

Fig 2: Locating Manual Transaxle 01E Identification Number (Arrow 2, Left Side Of Transaxle)

Courtesy of AUDI OF AMERICA, INC.
