Torque Specifications

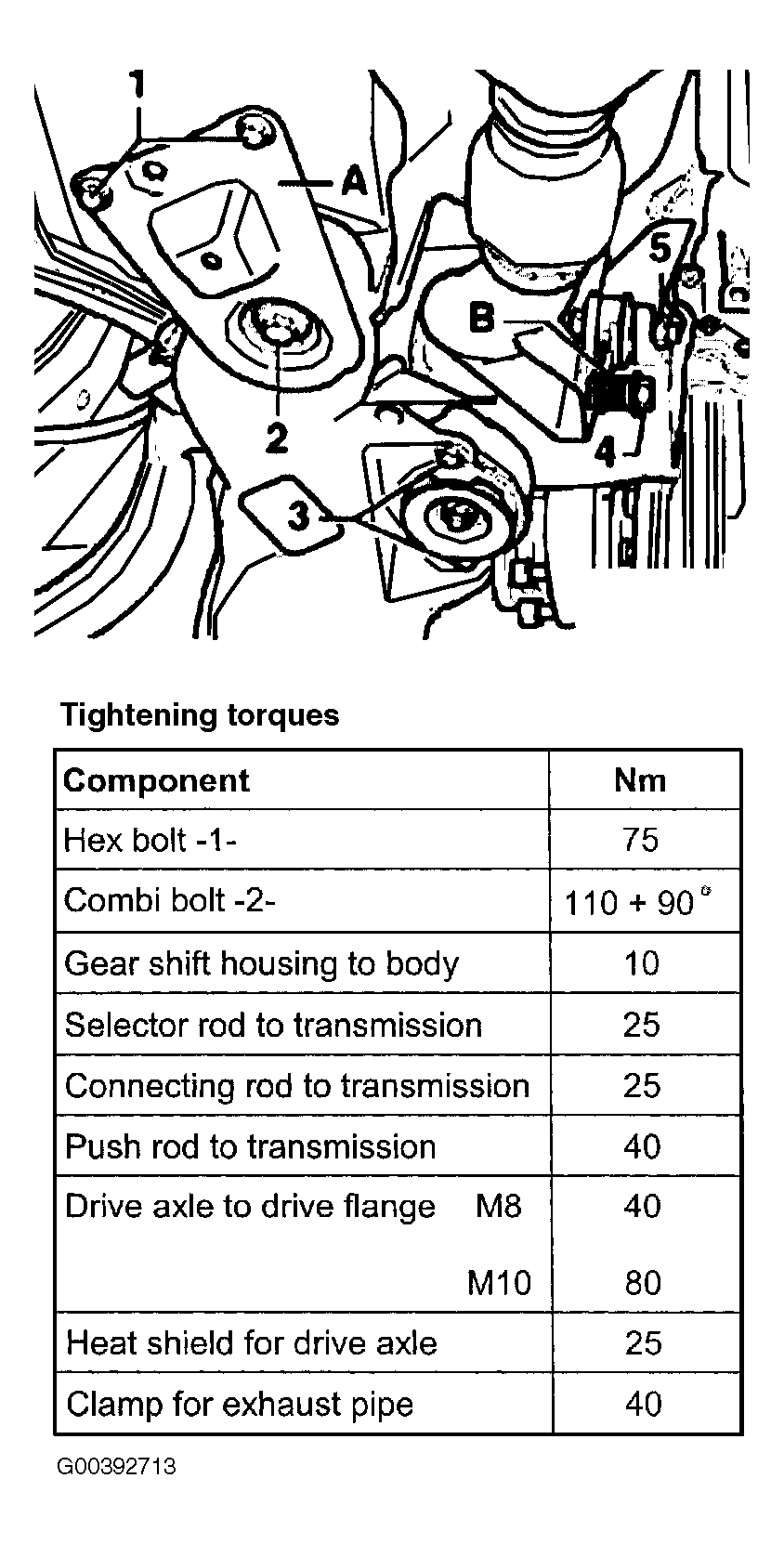

Fig 1: Shifter Mechanism Replacement Components & Subframe-To-Body Torque Specifications
G00392713Courtesy of AUDI OF AMERICA, INC.

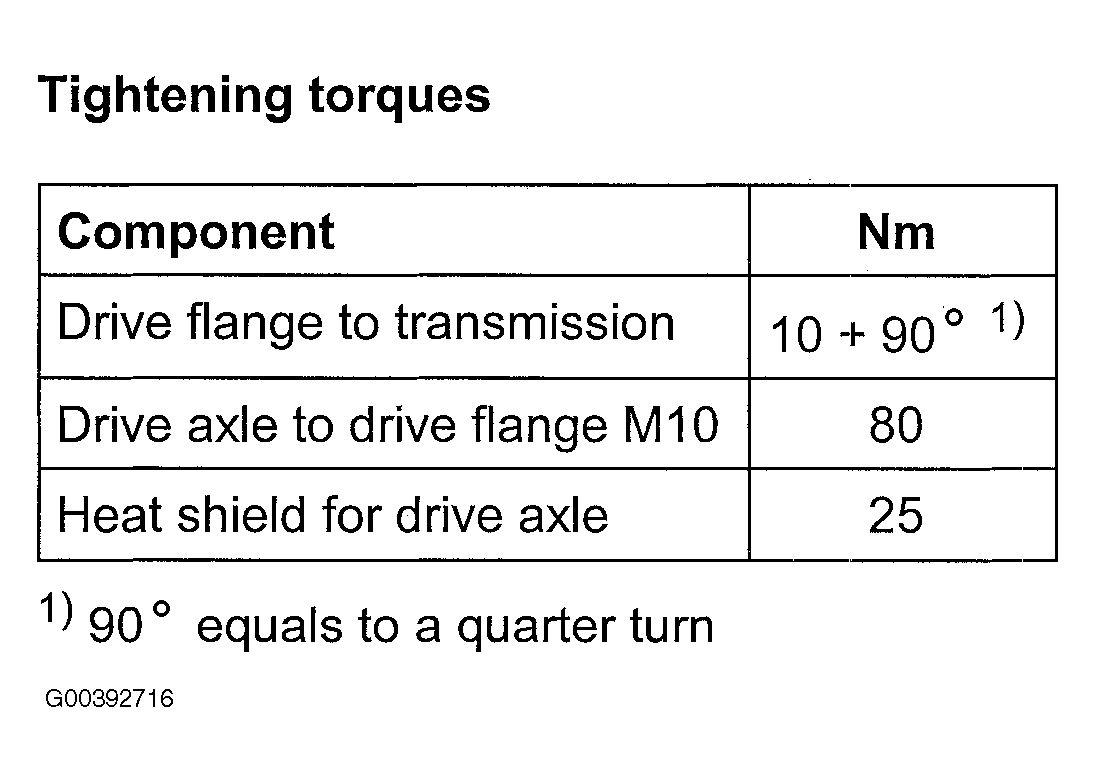

Fig 2: Drive Axle & Drive Flange Torque Specifications
G00392716Courtesy of AUDI OF AMERICA, INC.
