Check Camshaft Position (CMP) sensor: Notes

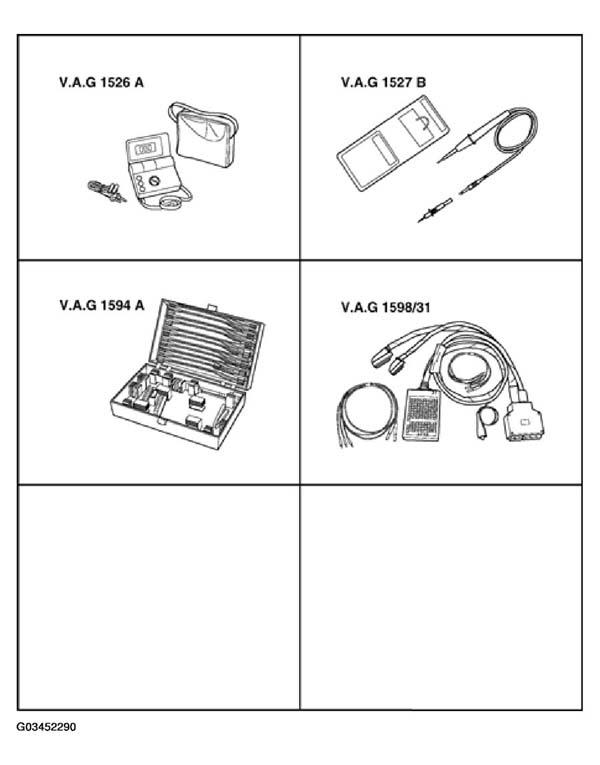

Recommended special tools and equipment

VAG1526A multimeter
V.A.G 1527 B Voltage Tester
VAG1594A connector test kit
VAG1598/31 test box

Fig 1: Identifying Special Tools And Equipment For Checking Camshaft Position Sensor

Courtesy of AUDI OF AMERICA, INC.

Component location. See OVERVIEW OF COMPONENT LOCATIONS .

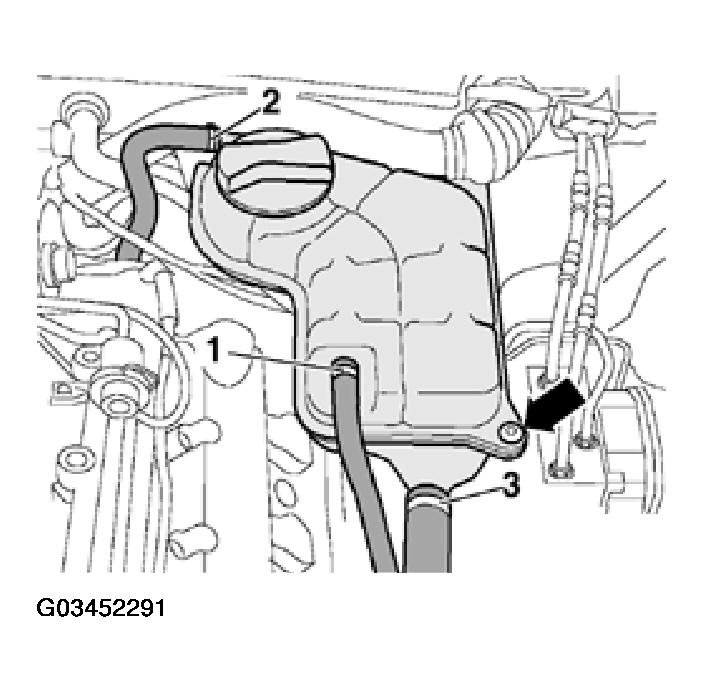

NOTE: To reach the harness connectors at cylinder bank 2 (left), the left cover in engine compartment must be removed, the line to Engine Coolant Level (ECL) Warning Switch at bottom on reservoir must be disconnected, and the bolt -arrow- of the coolant reservoir must be unscrewed and set aside. Coolant hoses -1- to -3- remain connected.

Fig 2: Locating Coolant Hoses On Coolant Reservoir

Courtesy of AUDI OF AMERICA, INC.
