Fuse Panel Identification

For fuse position within panel, see Fig 1. For fuse number, amperage rating and circuits protected, see FUSE IDENTIFICATION (FUSE PANEL) table.

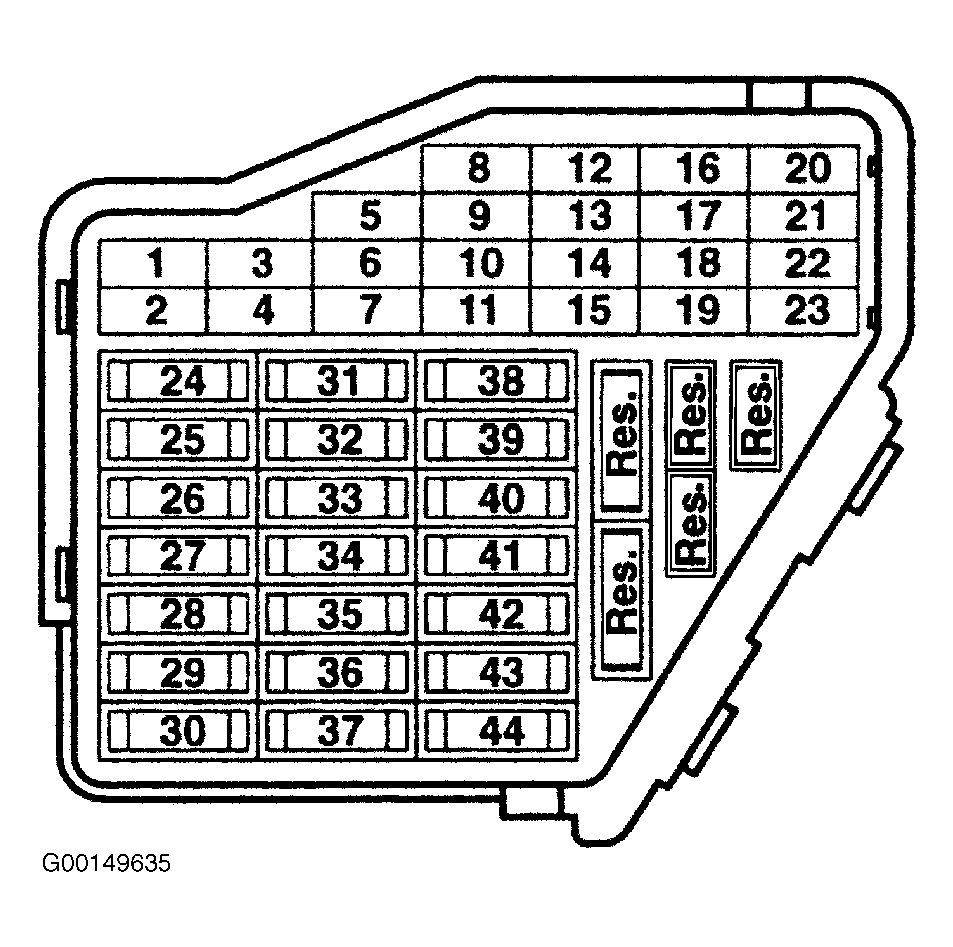

Fig 1: Identifying Fuse Panel Fuses

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Fuses 23 through 44 may be designated in wiring diagrams with a prefix of 2. For example, fuse No. 29 may be labeled as 229. Fuse No. 43 may be labeled as 243.

FUSE IDENTIFICATION (FUSE PANEL)

Fuse No.

Amp Rating

Circuits Protected

Washer Nozzle Heaters

Emergency Flasher Switch

Glove Compartment Light

License Plate Light

Heated Seat Adjusters, High Pressure Sensor, Navigation W/CD Drive Control Unit, Parking Aid Control Module, Lamp Control Module, A/C Control Head, A/C Clutch Relay, A/C Compressor Regulator Valve ⁽¹⁾, Air Quality Sensor, Mirror Adjustment Switch, Mirror Fold-Away Function Control Module, Rear Window Shade, Radio, Oil Level Thermal Sensor, Level Control System Control Head ⁽²⁾, Level Control System Control Module ⁽²⁾, Tiptronic Switch ⁽³⁾

Central Locking Control Module

Brake Pedal Switch, Cruise Control/Diesel Direct Fuel Injection, Cruise Control Switch, ABS Control Module, ASR/ESP Button ⁽⁴⁾, Steering Angle Sensor ⁽⁴⁾, Level Control System Control Head ⁽²⁾, Clutch Vacuum Vent Valve Switch ⁽⁶⁾, ECM, Brake Vacuum Vent Valve Switch ⁽⁵⁾

Telephone/Telematic Control Module, Operating Electronic (Telephone) Control Module

Heated Outside Mirrors

Headlight Beam Adjustment Motors, Beam Adjustment Control Module

Automatic Day/Night Interior Mirror, Garage Door Opener Control Module

DLC

Brake Light Switch

Central Locking Control Module, Door Warning Lights, Passenger Compartment Monitoring Switch, Trunk Lid Release Switch, Memory Program Switch, Memory Control Head (Passenger's Seat), Seat Memory Control Module (Driver's & Passenger's)

Instrument Cluster, Solar Cell Separation Relay, Mirror Memory Control Module, Navigation W/CD Drive Control Unit

Steering Angle Sensor

Level Control System Control Module, Tire Pressure Monitoring Control Module ⁽²⁾, Capacitor ⁽⁴⁾, Parking Aid Control Module

High Beam (Right), Headlight High Beam Indicator Light, Control Module W/Display Unit In Instrument Cluster ⁽⁷⁾

High Beam (Left), Fog Light Relay

Lamp Control Module, Low Beam Headlight (Right)

Lamp Control Module, Low Beam Headlight (Left)

Lamp Control Module, Tail Light (Right), Parking Light (Right)

Lamp Control Module, Tail Light (Left), Parking Light (Left)

Wiper/Washer Intermittent Relay

Fresh Air Blower, Solar Cell Separation Relay, A/C Control Head, A/C Clutch Relay

A/C Control Head, Rear Window Defogger Switch

Rear Window Wiper Motor, Heated Steering Wheel, Steering Wheel Control Unit

All Engine Codes Except BCY

Fuel Pump

Engine Code BCY

Fuel Pump Control Module, Three Fold Relay Panel (Instrument Panel)

Engine Codes APB

Ignition Coils, ECM

Engine Code AVK

Ignition Coils

Engine Codes AWN & BBD

Camshaft Adjustment Valves, Ignition Coils, Motronic ECM

Engine Code BAS

Ignition Coils, ECM

Engine Code BCY

Camshaft Adjustment Valves, Ignition Coils, Motronic ECM, Electrohydraulic Engine Mount Solenoid Valve (Left & Right)

Power Sunroof Control Module

Manual Transmission

Back-Up Light Switch, DLC

Automatic Transmission

DLC, Multi-Function Transmission Range Switch, Shift Lock Solenoid, Park/Neutral Position Relay ⁽⁸⁾, Transmission Control Module ⁽⁸⁾

Engine Code APB

Cruise Control Switch, Cruise Control, Fuel Injectors

Engine Codes AVK, AWN, BAS & BBD

Fuel Injectors

Engine Code BCY

Fuel Injectors, Coolant Circulation Valve

Cigarette Lighters

Engine Code APB

MAF Sensor, Oxygen Sensor Heaters, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Leak Detection Pump, Exhaust Temperature Sensors, Wastegate Bypass Regulator Valve, Central Idle Air Control Cut-Off Valve

Engine Code AVK

MAF Sensor, Oxygen Sensor Heaters, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Intake Change-Over Valve, Leak Detection Pump

Engine Code AWN & BBD

MAF Sensor, Oxygen Sensor Heaters, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Electrohydraulic Engine Mount Solenoid Valve (Left & Right), Intake Manifold Change-Over Valve, Intake Manifold Tuning Valve No. 2 ⁽⁹⁾, Leak Detection Pump, Intake Air Switch-Over ⁽¹⁰⁾

Engine Code BAS

MAF Sensor, Oxygen Sensor Heaters, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Intake Change-Over Valve, Leak Detection Pump, Electrohydraulic Engine Mount Solenoid Valve (Left & Right)

Engine Code BCY

Trailer Socket

Fog Light Switch

Radio, Right Rear Woofer/Amp, Power Antenna

Central Locking Control Module

Emergency Flasher Switch

Dual Horn Relay

41 ⁽²⁾

ABS Solenoid Valve

ABS Control Module (W/EDL)

N/A

Not Used

Heated Seat Adjusters, Heated Seat Switch

⁽¹⁾	Applies to vehicles equipped with engine codes AVK and BAS only.

⁽²⁾	Applies to Allroad models only.

⁽³⁾	Applies to vehicles equipped with automatic transmission only.

⁽⁴⁾	Applies to all models except Allroad.

⁽⁵⁾	Applies to vehicles equipped with cruise control only.

⁽⁶⁾	Applies to vehicles equipped with manual transmission only.

⁽⁷⁾	Applies to vehicles equipped with high intensity gas discharge lamps only.

⁽⁸⁾	Applies to vehicles equipped with multitronic transmission (01J) only.

⁽⁹⁾	Applies to vehicles equipped with engine code AWN only.

⁽¹⁰⁾	Applies to vehicles equipped with engine code BBD only.
