Torque Converter, Checking

Check hub -arrow- of converter for grooves. See Fig 1.

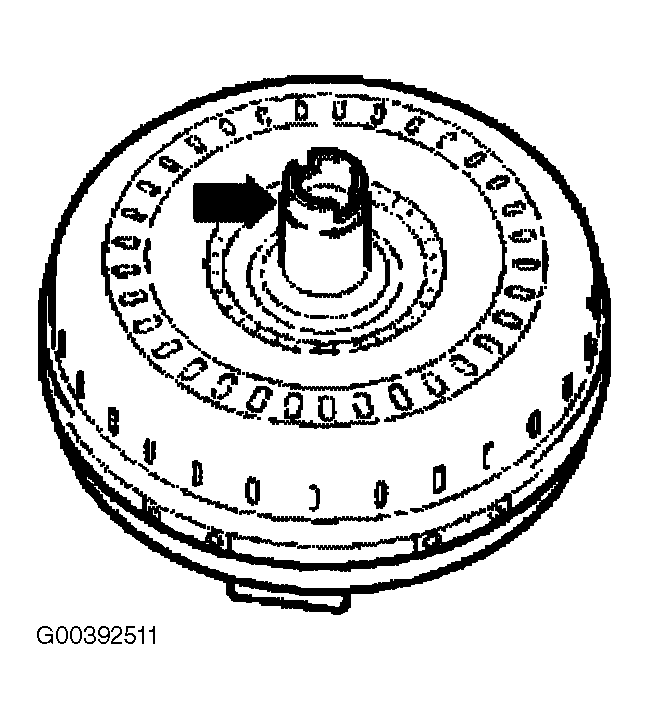

Fig 1: Checking Torque Converter Hub
G00392511Courtesy of AUDI OF AMERICA, INC.
NOTE: A faulty or damaged torque converter must be replaced.
