Front fender, assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

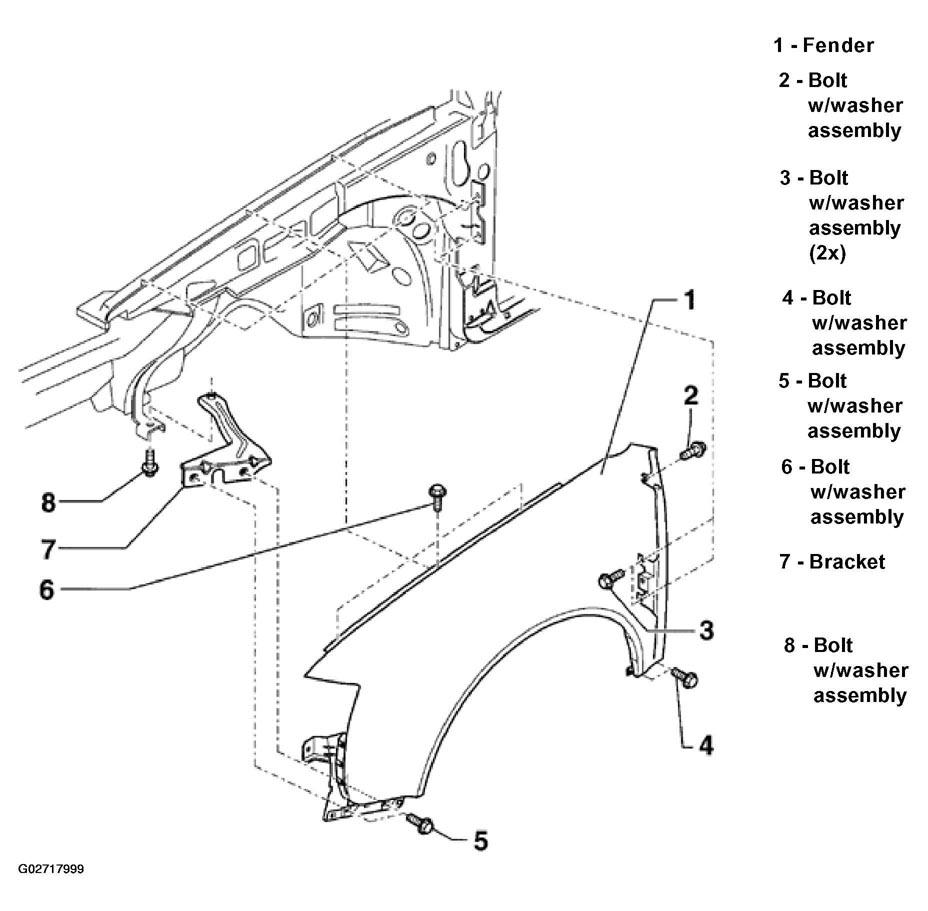

The following list refers to items in Fig 1
.
- Fender
- Remove bumper. See FRONT BUMPER or FRONT BUMPER (AUDI RS6) .
- Remove wheelhousing liner. See WHEELHOUSING LINERS, REMOVING AND INSTALLING or WHEEL HOUSING LINER, REMOVING AND INSTALLING (AUDI RS6) .
- Remove end plate. See REMOVING AND INSTALLING END PLATE .
- Remove headlights. See LIGHTS, SWITCHES-EXTERIOR - UP TO 2000 or LIGHTS, SWITCHES-EXTERIOR - 2001 AND UP . .
- Disconnect harness connectors for side turn signals.
- Remove bolts -2-, -3-, -4-, -5- and -6-.
- Bolt w/washer assembly
- 10 Nm (7 ft lb)
- Bolt w/washer assembly (2x)
- 10 Nm (7 ft lb)
- Bolt w/washer assembly
- 10 Nm (7 ft lb)
- Bolt w/washer assembly
- 10 Nm (7 ft lb)
- Bolt w/washer assembly
- 15 Nm (11 ft lb)
NOTE:- As a running change, the bolt w/washer assembly will change from hex-head to Torx (R).
- Bolt w/washer assemblies coated with locking fluid must always be replaced.
- Bracket
- Bolt w/washer assembly
- 10 Nm (7 ft lb)
