Check knock sensors: Notes

WARNING: This page is about a different variant/trim than selected.

Recommended special tools and equipment

VAG1526A hand multimeter
VAG1594A connector test kit
VAG1598/31 test box

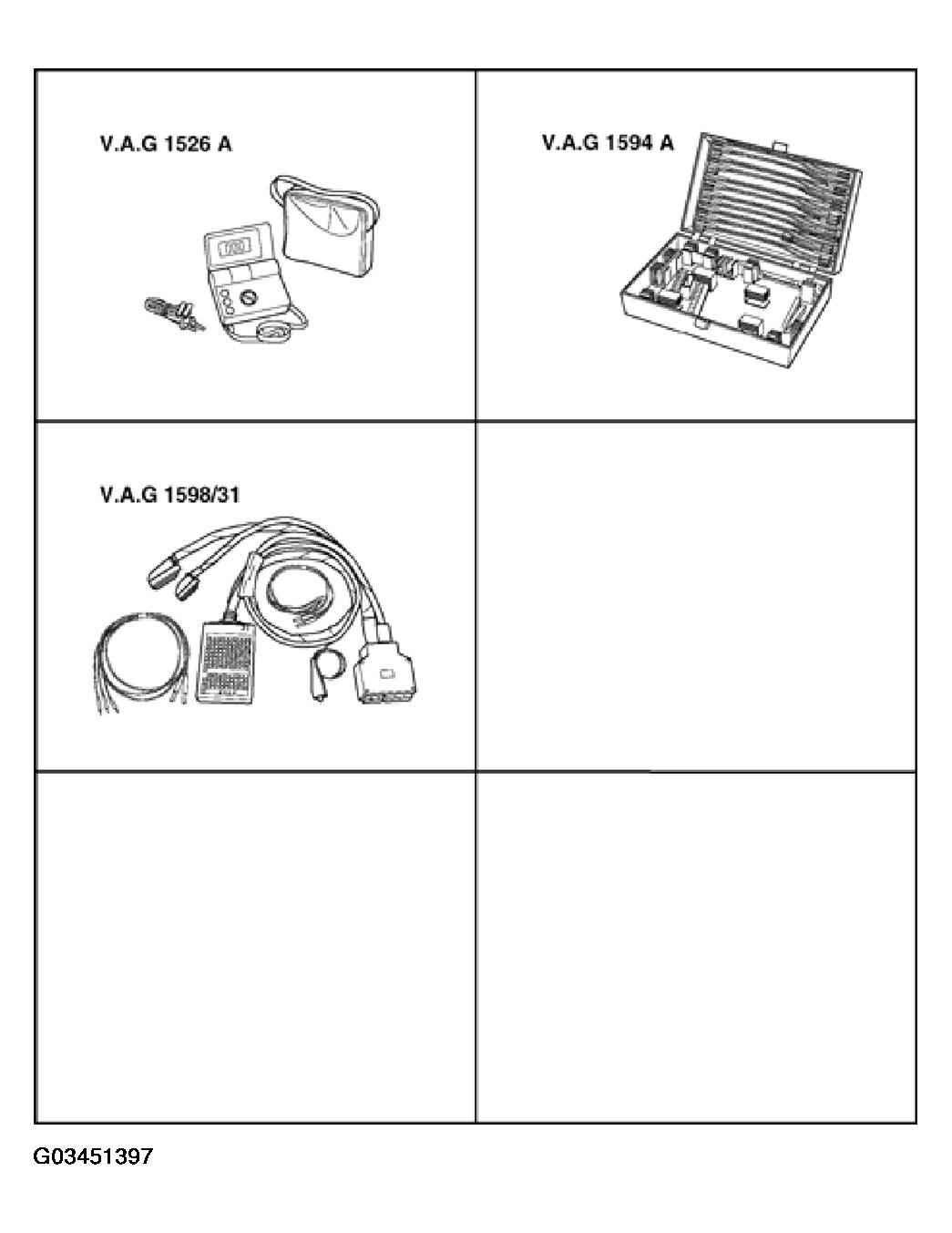

Fig 1: Identifying Special Tools

Courtesy of AUDI OF AMERICA, INC.

Component location. See OVERVIEW OF COMPONENT LOCATIONS .
