DTC: P0603 And P0702 - Update Programming (Flashing) Transmission Control Module (GROUP 37, NO. 08-11)

WARNING: This page is about the A6 Quattro, 2.7 D, Automatic, which is a different variant/trim than selected.

Publication date: 2008-11-25
Reference number: GROUP 37, NO. 08-11
Supersedes refnos: 2010226, GROUP 01, NO. 04-05, GROUP 37, NO. 06-10

DTC: P0603 AND P0702 - UPDATE PROGRAMMING (FLASHING) TRANSMISSION CONTROL MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 37, NO. 08-11 (2010226/6), Date of Issue: November 25, 2008

AUDI:	A6 2004; A4 2004; A4 Cabriolet 2004
GROUP:	37 - Automatic Transmission - Controls, Case

Superceded Bulletin(s): GROUP 37, NO. 06-10, Date of Issue: October 30, 2006

SERVICE INFORMATION

37 08 11 2010226/6 November 25, 2008. Supersedes Technical Service Bulletin Group 37 number 06-10 dated October 30, 2006.

APPLICABLE MODELS AND YEARS

Model(s)	Year	VIN Range	Vehicle-Specific Equipment
A6	2004	All	With Automatic CVT (01J)
A4	2004	All
A4 Cabriolet	2004	All

CONDITION

Gear indicator in the instrument cluster flashes, MIL on and the faults "P0603 and P0702 control unit faulty" are logged in the transmission control unit.

TECHNICAL BACKGROUND

In certain operating conditions the automatic data back-up during the after-running control EEPROM (Electrically Erasable Programmable Read-Only Memory) cannot be accessed.

PRODUCTION SOLUTION

From production week 48/2003 gradual software change.

SERVICE

It is not necessary to receive an authorization number from the Technicians Helpline for the repair described in this bulletin.

NOTE: Any Update Programming procedure (flash) may overwrite any "TUNED" ECM or TCM programming. A "TUNED" ECM or TCM is described as any ECM or TCM altered so as to perform outside the normal parameters and specifications approved by Audi of America, Inc.

Current Tuned ECM or TCM requirements: If you encounter a vehicle with a "Tuned" ECM or TCM, your dealership must do the following before performing any procedure that updates ECM or TCM programming:

Notify the owner that their ECM or TCM was found to have been tuned.
Notify the owner any damage caused by the tuning of the ECM or TCM (including any adverse emissions consequences) will not be covered by Audi of America, Inc. warranties.
Obtain the owner's written consent (see attached Control Module Tuning form) for any requested repair under warranty or outside warranty that requires flashing, which will automatically overwrite the "Tuned" program.

Flash the TCM with the update CD - Part Number: 8N0-906-961.

Before flash update, delete the fault memory in the transmission control module. Flash update isn't possible when an EEPROM fault is active.

After inserting the Flash CD in the VAS 5051 and accessing the transmission control unit the programming starts by pressing the Update button.

If the update button doesn't appear, the latest version has already been installed.

WARRANTY

WARRANTY INFORMATION

When procedure applies to vehicles within the New Vehicle Limited Warranty, use the following:
Claim Type:	W2
Part Identifier:	3730
Damage Code:	3730 40 000 1
Labor Operations:	37303101	Updated TCM software	70 TU
Diagnostic Time:	No Diagnostic Time Allowed
Claim Comment:	As per TSB #2010226/6
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

REQUIRED PARTS AND TOOLS

PARTS INFORMATION

Part Number	Part Description	Quantity
8N0-906-961	"Flash Update CD"	01

Flash Update CD can be ordered from your facing Part Depot

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.

ATTACHMENTS

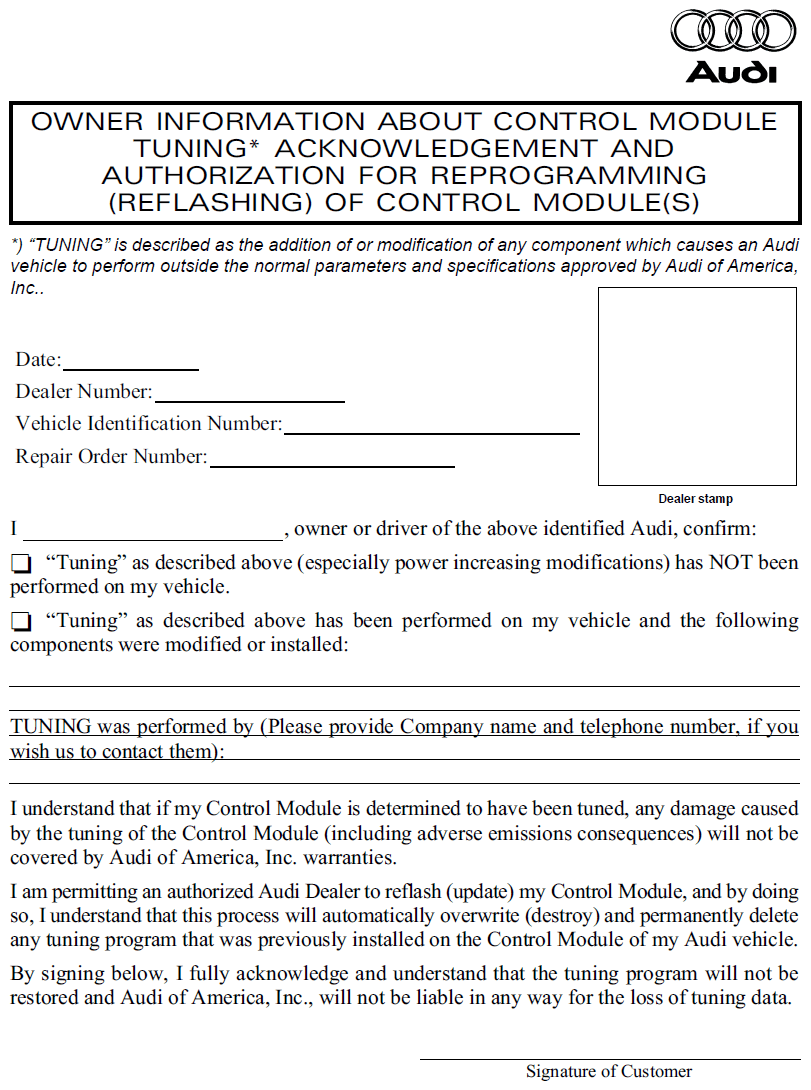

Fig 1: Control Module Tuning Form
