Keyless Entry Module
Control Modules
Access/Start Control Module -J518-

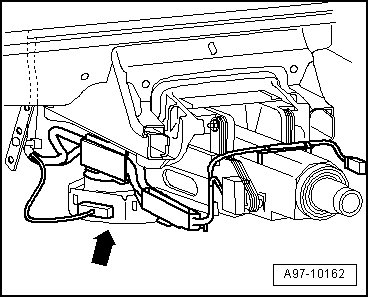

Component Location:
On steering column -Arrow-

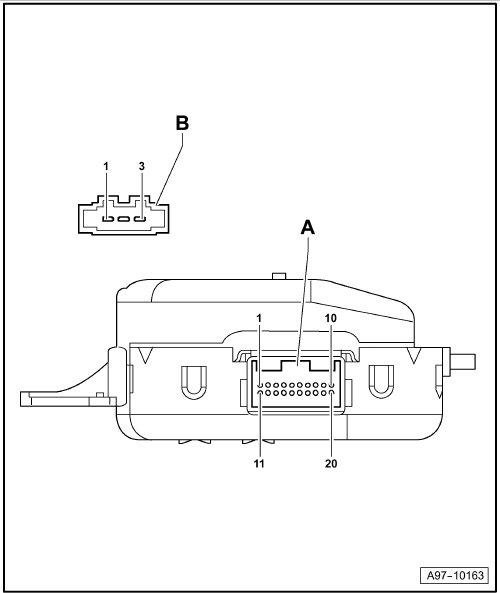

Pin Arrangements:
Access/Start Control Module -J518-
Connector:
A - 20-Pin Connector, black -T20h-
B - 3-Pin Connector, black -T3q-
