Radiator Support

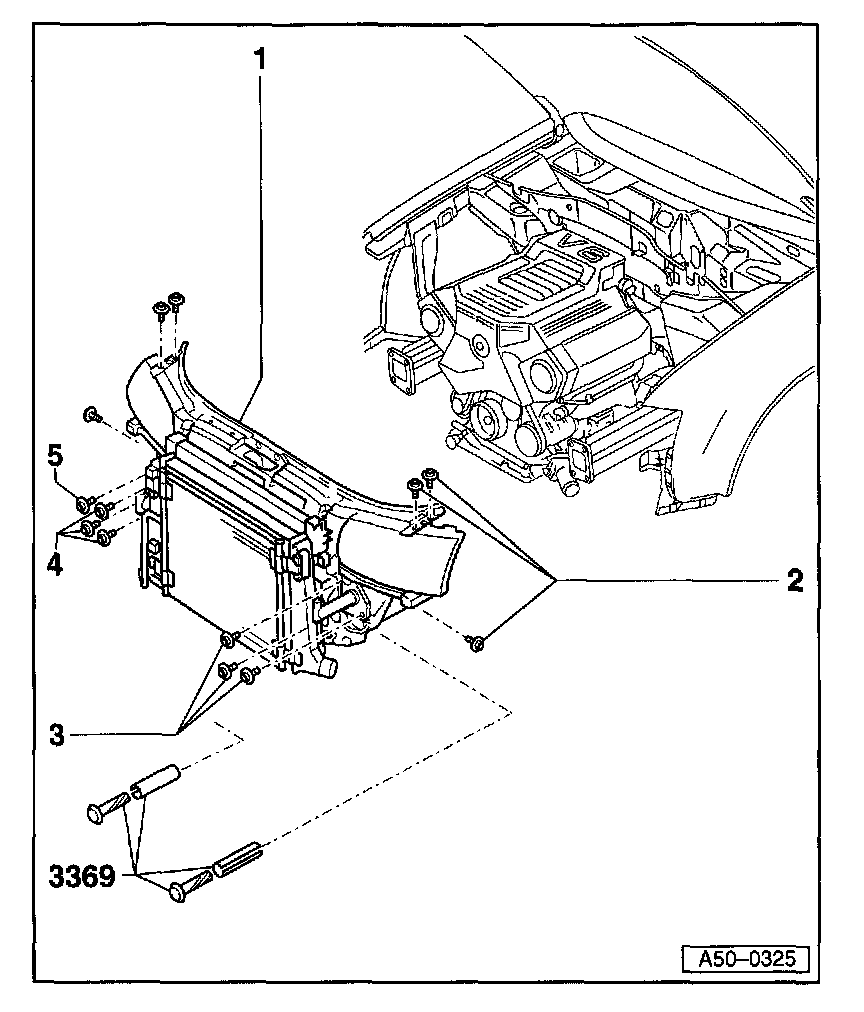

Lock Carrier with attachments, assembly overview






1. Lock carrier
2. Torx bolts 10 Nm (7 ft lb)
3. Bolt w/washer assembly 50 Nm (37 ft lb)
4. Bolt w/washer assembly 50 Nm (37 ft lb)
5. Bolt w/washer assembly 50 Nm (37 ft lb)
