Solar Sensor: Service and Repair

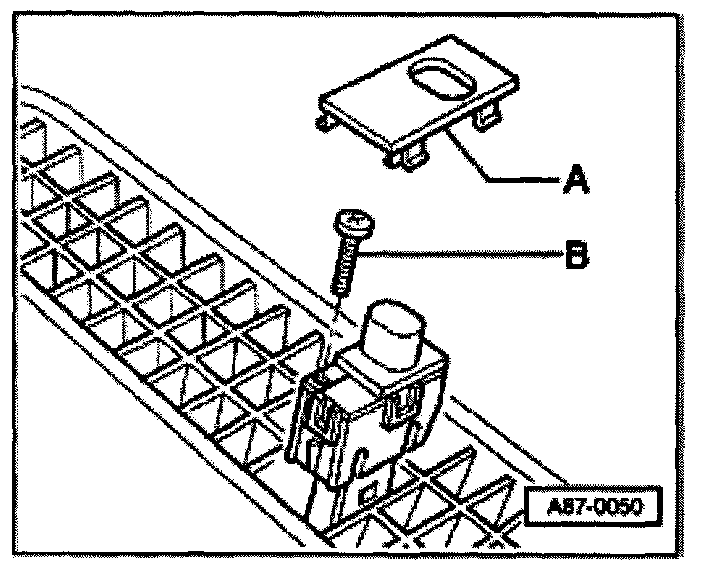

Sunlight Photo Sensor -G107-, Removing And Installing







- Carefully pry off cover -A-.
- Remove bolt -B-.
- Remove photo sensor.
