Display Group 002
Display Group 002:
Last four compressor cut-off conditions

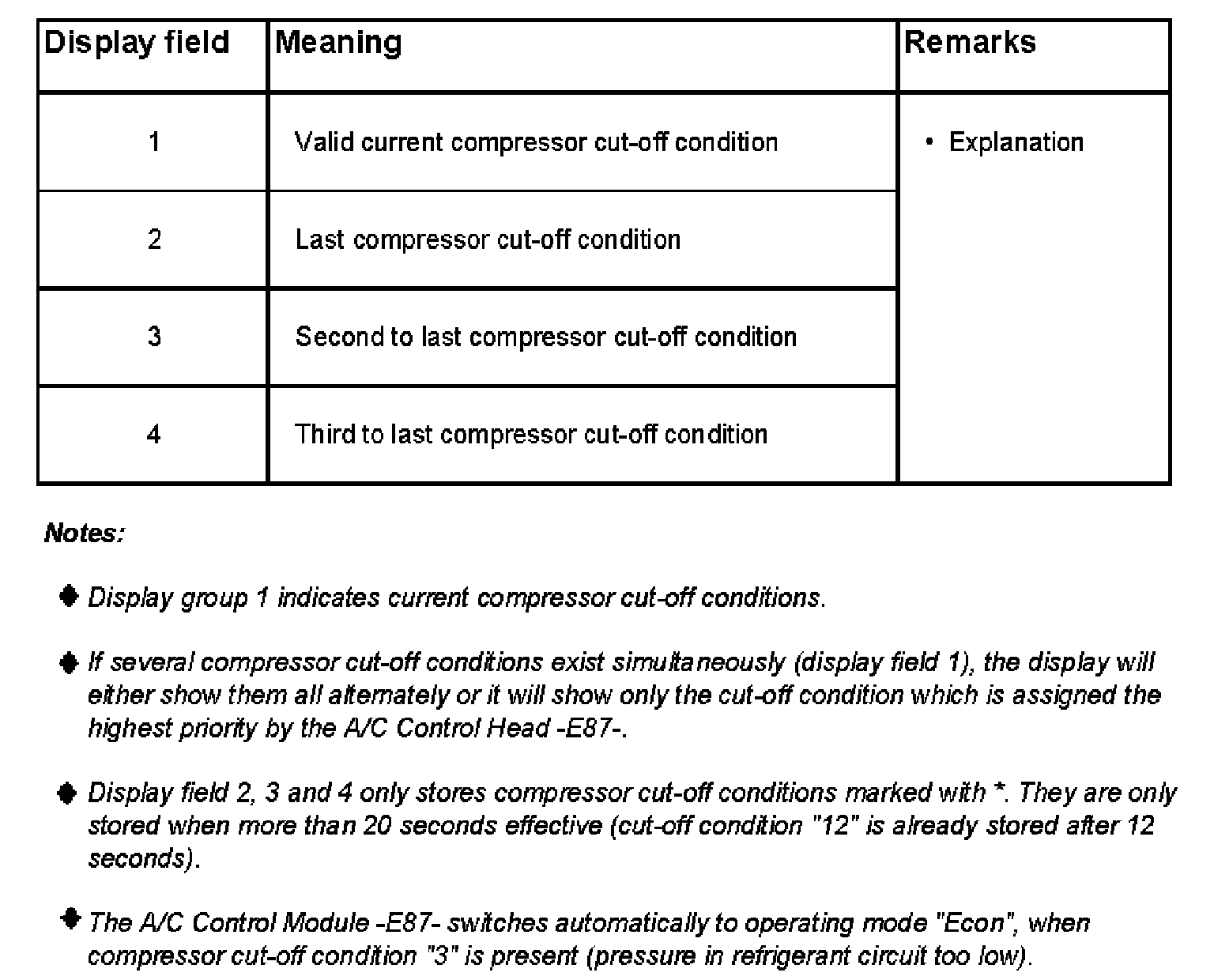

Display Field 1 - 4:
Interpretation of compressor cut-off condition for display field 1 - 4:

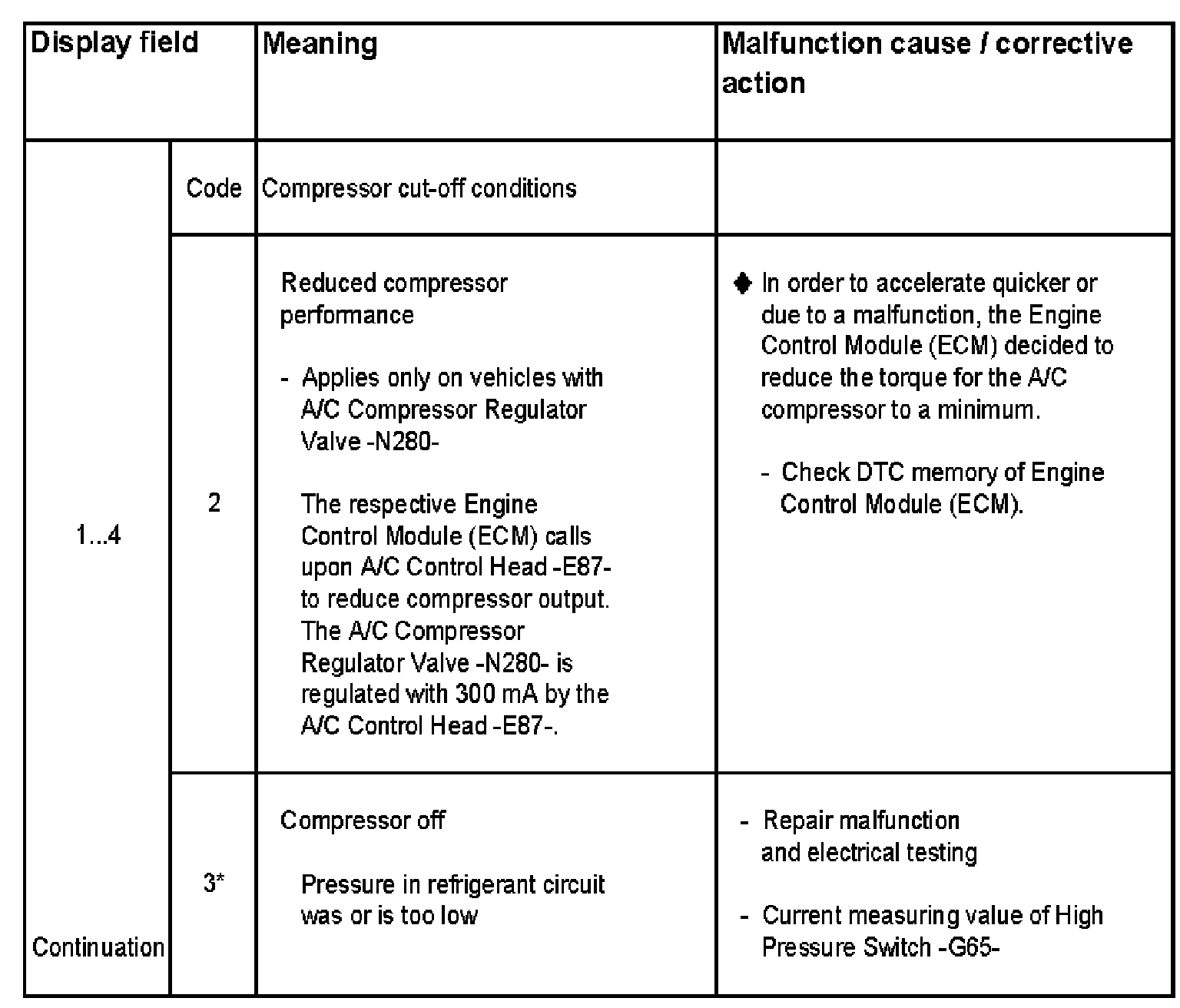

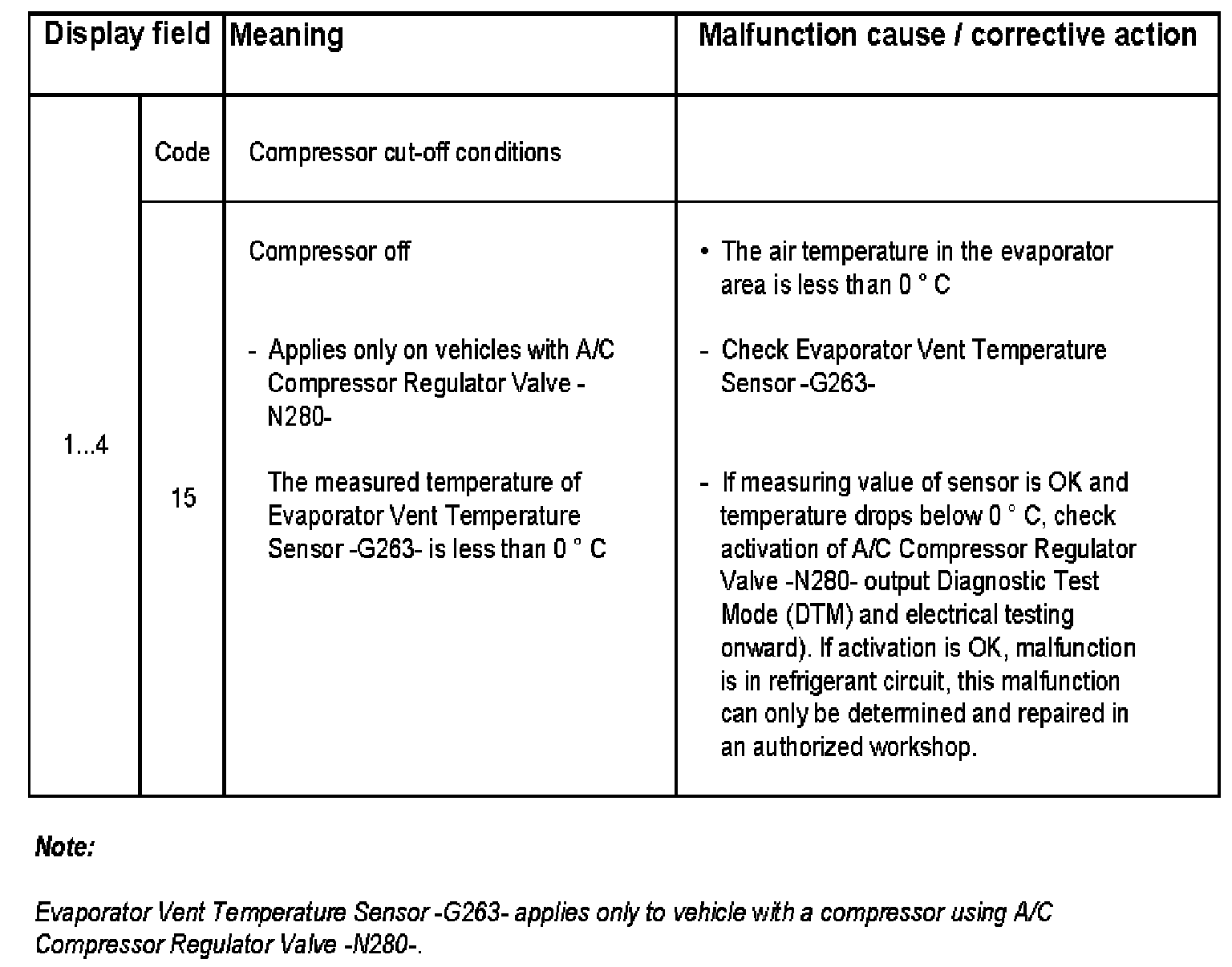

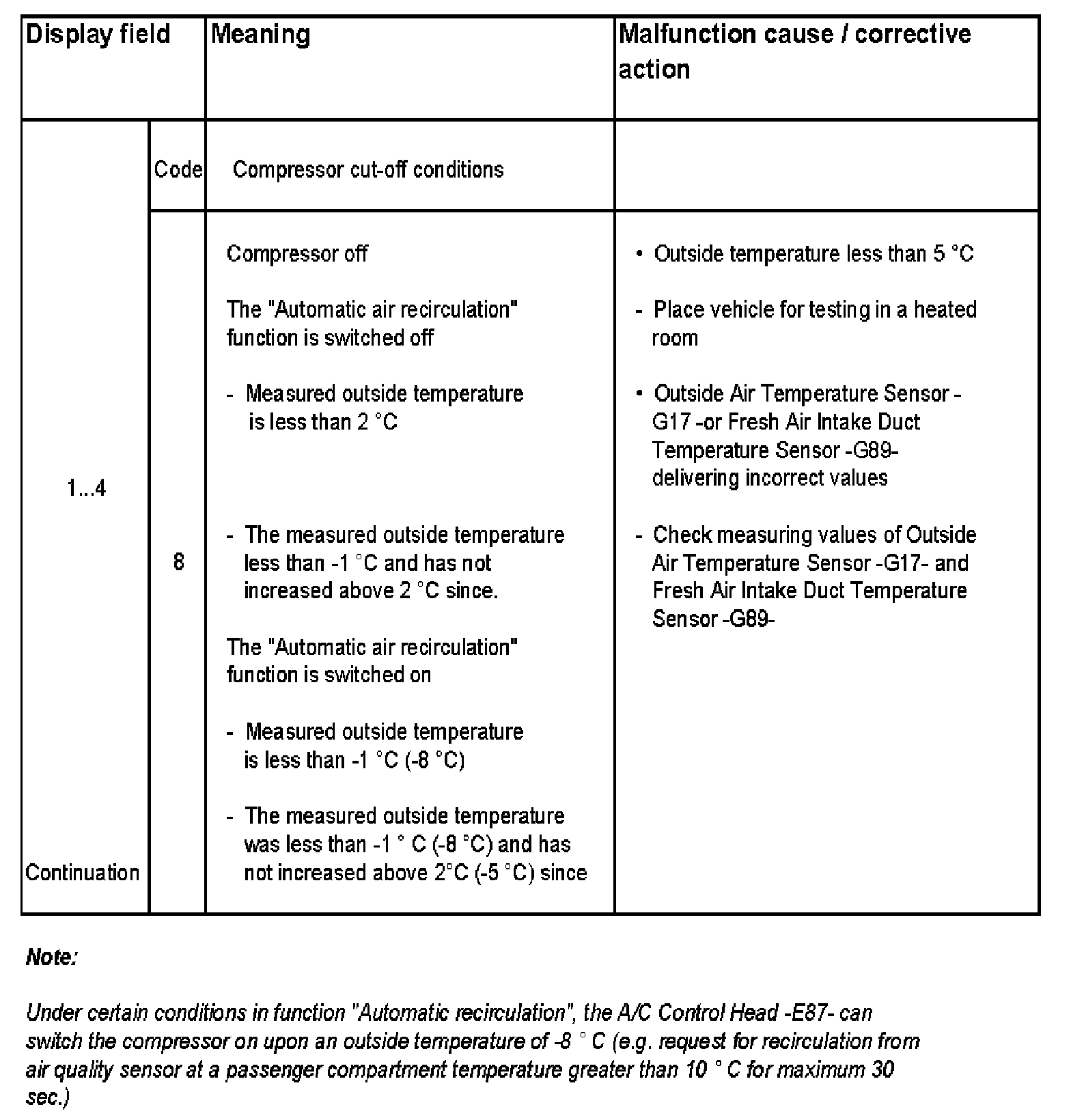

Display Field 1 - 4, Part 1:
Display Field 1 - 4, Part 2:
Display Field 1 - 4, Part 3:
Display Field 1 - 4, Part 4:
Display Field 1 - 4, Part 5:
Display Field 1 - 4, Part 6:
Display Field 1 - 4, Part 7:
Display Field 1 - 4, Part 8:
Display Field 1 - 4, Part 9:
