Overview Of Selectable Display Group Numbers




Measuring Value Blocks

Overview of selectable display group numbers


Display Group 001:






Display Group 002 - 008:






Display Group 009:






Display Group 010:






Display Group 011:

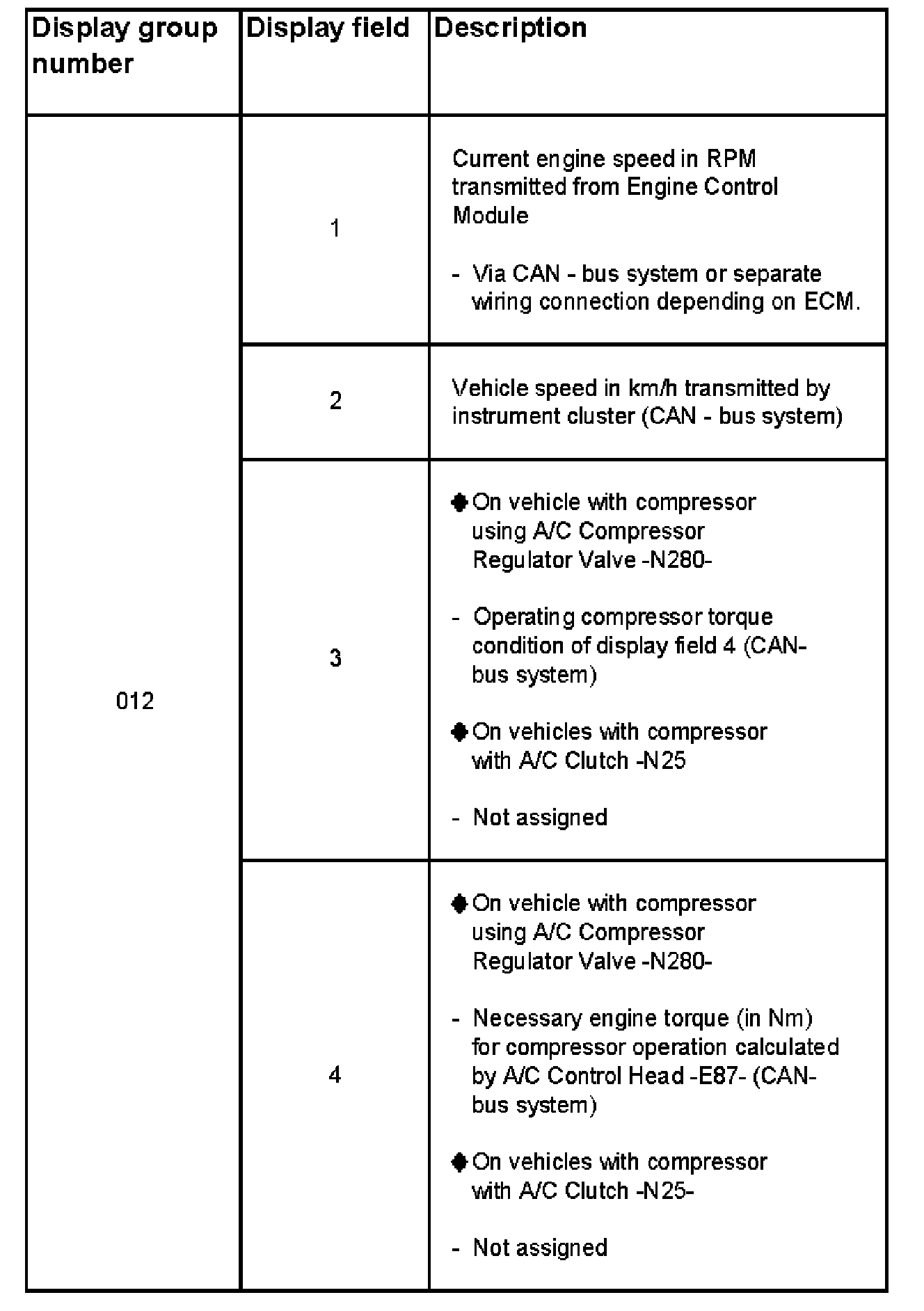

Display Group 012:






Display Group 013:

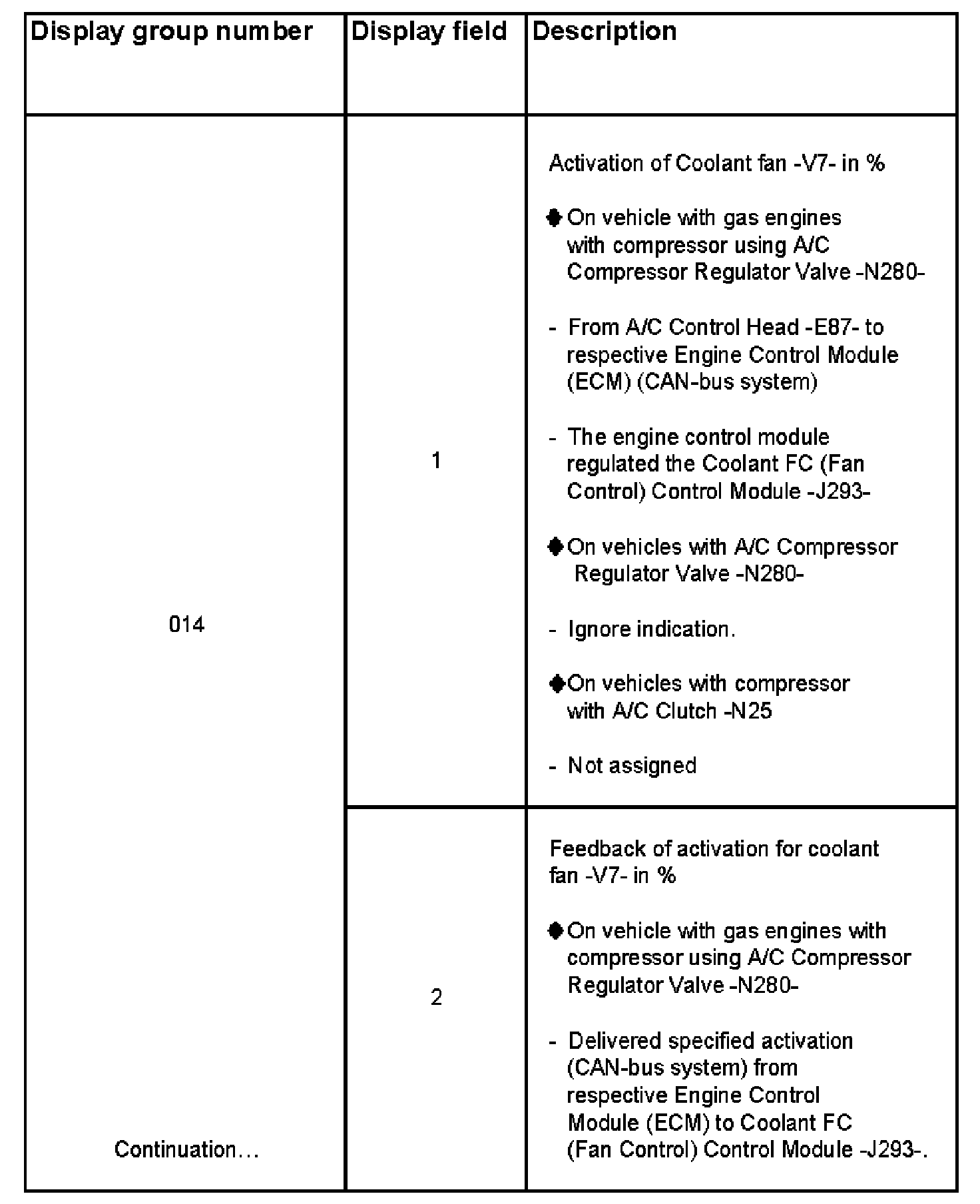

Display Group 014, Part 1:

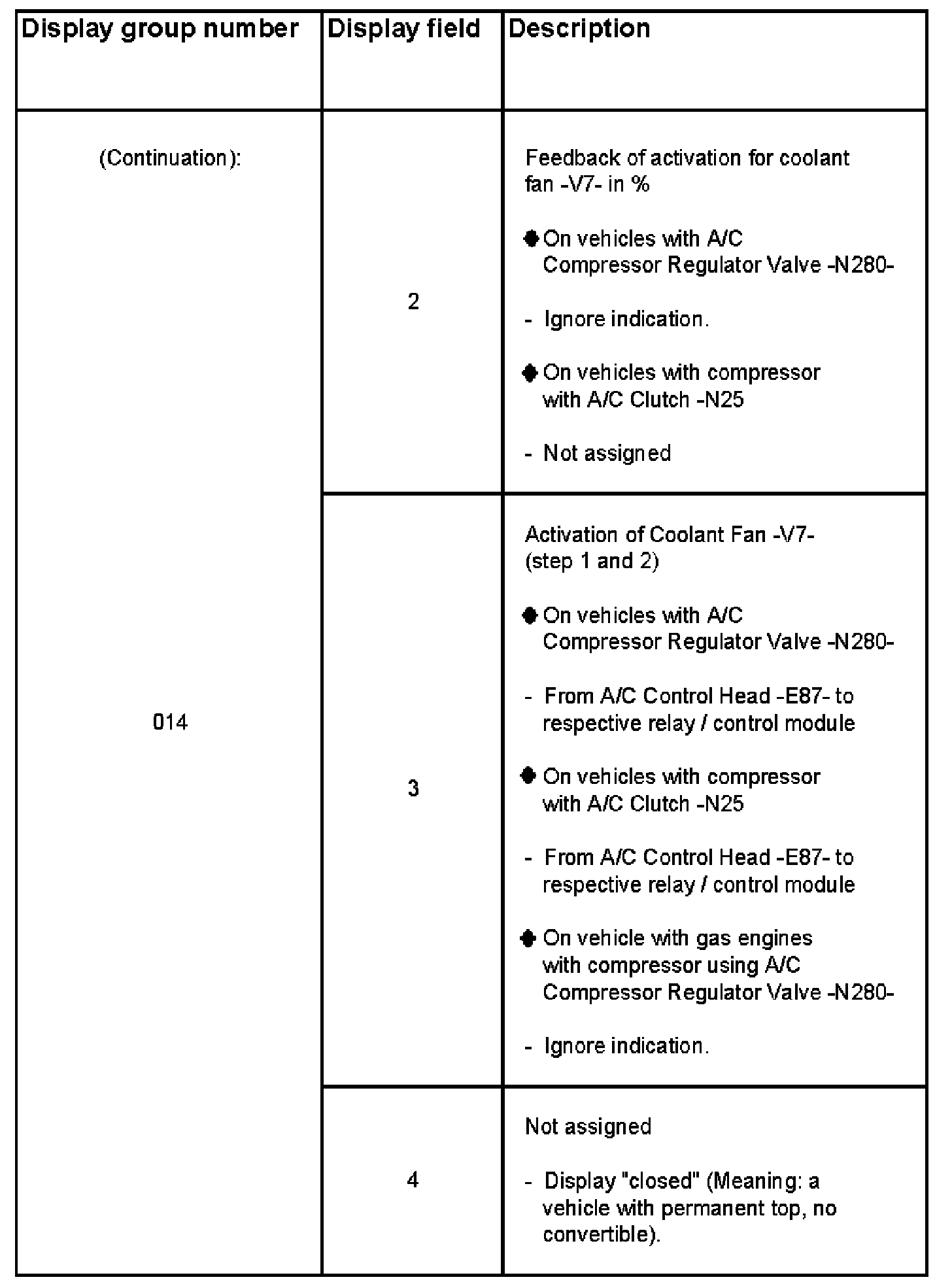

Display Group 014, Part 2:






Display Group 015 - 016:






Display Group 017:






Display Group 018:






Display Group 019 - 082:
