Fuse Block: Service and Repair

Fuse Bracket, Removing and Installing

Removing
- Remove driver-side storage compartment
- Carefully lever off cover on left side of instrument panel.

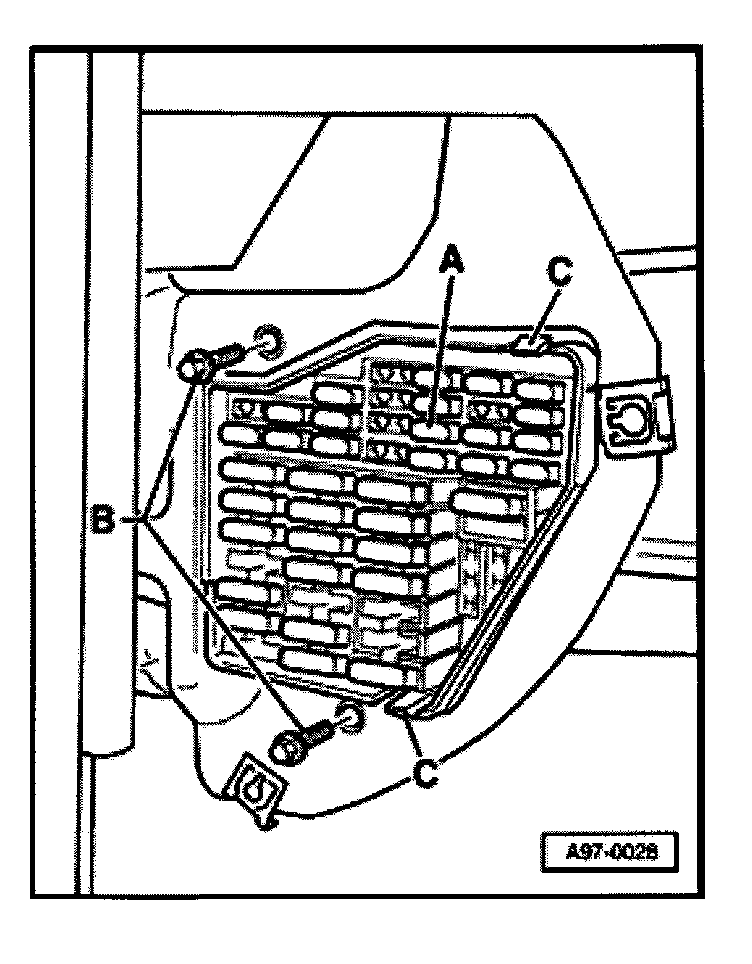

- Remove both mounting bolts -B-, then press locking mechanism -C- while pulling fuse bracket -A- toward rear.

Installing
Installation is the reverse of removal.

Tightening torque

Component Nm
Fuse bracket at instrument panel 2


NOTE:

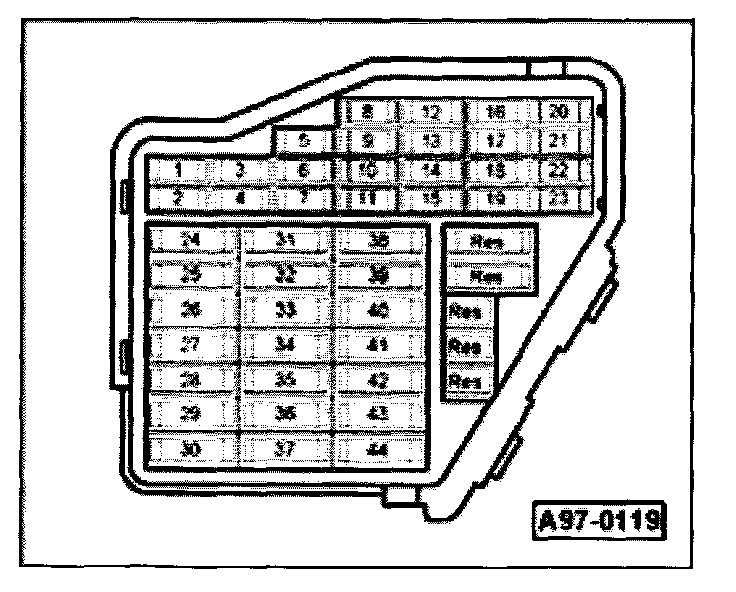

Always check the exact assignment for fuse bracket in the current wiring diagram.
