Radiator Cooling Fan Control Module: Locations

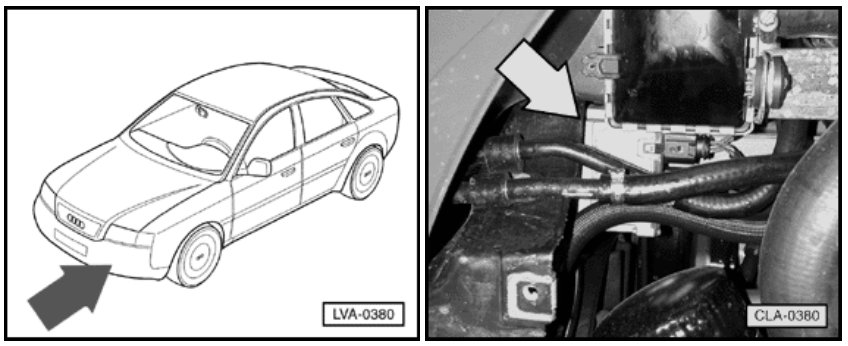

J293 Coolant FC (Fan Control) Control Module:






Through M.Y. 2001
- In engine compartment, front lower left
- Mounted on underside of frame rail

From M.Y. 2002
- In engine compartment, front
- Attached to fan on front apron
