09G Transaxle

Shift selector lever into "N" position. Switch ignition off. Disconnect hose (5) from air cleaner housing. See Fig 1 .

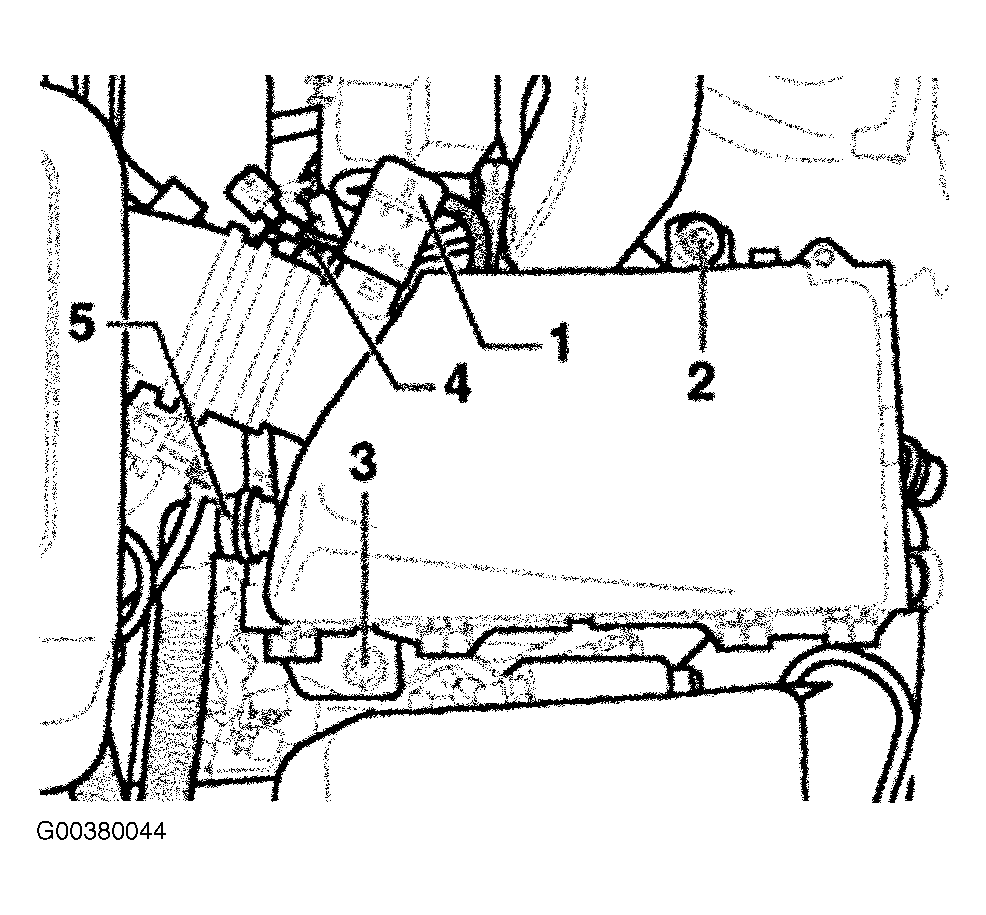

Fig 1: Disconnecting Air Filter Components
Courtesy of AUDI OF AMERICA, INC.
Using a screwdriver, press selector lever cable (1) off lever/selector shaft (6). See Fig 2 . Do not loosen bolt (2). Do not kink selector lever cable.

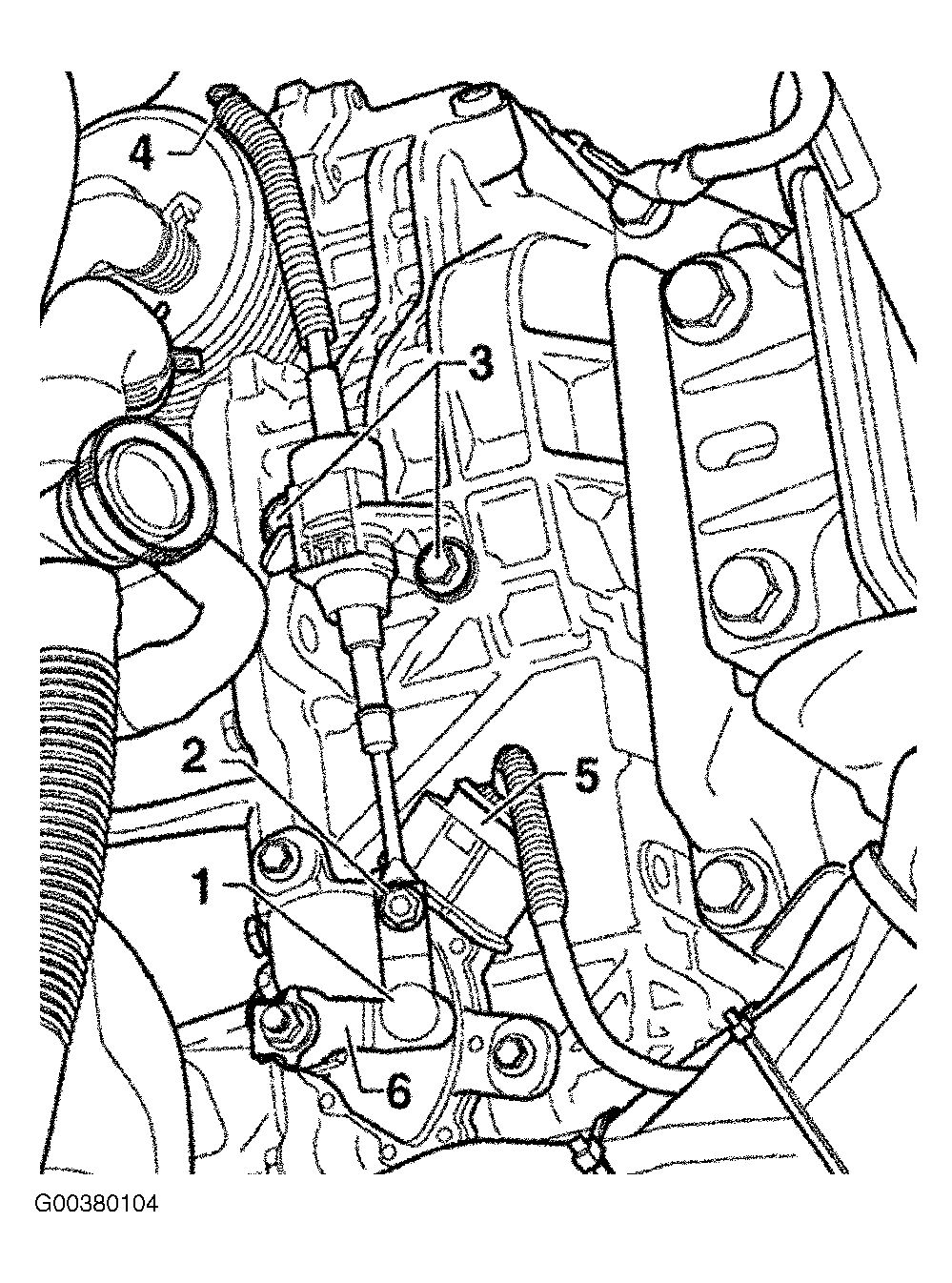

Fig 2: Locating Selector Lever Cable & TR Switch Harness Connector
Courtesy of AUDI OF AMERICA, INC.
Remove lever/selector shaft (1). See Fig 3 .

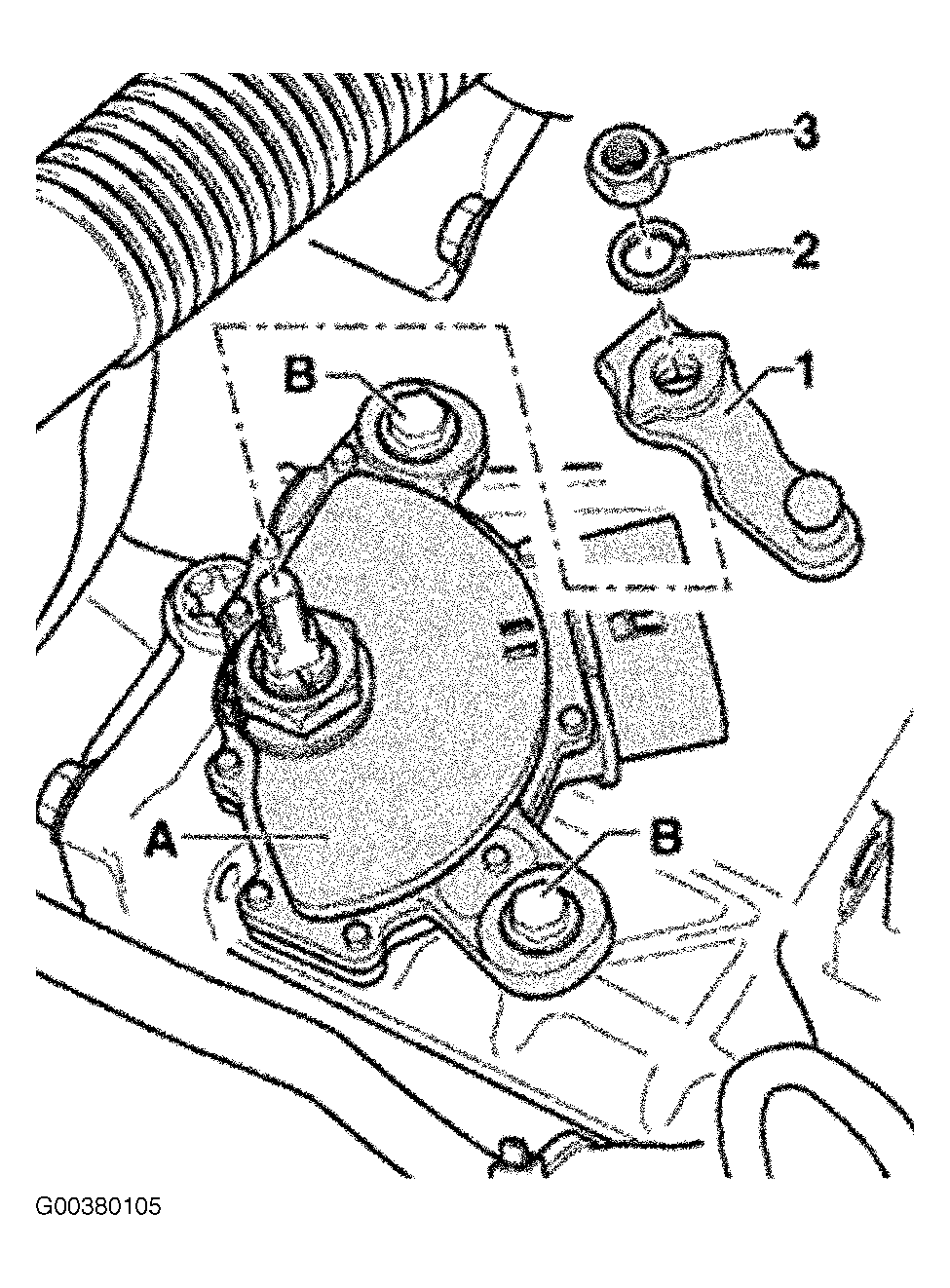

Fig 3: Removing Lever/Selector Shaft
Courtesy of AUDI OF AMERICA, INC.
Loosen both bolts (B). Do not fully unscrew bolts. Install adjustment gauge (T10173) on selector shaft. See Fig 4 . Turn multi-function TR switch (A) until tab of connector (arrow "1") engages in groove of adjustment gauge (T10173).

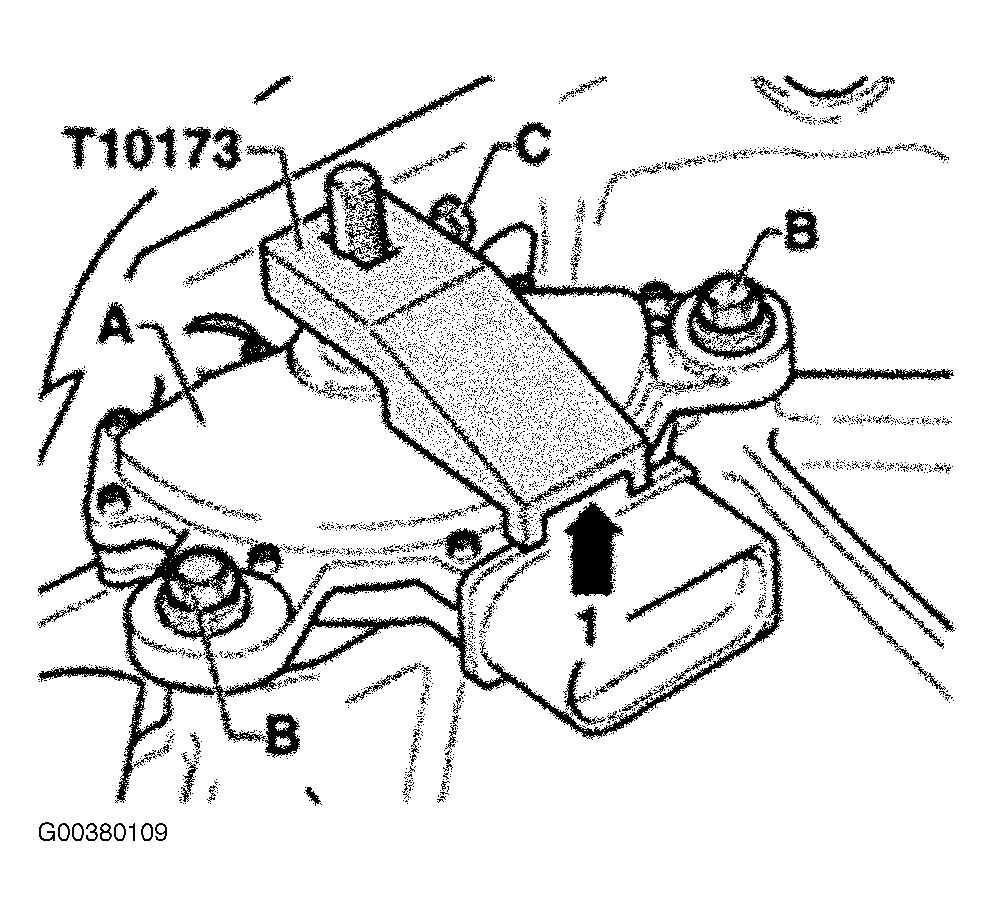

Fig 4: Adjusting Selector Transmission Range Switch
Courtesy of AUDI OF AMERICA, INC.
If connector tab cannot engage in groove of adjustment gauge, transmission is no longer in "N" position. If transmission is no longer in "N" position, switch transmission to "N" position by turning adjustment gauge forward or backward, as appropriate, until tab of connector (arrow "1") is able to engage in groove of adjustment gauge (T10173). Turn multi function TR switch (A) slightly, if necessary.
Secure adjustment gauge (T10173) on selector shaft with knurled screw (C). See Fig 4 . Tighten both bolts (B) to specification. See TORQUE SPECIFICATIONS . Remove adjustment gauge from selector shaft.

NOTE: DO NOT kink selector lever cable.

Install lever/selector shaft (1). See Fig 3 . Tighten selector lever-to-selector shaft nuts (3) to specification. See TORQUE SPECIFICATIONS .
Press selector lever cable (1) onto lever/selector shaft (6). See Fig 2 . It may be necessary to shift lever/selector shaft to right position to be able to press on selector lever cable.
Connect hose (5) to air cleaner housing. See Fig 1 . Check setting of selector lever cable, and adjust as necessary. See SELECTOR LEVER CABLE .
