Electrical Component Locator: Connectors

CONNECTORS LOCATION

Component Location
T16 (16 Pin) Under left side of dash. See Figure .

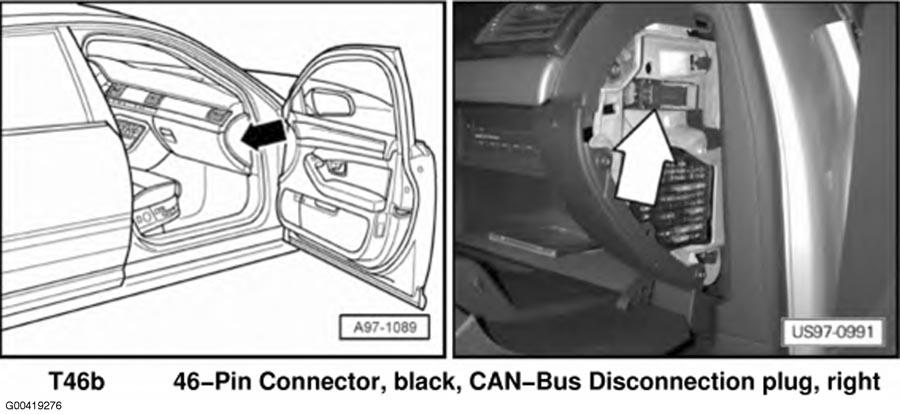

T46b (Black, 46 Pin) Right end of dash. See Figure .

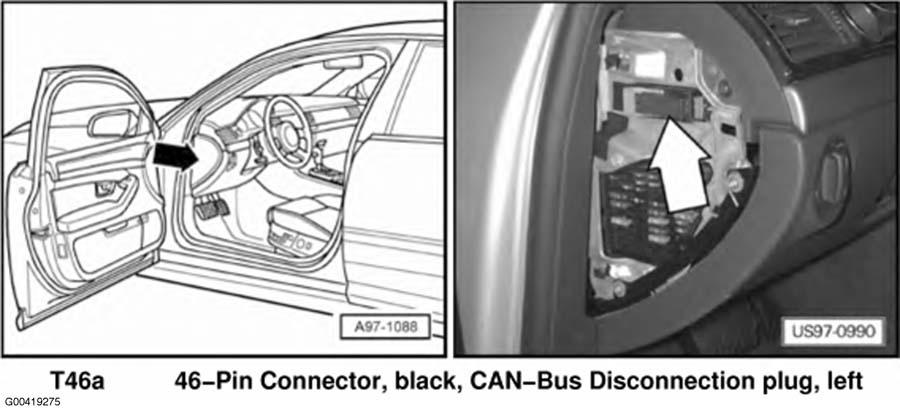

T46 (Black, 46 Pin) Left end of dash. See Figure .
