Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

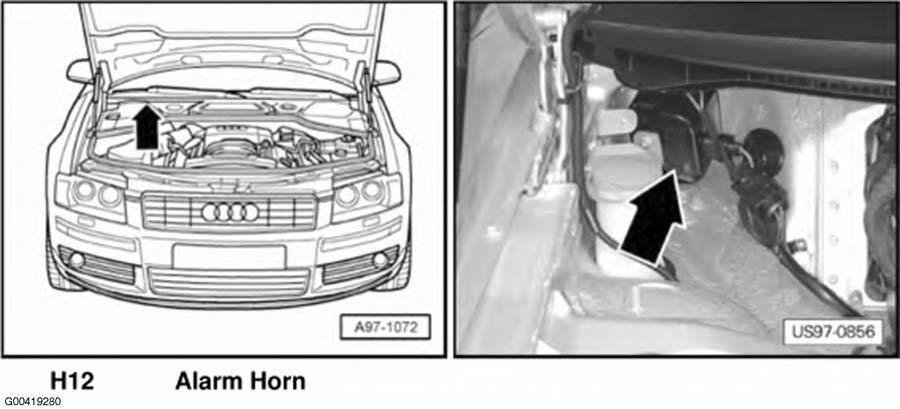

| Alarm Horn | Right side of plenum chamber. See Figure . |

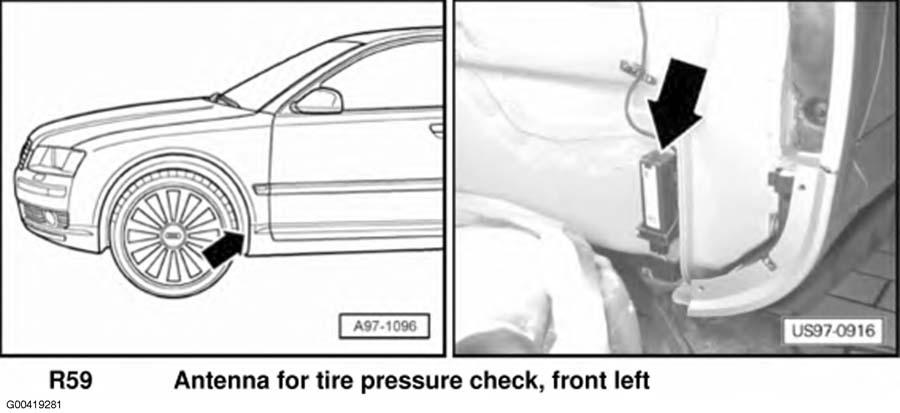

| Antenna For Tire Pressure Check (Left Front) | Left front wheel well. See Figure . |

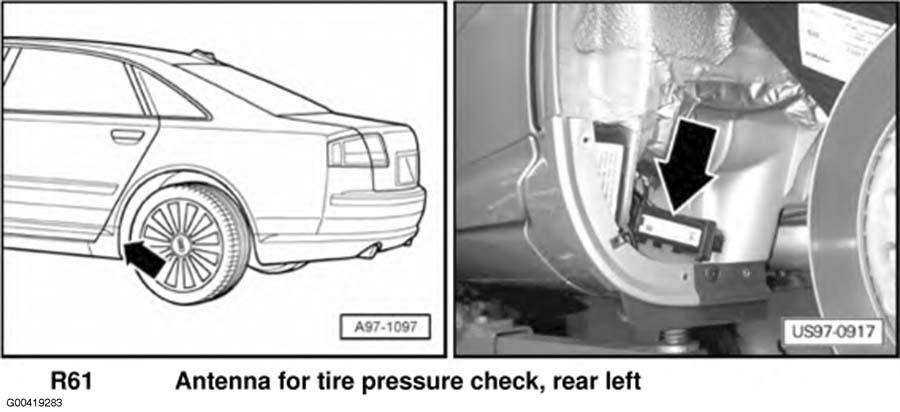

| Antenna For Tire Pressure Check (Left Rear) | Left rear wheel well. See Figure . |

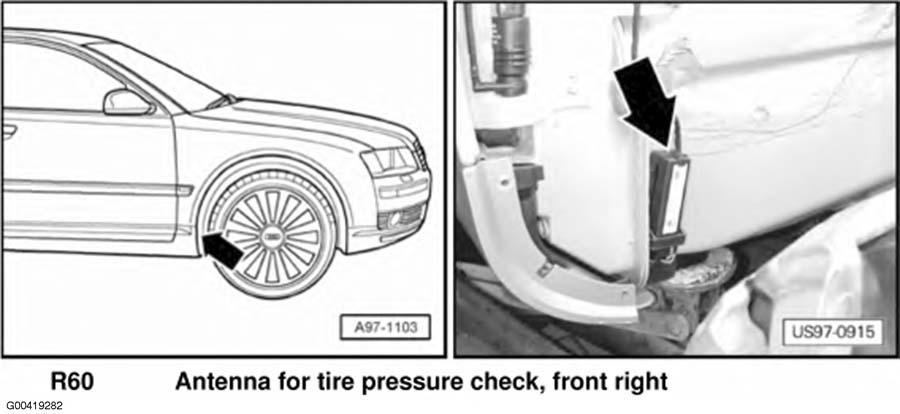

| Antenna For Tire Pressure Check (Right Front) | Right front wheel well. See Figure . |

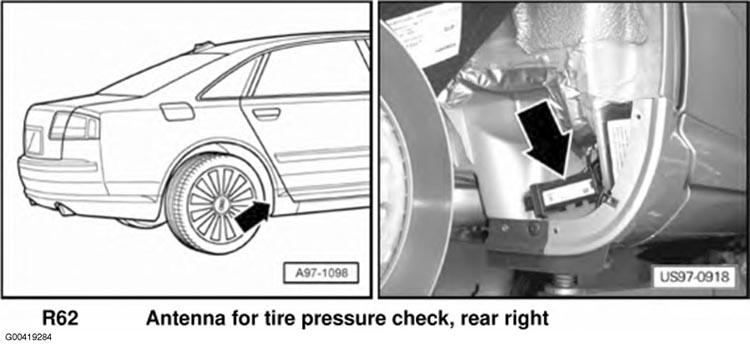

| Antenna For Tire Pressure Check (Right Rear) | Right rear wheel well. See Figure . |

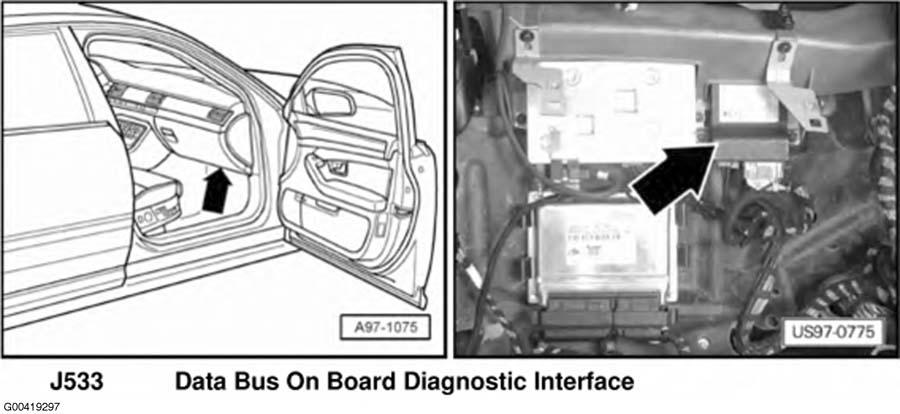

| Data Bus On Board Diagnostic Interface | Behind glove compartment. See Figure . |

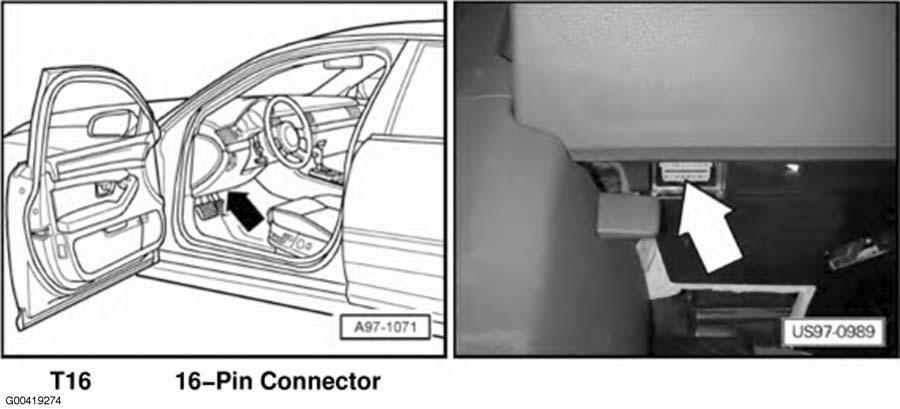

| Data Link Connector (DLC) | Under left side of dash. See Figure . |

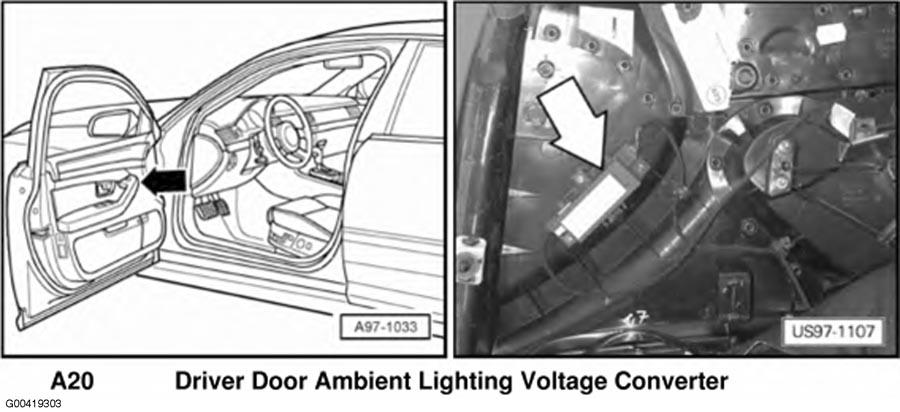

| Door Ambient Lighting Voltage Converter (Driver's) | Inside left front door. See Figure . |

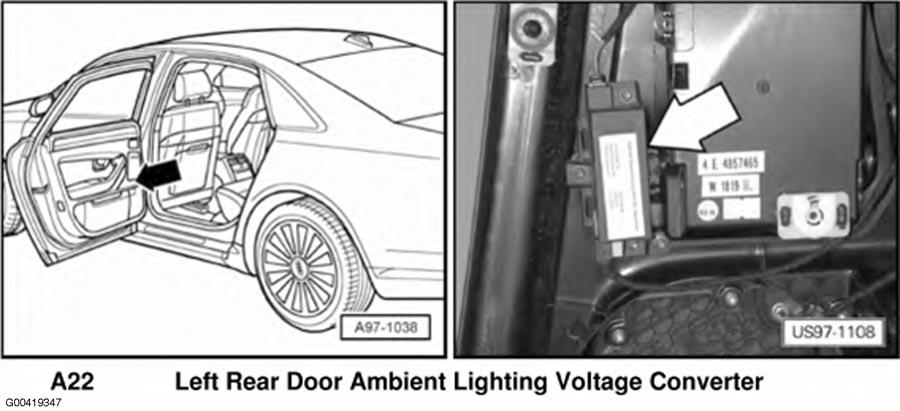

| Door Ambient Lighting Voltage Converter (Left Rear) | Inside left rear door. See Figure . |

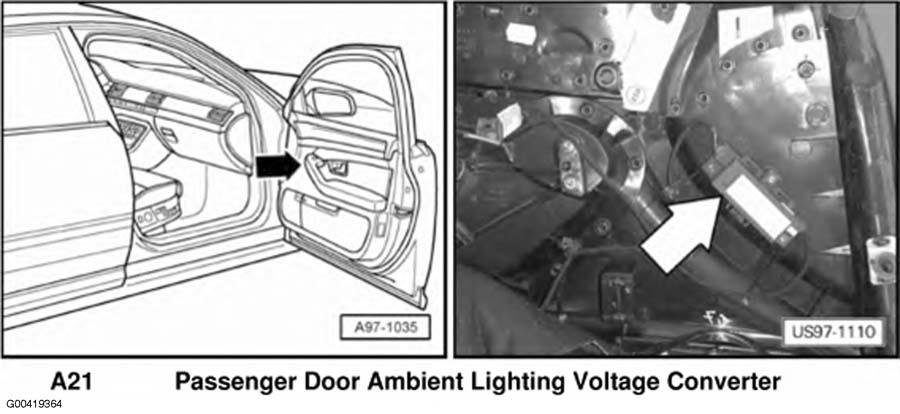

| Door Ambient Lighting Voltage Converter (Passenger's) | Inside right front door. See Figure . |

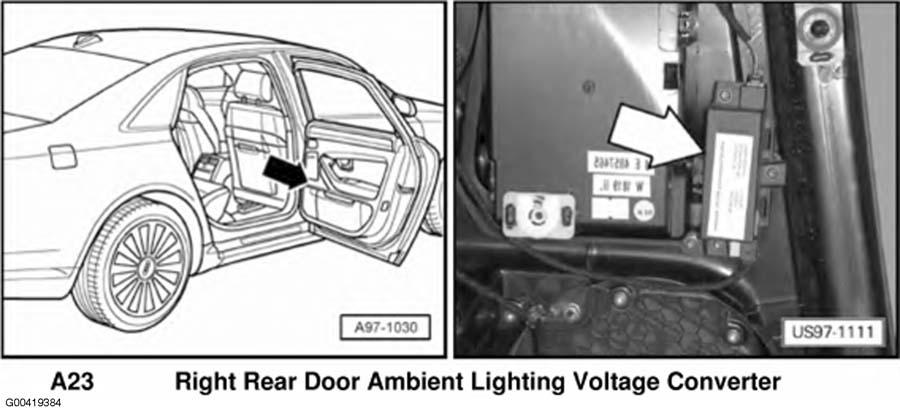

| Door Ambient Lighting Voltage Converter (Right Rear) | Inside right rear door. See Figure . |
