Engine Control Module (ECM) Connector End View (T94, T60)

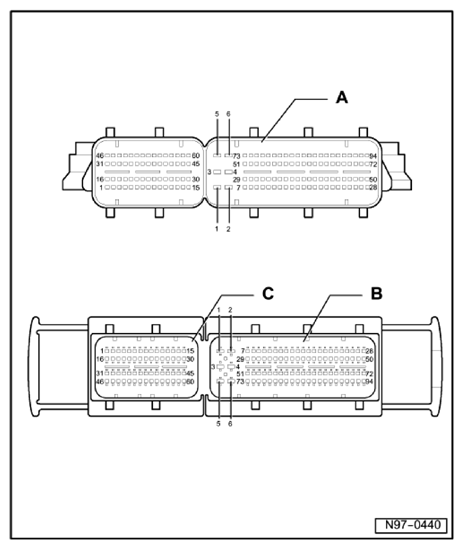

Fig 1: Engine Control Module (ECM) Connector End View (T94, T60)
G10359721Courtesy of AUDI OF AMERICA, LLC
A Engine Control Module (ECM) Connector
B 94-Pin Connector -T94-
C 60-Pin Connector -T60-
