Test sequence

Connect vehicle diagnostic, testing and information system VAS 5051. See VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTIONS . Select vehicle system "01 - Engine electronics" in selection. Engine must be run at idle.
Display on VAS 5051:

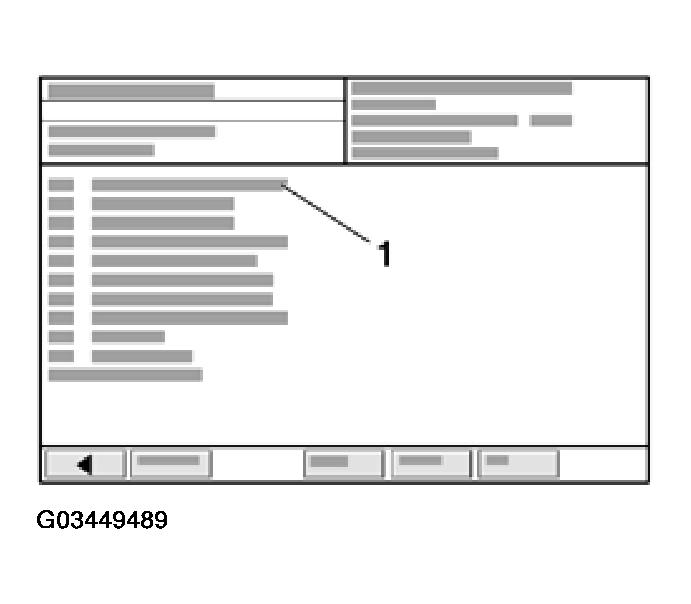

Fig 1: Identifying Display On VAS 5051 - Knock Recognition Control Limit (1 Of 3)
Courtesy of AUDI OF AMERICA, INC.
Under -1- select diagnostic function "08 - Read measured value block".
Display on VAS 5051:

Fig 2: Identifying Display On VAS 5051 - Knock Recognition Control Limit (2 Of 3)
Courtesy of AUDI OF AMERICA, INC.
1. Enter display group
Enter "020" for "display group number 020" in zone -2- and confirm entry by pressing the -Q- button.
Display on VAS 5051:

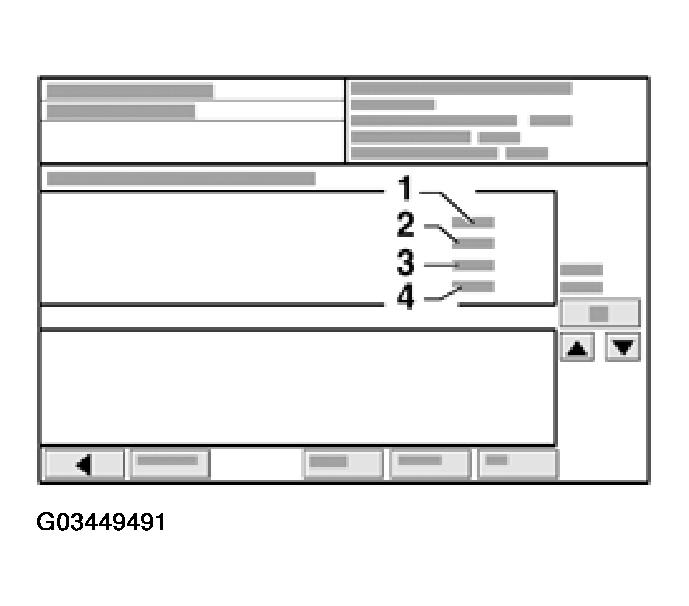

Fig 3: Identifying Display On VAS 5051 - Knock Recognition Control Limit (3 Of 3)
Courtesy of AUDI OF AMERICA, INC.
Check knock control in display zones -1- to -4-.

DISPLAY GROUP 020: IGNITION KNOCK RECOGNITION CONTROL WHILE DRIVING

	Display zones
	1	2	3	4
Display group 020: Ignition knock recognition control while driving
Display	xx.x °KW	xx.x °KW	xx.x °KW	xx.x° KW
Display	Ignition timing retardation by knock recognition control, cylinder 1	Ignition timing retardation by knock recognition control, cylinder 2	Ignition timing retardation by knock recognition control, cylinder 3	Ignition timing retardation by knock recognition control, cylinder 4
Specified value	0...12 °Crankshaft	0...12 °Crankshaft	0...12 °Crankshaft	0...12 °Crankshaft
Note:	Evaluation. See EVALUATION IGNITION ANGLE RETARDATION .

NOTE: The numbers displayed in display zones 1 to 4 represent the actual ignition timing retardation due to the knock control of the individual cylinders. The ignition angle retardation is carried out late in ° KW (crankshaft degree).

Exit function "08 - Read measured value block" by pressing < button.
