Test sequence

Connect Vehicle Diagnostic, Testing and Information System VAS 5051 or VAG 1551. See VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTIONS . Select control module for engine electronics 1 by inserting address word 01. Engine must be running at idle for this test.
Indicated on display:

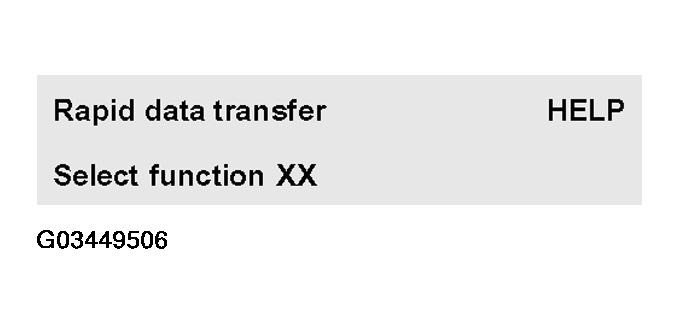

Fig 1: Identifying VAS 5051 Vehicle Diagnostic Display - Checking Misfire Recognition (1 Of 4)
Courtesy of AUDI OF AMERICA, INC.
Press buttons -0- and -8- to select "Read Measuring Value Block" function 08 and press Q button to confirm input.
Indicated on display:

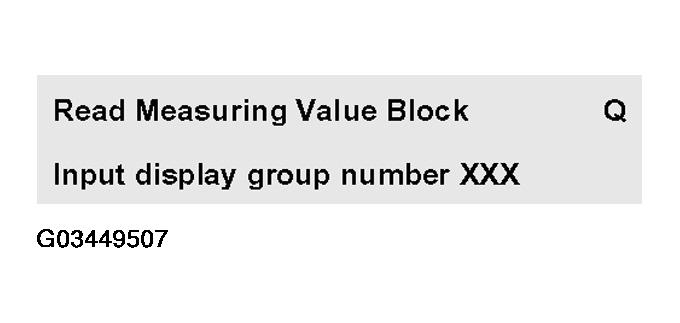

Fig 2: Identifying VAS 5051 Vehicle Diagnostic Display - Checking Misfire Recognition (2 Of 4)
Courtesy of AUDI OF AMERICA, INC.
Press buttons -0-, -1- and -4- to input "display group number 14" and press Q button to confirm input.
Indicated on display:

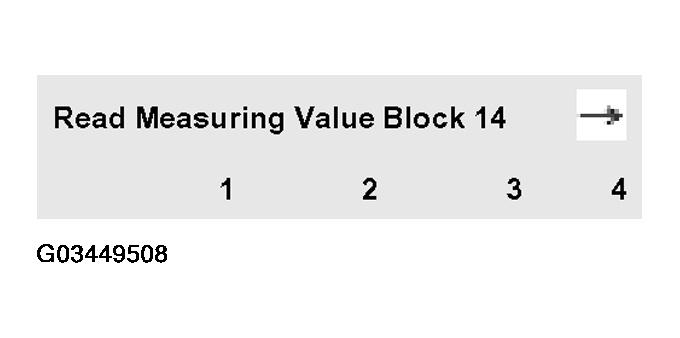

Fig 3: Identifying VAS 5051 Vehicle Diagnostic Display - Checking Misfire Recognition (3 Of 4)
Courtesy of AUDI OF AMERICA, INC.
Check misfire detection.

DISPLAY GROUP 014: MISFIRE RECOGNITION

	Display zones
	1	2	3	4
Display group 014: Misfire recognition
Display	xxx rpm	xxx %	xxx	-
Display	Engine speed	Load	Total misfire	Misfire recognition
Range	min.: 550 RPM max.: 7200 RPM	min.: 0 max.: 100		activated not activated
Specified value	600 to 820 rpm	xx.x %	0 to 5	activated
Note:	-	-	If the specified value is not reached: Evaluation display field 3 : EVALUATING DISPLAY GROUPS 014, 015 AND 016, DISPLAY FIELD 3: .	-

If the specified value is reached:

Indicated on display (function selection):

Fig 4: Identifying VAS 5051 Vehicle Diagnostic Display - Checking Misfire Recognition (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.

If specified value is not obtained:
