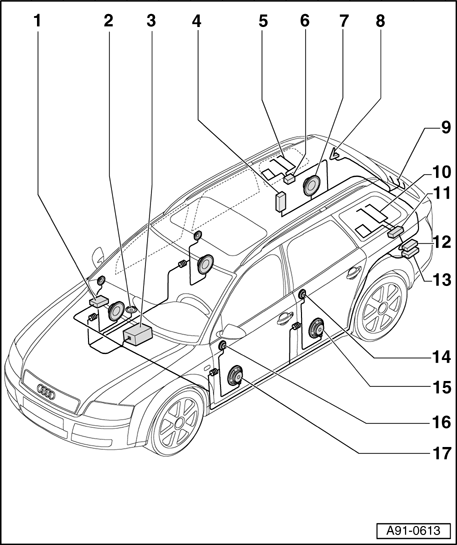

General overview - Avant component locations

1 - CD Changer R41

• In glove compartment
• Connections
• Removing and installing → CD Changer R41 , removing and installing

2 - Inside Loudspeaker R70

• In front instrument panel, center
• Removing and installing → Inside Loudspeaker R70 , removing and installing

3 - Operating Electronics, Navigation Control Module J402

• In center console, at top
• Connections
• Removing and installing → Operating Electronics, Navigation Control Module J402 , removing and installing

4 - Digital Sound System Control Module R12

• Behind luggage compartment right side trim
• Connections
• Removing and installing → Amplifier R12 , Avant, removing and installing
• BOSE connections

• BOSE, removing and installing → BOSE Amplifier R12 , Avant, removing and installing

5 - Right rear window antennas

• FM3/TV3/TV4

6 - Right Antenna Module R109

• Behind luggage compartment right side trim
• Connections
• Removing and installing → Right Antenna Module R109 , Avant, removing and installing

7 - Bass Loudspeaker R100

• Behind luggage compartment right side trim
• Removing and installing → Bass Loudspeaker R100 , Avant, removing and installing

8 - Navigation System Antenna R50 roof antenna

• Removing and installing → Navigation System Antenna R50 , Avant, removing and installing

9 - Rear window antennas

• FM2/TV2

10 - Left rear window antennas

• AM/FM1/TV1

11 - Left Antenna Module R108

• Behind luggage compartment left side trim
• Connections
• Removing and installing → Left Antenna Module R108 , Avant, removing and installing

12 - Navigation Interface R94

• Behind luggage compartment left side trim
• Connections
• Removing and installing → Navigation Interface R94 , Avant, removing and installing

13 - Navigation/TV Tuner J415

• Behind luggage compartment left side trim
• Connections
• Removing and installing → Navigation/TV Tuner J415 , removing and installing

14 - Left Rear Midrange Speaker R34 / Right Rear Midrange Speaker R35

• In top of rear doors
• Removing and installing

15 - Left Rear Bass Speaker R15 and Right Rear Bass Speaker R17

• In bottom of rear doors
• Removing and installing

16 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27

• In top of front doors
• Removing and installing

17 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23

• In bottom of front doors
• Removing and installing
