Navigation system II-D, overview: Avant

WARNING: This page is about a different variant/trim than selected.

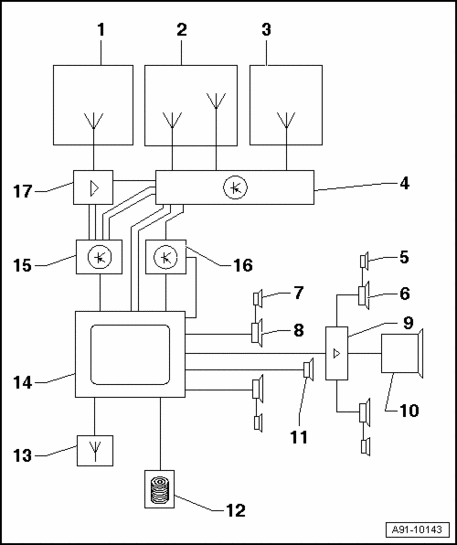

Fig 1: Navigation System II-D, Avant Overview
GW00021475Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Right rear FM3/TV3/TV4 window antennas

2 - left rear AM/FM1/TV1 window antennas

3 - FM2/TV2 rear window antennas

4 - Left Antenna Module R108 behind luggage compartment left side trim

5 - Left Rear Midrange Speaker R34 / Right Rear Midrange Speaker R35 at top in rear doors

6 - Left Rear Bass Speaker R15 / Right Rear Bass Speaker R17 at bottom in rear doors

7 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27 at top in front doors

8 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23 at bottom in front doors

9 - Amplifier R12 behind luggage compartment right side trim

10 - Bass Loudspeaker R100 behind luggage compartment right side trim

11 - Inside Loudspeaker R70 in front center instrument panel

12 - CD Changer R41 in glove compartment

13 - Navigation System Antenna R50 roof antenna

14 - Operating Electronics, Navigation Control Module J402 in top of center console

15 - Navigation/TV Tuner J415 behind luggage compartment left side trim

16 - Navigation Interface R94 , behind luggage compartment left side trim

17 - Right Antenna Module R109 behind luggage compartment right side trim
