Speech control system, layout

WARNING: This page is about a different variant/trim than selected.

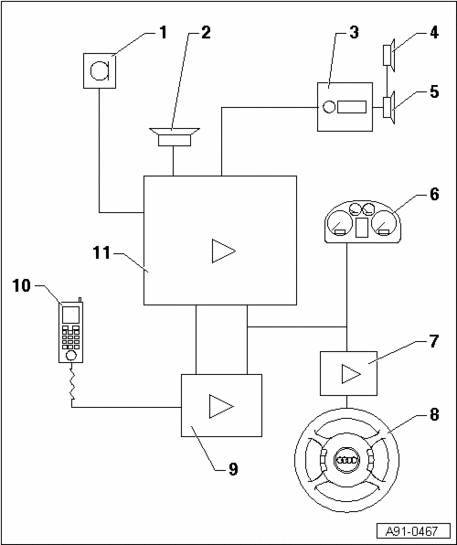

Fig 1: Speech Control System, Layout

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Telephone Microphone R38 in Front Interior Light W1

2 - Inside Loudspeaker R70 in front center of instrument panel (through MY01)

3 - Radio R in upper center console

4 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27 at top in front doors

5 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23 at bottom in front doors

6 - Instrument cluster in instrument panel

7 - Steering Column Electronic Systems Control Module J527 on the steering column

8 - Multi-function steering with PTT button

9 - Telephone/Telematics Control Module J526 in electronics box under front right seat

10 - Telephone Handset R37 on top right of center console

11 - Speech Input Control Module J507 in electronics box under right front seat
