Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

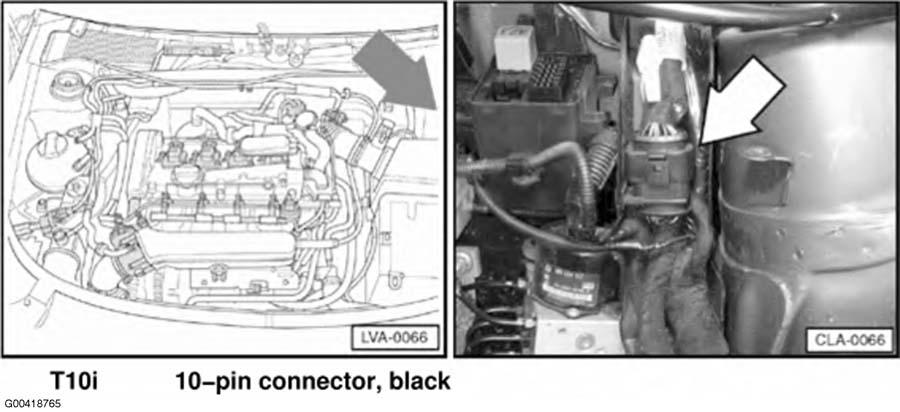

Fig 1: Left Rear Of Engine Compartment

G00418765

Courtesy of AUDI OF AMERICA, INC.

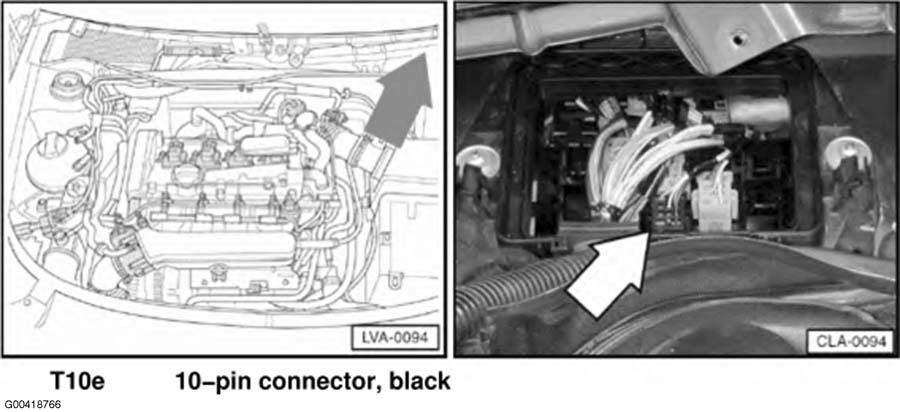

Fig 2: Left Rear Of Engine Compartment

G00418766

Courtesy of AUDI OF AMERICA, INC.

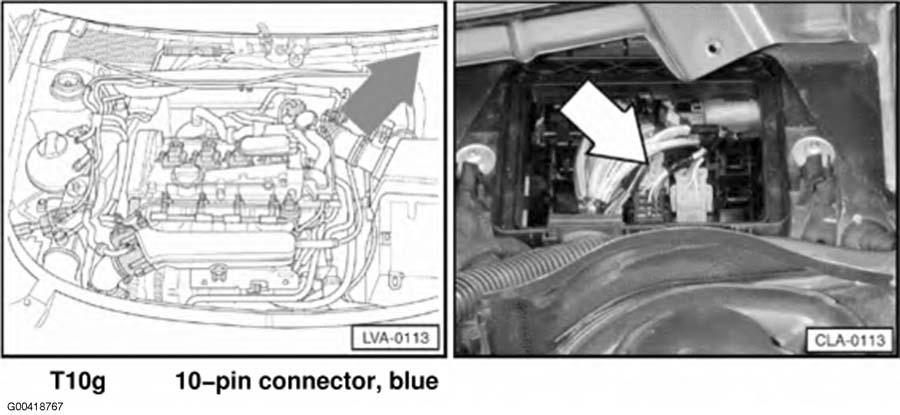

Fig 3: Left Rear Of Engine Compartment

G00418767

Courtesy of AUDI OF AMERICA, INC.

Fig 4: Left Rear Of Engine Compartment

G00418768

Courtesy of AUDI OF AMERICA, INC.

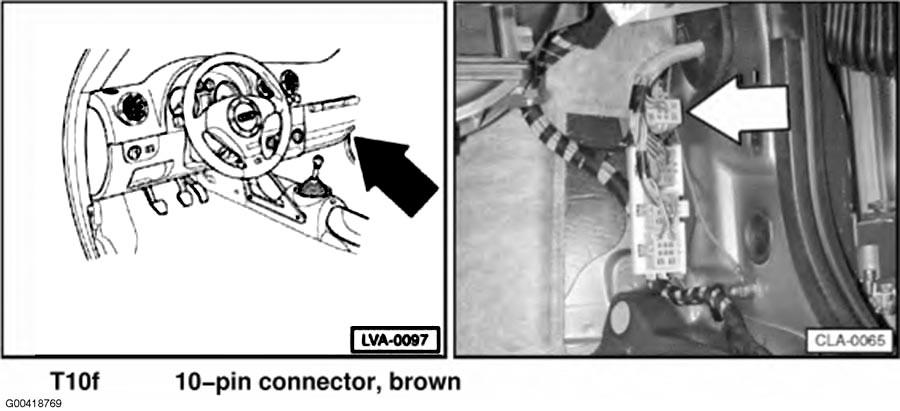

Fig 5: Right Kick Panel

G00418769

Courtesy of AUDI OF AMERICA, INC.

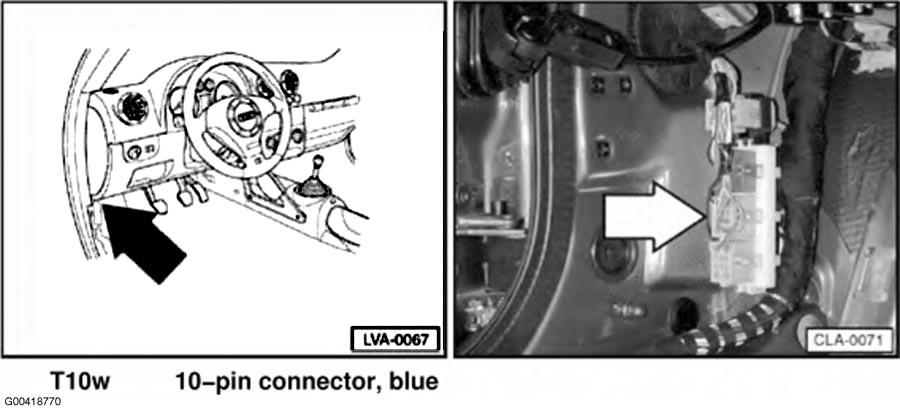

Fig 6: Left Kick Panel

G00418770

Courtesy of AUDI OF AMERICA, INC.

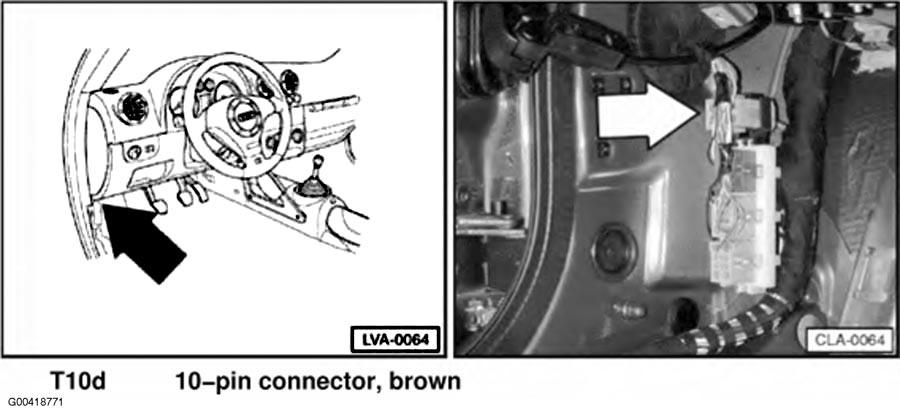

Fig 7: Left Kick Panel

G00418771

Courtesy of AUDI OF AMERICA, INC.

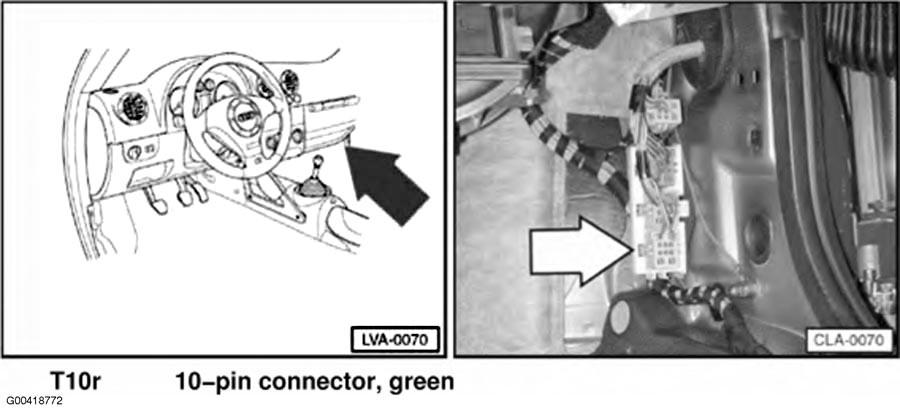

Fig 8: Right Kick Panel

G00418772

Courtesy of AUDI OF AMERICA, INC.

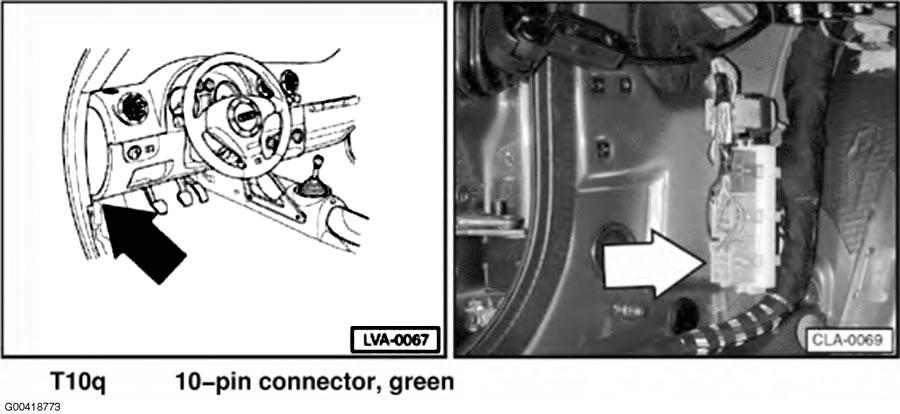

Fig 9: Left Kick Panel

G00418773

Courtesy of AUDI OF AMERICA, INC.

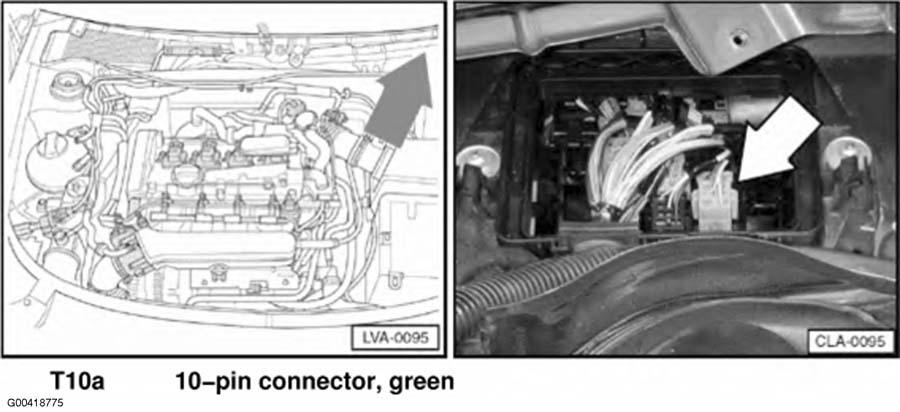

Fig 10: Left Rear Of Engine Compartment

G00418775

Courtesy of AUDI OF AMERICA, INC.

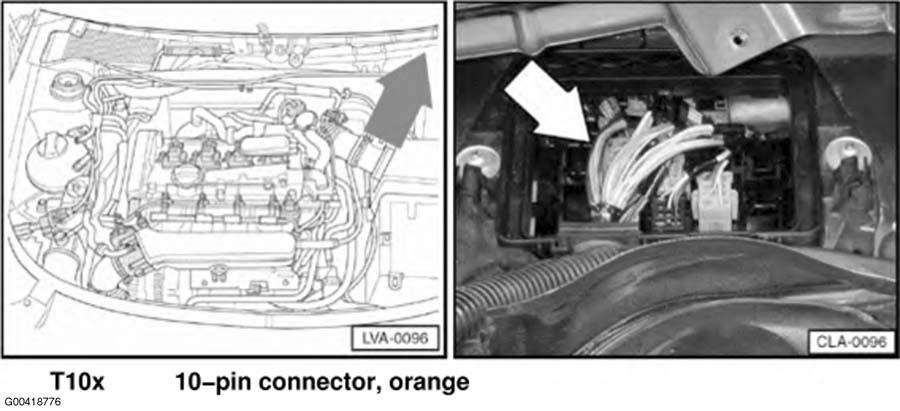

Fig 11: Left Rear Of Engine Compartment

G00418776

Courtesy of AUDI OF AMERICA, INC.

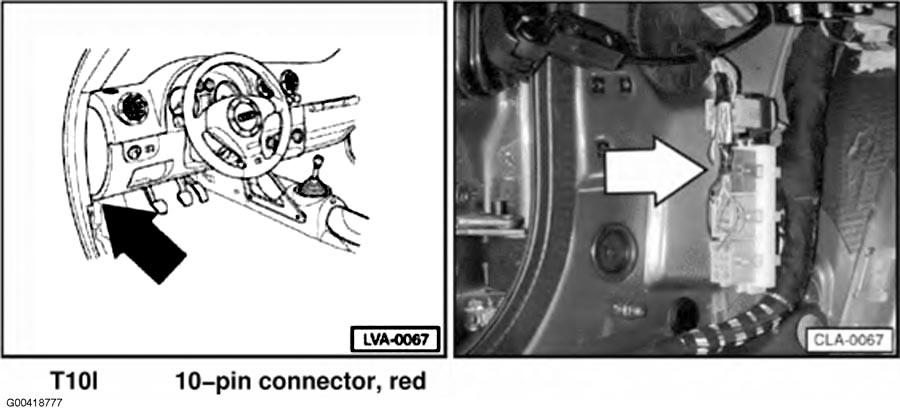

Fig 12: Left Kick Panel

G00418777

Courtesy of AUDI OF AMERICA, INC.

Fig 13: Right Kick Panel

G00418778

Courtesy of AUDI OF AMERICA, INC.

Fig 14: 13 Fold Relay Panel

G00418779

Courtesy of AUDI OF AMERICA, INC.

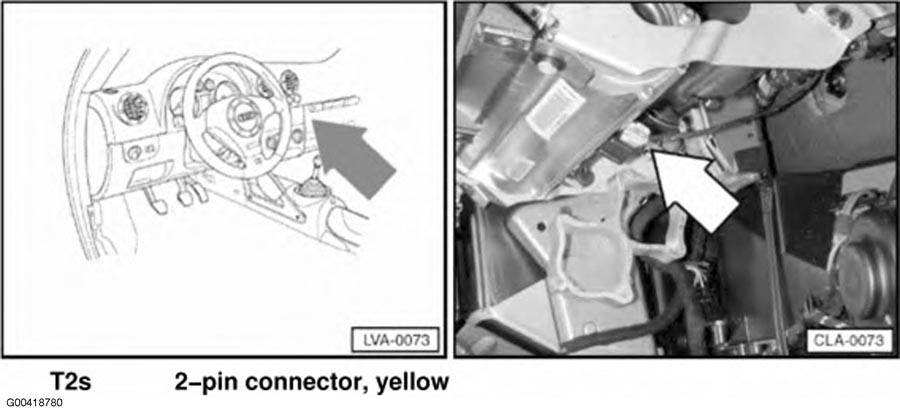

Fig 15: Behind Right Side Of Dash

G00418780

Courtesy of AUDI OF AMERICA, INC.

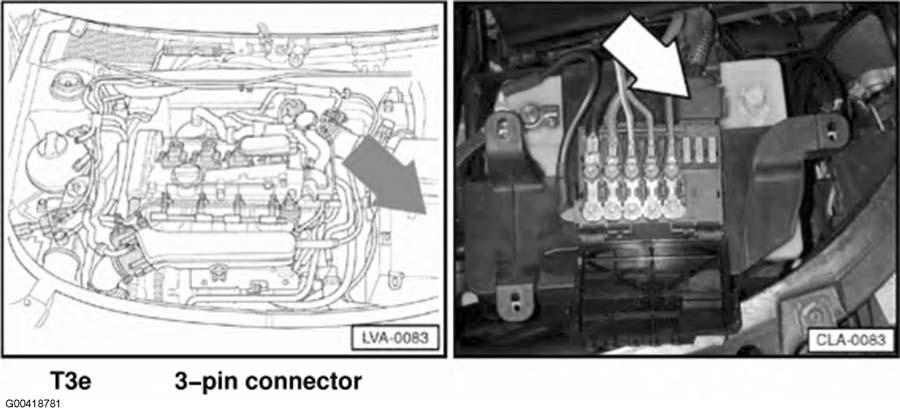

Fig 16: Left Side Of Engine Compartment

G00418781

Courtesy of AUDI OF AMERICA, INC.

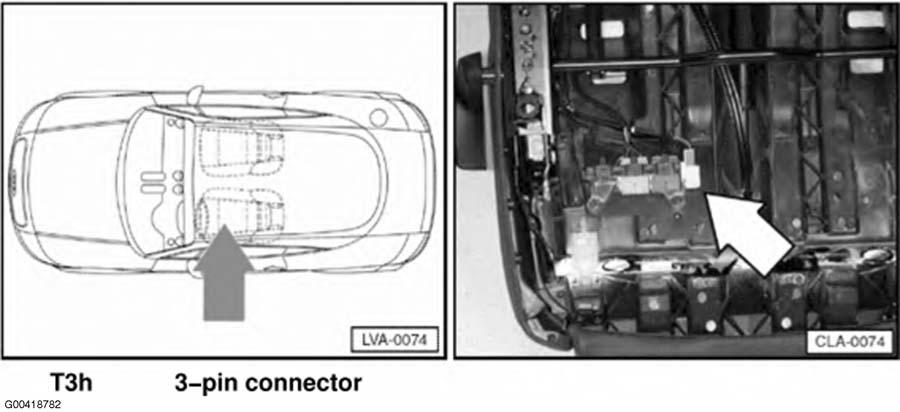

Fig 17: Under Driver's Seat

G00418782

Courtesy of AUDI OF AMERICA, INC.

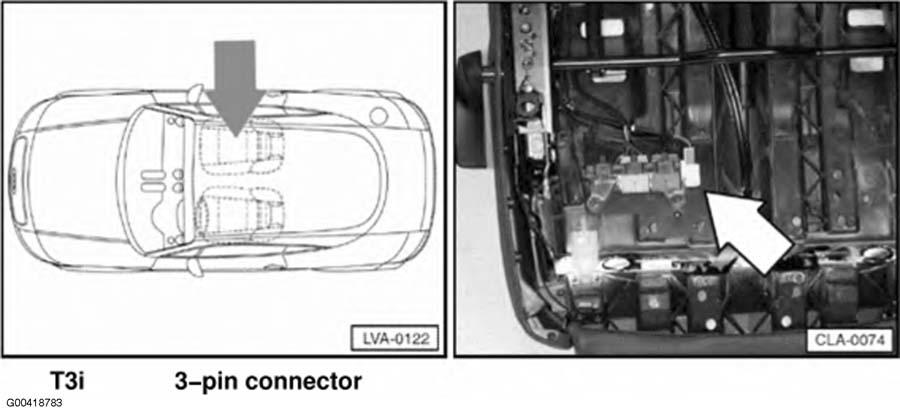

Fig 18: Under Passenger's Seat

G00418783

Courtesy of AUDI OF AMERICA, INC.

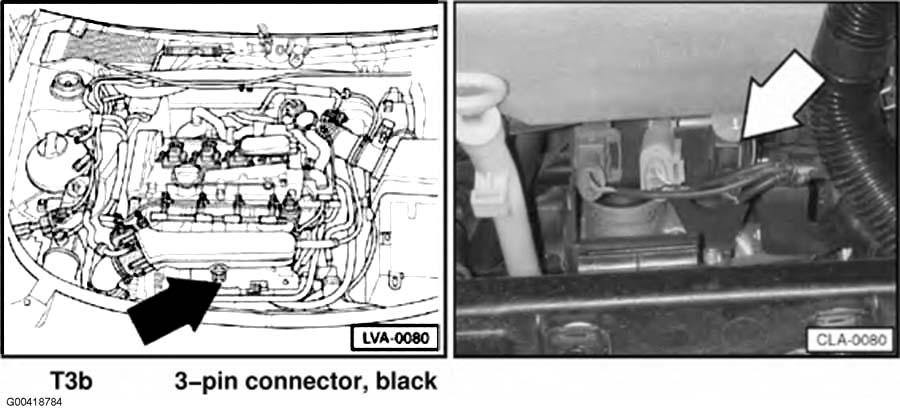

Fig 19: Front Of Engine Compartment

G00418784

Courtesy of AUDI OF AMERICA, INC.

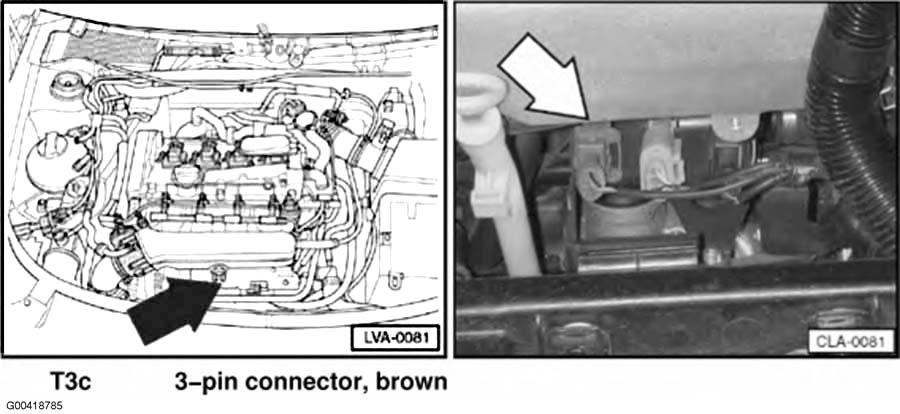

Fig 20: Front Of Engine Compartment

G00418785

Courtesy of AUDI OF AMERICA, INC.

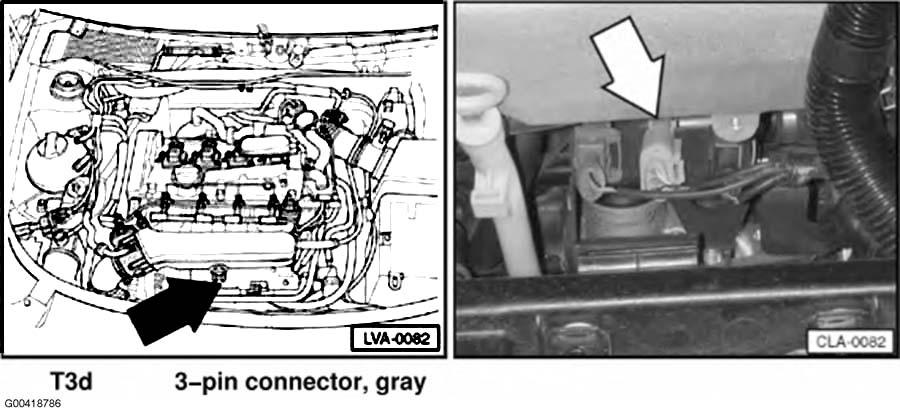

Fig 21: Front Of Engine Compartment

G00418786

Courtesy of AUDI OF AMERICA, INC.

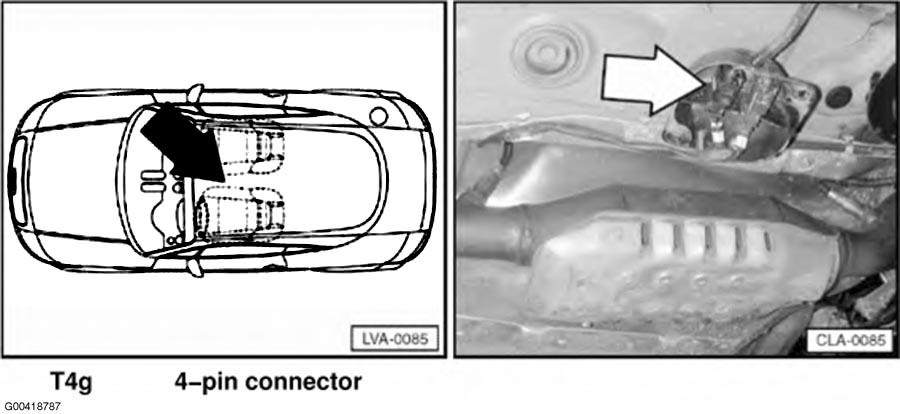

Fig 22: Under Center Of Vehicle

G00418787

Courtesy of AUDI OF AMERICA, INC.

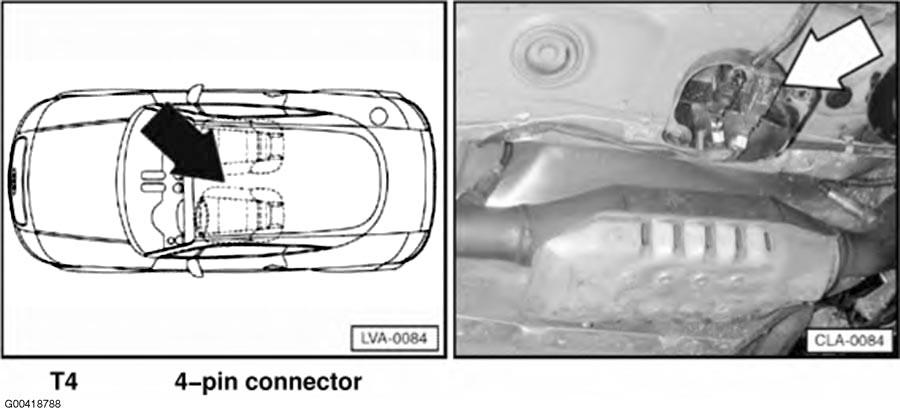

Fig 23: Under Center Of Vehicle

G00418788

Courtesy of AUDI OF AMERICA, INC.

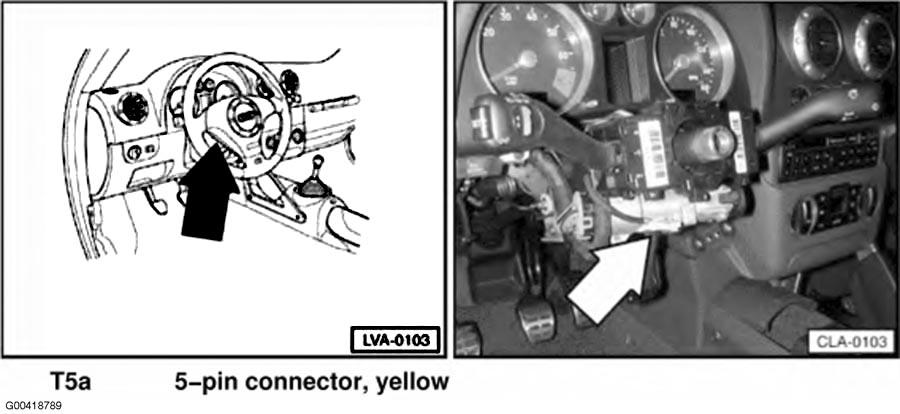

Fig 24: Steering Column

G00418789

Courtesy of AUDI OF AMERICA, INC.

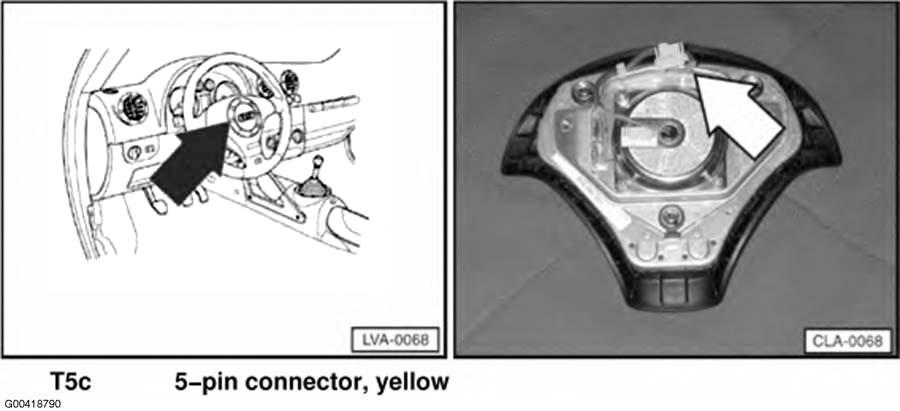

Fig 25: Top Of Steering Column

G00418790

Courtesy of AUDI OF AMERICA, INC.

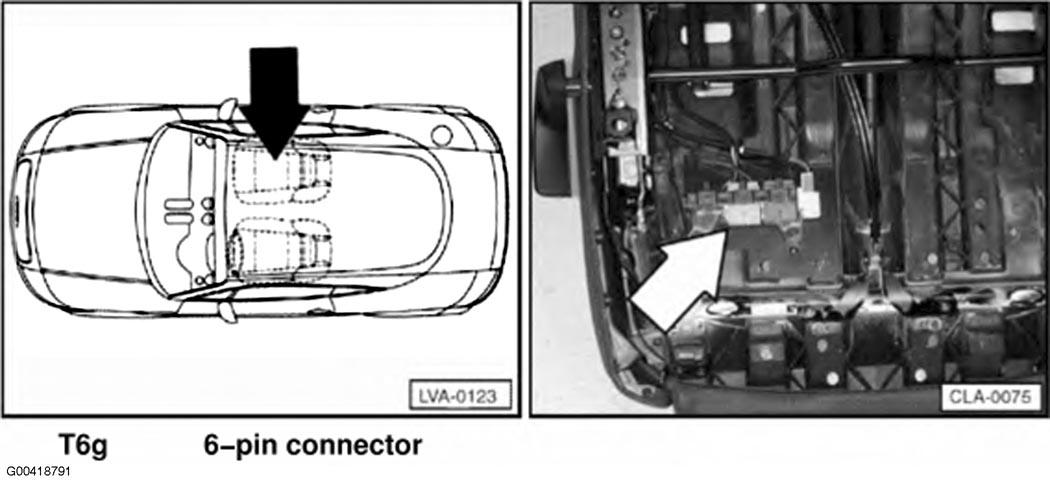

Fig 26: Under Passenger's Seat

G00418791

Courtesy of AUDI OF AMERICA, INC.

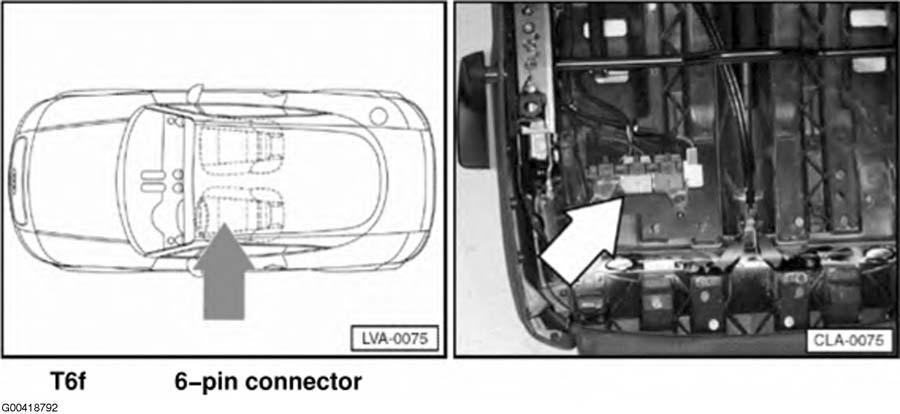

Fig 27: Under Driver's Seat

G00418792

Courtesy of AUDI OF AMERICA, INC.

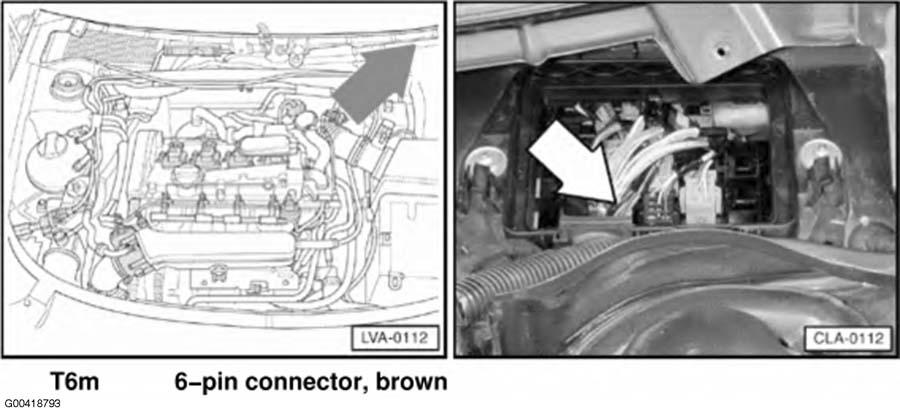

Fig 28: Left Rear Of Engine Compartment

G00418793

Courtesy of AUDI OF AMERICA, INC.

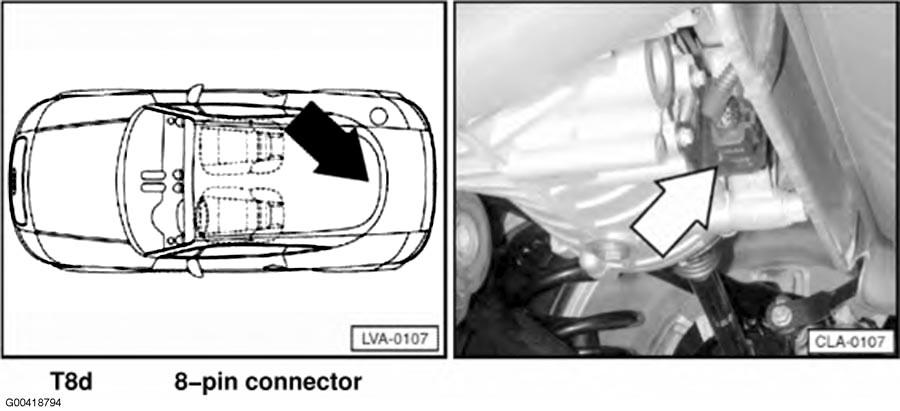

Fig 29: Under Rear Of Vehicle

G00418794

Courtesy of AUDI OF AMERICA, INC.

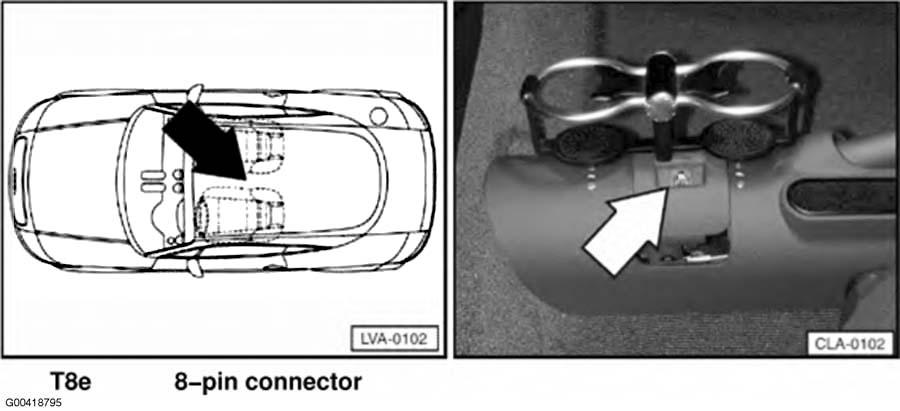

Fig 30: Center Console

G00418795

Courtesy of AUDI OF AMERICA, INC.

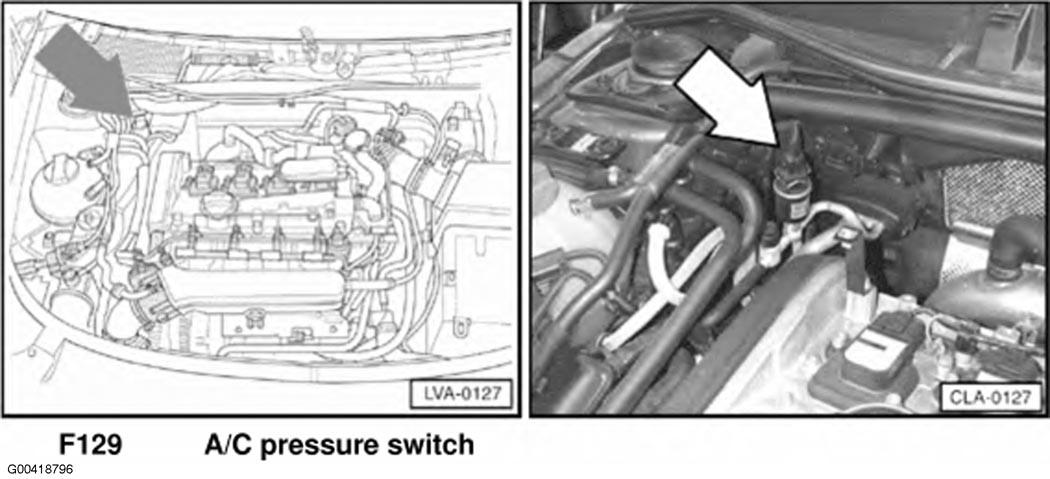

Fig 31: Right Rear Of Engine Compartment

G00418796

Courtesy of AUDI OF AMERICA, INC.

Fig 32: Left Rear Of Engine Compartment

G00418797

Courtesy of AUDI OF AMERICA, INC.

Fig 33: Left Side Of Engine Compartment (3.2L)

G00418798

Courtesy of AUDI OF AMERICA, INC.

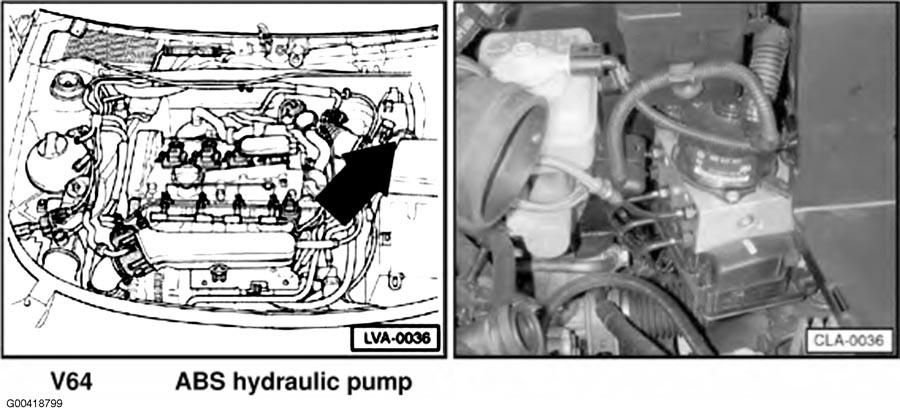

Fig 34: Left Rear Of Engine Compartment

G00418799

Courtesy of AUDI OF AMERICA, INC.

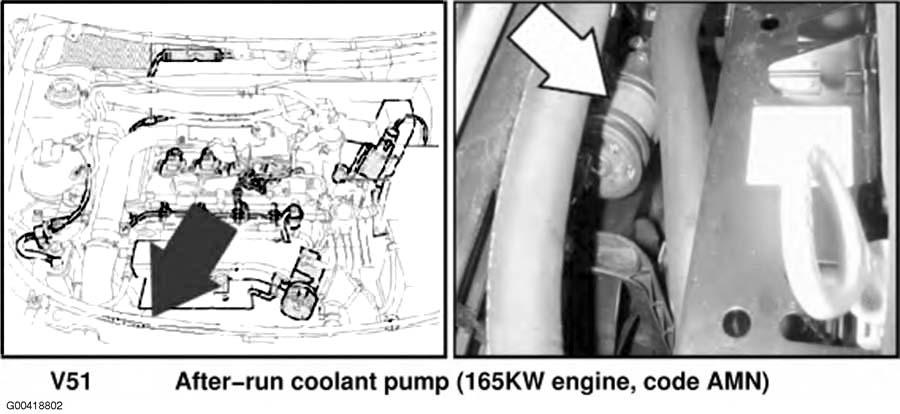

Fig 35: Front Of Engine Compartment

G00418802

Courtesy of AUDI OF AMERICA, INC.

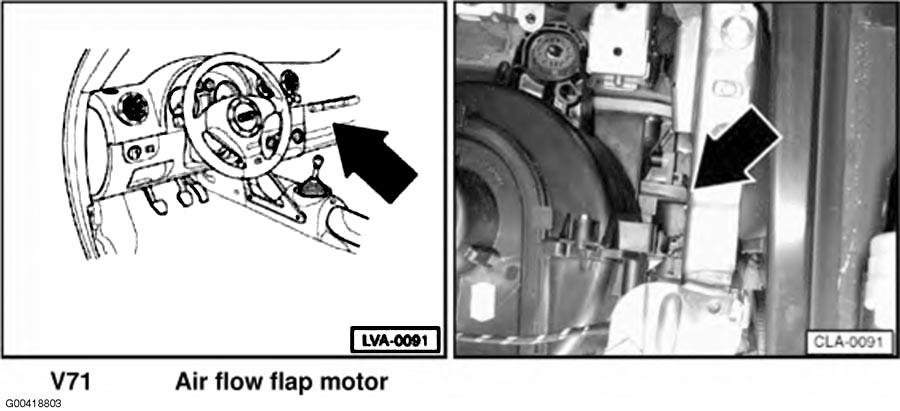

Fig 36: Behind Right Side Of Dash

G00418803

Courtesy of AUDI OF AMERICA, INC.

Fig 37: Front Of Center Console

G00418804

Courtesy of AUDI OF AMERICA, INC.

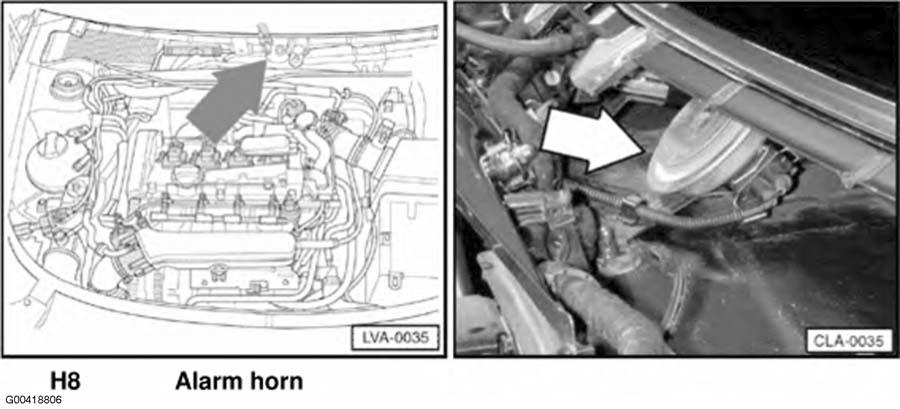

Fig 38: Rear Of Engine Compartment

G00418806

Courtesy of AUDI OF AMERICA, INC.

Fig 39: Rear Of Vehicle

G00418807

Courtesy of AUDI OF AMERICA, INC.

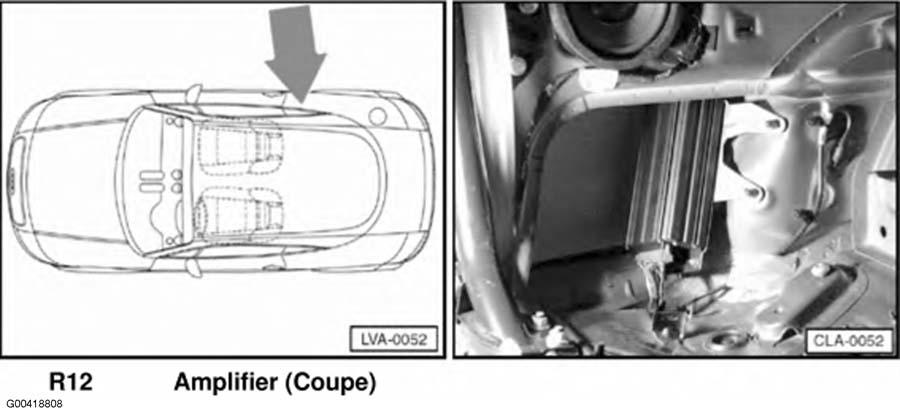

Fig 40: Behind Right Seat

G00418808

Courtesy of AUDI OF AMERICA, INC.

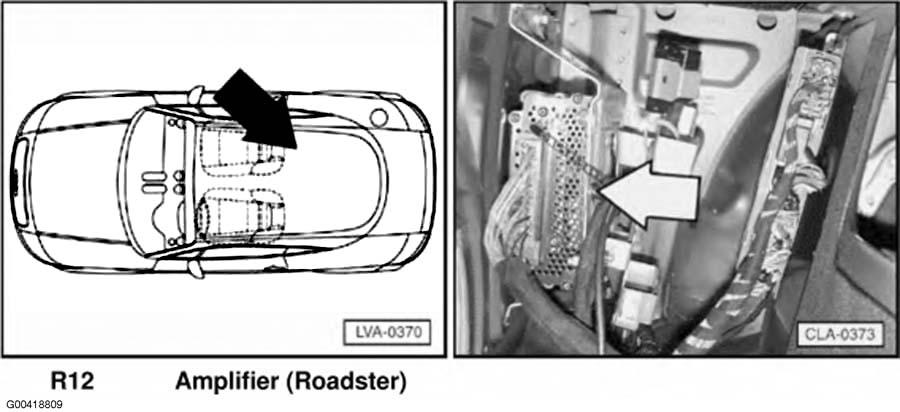

Fig 41: Behind Right Seat

G00418809

Courtesy of AUDI OF AMERICA, INC.

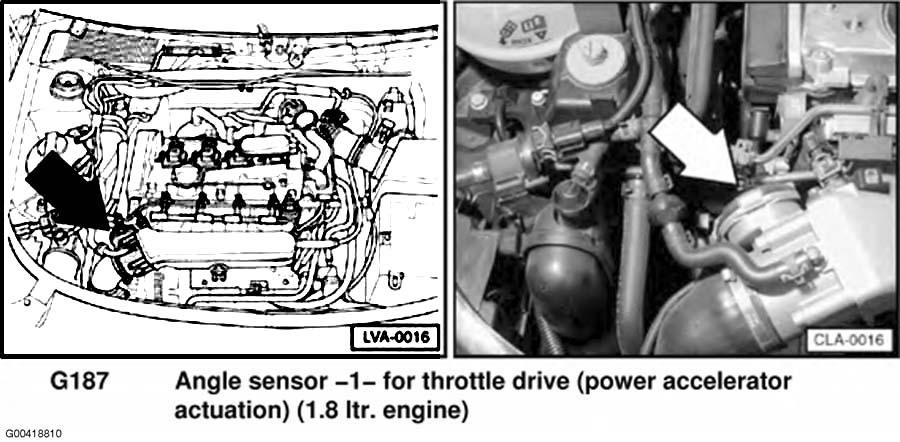

Fig 42: Right Front Of Engine Compartment (1.8L)

G00418810

Courtesy of AUDI OF AMERICA, INC.

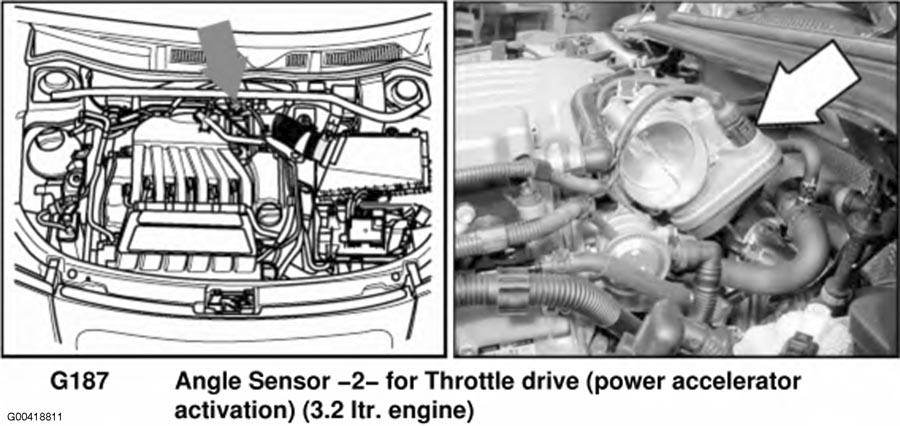

Fig 43: Rear Of Engine Compartment (3.2L)

G00418811

Courtesy of AUDI OF AMERICA, INC.

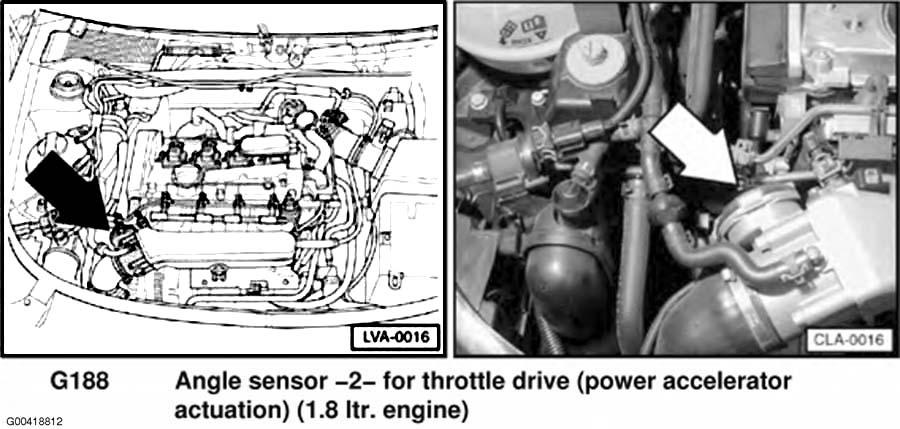

Fig 44: Right Front Of Engine Compartment (1.8L)

G00418812

Courtesy of AUDI OF AMERICA, INC.

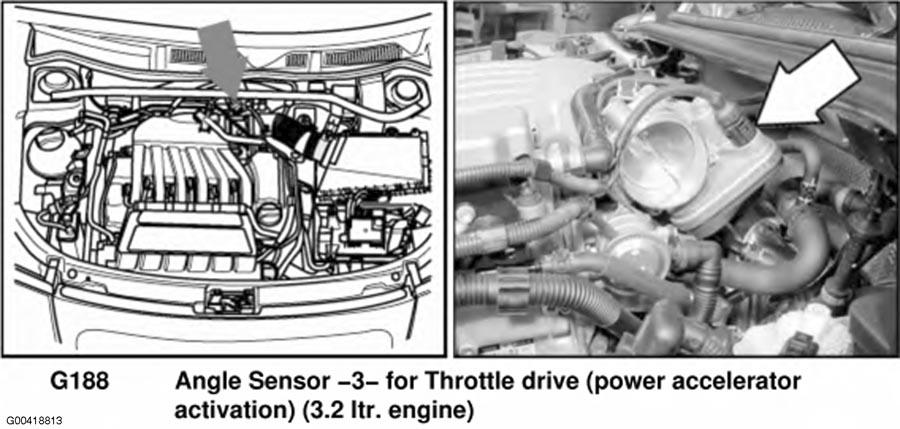

Fig 45: Rear Of Engine Compartment (3.2L)

G00418813

Courtesy of AUDI OF AMERICA, INC.

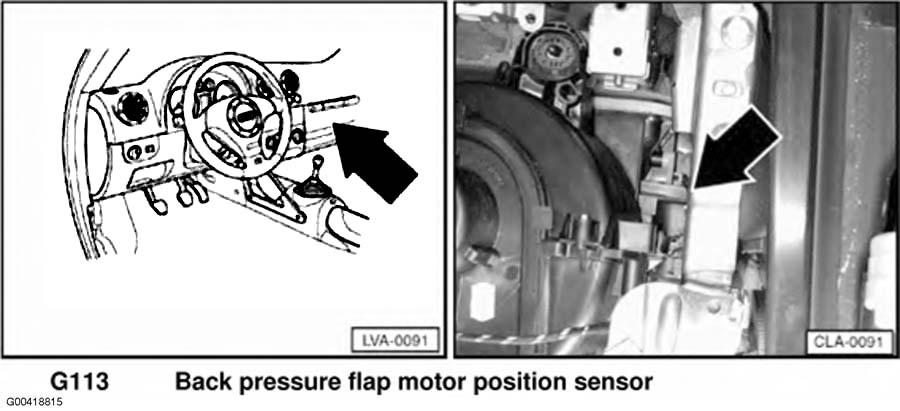

Fig 46: Behind Right Side Of Dash

G00418815

Courtesy of AUDI OF AMERICA, INC.

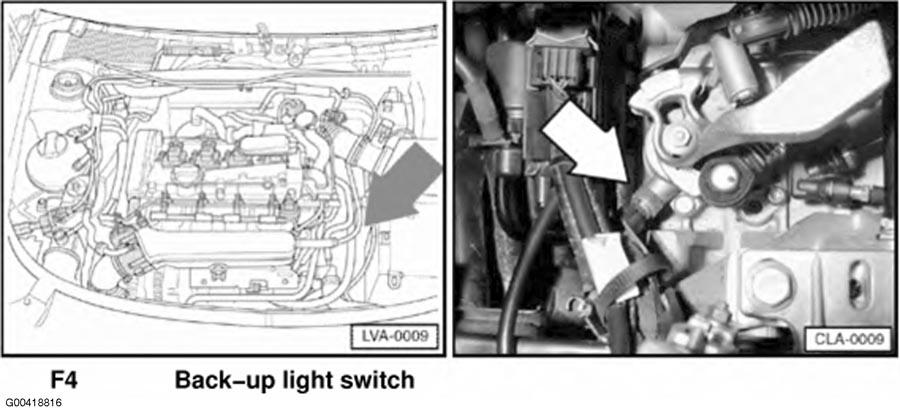

Fig 47: Left Side Of Engine Compartment

G00418816

Courtesy of AUDI OF AMERICA, INC.

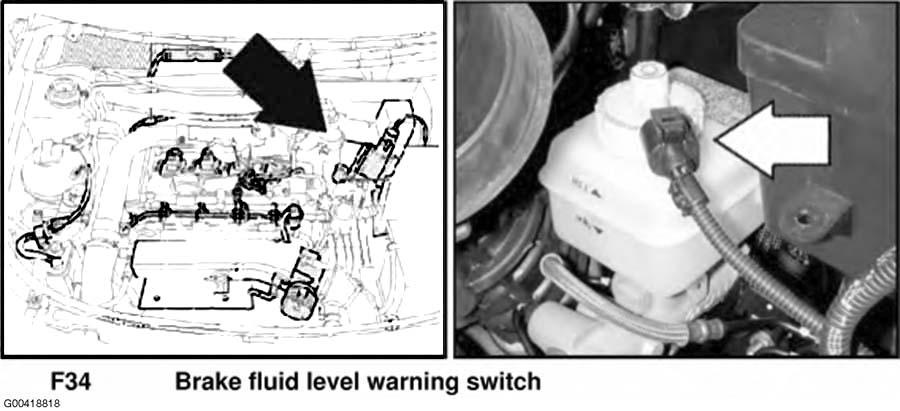

Fig 48: Left Rear Of Engine Compartment

G00418818

Courtesy of AUDI OF AMERICA, INC.

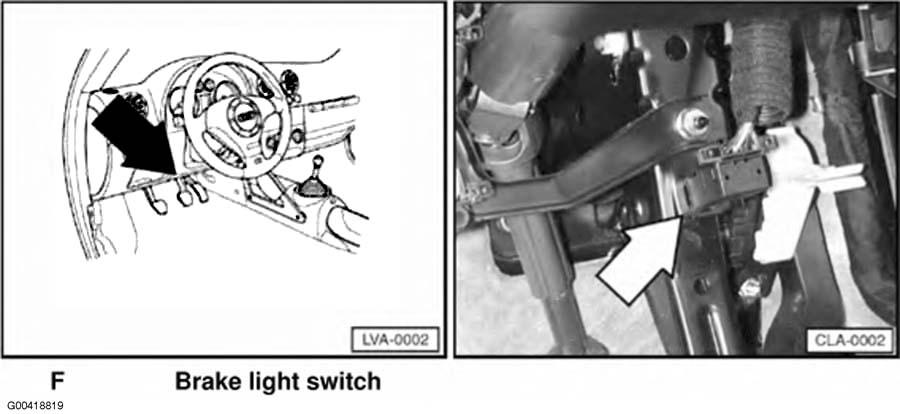

Fig 49: Under Left Side Of Dash

G00418819

Courtesy of AUDI OF AMERICA, INC.

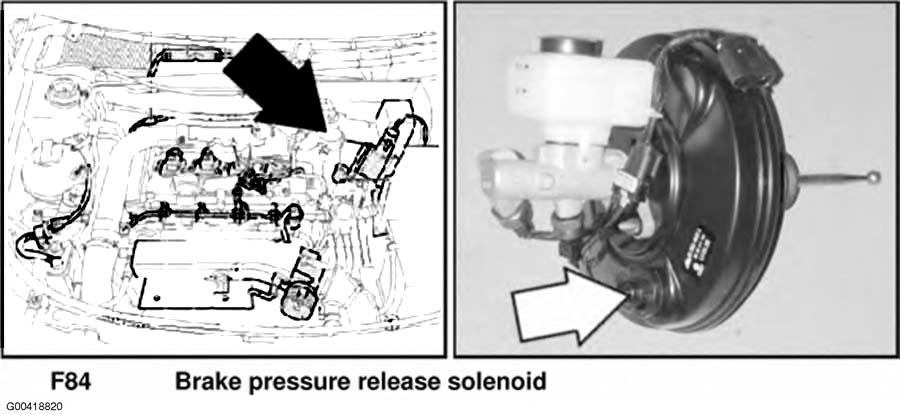

Fig 50: Left Rear Of Engine Compartment

G00418820

Courtesy of AUDI OF AMERICA, INC.

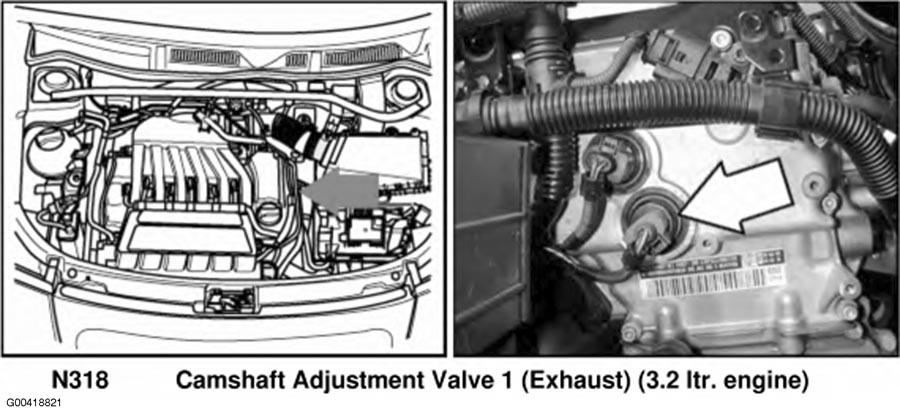

Fig 51: Rear Of Engine (3.2L)

G00418821

Courtesy of AUDI OF AMERICA, INC.

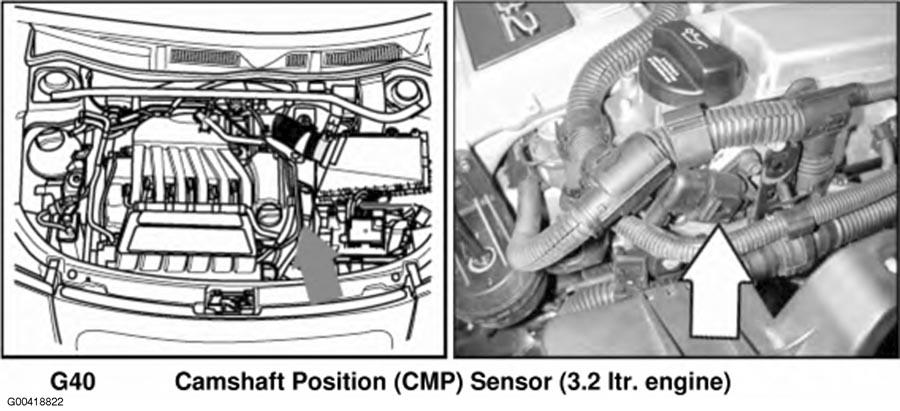

Fig 52: Rear Of Engine (3.2L)

G00418822

Courtesy of AUDI OF AMERICA, INC.

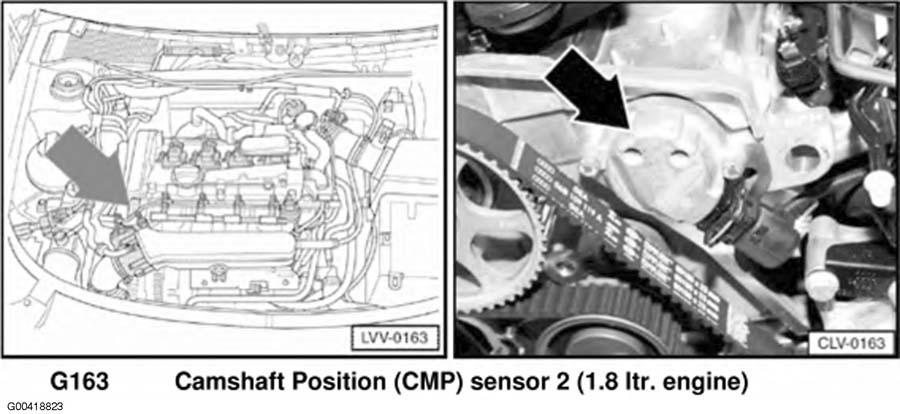

Fig 53: Front Of Engine (1.8L)

G00418823

Courtesy of AUDI OF AMERICA, INC.

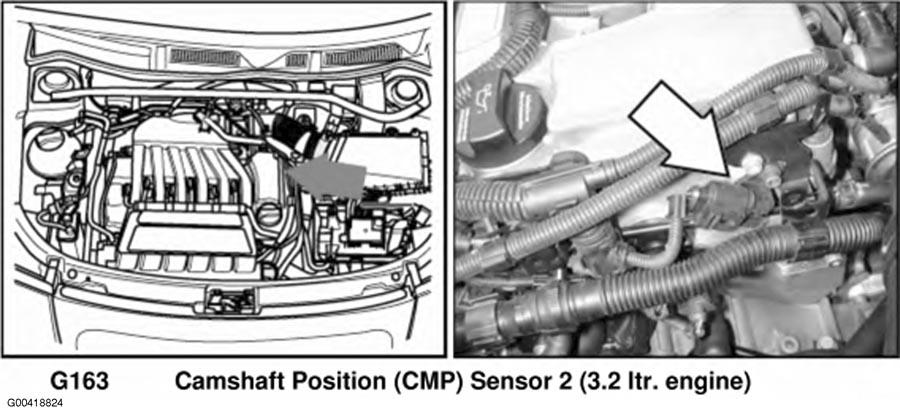

Fig 54: Rear Of Engine (3.2L)

G00418824

Courtesy of AUDI OF AMERICA, INC.

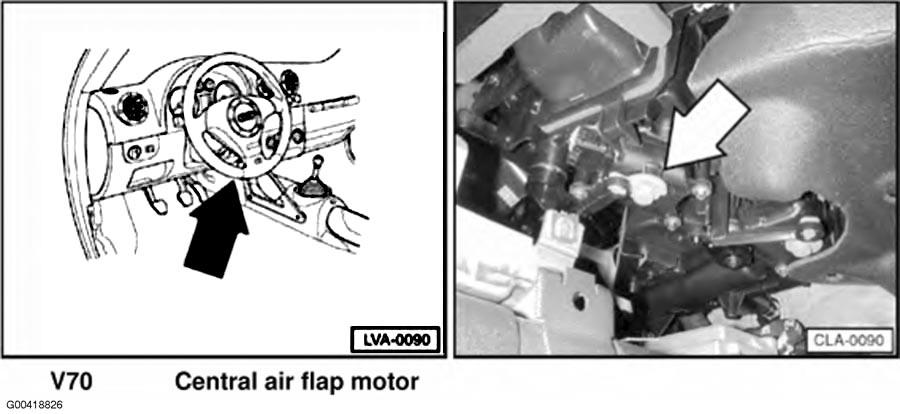

Fig 55: Behind Center Of Dash

G00418826

Courtesy of AUDI OF AMERICA, INC.

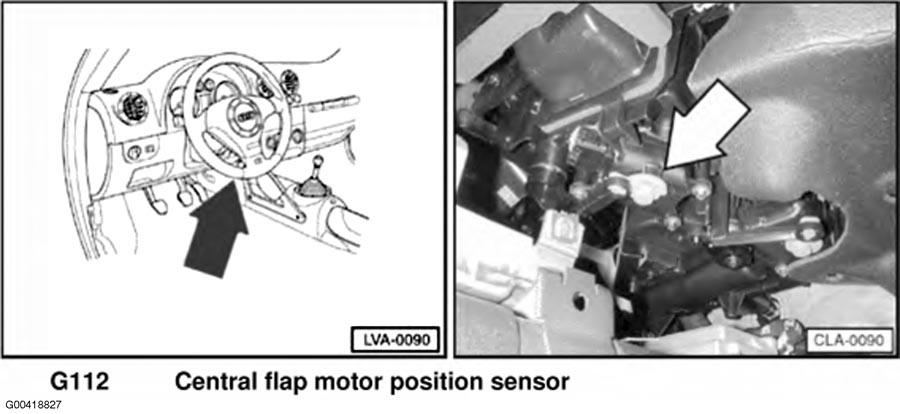

Fig 56: Behind Center Of Dash

G00418827

Courtesy of AUDI OF AMERICA, INC.

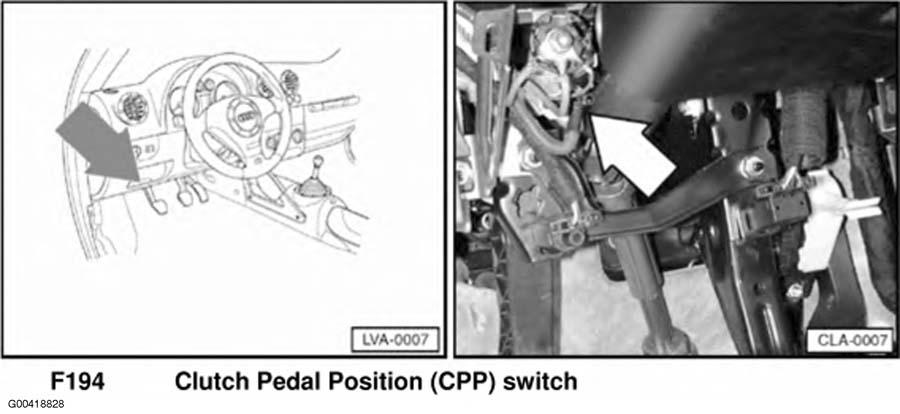

Fig 57: Under Left Side Of Dash

G00418828

Courtesy of AUDI OF AMERICA, INC.

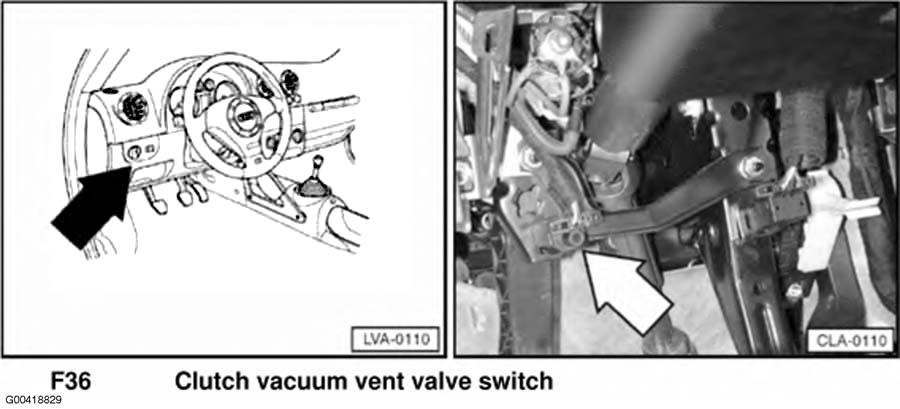

Fig 58: Under Left Side Of Dash

G00418829

Courtesy of AUDI OF AMERICA, INC.

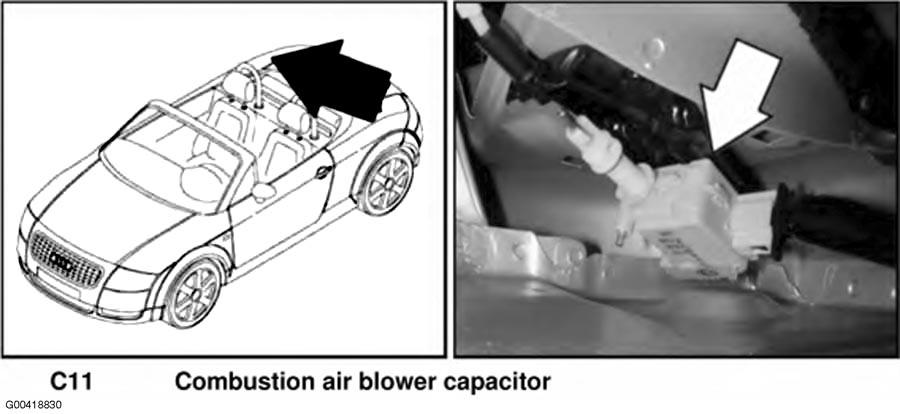

Fig 59: Right Rear Of Vehicle

G00418830

Courtesy of AUDI OF AMERICA, INC.

Fig 60: Micro Central Electric Panel

G00418832

Courtesy of AUDI OF AMERICA, INC.

Fig 61: Driver's Door

G00418835

Courtesy of AUDI OF AMERICA, INC.

Fig 62: Under Rear Bench Seat (Coupe)

G00418836

Courtesy of AUDI OF AMERICA, INC.

Fig 63: Behind Left Side Trim Panel

G00418838

Courtesy of AUDI OF AMERICA, INC.

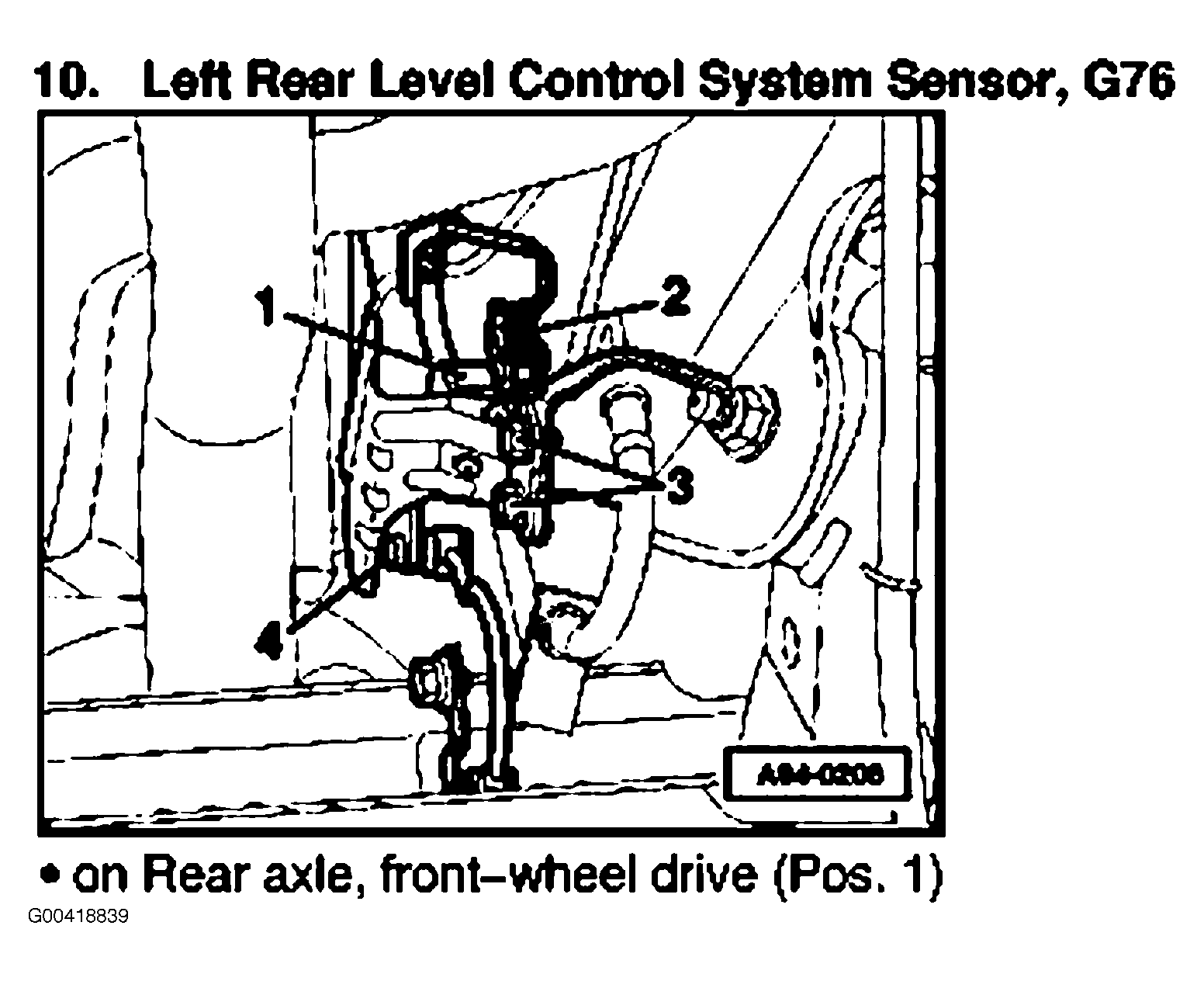

Fig 64: Under Rear Of Vehicle

G00418839

Courtesy of AUDI OF AMERICA, INC.

Fig 65: Left Side Of Dash

G00418841

Courtesy of AUDI OF AMERICA, INC.

Fig 66: Behind Driver's Seat

G00418842

Courtesy of AUDI OF AMERICA, INC.

Fig 67: Rear Of Engine Compartment

G00418845

Courtesy of AUDI OF AMERICA, INC.

Fig 68: In Center Console

G00418848

Courtesy of AUDI OF AMERICA, INC.

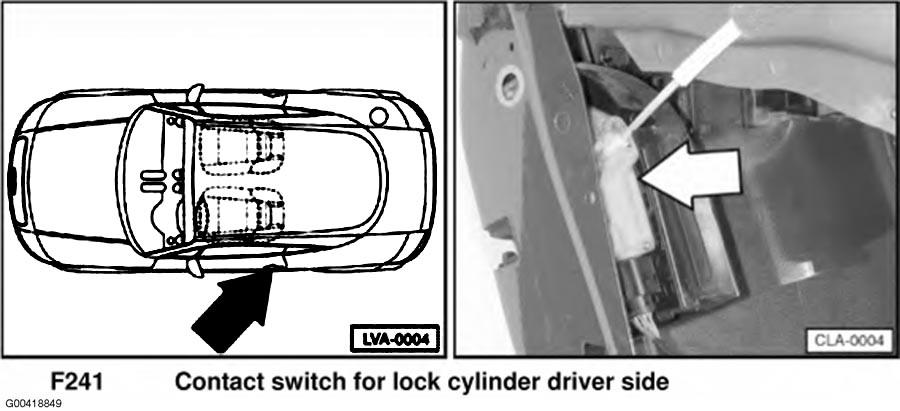

Fig 69: Driver's Door

G00418849

Courtesy of AUDI OF AMERICA, INC.

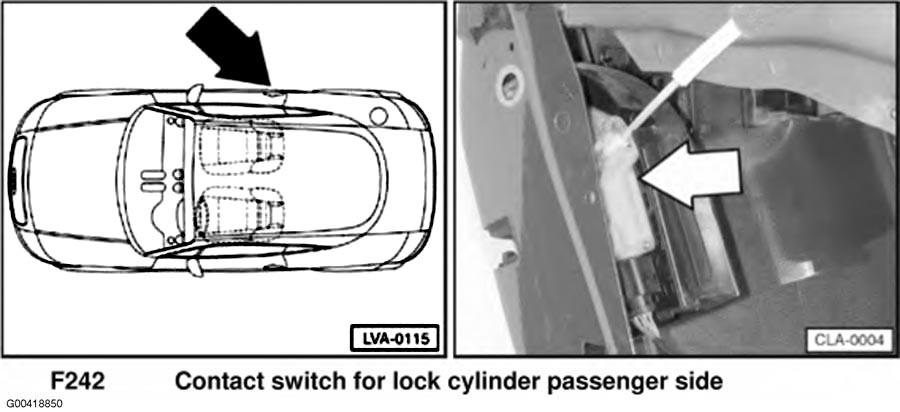

Fig 70: Passenger's Door

G00418850

Courtesy of AUDI OF AMERICA, INC.

Fig 71: Under Right Side Of Dash

G00418853

Courtesy of AUDI OF AMERICA, INC.

Fig 72: Left Side Of Vehicle (Coupe)

G00418854

Courtesy of AUDI OF AMERICA, INC.

Fig 73: Behind Front Seats (Roadster)

G00418855

Courtesy of AUDI OF AMERICA, INC.

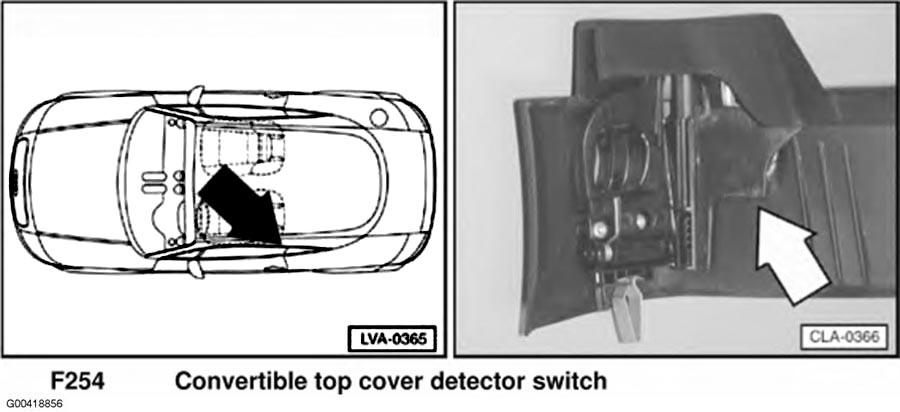

Fig 74: Left Quarter Panel

G00418856

Courtesy of AUDI OF AMERICA, INC.

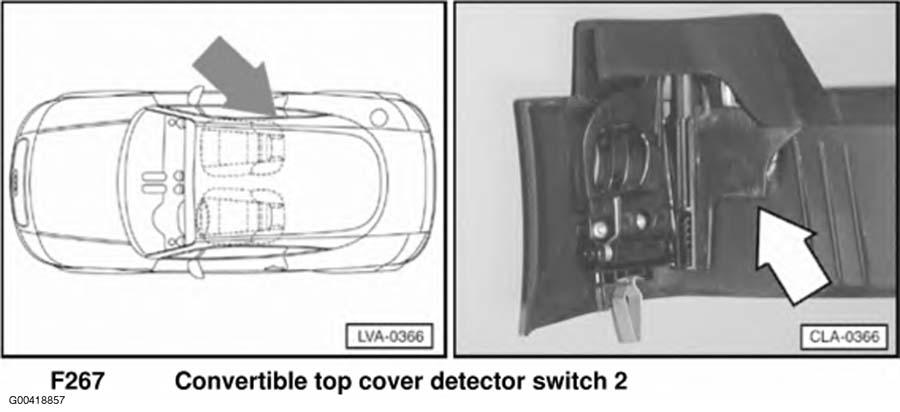

Fig 75: Right Quarter Panel

G00418857

Courtesy of AUDI OF AMERICA, INC.

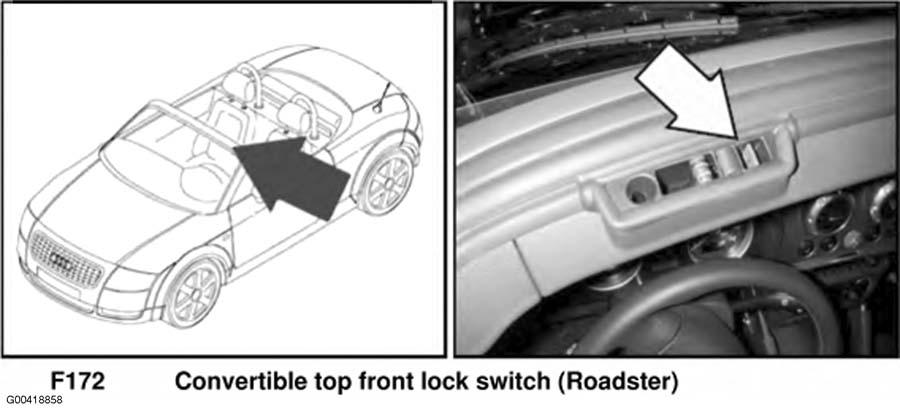

Fig 76: Windshield Header

G00418858

Courtesy of AUDI OF AMERICA, INC.

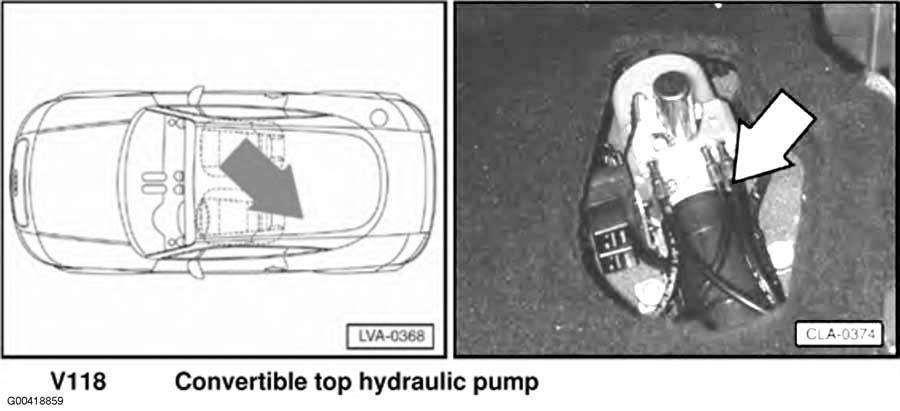

Fig 77: Rear Of Driver's Seat

G00418859

Courtesy of AUDI OF AMERICA, INC.

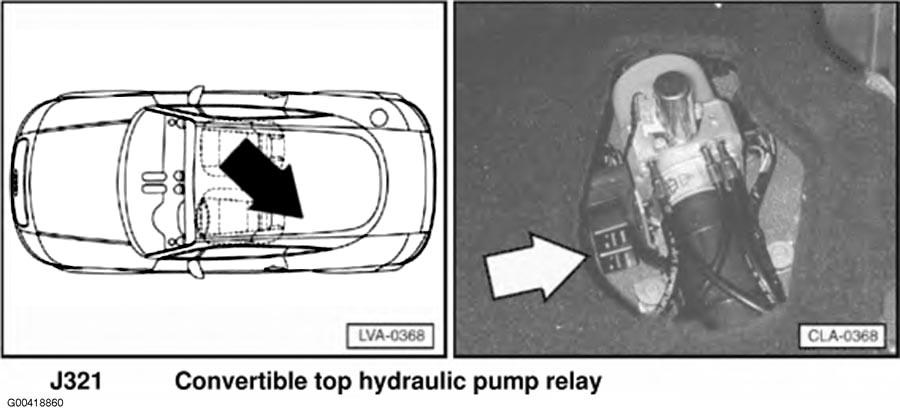

Fig 78: Behind Driver's Seat

G00418860

Courtesy of AUDI OF AMERICA, INC.

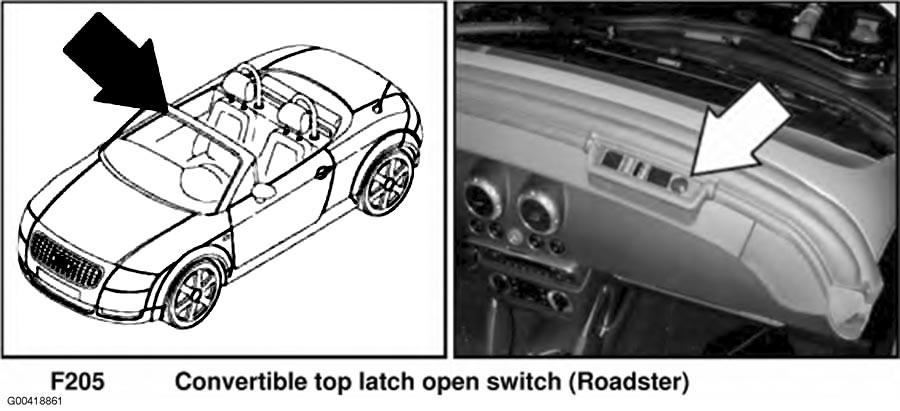

Fig 79: Windshield Header

G00418861

Courtesy of AUDI OF AMERICA, INC.

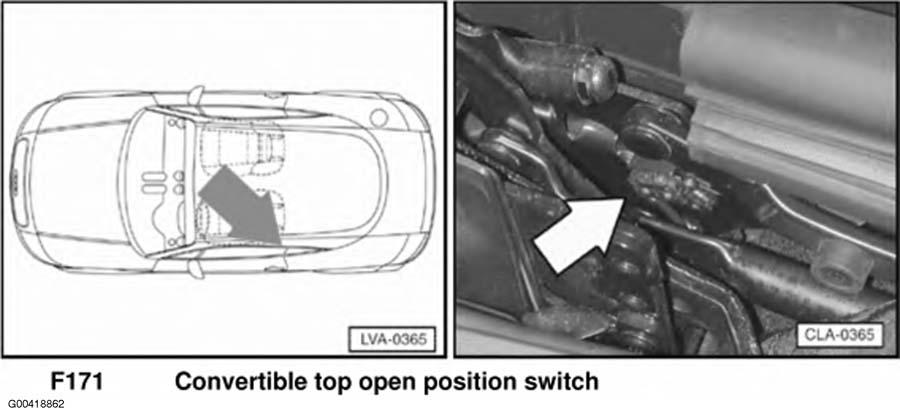

Fig 80: Left Quarter Panel

G00418862

Courtesy of AUDI OF AMERICA, INC.

Fig 81: Left Front Of Engine Compartment

G00418863

Courtesy of AUDI OF AMERICA, INC.

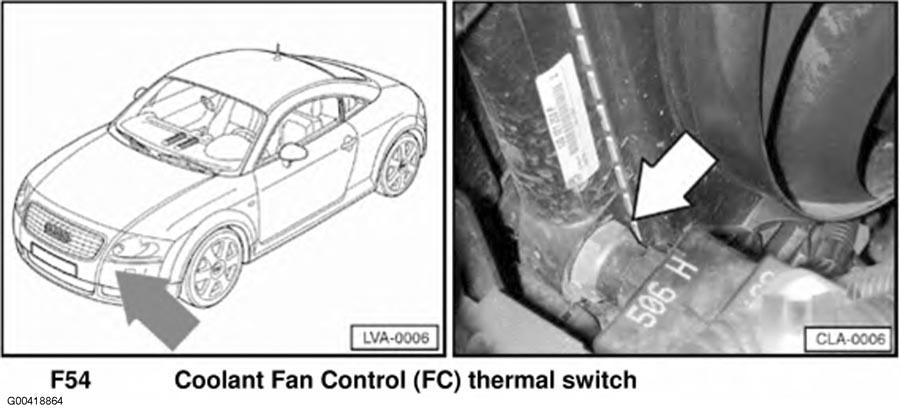

Fig 82: Bottom Of Radiator

G00418864

Courtesy of AUDI OF AMERICA, INC.

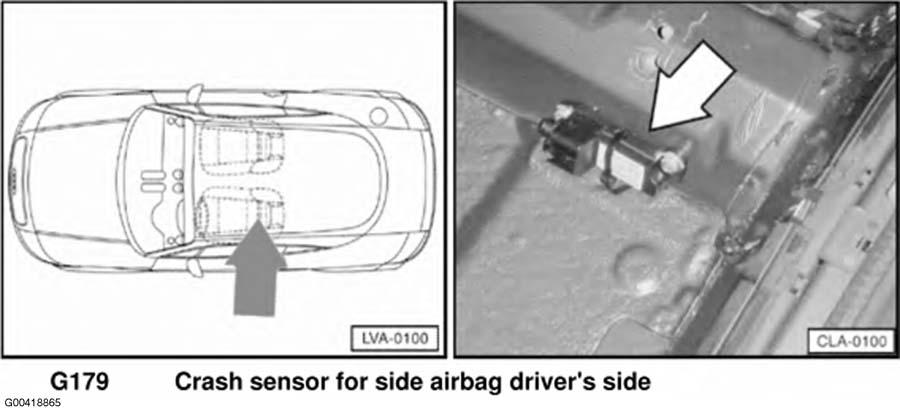

Fig 83: Under Driver's Seat

G00418865

Courtesy of AUDI OF AMERICA, INC.

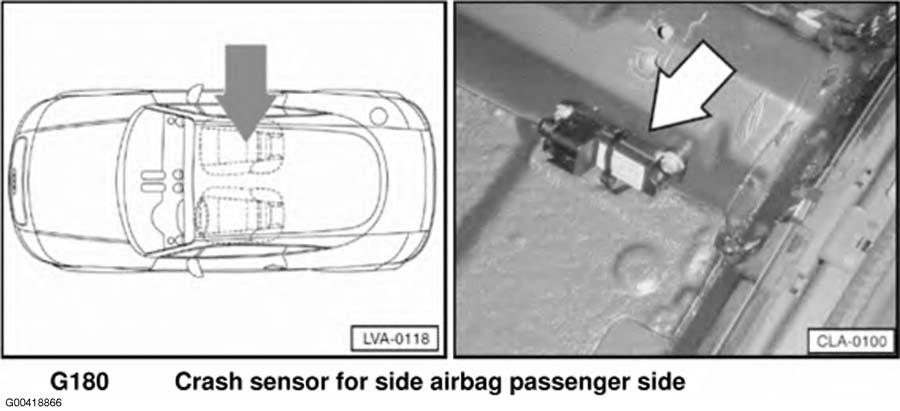

Fig 84: Under Passenger's Seat

G00418866

Courtesy of AUDI OF AMERICA, INC.

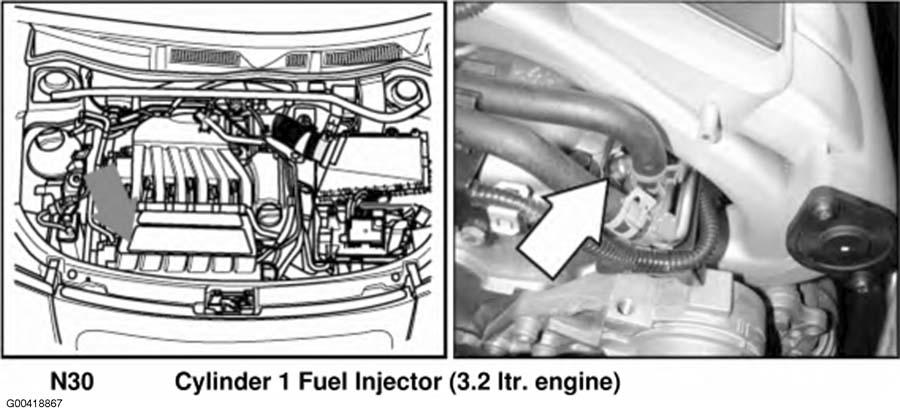

Fig 85: Top Left Of Engine (3.2L)

G00418867

Courtesy of AUDI OF AMERICA, INC.

Fig 86: Top Left Of Engine (3.2L)

G00418868

Courtesy of AUDI OF AMERICA, INC.

Fig 87: Top Left Of Engine (3.2L)

G00418869

Courtesy of AUDI OF AMERICA, INC.

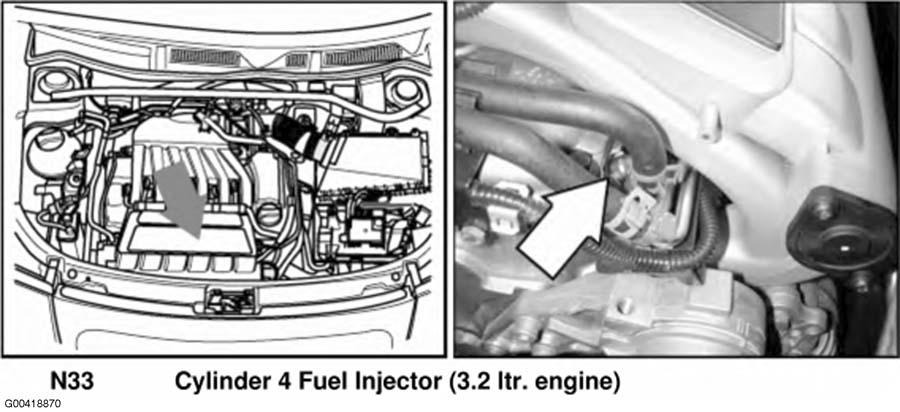

Fig 88: Top Left Of Engine (3.2L)

G00418870

Courtesy of AUDI OF AMERICA, INC.

Fig 89: Top Left Of Engine (3.2L)

G00418871

Courtesy of AUDI OF AMERICA, INC.

Fig 90: Top Left Of Engine (3.2L)

G00418872

Courtesy of AUDI OF AMERICA, INC.

Fig 91: Left Rear Of Engine Compartment

G00418873

Courtesy of AUDI OF AMERICA, INC.

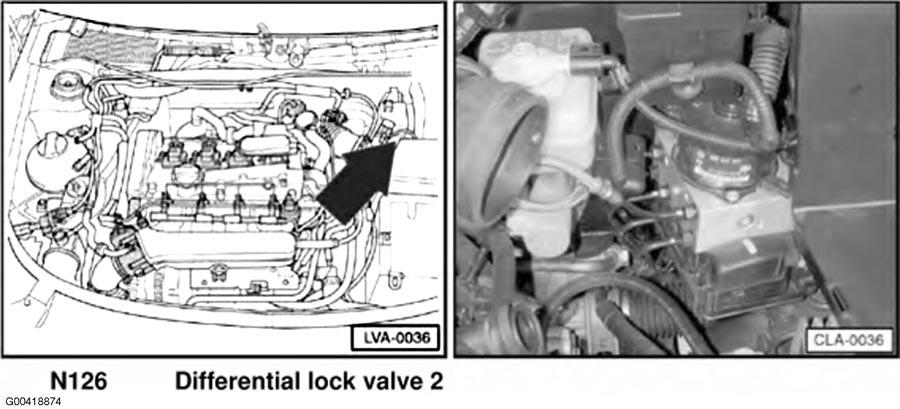

Fig 92: Left Rear Of Engine Compartment

G00418874

Courtesy of AUDI OF AMERICA, INC.

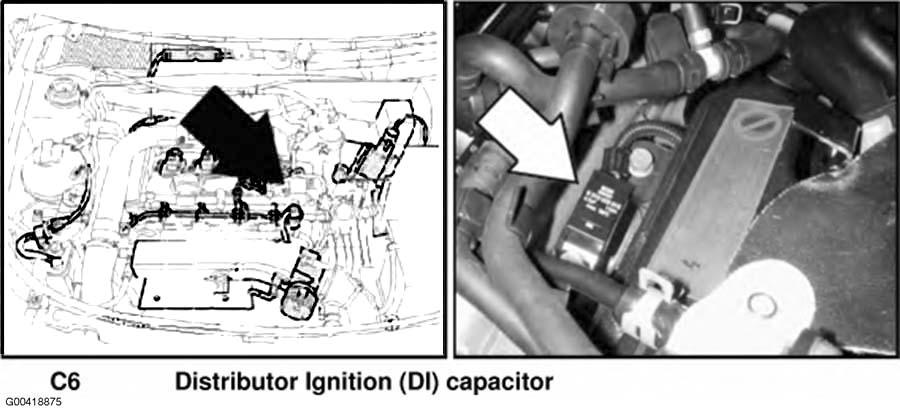

Fig 93: Rear Of Engine

G00418875

Courtesy of AUDI OF AMERICA, INC.

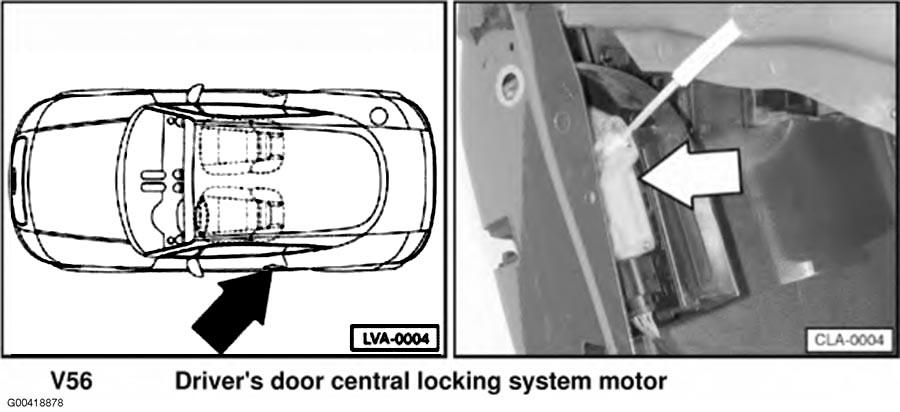

Fig 94: Driver's Door

G00418878

Courtesy of AUDI OF AMERICA, INC.

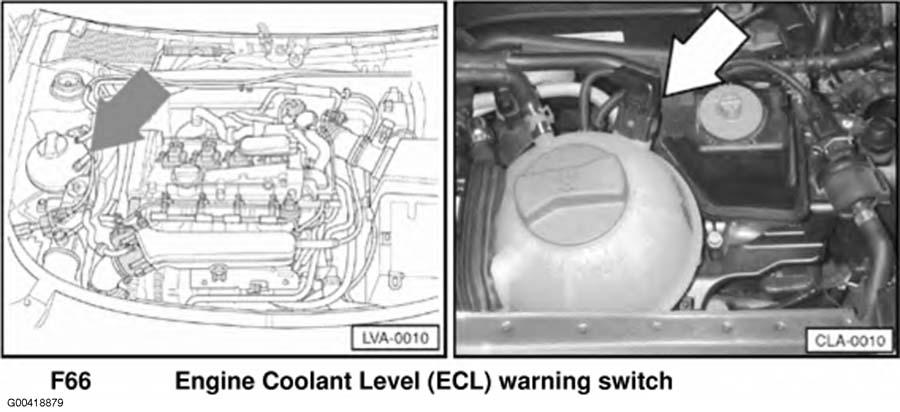

Fig 95: Right Side Of Engine Compartment

G00418879

Courtesy of AUDI OF AMERICA, INC.

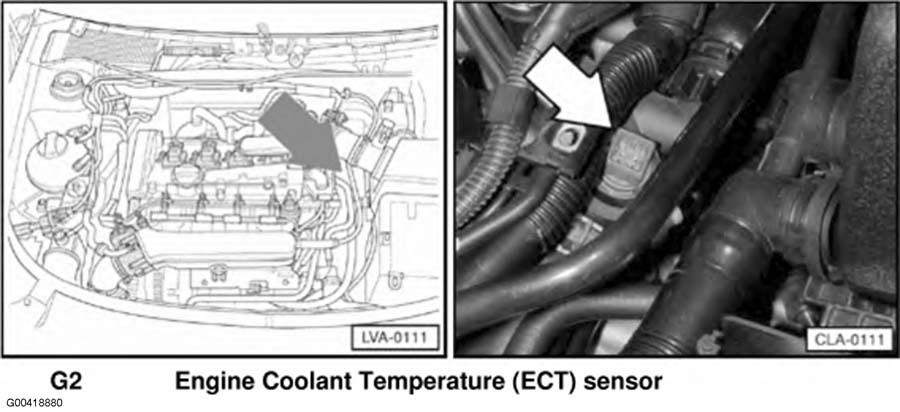

Fig 96: Rear Of Engine

G00418880

Courtesy of AUDI OF AMERICA, INC.

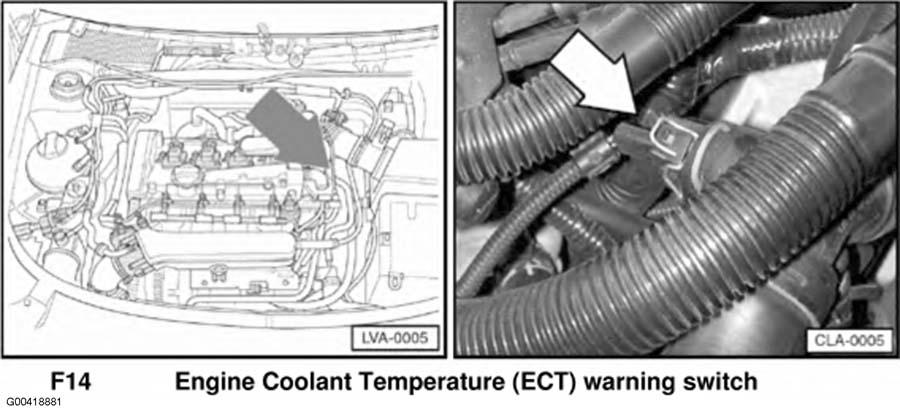

Fig 97: Rear Of Engine

G00418881

Courtesy of AUDI OF AMERICA, INC.

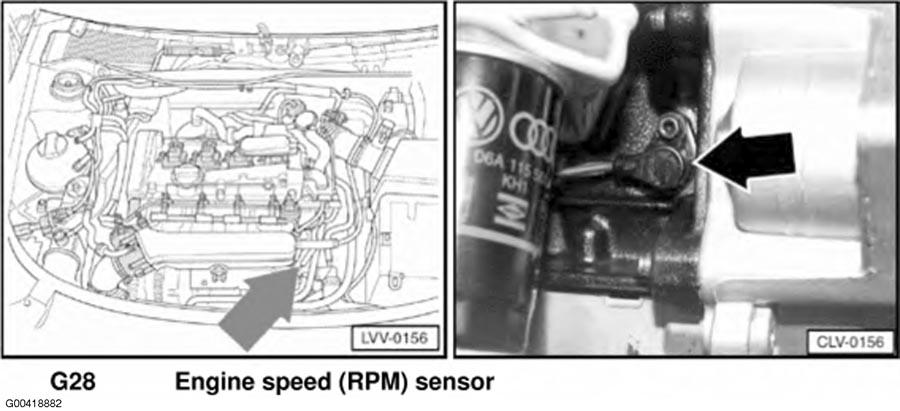

Fig 98: Left Rear Of Engine (1.8L)

G00418882

Courtesy of AUDI OF AMERICA, INC.

Fig 99: Left Side Of Dash

G00418883

Courtesy of AUDI OF AMERICA, INC.

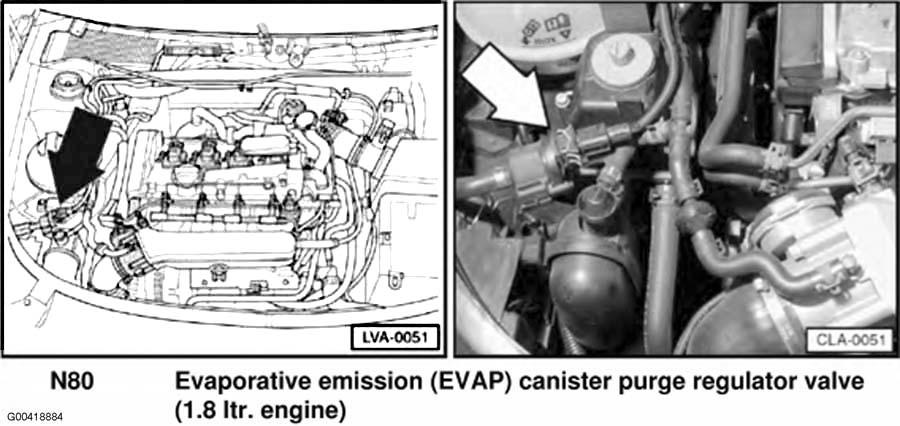

Fig 100: Right Front Of Engine Compartment

G00418884

Courtesy of AUDI OF AMERICA, INC.

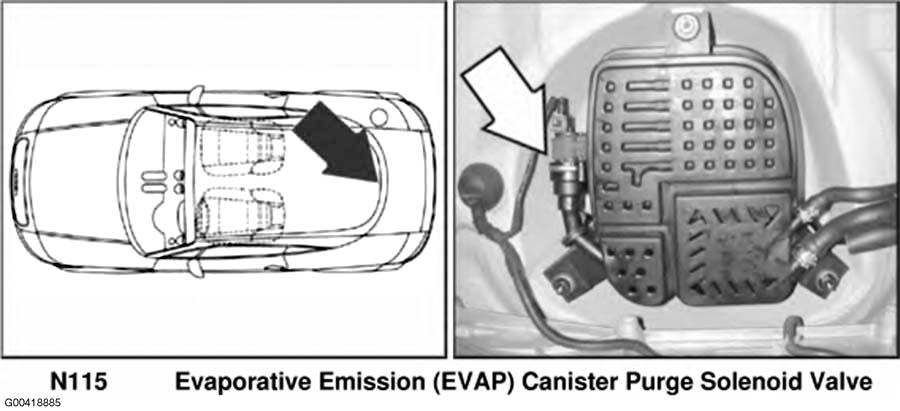

Fig 101: Under Rear Of Vehicle

G00418885

Courtesy of AUDI OF AMERICA, INC.

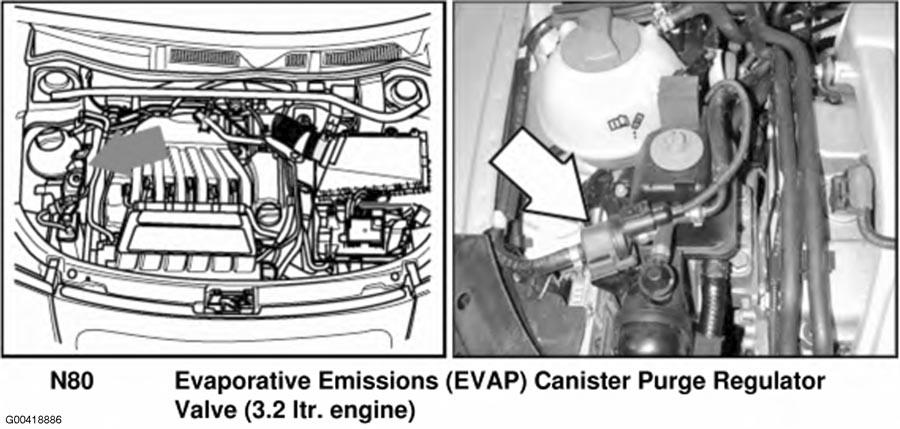

Fig 102: Right Side Of Engine Compartment (3.2L)

G00418886

Courtesy of AUDI OF AMERICA, INC.

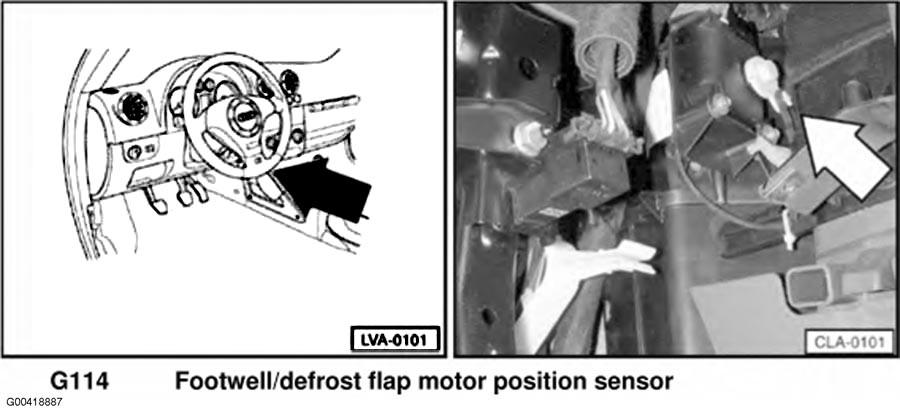

Fig 103: Under Center Of Dash

G00418887

Courtesy of AUDI OF AMERICA, INC.

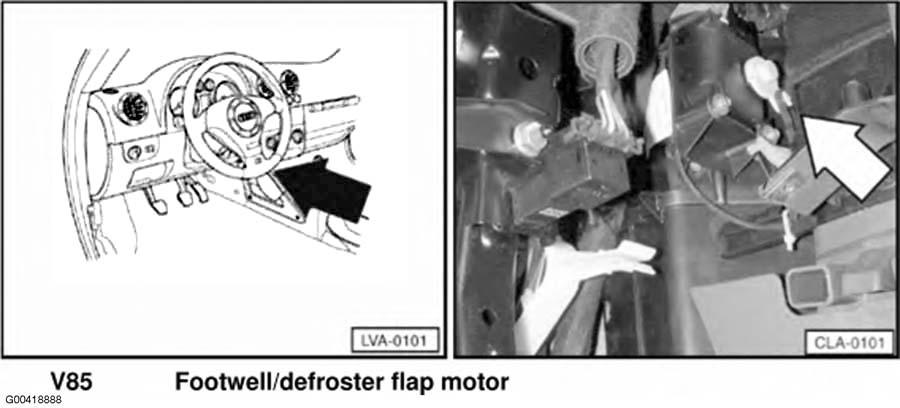

Fig 104: Under Center Of Dash

G00418888

Courtesy of AUDI OF AMERICA, INC.

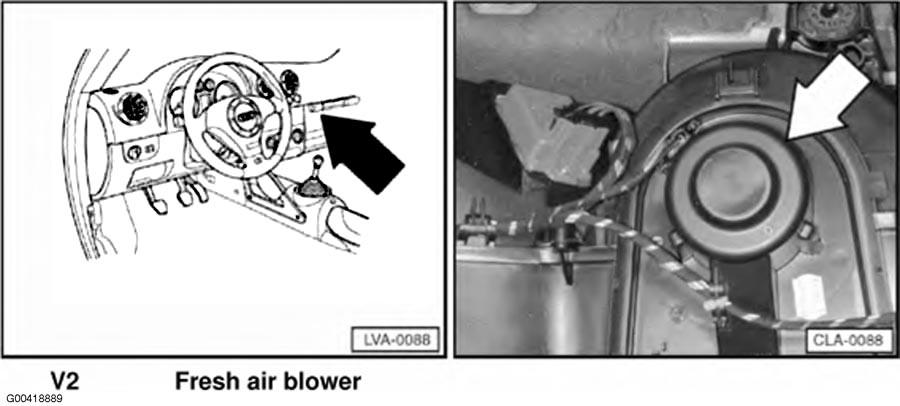

Fig 105: Under Right Side Of Dash

G00418889

Courtesy of AUDI OF AMERICA, INC.

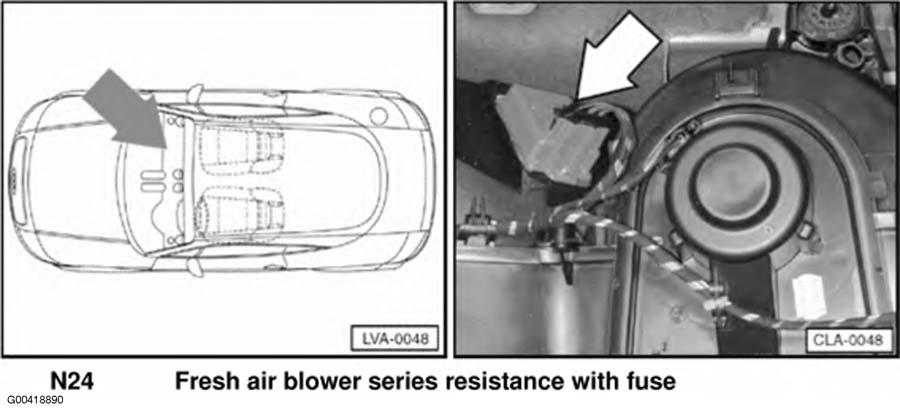

Fig 106: Under Right Side Of Dash

G00418890

Courtesy of AUDI OF AMERICA, INC.

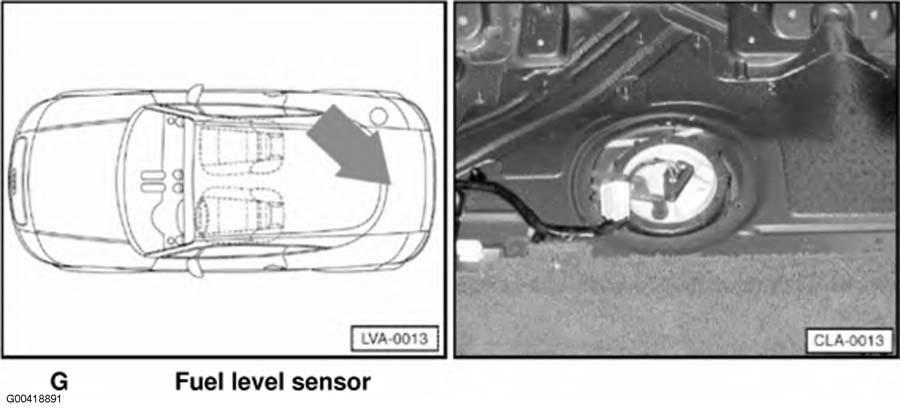

Fig 107: Fuel Tank

G00418891

Courtesy of AUDI OF AMERICA, INC.

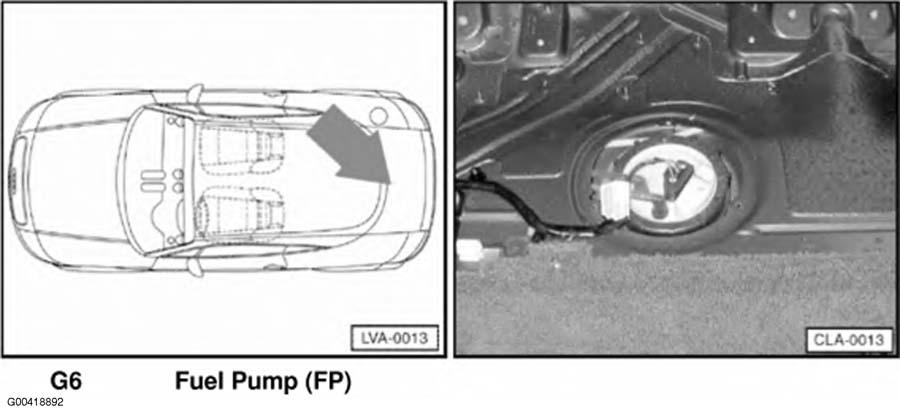

Fig 108: Fuel Tank

G00418892

Courtesy of AUDI OF AMERICA, INC.

Fig 109: Front Of Vehicle

G00418893

Courtesy of AUDI OF AMERICA, INC.

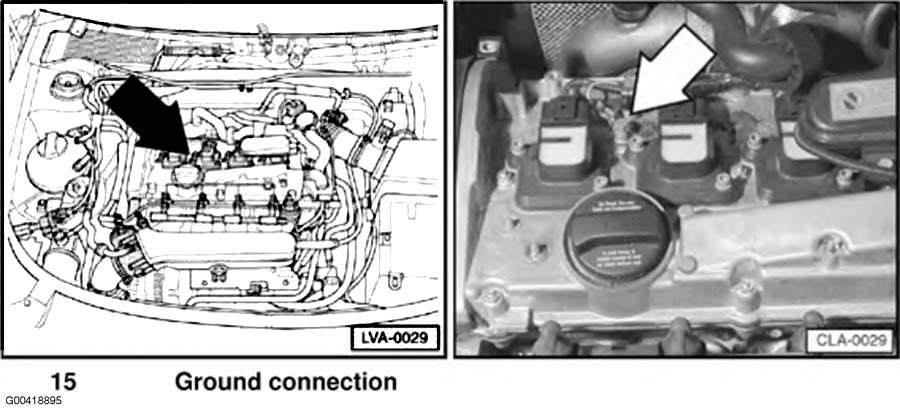

Fig 110: Top Of Engine (1.8L)

G00418895

Courtesy of AUDI OF AMERICA, INC.

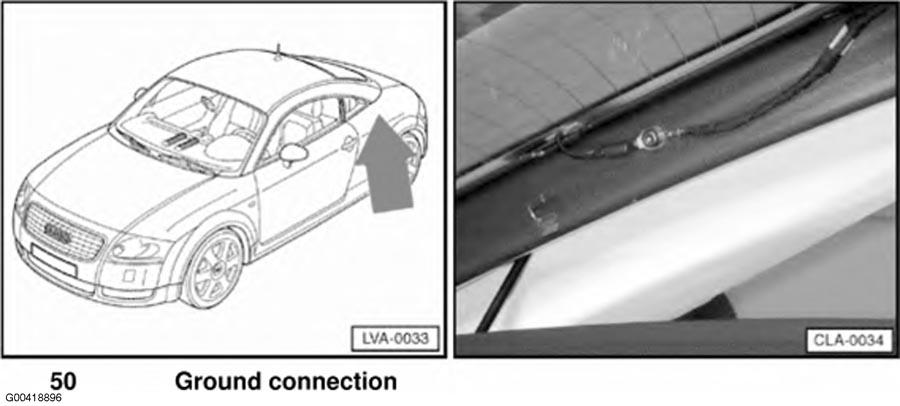

Fig 111: Left Rear Of Vehicle

G00418896

Courtesy of AUDI OF AMERICA, INC.

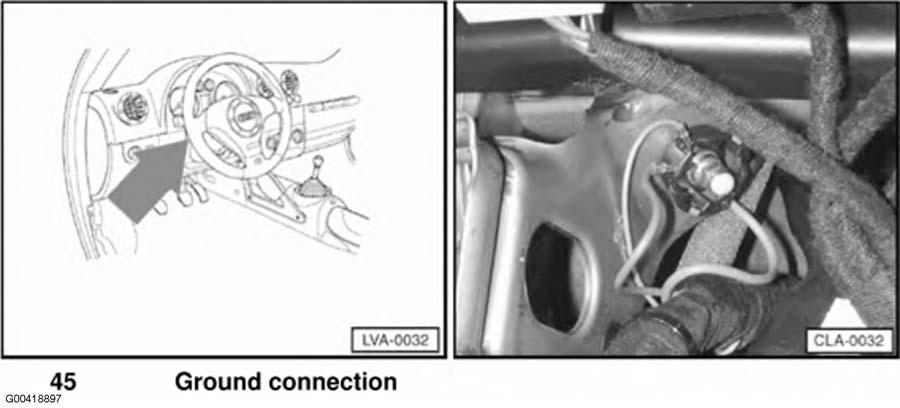

Fig 112: Left Side Of Dash

G00418897

Courtesy of AUDI OF AMERICA, INC.

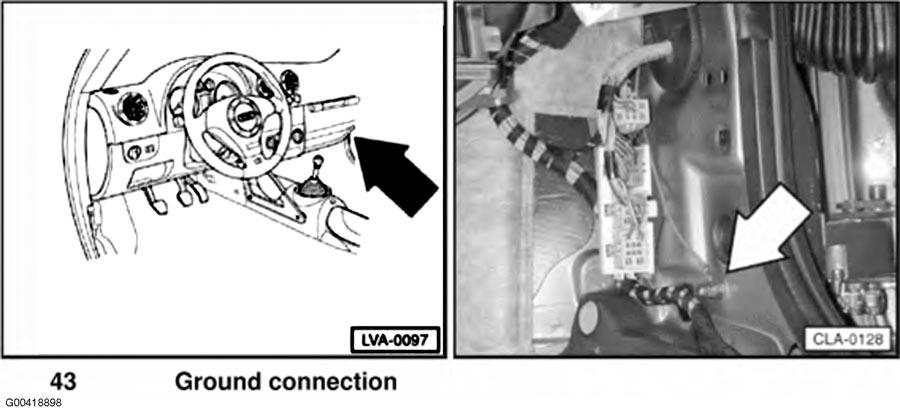

Fig 113: Right Kick Panel

G00418898

Courtesy of AUDI OF AMERICA, INC.

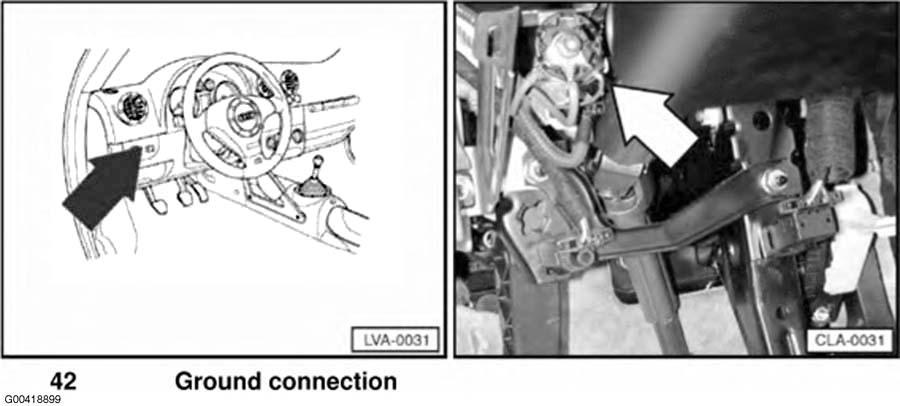

Fig 114: Behind Left Side Of Dash

G00418899

Courtesy of AUDI OF AMERICA, INC.

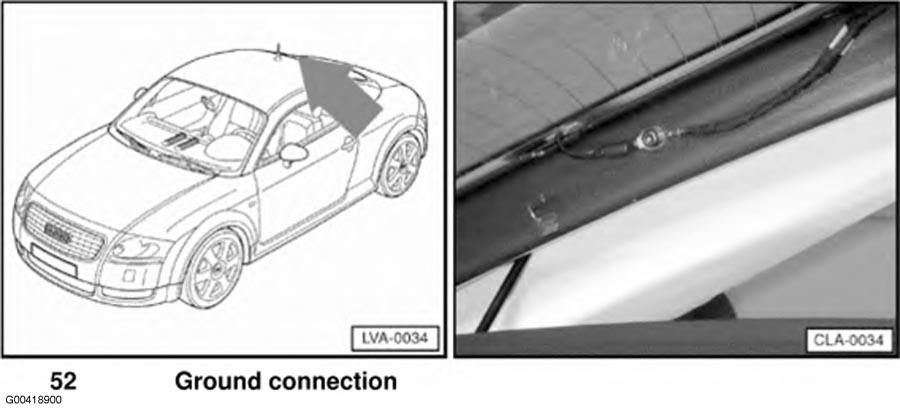

Fig 115: Rear Of Roof

G00418900

Courtesy of AUDI OF AMERICA, INC.

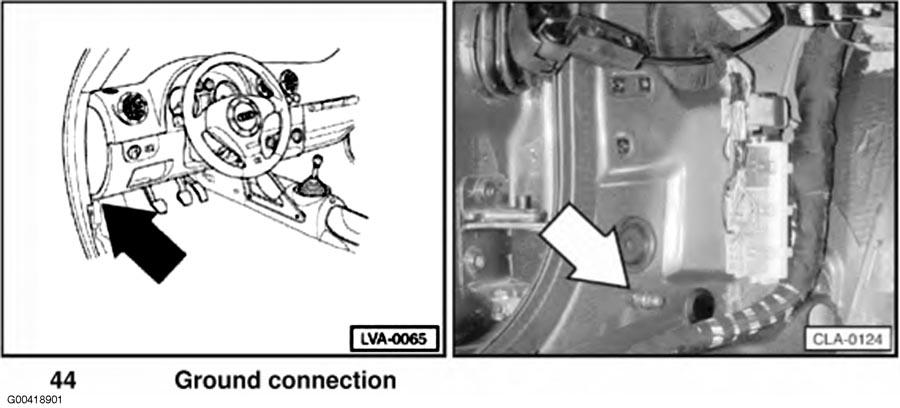

Fig 116: Left Kick Panel

G00418901

Courtesy of AUDI OF AMERICA, INC.

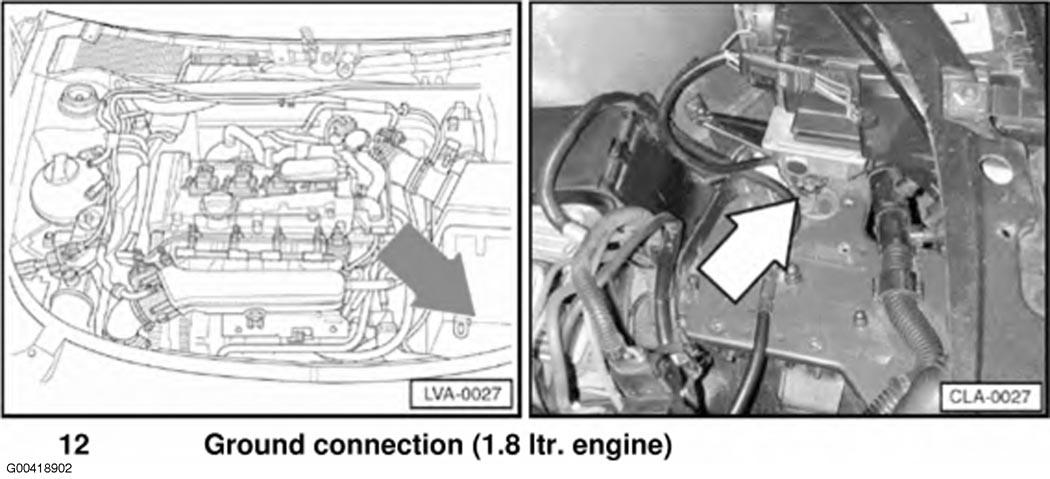

Fig 117: Left Front Of Engine Compartment (1.8L)

G00418902

Courtesy of AUDI OF AMERICA, INC.

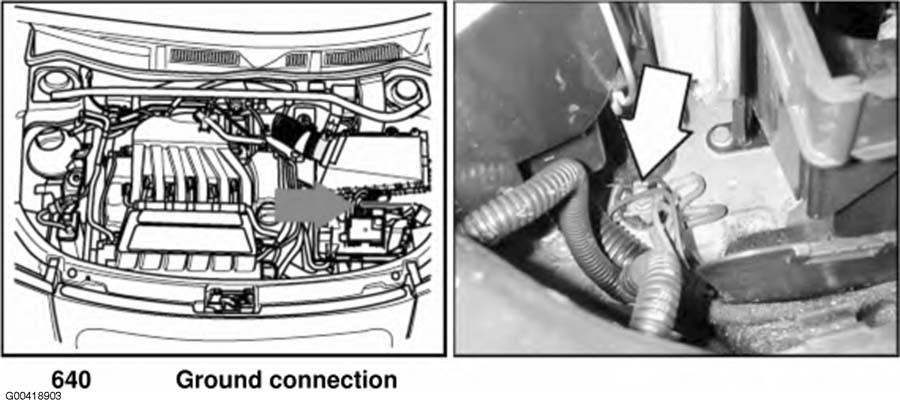

Fig 118: Left Side Of Engine Compartment

G00418903

Courtesy of AUDI OF AMERICA, INC.

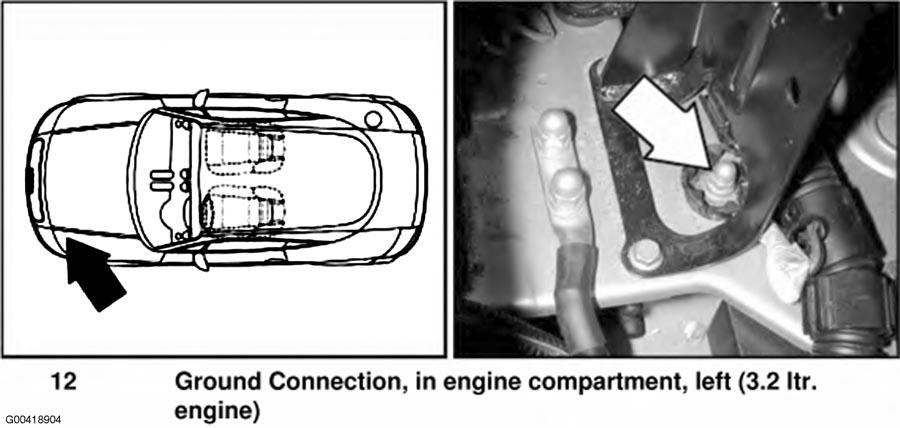

Fig 119: Left Side Of Engine Compartment (3.2L)

G00418904

Courtesy of AUDI OF AMERICA, INC.

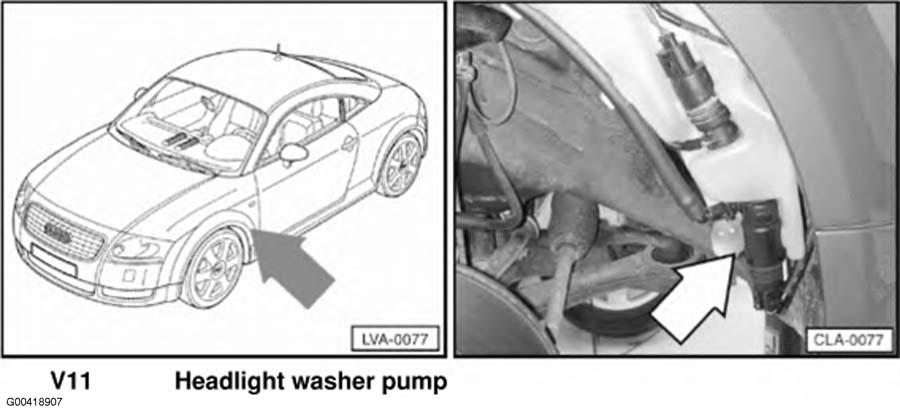

Fig 120: Left Front Wheel Well

G00418907

Courtesy of AUDI OF AMERICA, INC.

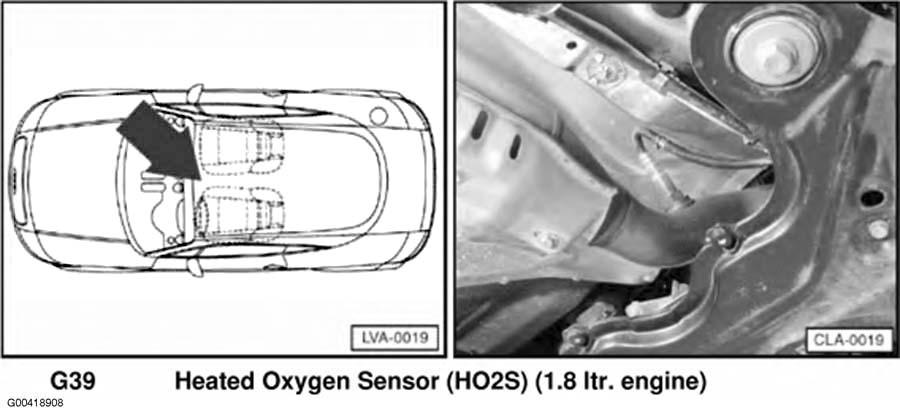

Fig 121: Below Center Of Vehicle

G00418908

Courtesy of AUDI OF AMERICA, INC.

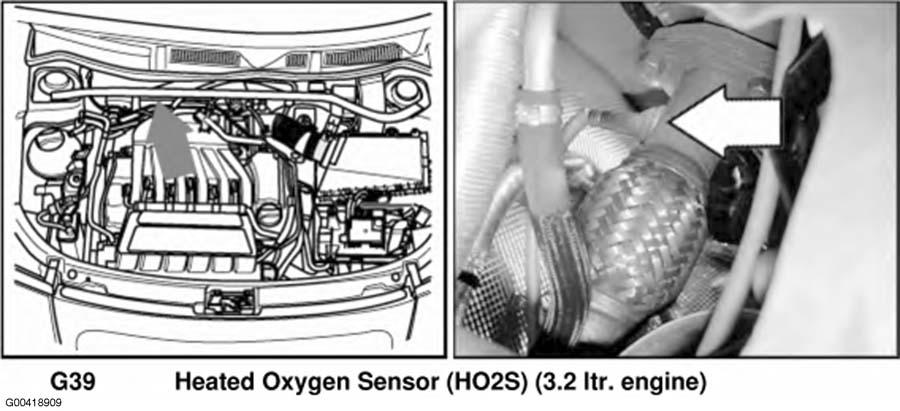

Fig 122: Rear Of Engine Compartment (3.2L)

G00418909

Courtesy of AUDI OF AMERICA, INC.

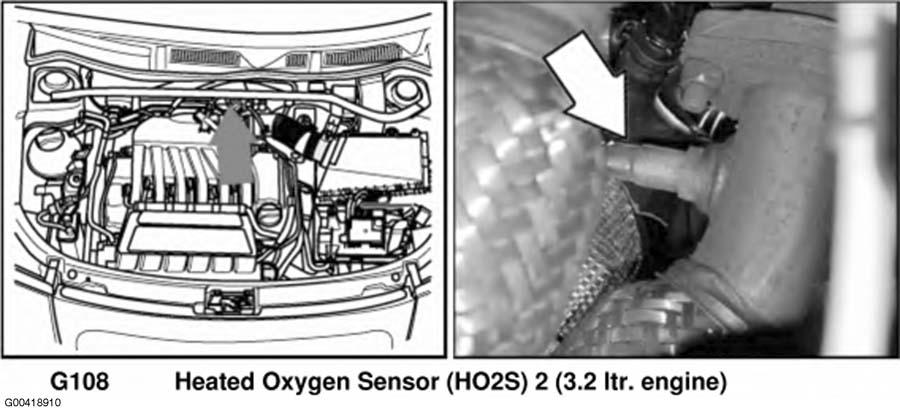

Fig 123: Rear Of Engine Compartment (3.2L)

G00418910

Courtesy of AUDI OF AMERICA, INC.

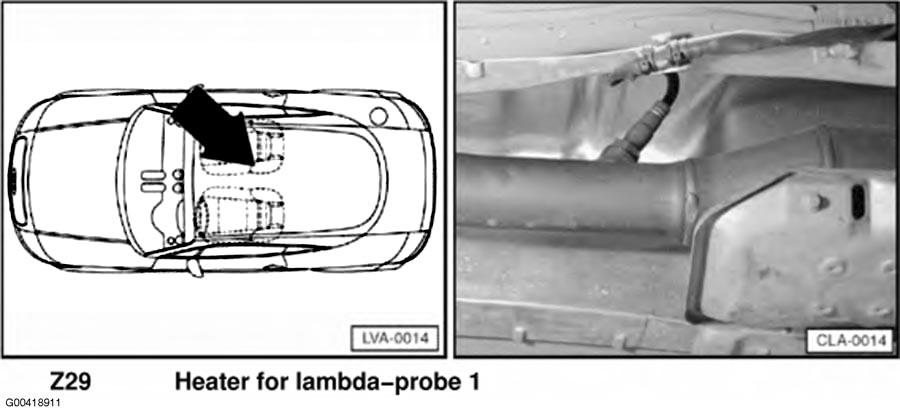

Fig 124: Under Center Of Vehicle

G00418911

Courtesy of AUDI OF AMERICA, INC.

Fig 125: Right Rear Of Engine Compartment

G00418912

Courtesy of AUDI OF AMERICA, INC.

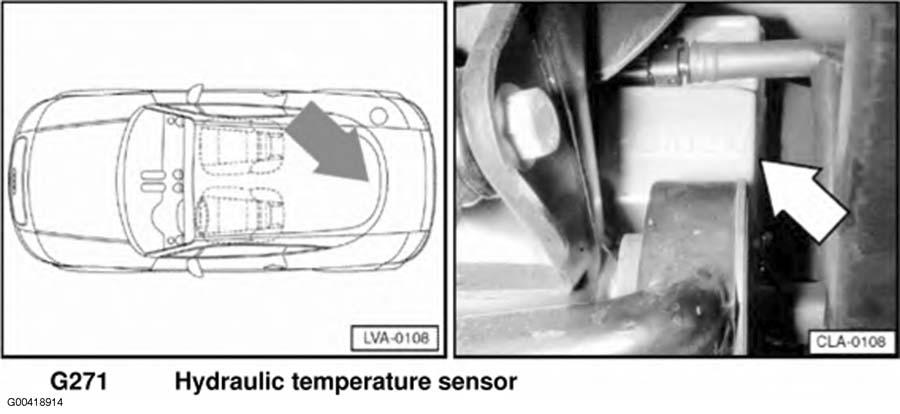

Fig 126: Rear Of Vehicle

G00418914

Courtesy of AUDI OF AMERICA, INC.

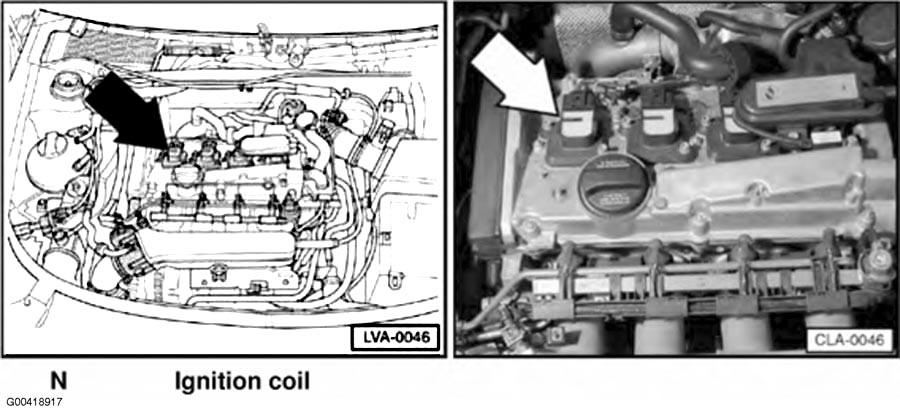

Fig 127: Top Of Engine (1.8L)

G00418917

Courtesy of AUDI OF AMERICA, INC.

Fig 128: Top Of Engine (1.8L)

G00418919

Courtesy of AUDI OF AMERICA, INC.

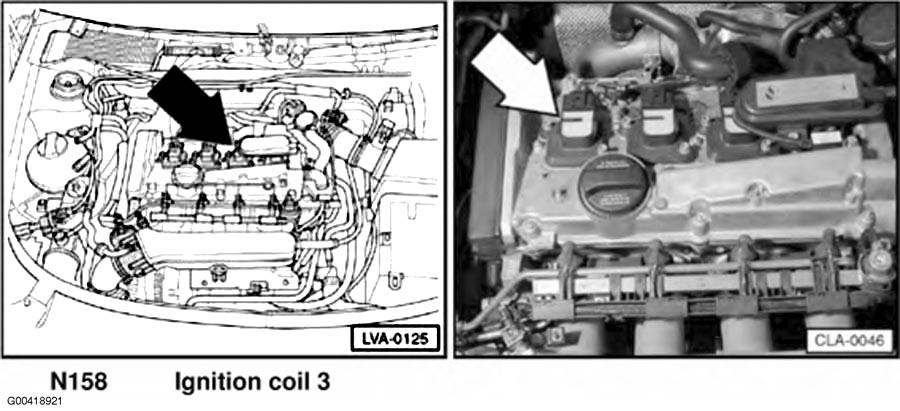

Fig 129: Top Of Engine (1.8L)

G00418921

Courtesy of AUDI OF AMERICA, INC.

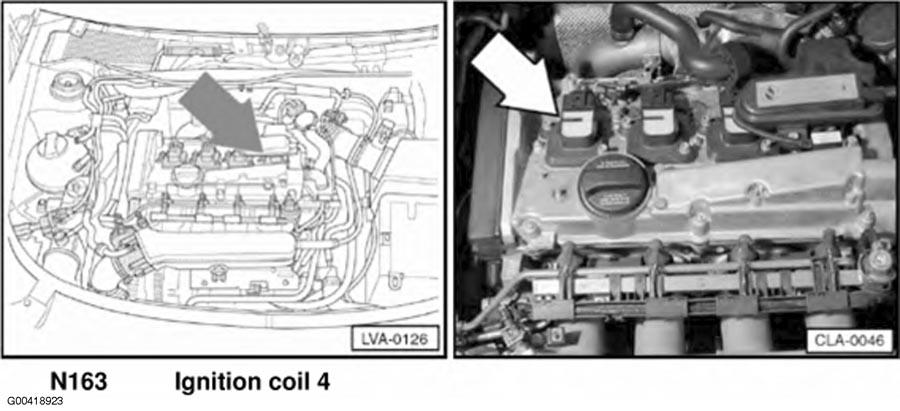

Fig 130: Top Of Engine (1.8L)

G00418923

Courtesy of AUDI OF AMERICA, INC.

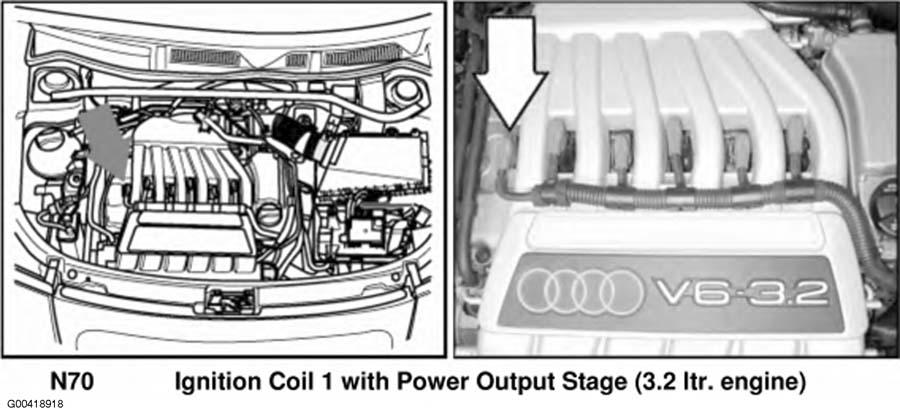

Fig 131: Top Of Engine (3.2L)

G00418918

Courtesy of AUDI OF AMERICA, INC.

Fig 132: Top Of Engine (3.2L)

G00418920

Courtesy of AUDI OF AMERICA, INC.

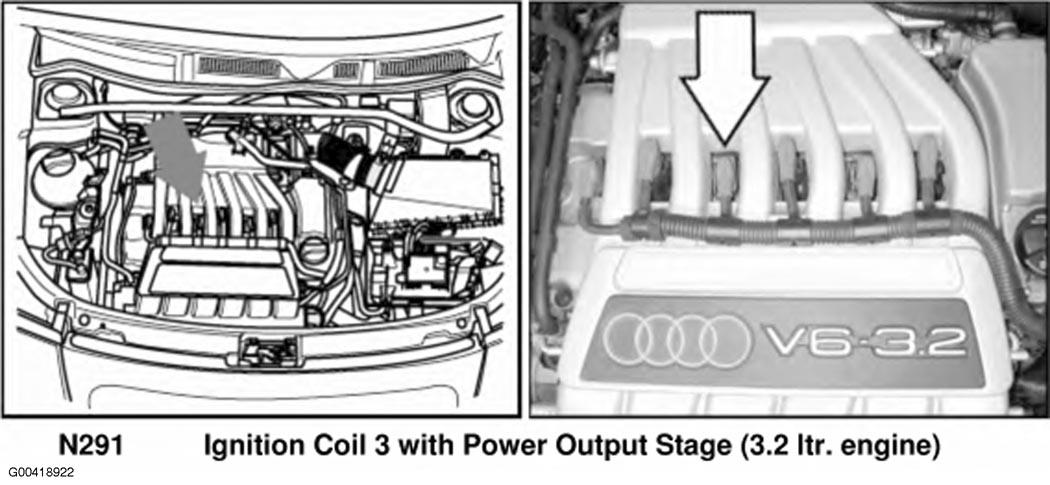

Fig 133: Top Of Engine (3.2L)

G00418922

Courtesy of AUDI OF AMERICA, INC.

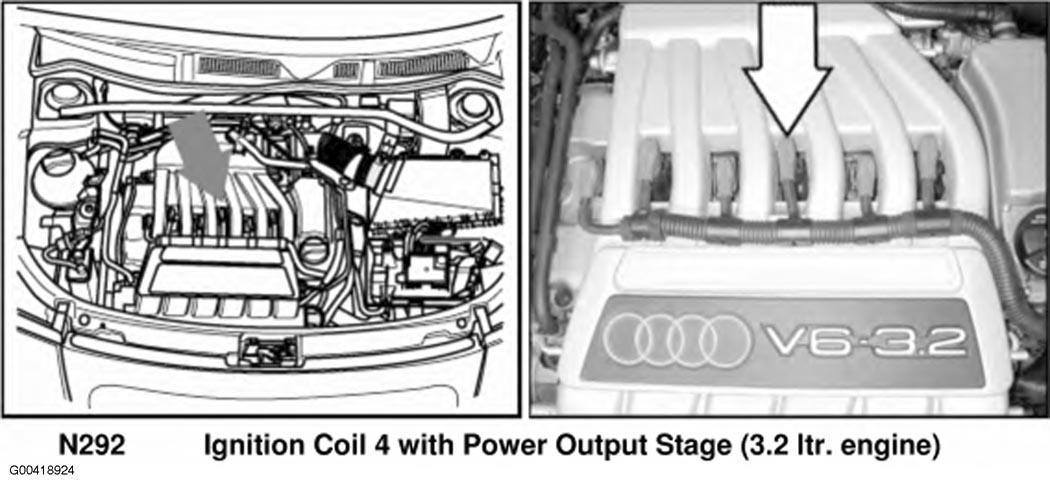

Fig 134: Top Of Engine (3.2L)

G00418924

Courtesy of AUDI OF AMERICA, INC.

Fig 135: Top Of Engine (3.2L)

G00418925

Courtesy of AUDI OF AMERICA, INC.

Fig 136: Top Of Engine (3.2L)

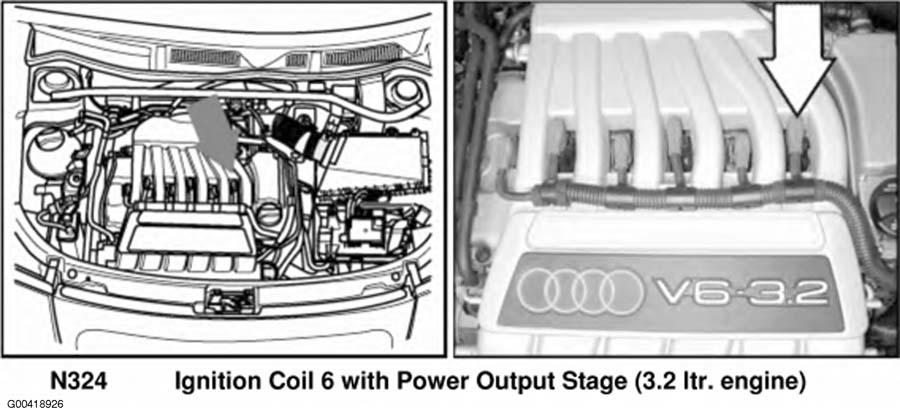

G00418926

Courtesy of AUDI OF AMERICA, INC.

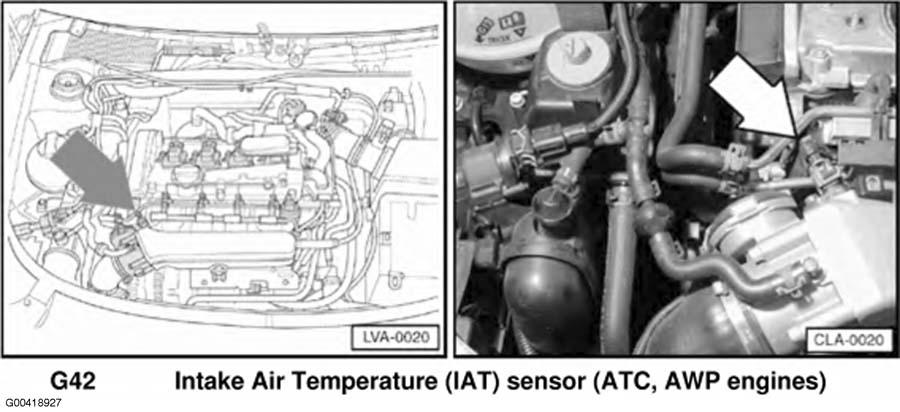

Fig 137: Right Side Of Engine Compartment (1.8L)

G00418927

Courtesy of AUDI OF AMERICA, INC.

Fig 138: Left Rear Of Engine (3.2L)

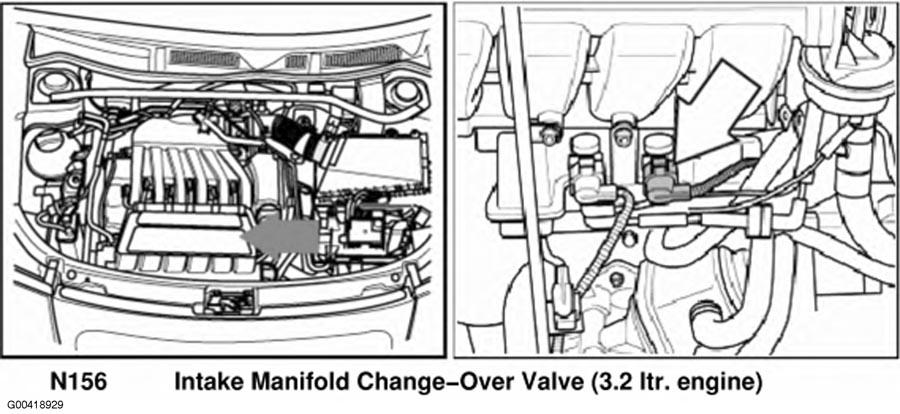

G00418929

Courtesy of AUDI OF AMERICA, INC.

Fig 139: Top Of Engine (1.8L)

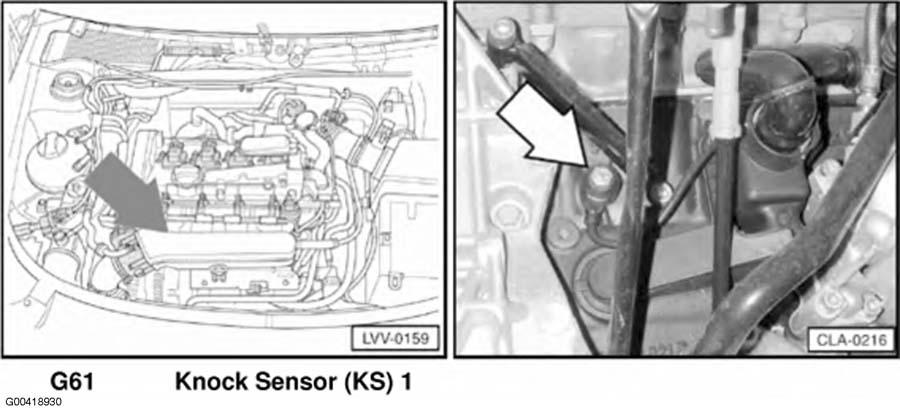

G00418930

Courtesy of AUDI OF AMERICA, INC.

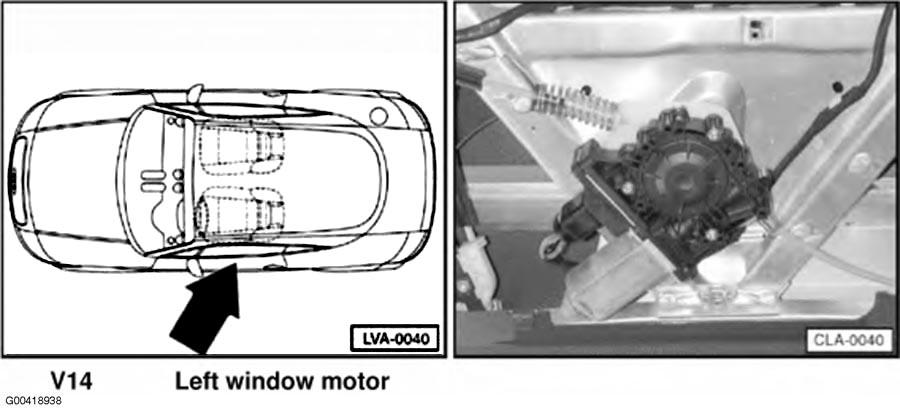

Fig 140: Driver's Door

G00418938

Courtesy of AUDI OF AMERICA, INC.

Fig 141: Left Front Wheel

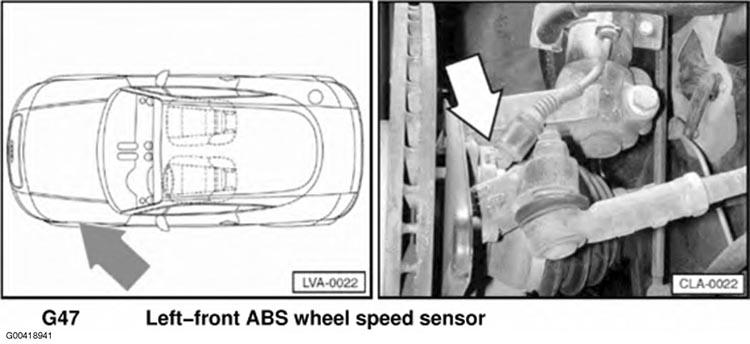

G00418941

Courtesy of AUDI OF AMERICA, INC.

Fig 142: Left Front Wheel Well

G00418943

Courtesy of AUDI OF AMERICA, INC.

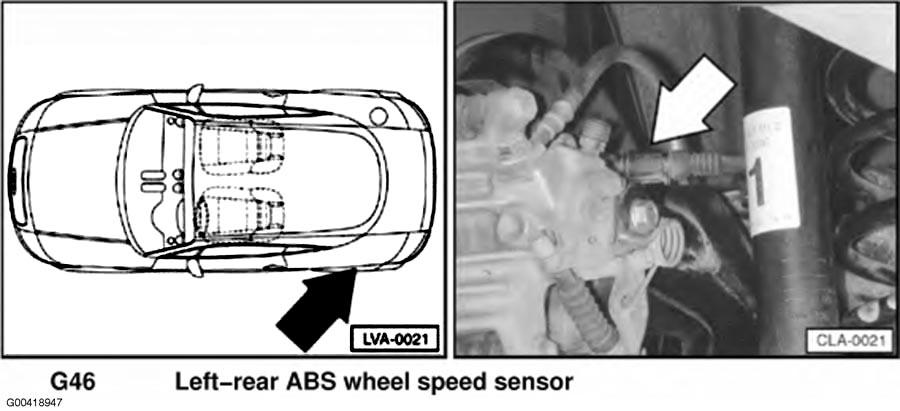

Fig 143: Left Rear Wheel Well

G00418947

Courtesy of AUDI OF AMERICA, INC.

Fig 144: Under Left Side Of Dash

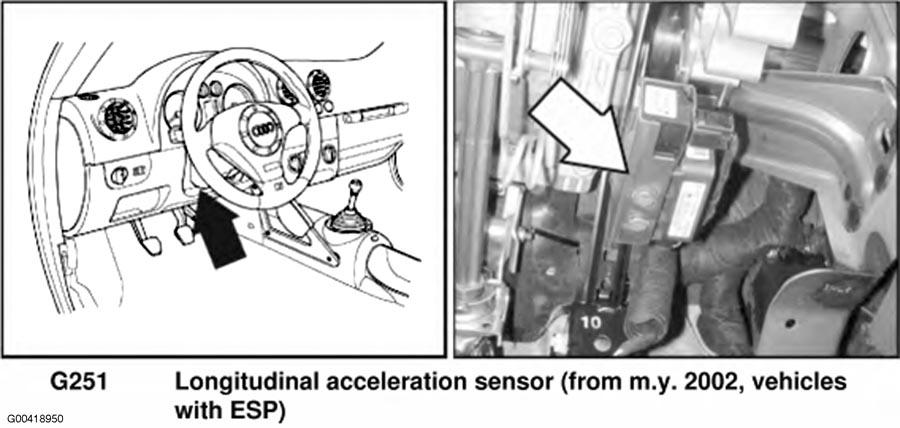

G00418950

Courtesy of AUDI OF AMERICA, INC.

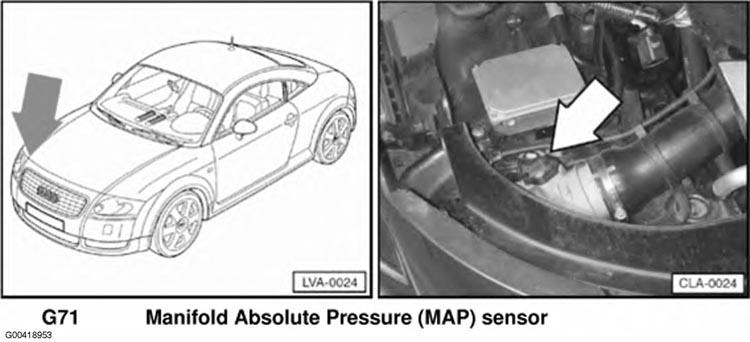

Fig 145: Right Front Of Engine Compartment

G00418953

Courtesy of AUDI OF AMERICA, INC.

Fig 146: Left Side Of Engine Compartment (1.8L)

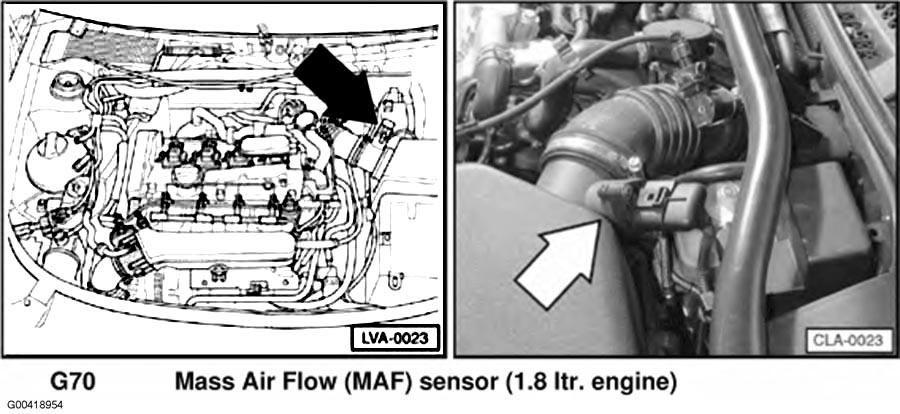

G00418954

Courtesy of AUDI OF AMERICA, INC.

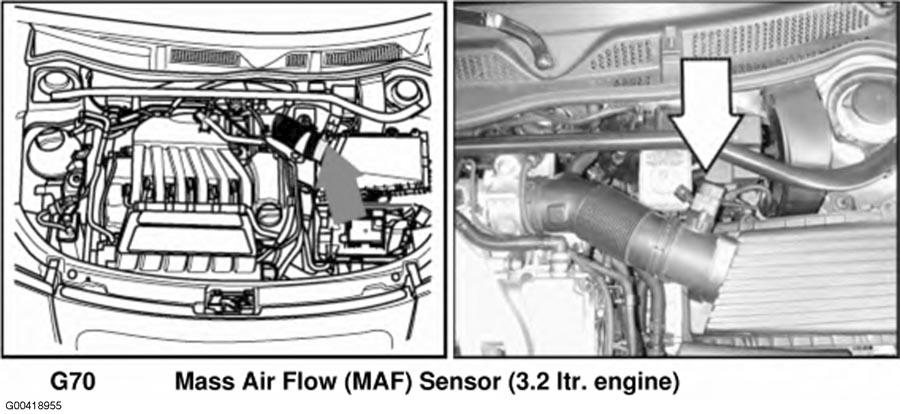

Fig 147: Left Rear Of Engine Compartment (3.2L)

G00418955

Courtesy of AUDI OF AMERICA, INC.

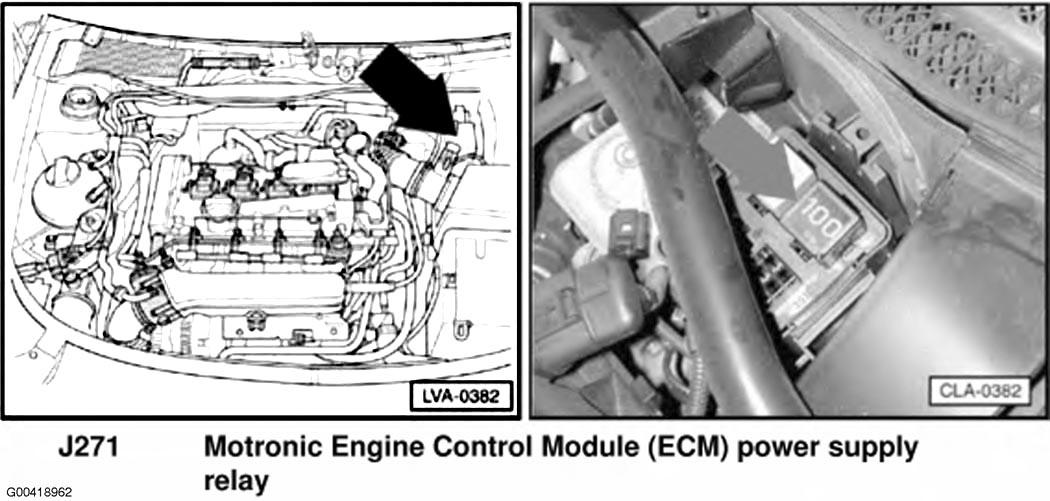

Fig 148: Left Rear Of Engine Compartment

G00418962

Courtesy of AUDI OF AMERICA, INC.

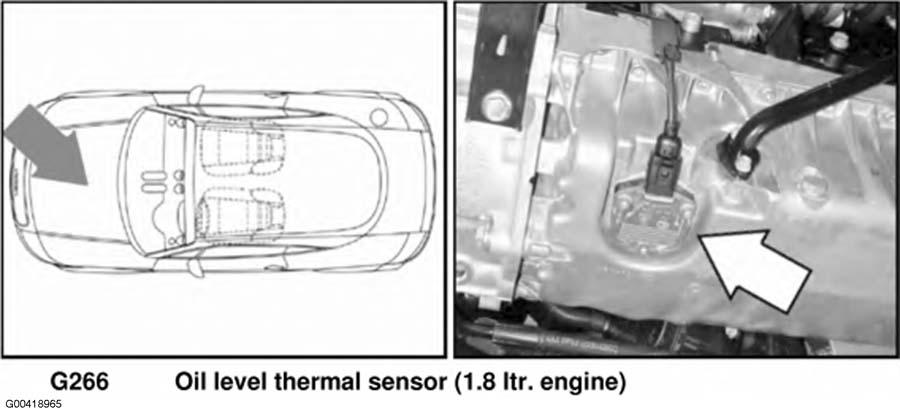

Fig 149: Bottom Of Engine (1.8L)

G00418965

Courtesy of AUDI OF AMERICA, INC.

Fig 150: Bottom Of Engine (3.2L)

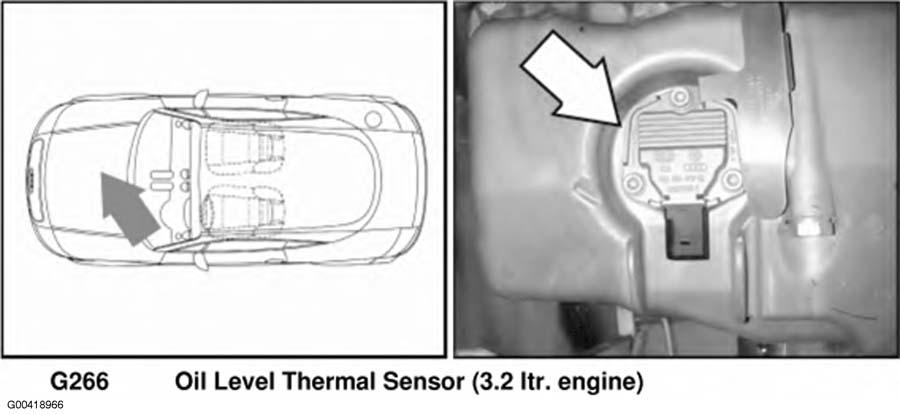

G00418966

Courtesy of AUDI OF AMERICA, INC.

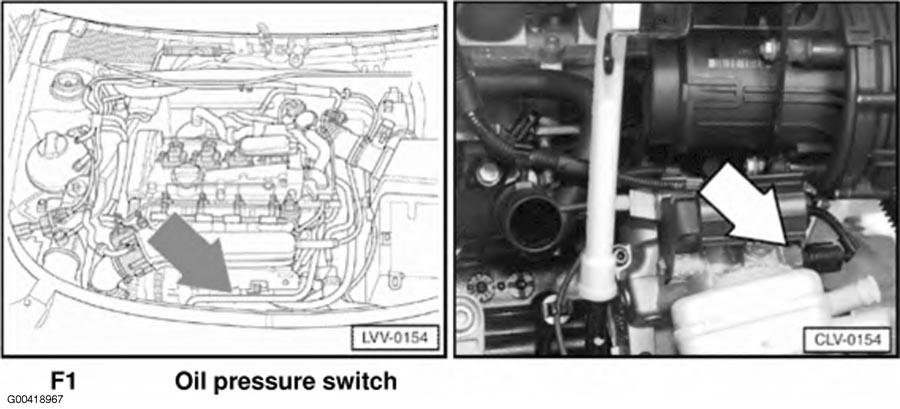

Fig 151: Front Of Engine Compartment

G00418967

Courtesy of AUDI OF AMERICA, INC.

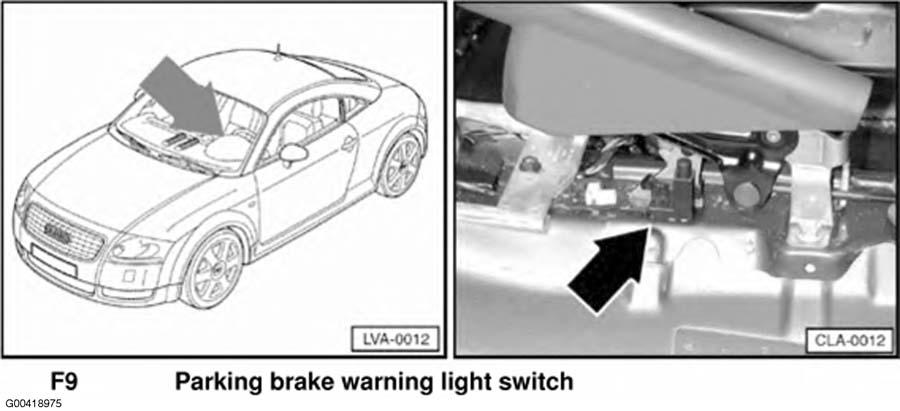

Fig 152: Center Console

G00418975

Courtesy of AUDI OF AMERICA, INC.

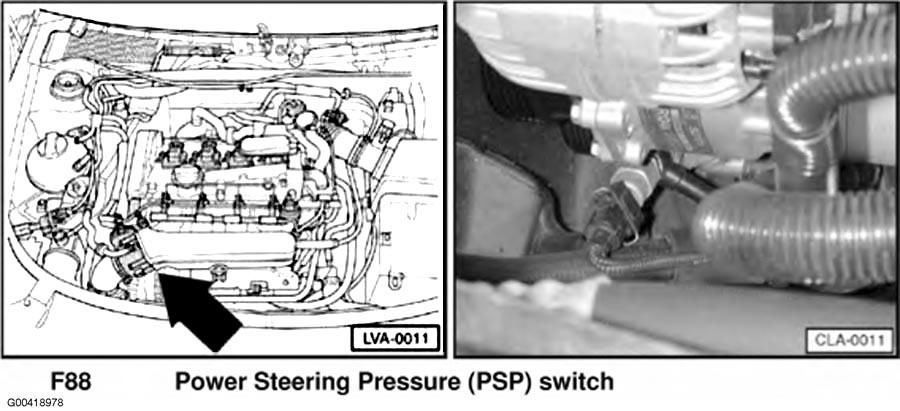

Fig 153: Left Front Of Engine (1.8L)

G00418978

Courtesy of AUDI OF AMERICA, INC.

Fig 154: Front Of Engine Compartment

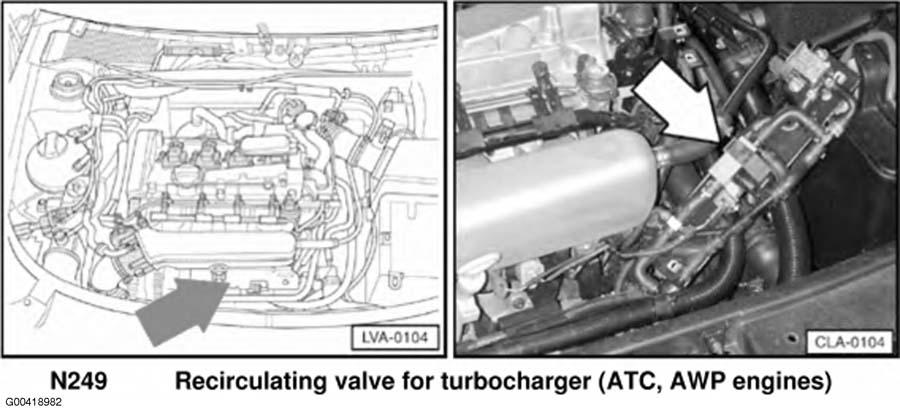

G00418982

Courtesy of AUDI OF AMERICA, INC.

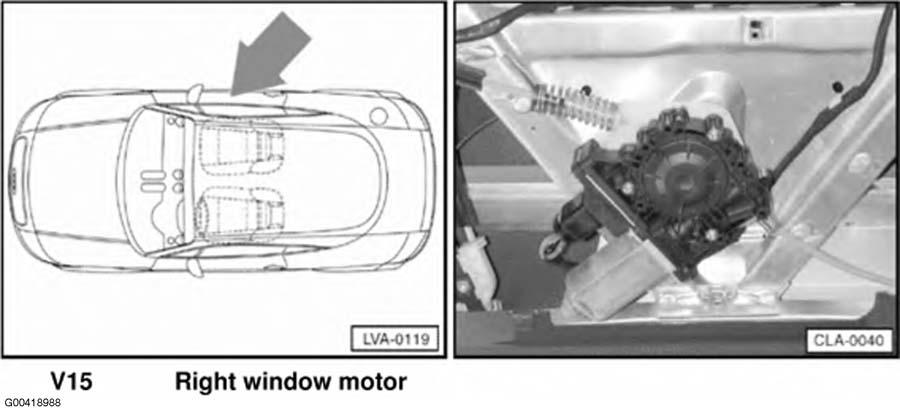

Fig 155: Passenger's Door

G00418988

Courtesy of AUDI OF AMERICA, INC.

Fig 156: Right Front Wheel Well

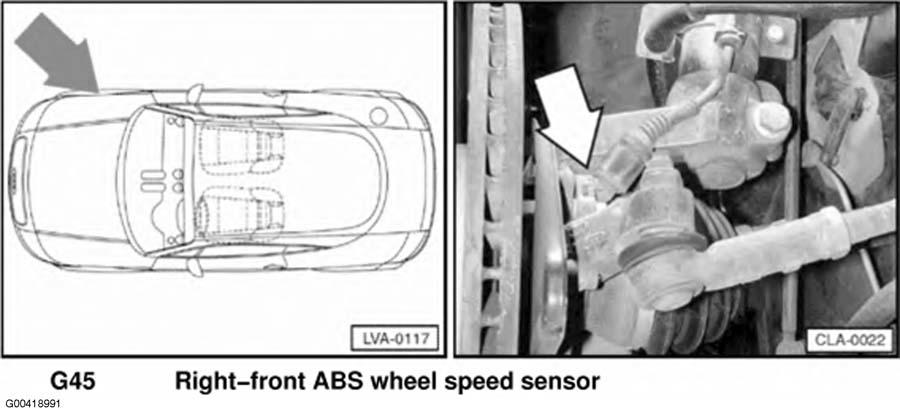

G00418991

Courtesy of AUDI OF AMERICA, INC.

Fig 157: Right Rear Wheel Well

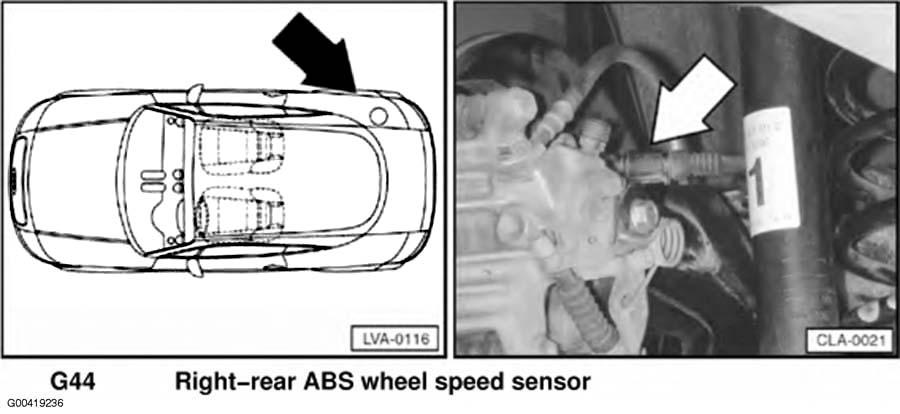

G00419236

Courtesy of AUDI OF AMERICA, INC.

Fig 158: Right Front Of Engine Compartment

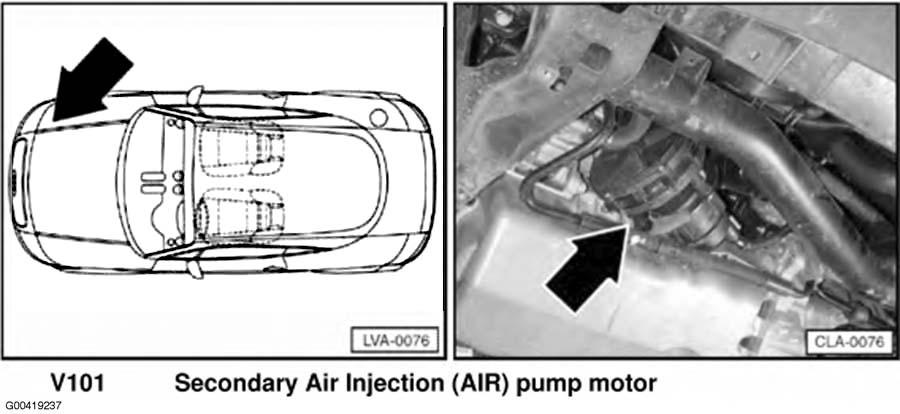

G00419237

Courtesy of AUDI OF AMERICA, INC.

Fig 159: Left Rear Of Engine Compartment

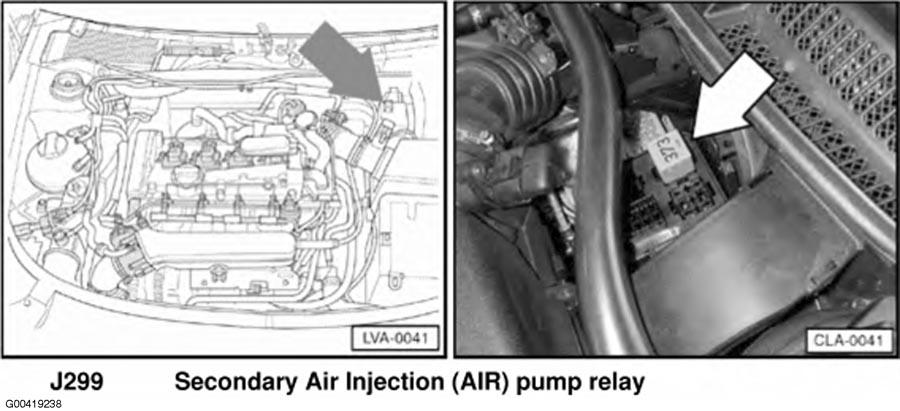

G00419238

Courtesy of AUDI OF AMERICA, INC.

Fig 160: Left Side Of Engine (3.2L)

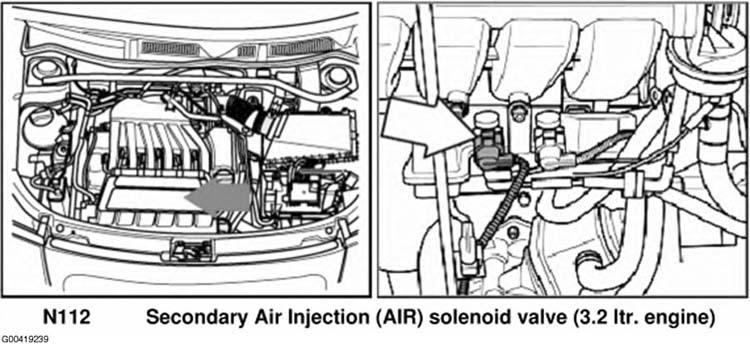

G00419239

Courtesy of AUDI OF AMERICA, INC.

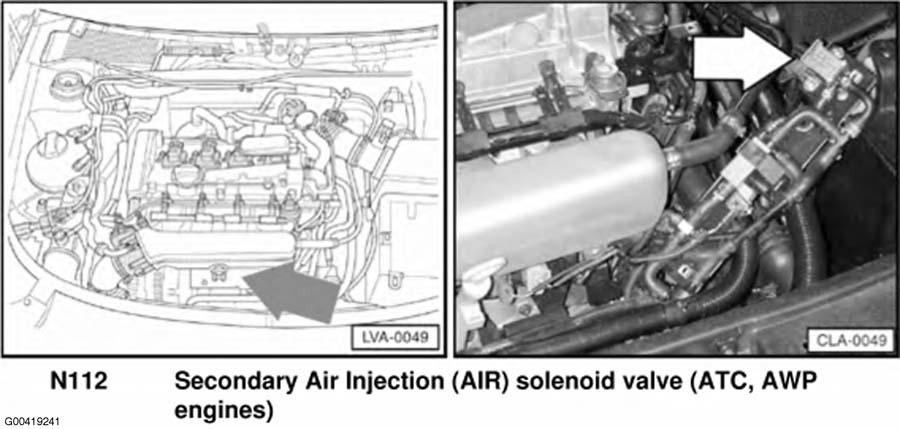

Fig 161: Left Side Of Engine

G00419241

Courtesy of AUDI OF AMERICA, INC.

Fig 162: Under Left Side Of Dash

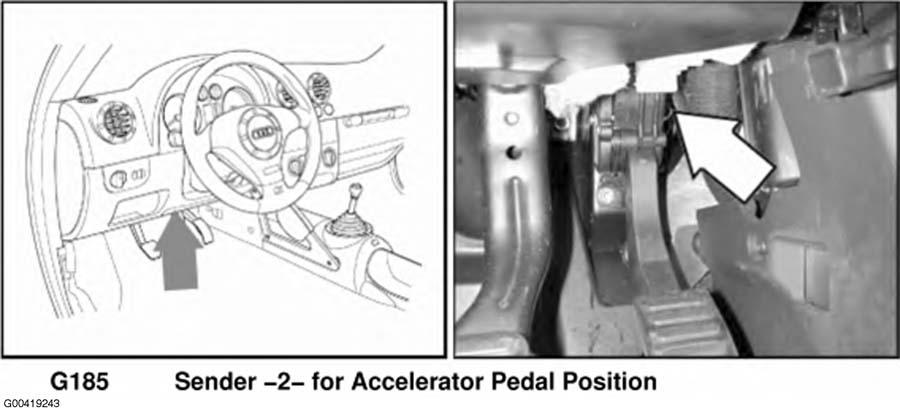

G00419243

Courtesy of AUDI OF AMERICA, INC.

Fig 163: Behind Left Side Of Dash

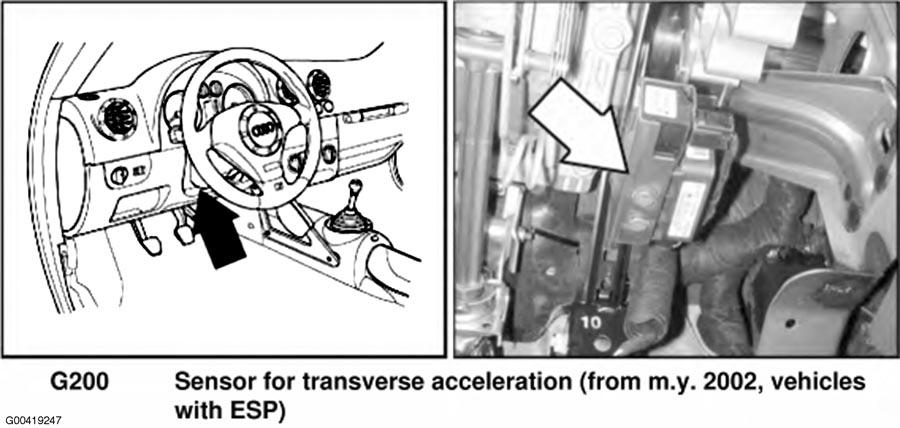

G00419247

Courtesy of AUDI OF AMERICA, INC.

Fig 164: Top Of Transmission

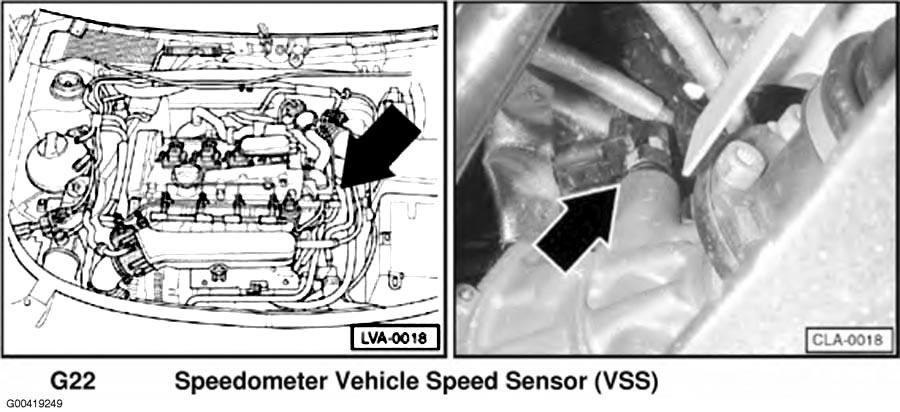

G00419249

Courtesy of AUDI OF AMERICA, INC.

Fig 165: Top Of Steering Column

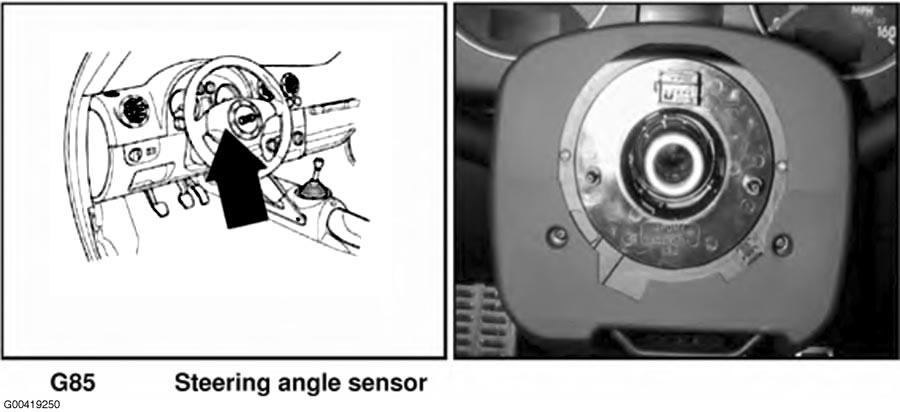

G00419250

Courtesy of AUDI OF AMERICA, INC.

Fig 166: Rear Of Trunk

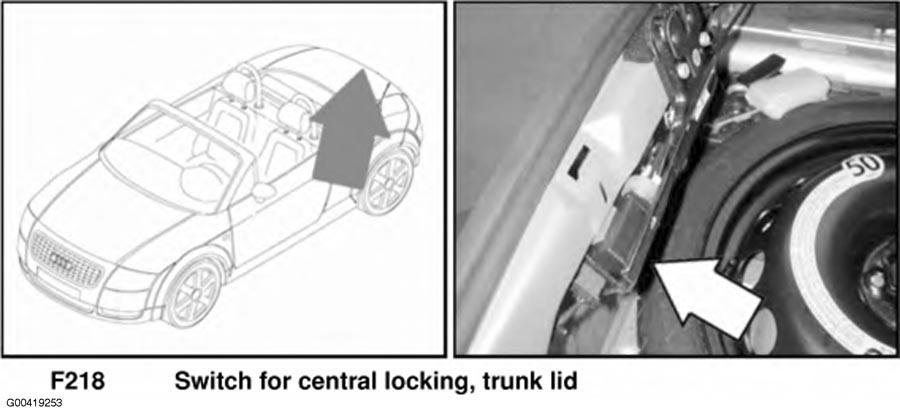

G00419253

Courtesy of AUDI OF AMERICA, INC.

Fig 167: Left Side Of Trunk

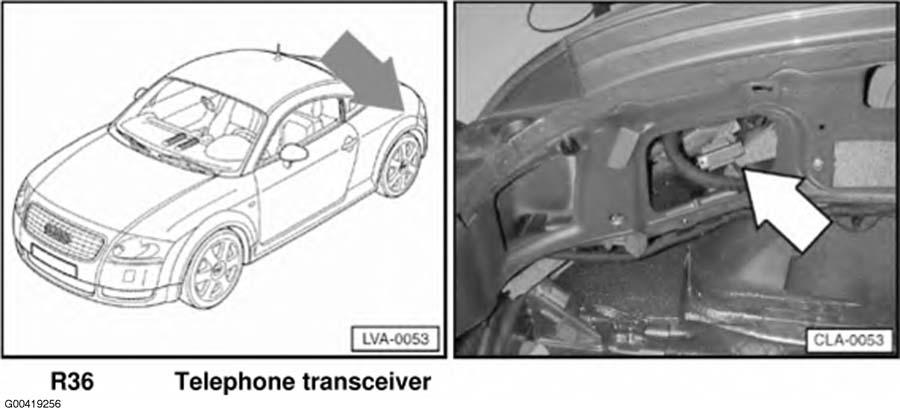

G00419256

Courtesy of AUDI OF AMERICA, INC.

Fig 168: Behind Center Of Dash

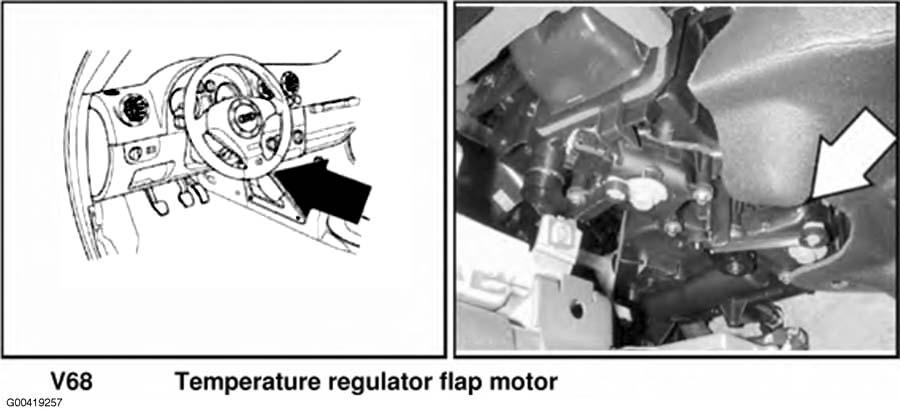

G00419257

Courtesy of AUDI OF AMERICA, INC.

Fig 169: Behind Center Of Dash

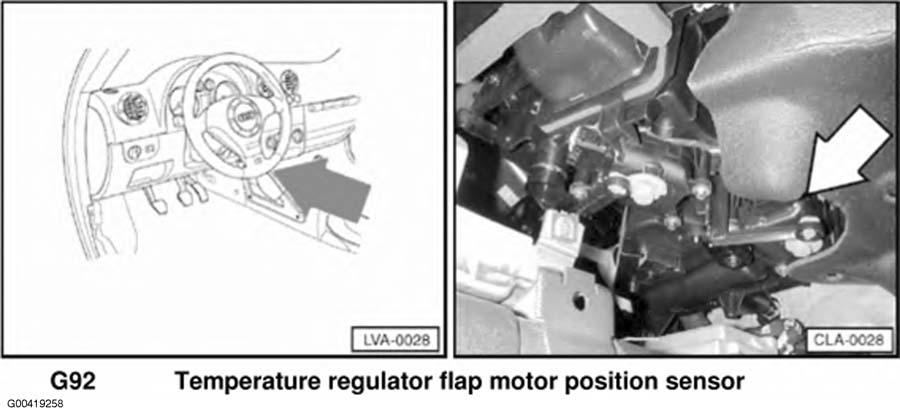

G00419258

Courtesy of AUDI OF AMERICA, INC.

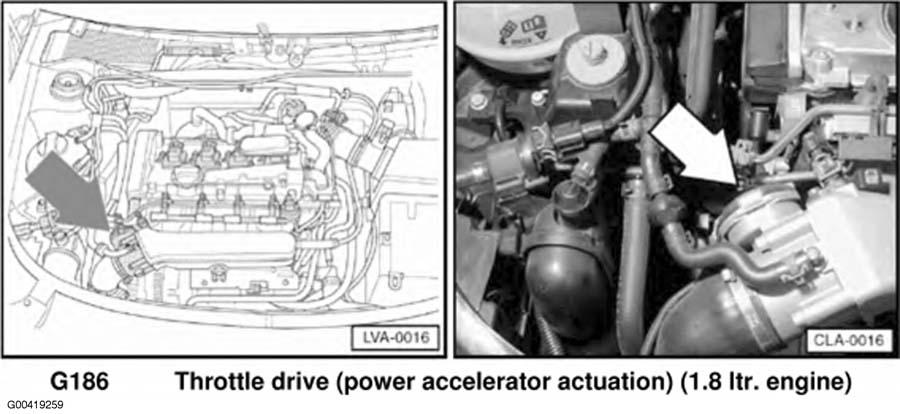

Fig 170: Right Side Of Engine Compartment (1.8L)

G00419259

Courtesy of AUDI OF AMERICA, INC.

Fig 171: Rear Of Engine Compartment (3.2L)

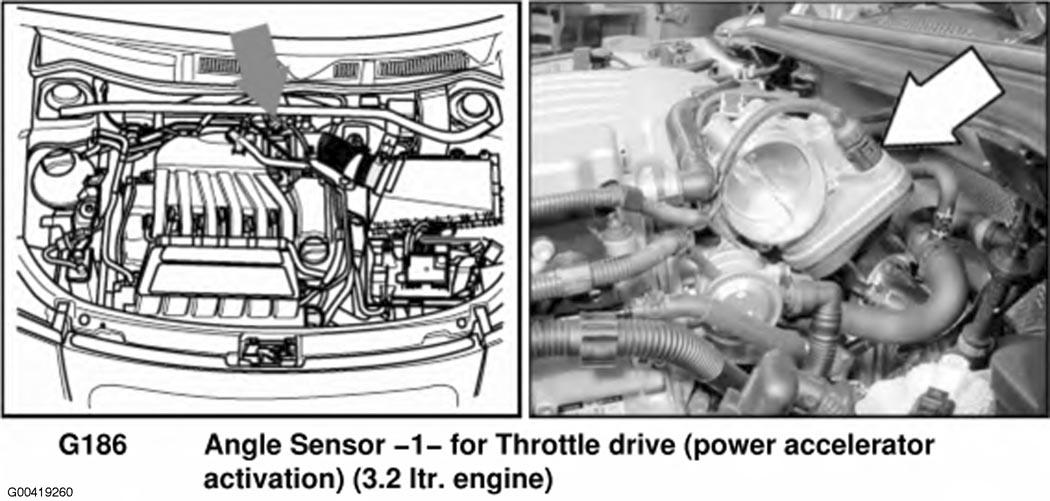

G00419260

Courtesy of AUDI OF AMERICA, INC.

Fig 172: Under Left Side Of Dash

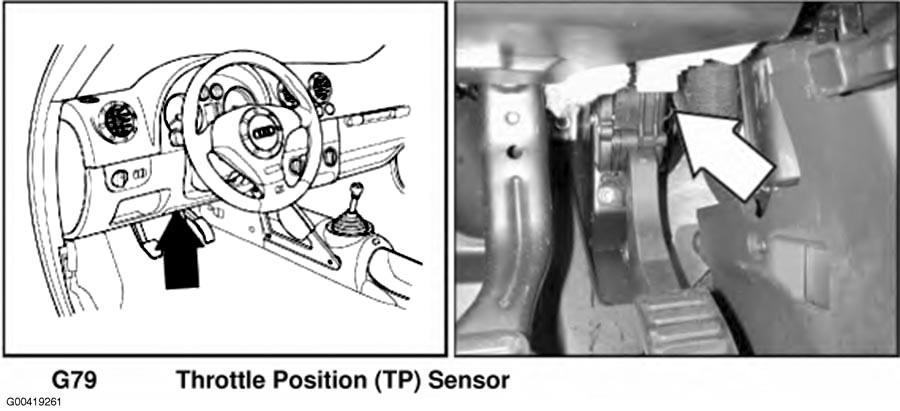

G00419261

Courtesy of AUDI OF AMERICA, INC.

Fig 173: Right Side Of Engine Compartment (1.8L)

G00419262

Courtesy of AUDI OF AMERICA, INC.

Fig 174: Rear Of Engine Compartment (3.2L)

G00419263

Courtesy of AUDI OF AMERICA, INC.

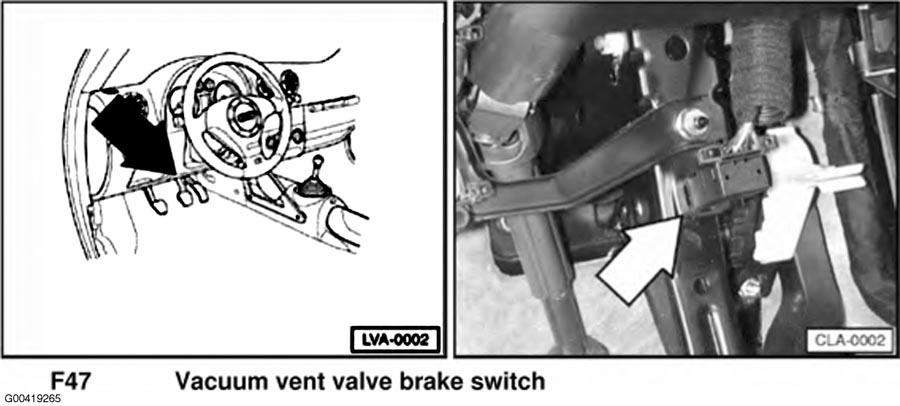

Fig 175: Under Left Side Of Dash

G00419265

Courtesy of AUDI OF AMERICA, INC.

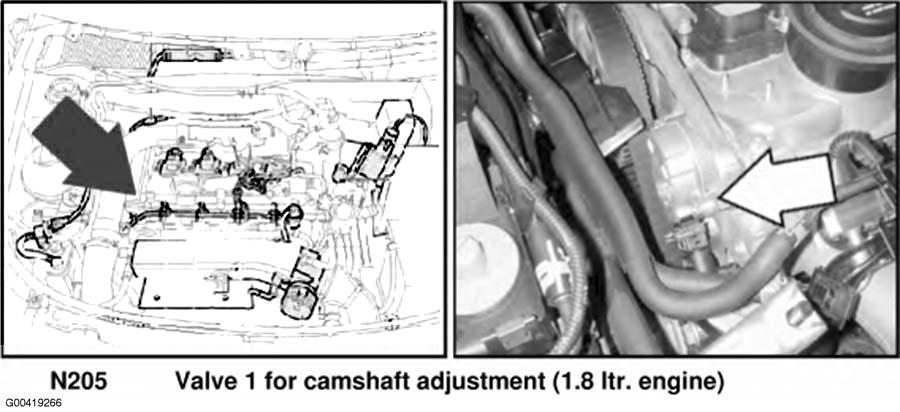

Fig 176: Front Of Engine (1.8L)

G00419266

Courtesy of AUDI OF AMERICA, INC.

Fig 177: Rear Of Engine (3.2L)

G00419267

Courtesy of AUDI OF AMERICA, INC.

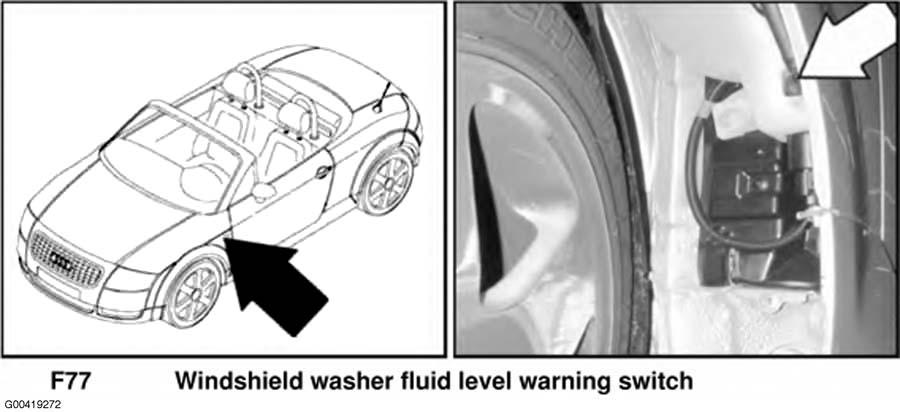

Fig 178: Left Front Wheel Well

G00419272

Courtesy of AUDI OF AMERICA, INC.

Fig 179: Left Front Wheel Well

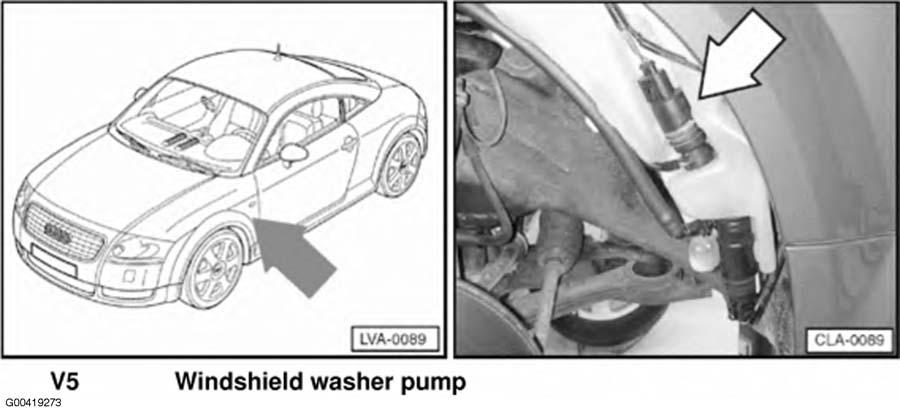

G00419273

Courtesy of AUDI OF AMERICA, INC.
