Anti-Lock Brake/Electronic Stabilization Program System At Front Axle Assembly Overview

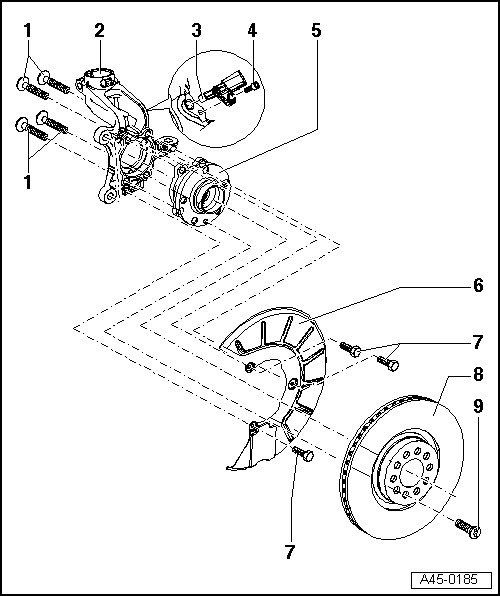

Fig 1: Anti-Lock Brake/Electronic Stabilization Program System At Front Axle Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Cap Bolt, refer to SPECIFICATIONS
2. Wheel Bearing Housing
3. Wheel Speed Sensor
   • Removing and installing, refer to SPEED SENSOR AT FRONT AXLE
   • Before inserting sensor, clean inner surface of hole and coat with grease G 000 650
4. Hex Socket Head Bolt
   • 8 Nm
5. Wheel Bearing Unit
   • Removing and installing, refer to Removal and Installation
6. Cover Plate
7. Bolt
   • Tightening specification -1- BRAKES, FS III ASSEMBLY OVERVIEW => Bolt
8. Brake Disc
   • Allocation, refer to BRAKES
9. Bolt
   • Tightening specification -3- BRAKES, FS III ASSEMBLY OVERVIEW => Bolt and -3- BRAKES, FN 3 ASSEMBLY OVERVIEW => Bolt
