Operating Electronics, Navigation Control Module Connectors And Connector Assignments

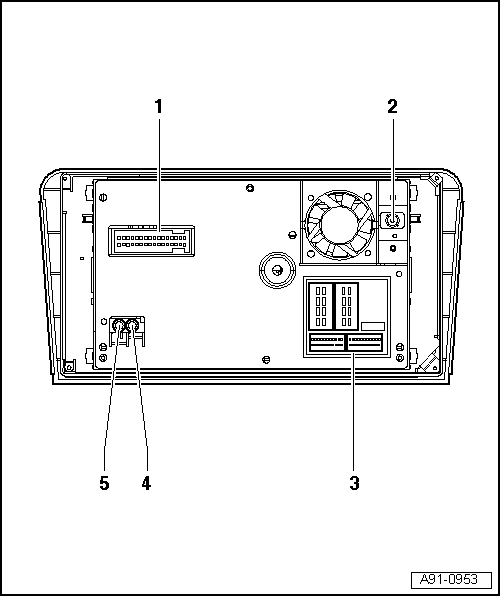

Fig 1: Identifying Navigation System With CD Drive Control Module J401, Harness Connectors

Courtesy of AUDI OF AMERICA, LLC

32-Pin Connector, Not Used
GPS Connection (Blue) from the Antenna -R11- (Ter/Sat/GPS/GSM)
Connection Block with Four Multi-Pin Connectors and a Fuse for Unit
ZF Connection (White) to the Left Antenna Module -R108-
HF Connection (White) from the Left Antenna Module -R108-

NOTE:

Unlisted connector terminals are not used.

1 - Multi-Pin Connector, 32-Pins (Not Used)

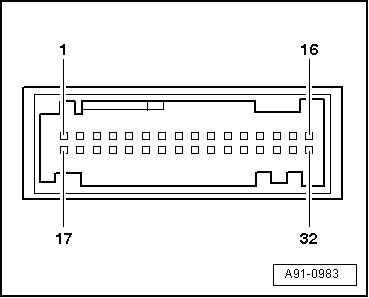

Fig 2: Identifying Black 32-Pin Multi-Pin Harness Connector (T32F)

Courtesy of AUDI OF AMERICA, LLC

13 - Right audio input

14 - Screen ground

15 - Video input sync.

16 - Green video input

19 - LF input (-)

20 - LF input (+)

28 - Audio ground

29 - Left video input

30 - Video ground

31 - Blue video input

32 - Red video input

A - 8-Pin Connector (T8p) Brown

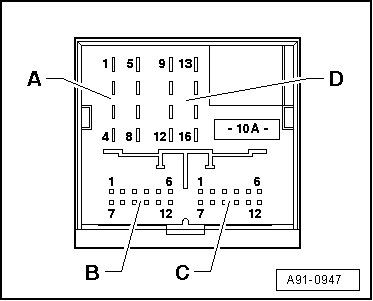

Fig 3: Identifying Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

2 - Right front speaker (+) (not with BOSE)

3 - Left front speaker (+) (not with BOSE)

6 - Right front speaker (-) (not with BOSE)

7 - Left front speaker (-) (not with BOSE)

B - 12-Pin Connector (T12l) Blue

Fig 4: Identifying Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

2 - Signal ground to CD Changer -R41- /Satellite Radio -R146-

3 - Speed signal (not used)

4 - Permanent positive to CD Changer

5 - K diagnostic (not used)

6 - CD data out to CD Changer

7 - BOSE coding to ground (only with BOSE)

8 - Left signal from CD Changer/Satellite Radio

9 - Right signal from CD Changer/Satellite Radio

10 - Positive switched to CD Changer

11 - CD data in from CD Changer

12 - CD CLK from CD Changer

C - 12-Pin Connector (T12m) Black

1 - Microphone input (-) from telephone microphone (from MY06)

2 - Signal from Back-Up Light Switch -F4- (not used)

3 - Left front signal to Amplifier (only with BOSE)

4 - Microphone output (-) to Telephone Transceiver -R36- (from MY06)

5 - Left rear signal to Amplifier/Woofer (in left rear luggage compartment) -R44- /Amplifier

6 - LF (-) from Telephone Transceiver/preliminary setup for cell phone package

7 - Microphone input (+) from Telephone Microphone -R38- (from MY06)

8 - Signal ground to Amplifier/Woofer (in left rear luggage compartment)/Amplifier

9 - Right front signal to Amplifier -R12- (only with BOSE)

10 - Microphone output (+) to Telephone Transceiver (from MY06)

11 - Right rear signal to Amplifier/Woofer (in left rear luggage compartment)/Amplifier

12 - LF (+) from Telephone Transceiver/preliminary setup for cell phone package

D - 8-Pin Connector (T16g) Black

Fig 5: Identifying Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

9 - CAN-Bus High (Infotainment)

10 - CAN-Bus Low (Infotainment)

11 - NF mute from telephone transceiver -R36- /preliminary setup for cell phone package

12 - Terminal 31

13 - Positive switched to Amplifier/Woofer (in left rear luggage compartment) -R44- /Amplifier -R12-

14 - Anti-theft warning system (not used)

15 - Terminal 30

16 - Permanent positive (not used)
