Steering Column Switch Module Overview

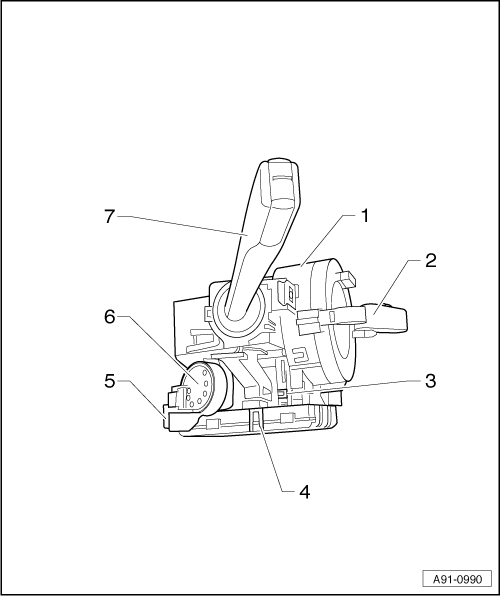

Fig 1: Identifying Steering Column Switch Module Assembly
GWWA91-0990Courtesy of AUDI OF AMERICA, LLC
  1. Airbag Spiral Spring
  2. Wiper Switch/On-Board Computer
  3. Steering Angle Sensor -G85-
  4. Steering Column Electronic Systems Control Module -J527-
  5. Black 20-Pin Connector (T20b) on Steering Column Electronic Systems Control Module -J527-
  6. Ignition/Starter Switch -D-
  7. Turn Signal Switch/Cruise Control Switch
